T2140 3000 cnc deep hole drilling and boring machine
- Category: >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (1188575153):
Product Overview
Description

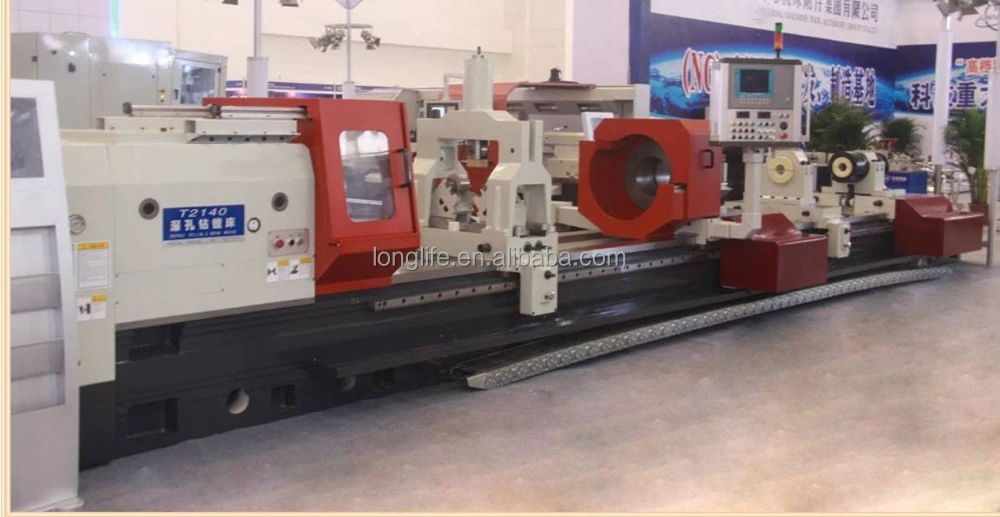

T2140-3000 cnc deep hole drilling and boring machine
Main usage
special-purpose machine for cylindrical deep hole workpiece;
it can finish the boring, chambering, rolling of the inner hole;
it can be made according to user's required inner diameter and depth of inner hole.
controllers: Fanuc, Siemens and so on;
Main Technical Data
Specifications | Unit | Parameter |
Max. Diameter of drilling hole | mm | 50~150 |
Max. boring diameter of workpiece | mm | 400 |
Max. Machining depth | mm | 1,000~3,000 |
Width of bed | mm | 800, 2 bedways |
Headstock | ||
Spindle bore | mm | 130 |
Spindle taper | mm | metric No 140; 1:20 |
Spindle speed | rpm | 5 ~650, 2 steps, |
Boring headstock | ||
Spindle speed | rpm | 5 ~ 650, 2steps, |
Feed system | ||
Controller system |
| Siemens 828/D |
Main motor | kw | AC 75 |
Motor for drilling headstock | kw | 75 |
Servo motor for boring | nm | 40 |
Coolant motor | kw | 90 |
Rated pressure of coolant system | mpa | 0 ~3 |
Flow of coolant system | l/min | 100~ 800 |
Motor for hydraulic pump | kw | 1.5 |
Rated pressure of hydralic system | mpa | 0-6.3 |
Roughness of drilling & boring | μm | ra ≤ 3.2 |
Working environment | ||
Power supply |
| According to user’s requirements |
Temperature | ℃ | 0~40 |
Relative humidity |
| ≤90% |
Free Std Accessories
Optional Accessories
Pls send inquiry to me for optioanl accessories and other further information about such cnc deep hole drilling and boring machine.
Real Photos:
Ready to delivery for Turkey Customer
