Oil screw Gear Pump gasoline/diesel/kerosene pumps
- Category: >>>
- Supplier: Shanghai Cowell Machinery Co. Ltd.
Share on (1189979002):
Product Overview
Description

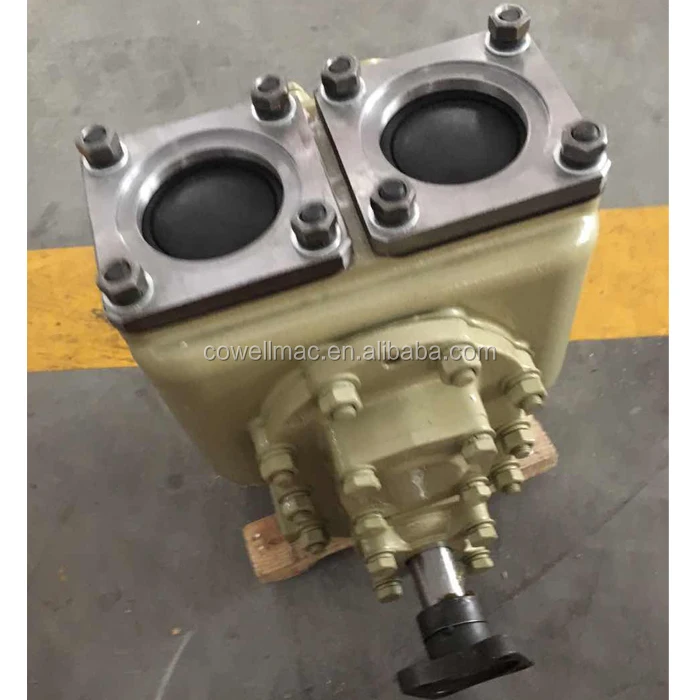

Oil screw Gear Pump
YPG-50 | Characteristics
YGP Series screw gear pump use two screw gears to transfer various viscous and volatile liquids but no solid granuals, such as gasoline, diesel, kerosene, and lubricated oil etc. with advantage of compact size,
The pump is equipped with relief valve. It is an ideal pump for tax fuel vehicles, oil tank trucks and also transportation of other vapor-liquid mixture liquids etc..
Surge-controlled pump, the latest model of oil pump, is equipped with self-regulating valve, which can regulate the pressure of inner pump. |
Technical Specification | |||
Model | YGP-50 | YGP-80A | YGP-80B |
Size | 2" | 3" | 3" |
Flow Rate | 300L/Min | 1000L/Min | 1000L/Min |
Delivery Head | 30M | 60M | 60M |
Suction Head | 5M | 7M | 7M |
Speed Range | 700-1250RPM | ||
Rated Speed | 960RPM | ||
Working Pressure | 0-0.3Mpa | 0-0.5Mpa | |
Bypass Valve | Yes | No | Yes |
Material | Aluminum | Aluminum/Iron | Iron |
Motor Power | 2.2Kw | 11Kw | 11Kw |
 | ||
| Warranty: the product is guaranteed for 12 months from the date of delivery under normal condition. | Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality; | We provide paid repair services for products damages not arising from manufacturing quality issues or not within the scope of warranty. |
