Automatic Hydraulic mechanic punching press

Product Overview

Description

Automatic punching press

Punching machine,eccentric press,Hydraulic punching press,different type,different tonnage for punching,cutting, stretching,etc.







Feature of automatic punching press

1. Import the advanced technology from LOSA, Italy, suitable for puching, bending, drawing, ect pressing work.


2. The main body is welded constructed from high rigidity steel plate, afford heavy loading with less distortion.


3. The ram stroke is adjustable in eight station for different moulds working.


4. Guiding in eight face with long guide rail, to ensure ram move in high precision.


5. Combined dry-type clutch, moving stable and less noise.


6. Equipped with hydraulic overload protection device, to make sure the machine parts and mould well.


7. With digital control system, can match up with kinds of automatic production line


8. Equipped with emergency stop, short-moving, single/continuous operation.

Main technical data of automatic punching press

1	Nominal force	630kN
2	Stroke under nominal force	4mm
3	Ram stroke	10-150mm
4	Number of stroke	60-80 times per minute
5	Max. die set height	300mm
6	Die set height adjustment	80mm
7	Throat depth	300mm
8	Worktable dimension	900 x 580mm
9	Bore size on the worktable	Ø200 x 40 x Ø180 mm
10	Thickness of worktable	110mm
11	Distance between columns	620mm
12	Main driving motor power	7.5kW
13	Dimension of this machine	1680 x 1200 x 3050mm
14	Machine weight	6500kg

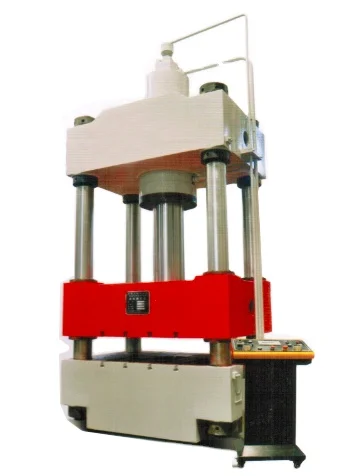

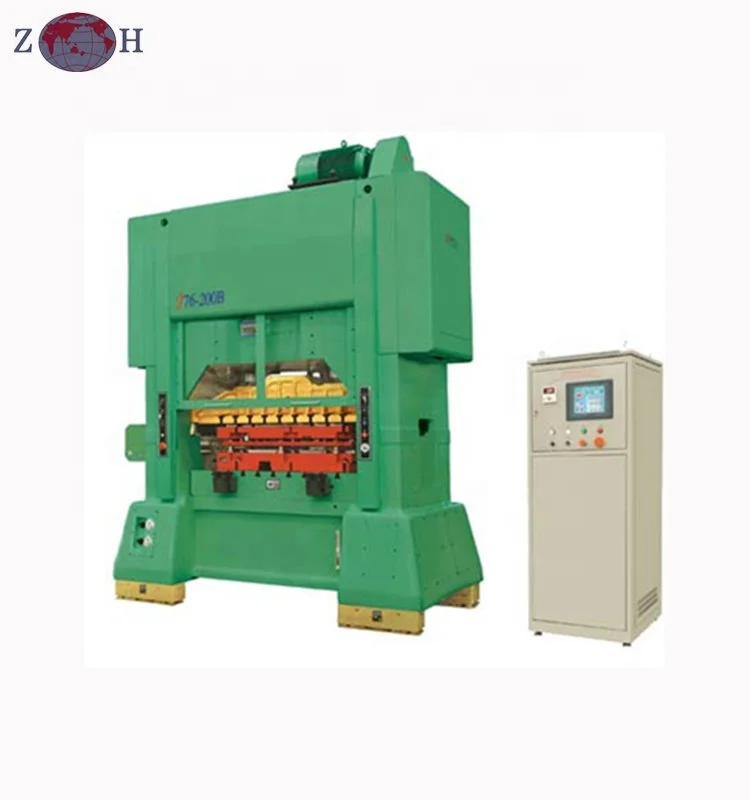

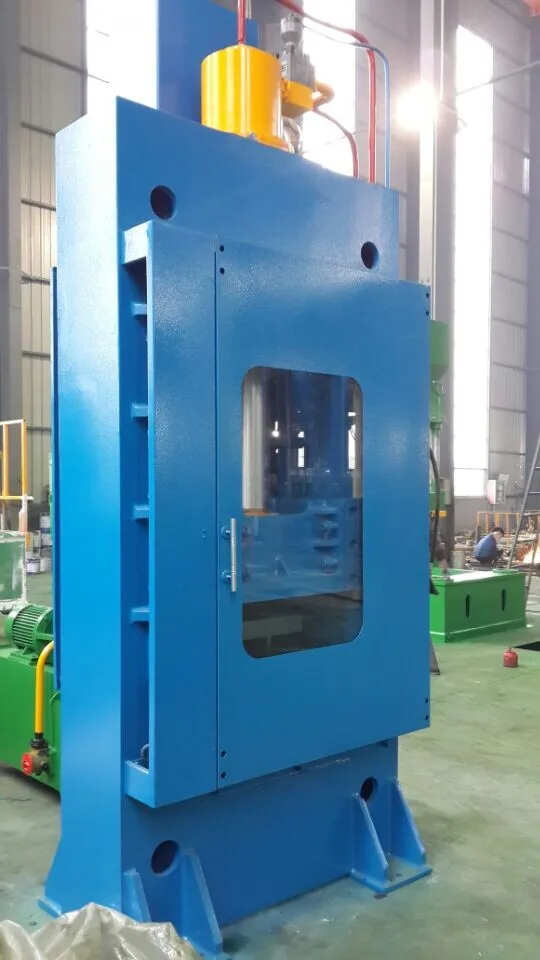

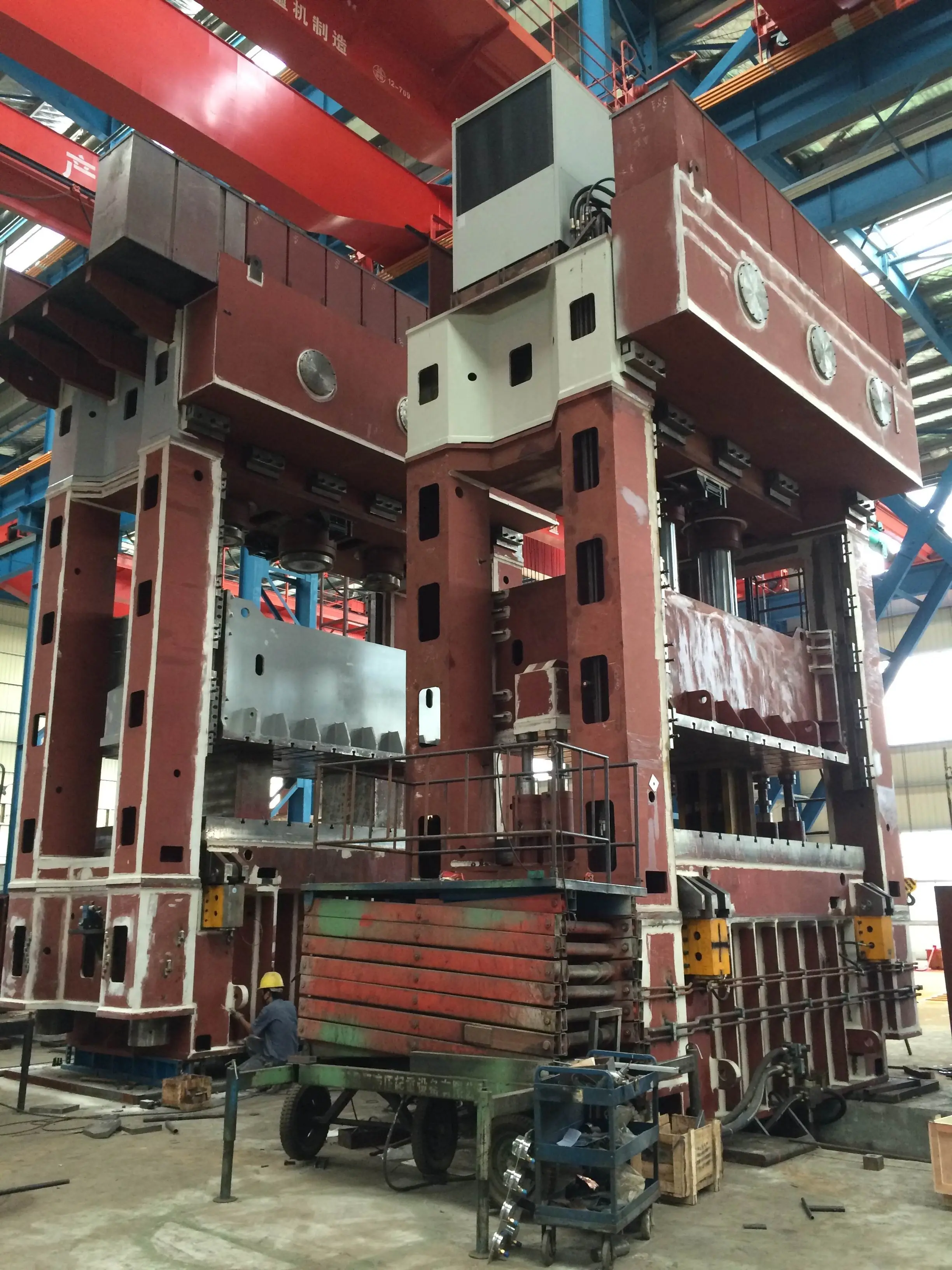

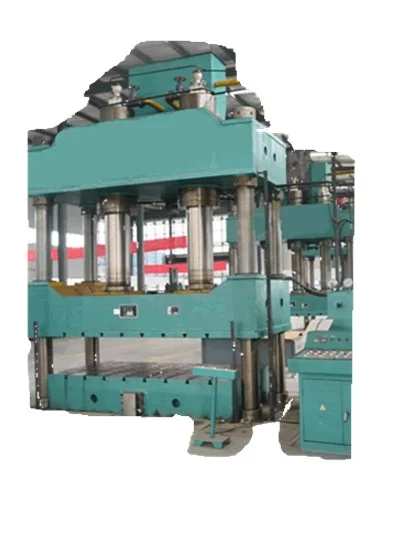

Some photos of automatic punching machine
