1.2mm E309LMoT0 1 welding wire

Product Overview

Description

Stainless Steel Flux Cored Wire



SPECIFICATIONS

AWS 5.22





CLASSIFICATIONS

E309LMoT0-1



E309LMOT0-1is designed for welding type 309 wrought, or cast forms, but used extensively for welding type 304 to mild or carbon steel.



This flux cored wire is also for welding 304 clad sheets and for applying stainless steel sheet linings to carbon steel. Maximum carbon content
allowed is 0.04%.



E309LMOT0-1 was developed for out-of-position welding. This flux cored wire
will deposit out-of-position welds at substantially higher welding currents than other stainless steel flux cored wires, resulting in a higher deposition rate. The slag is selfpeeling and minimizes cleanup.



E309LMOT0-1 was formulated for use with 75% Argon/25% CO² shielding gas; however, straight CO² may also be used. The 75/25 mixture will produce a smooth arc with virtually no spatter and slightly higher yield and tensile strengths than CO². The mechanical properties and deposit analysis
will meet AWS 5.22 specifications with either gas.





Packing:

spool+carton+pallet

One spool is vacuum packed by aluminum film and then one carton









Chemical composition of deposited metal(%)
C		Mn	Si	S	P	cr	Ni	MO
0.032		1.16	0.58	0.012	0.019	21.5	12.3	2.3



Mechanical Properties of Deposited Metal:



TensileStrength:580MPA,Elongation:32%



Shielding Gas:CO2 or75% Ar+CO2

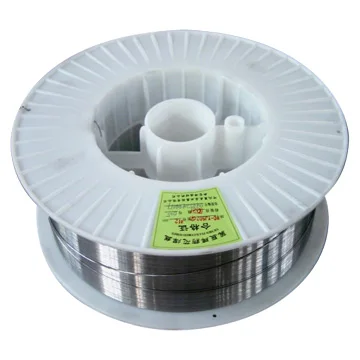

Stainless steel flux-cored wire
a.all position capability
b.Low fume&spatter.
c.good slag removabilty
d.less operater skill
