PMI Linear Block Bearing MSC9M,MSC9LM,MSC9

Product Overview

Description

PMI linear block bearing features



1. High positioning accuracy, high repeatability

2. Low frictional resistance, high precision maintained for long period

3. High rigidity with four-way load design

4. Suitable for high speed operation

5. Easy installation with interchangeability



PMI linear block bearing model number



linear block bearings,PMI linear bearings,linear block ,bearing linear block





	External dimension					Carriage dimension		Rail dimension			Weight
	Height	Width	Length					Width	Height	Pitch	Carriage	Rail
ModelNo.	H	W	L	W2	H2	B	C	W1	H1	P	kg	kg/m
MSC7M	8	17	23.6	5	1.5	12	8	7	4.7	15	13	0.22
MSC7LM			33.1				13				18
MSC9M	10	20	31.1	5.5	2.2	15	10	9	5.5	20	29	0.33
MSC9LM			41.3				16				39
MSC12M	13	27	34.6	7.5	3	20	15	12	7.5	25	40	0.63
MSC12LM			47.6				20				60
MSC15M	16	32	43.5	8.5	4	25	20	15	9.5	40	71	1.02
MSC15LM			60.5				25				100



PMI linear block bearing series



1.MSA series : MSA-A/MSA-LA,MSA-E/MSA-LE,MSA-S/MSA-LS

MSA 15A	MSA 20A	MSA 20LA	MSA 25A	MSA 25LA	MSA 30A	MSA 30LA	MSA 35A	MSA 35LA	MSA 45A
MSA 45LA	MSA 15E	MSA 20E	MSA 20LE	MSA 25E	MSA 25LE	MSA 30E	MSA 30LE	MSA 35E	MSA 35LE
MSA 45E	MSA 45LE	MSA 55E	MSA 55LE	MSA 65E	MSA 65LE	MSA 15S	MSA 20S	MSA 20LS	MSA 25S
MSA 25LS	MSA 30S	MSA 30LS	MSA 35S	MSA 35LS	MSA 45S	MSA 45LS	MSA 55S	MSA 55LS	MSA 65S



2.MSB series: MSB-TE/MSB-E,MSB-TS/MSB-S

MSB 15TE	MSB 15E	MSB 20TE	MSB 20E	MSB 25TE	MSB 25E	MSB 30TE	MSB 30E	MSB 15TS	MSB 15S
MSB 20TS	MSB 20S	MSB 25TS	MSB 25S	MSB 30TS	MSB 30S	MSB 35S	MSB 35LS



3.MSR series: MSR-E/MSR-LE,MSR-S/MSR-LS

MSR 25E	MSR 25LE	MSR 30E	MSR 30LE	MSR 35E	MSR 35LE	MSR 45E	MSR 45LE	MSR 55E	MSR 55LE	MSR 65LE
MSR 25S	MSR 25LS	MSR 30S	MSR 30LS	MSR 35S	MSR 35LS	MSR 45S	MSR 45LS	MSR 55S	MSR 55LS	MSR 65LS



4.MSC series: MSC-M/MSC-LM

MSC 7M

MSC 7LM

MSC 9M

MSC 9LM

MSC 12M

MSC 12LM

MSC 15M

MSC 15LM



5.SME series: SME-EA/SME-LEA,SME-EB/SME-LEB,SME-SA/SME-LSA,SME-SB/LSB SME-SV/LSV

SME 15EA	SME 15LEA	SME 20EA	SME 20LEA	SME 25EA	SME 25LEA	SME 30EA	SME 30LEA	SME 35EA	SME 35LEA
SME 45EA	SME 45LEA	SME 15EB	SME 15LEB	SME 20EB	SME 20LEB	SME 25EB	SME 25LEB	SME 15SA	SME 15LSA
SME 20SA	SME 20LSA	SME 25SA	SME 25LSA	SME 30SA	SME 30LSA	SME 35SA	SME 35LSA	SME 45SA	SME 45LSA
SME 15SB	SME 15LSB	SME 20SB	SME 20LSB	SME 25SB	SME 25LSB	SME 25SV	SME 25LSV	SME 30SB	SME 30LSB
SME 35SB	SME 35LSB	SME 45SB	SME 45LSB	SME 15SB	SME 15LSB	SME 20SB	SME 20LSB	SME 25SB	SME 25LSB
SME 25SV	SME 25LSV	SME 30SB	SME 30LSB	SME 35SB	SME 35LSB	SME 45SB	SME 45LSB



6.SMR series: SMR-E/SME-LE,SMR-S/SME-LS

SMR 25E	SMR 25LE	SMR 30E	SMR 30LE	SMR 35E	SMR 35LE	SMR 45E	SMR 45LE	SMR 55E	SMR 55LE	SMR 65LS
SMR 65LE	SMR 25S	SMR 25LS	SMR 30S	SMR 30LS	SMR 35S	SMR 35LS	SMR 45S	SMR 45LS	SMR 55S	SMR 55LS

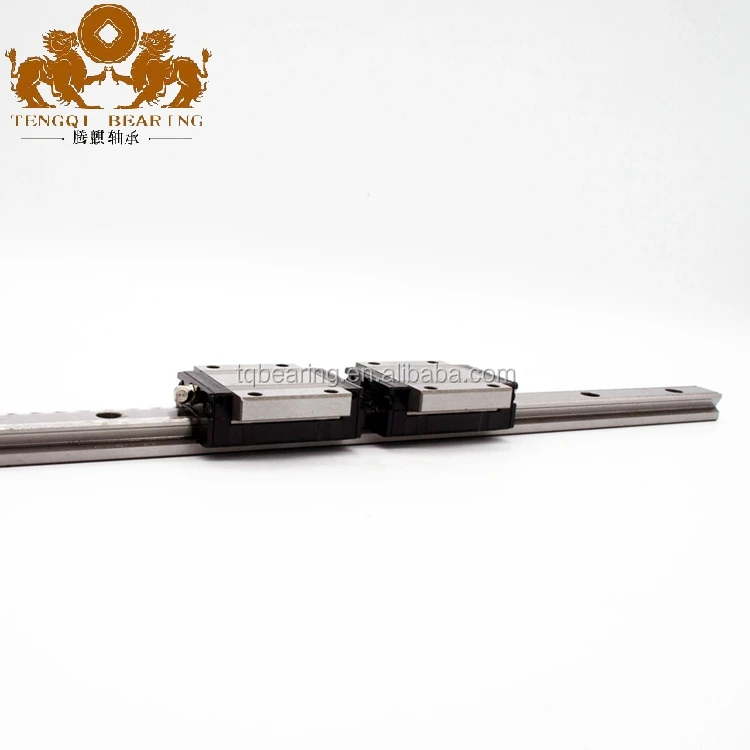

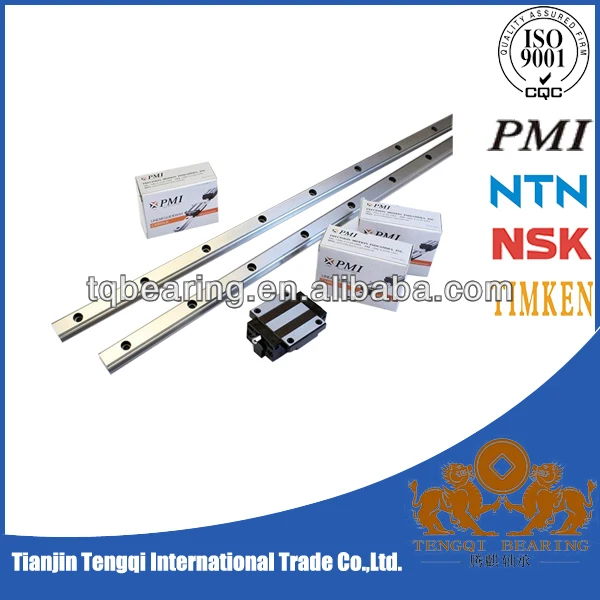

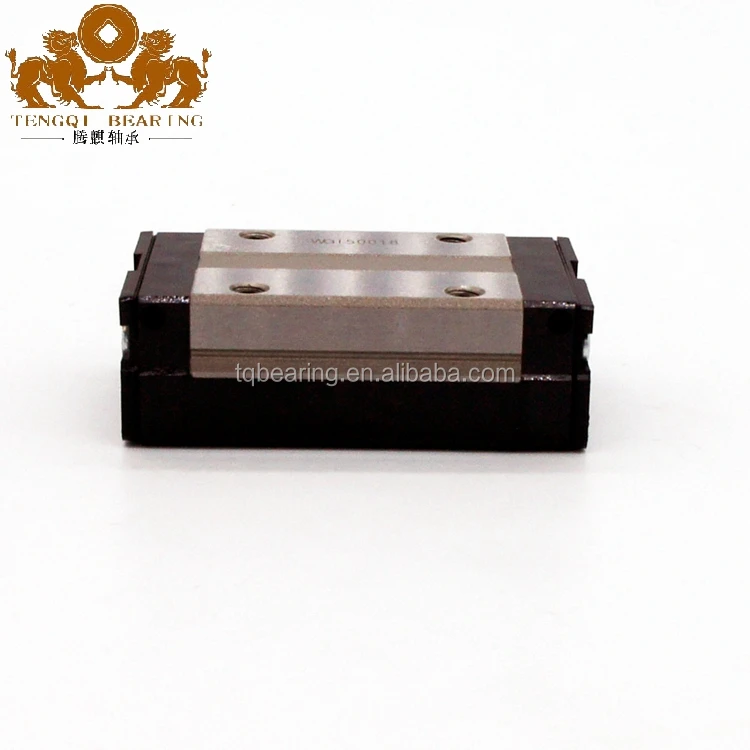

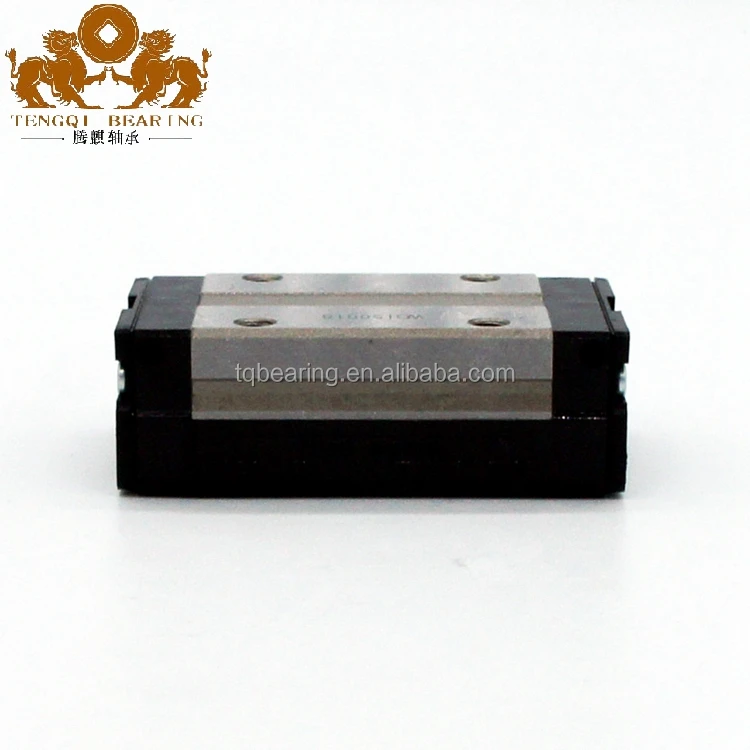

PMI linear block bearing pictures





Most of PMI linear block bearing model number are in stock, if interested in us, contact with me
