PMI ball bearing linear block model number

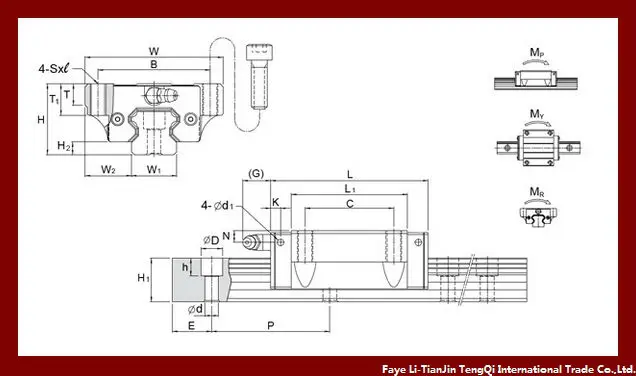

| External dimension | Carriage dimension | Rail dimension | Weight | |||||||||
| Height | Width | Length | Width | Height | Pitch | Carriage | Rail | |||||
| ModelNo. | H | W | L | W2 | H2 | B | C | W1 | H1 | P | kg | kg/m |
| MSB15TS | 24 | 34 | 40 | 9.5 | 4.5 | 26 | - | 15 | 12.5 | 60 | 0.09 | 1.2 |
| MSB15S | 57 | 26 | 0.16 | |||||||||
| MSB20TS | 28 | 42 | 48 | 11 | 6 | 32 | - | 20 | 15 | 60 | 0.16 | 2 |
| MSB20S | 67 | 32 | 0.26 | |||||||||
| MSB25TS | 33 | 48 | 60.2 | 12.5 | 7 | 35 | - | 23 | 18 | 60 | 0.29 | 3 |
| MSB25S | 82 | 35 | 0.45 | |||||||||
| MSB30TS | 42 | 60 | 68 | 16 | 9.5 | 40 | - | 28 | 23 | 80 | 0.52 | 4.4 |
| MSB30S | 96.7 | 40 | 0.86 | |||||||||
| MSB35S | 48 | 70 | 112 | 18 | 9.5 | 50 | 50 | 34 | 27.5 | 80 | 1.13 | 6.2 |
| MSB35LS | 137.5 | 72 | 1.49 | |||||||||
PMI ball beearing linear bearing block series
1.MSA series : MSA-A/MSA-LA,MSA-E/MSA-LE,MSA-S/MSA-LS
| MSA 15A | MSA 20A | MSA 20LA | MSA 25A | MSA 25LA | MSA 30A | MSA 30LA | MSA 35A | MSA 35LA | MSA 45A |
| MSA 45LA | MSA 15E | MSA 20E | MSA 20LE | MSA 25E | MSA 25LE | MSA 30E | MSA 30LE | MSA 35E | MSA 35LE |
| MSA 45E | MSA 45LE | MSA 55E | MSA 55LE | MSA 65E | MSA 65LE | MSA 15S | MSA 20S | MSA 20LS | MSA 25S |
| MSA 25LS | MSA 30S | MSA 30LS | MSA 35S | MSA 35LS | MSA 45S | MSA 45LS | MSA 55S | MSA 55LS | MSA 65S |
2.MSB series: MSB-TE/MSB-E,MSB-TS/MSB-S
| MSB 15TE | MSB 15E | MSB 20TE | MSB 20E | MSB 25TE | MSB 25E | MSB 30TE | MSB 30E | MSB 15TS | MSB 15S |
| MSB 20TS | MSB 20S | MSB 25TS | MSB 25S | MSB 30TS | MSB 30S | MSB 35S | MSB 35LS |
3.MSR series: MSR-E/MSR-LE,MSR-S/MSR-LS
| MSR 25E | MSR 25LE | MSR 30E | MSR 30LE | MSR 35E | MSR 35LE | MSR 45E | MSR 45LE | MSR 55E | MSR 55LE | MSR 65LE |
| MSR 25S | MSR 25LS | MSR 30S | MSR 30LS | MSR 35S | MSR 35LS | MSR 45S | MSR 45LS | MSR 55S | MSR 55LS | MSR 65LS |
4.MSC series: MSC-M/MSC-LM
| MSC 7M | MSC 7LM | MSC 9M | MSC 9LM | MSC 12M | MSC 12LM | MSC 15M | MSC 15LM |
5.SME series: SME-EA/SME-LEA,SME-EB/SME-LEB,SME-SA/SME-LSA,SME-SB/LSB SME-SV/LSV
| SME 15EA | SME 15LEA | SME 20EA | SME 20LEA | SME 25EA | SME 25LEA | SME 30EA | SME 30LEA | SME 35EA | SME 35LEA |
| SME 45EA | SME 45LEA | SME 15EB | SME 15LEB | SME 20EB | SME 20LEB | SME 25EB | SME 25LEB | SME 15SA | SME 15LSA |
| SME 20SA | SME 20LSA | SME 25SA | SME 25LSA | SME 30SA | SME 30LSA | SME 35SA | SME 35LSA | SME 45SA | SME 45LSA |
| SME 15SB | SME 15LSB | SME 20SB | SME 20LSB | SME 25SB | SME 25LSB | SME 25SV | SME 25LSV | SME 30SB | SME 30LSB |
| SME 35SB | SME 35LSB | SME 45SB | SME 45LSB | SME 15SB | SME 15LSB | SME 20SB | SME 20LSB | SME 25SB | SME 25LSB |
| SME 25SV | SME 25LSV | SME 30SB | SME 30LSB | SME 35SB | SME 35LSB | SME 45SB | SME 45LSB |
6.SMR series: SMR-E/SME-LE,SMR-S/SME-LS
| SMR 25E | SMR 25LE | SMR 30E | SMR 30LE | SMR 35E | SMR 35LE | SMR 45E | SMR 45LE | SMR 55E | SMR 55LE | SMR 65LS |
| SMR 65LE | SMR 25S | SMR 25LS | SMR 30S | SMR 30LS | SMR 35S | SMR 35LS | SMR 45S | SMR 45LS | SMR 55S | SMR 55LS |

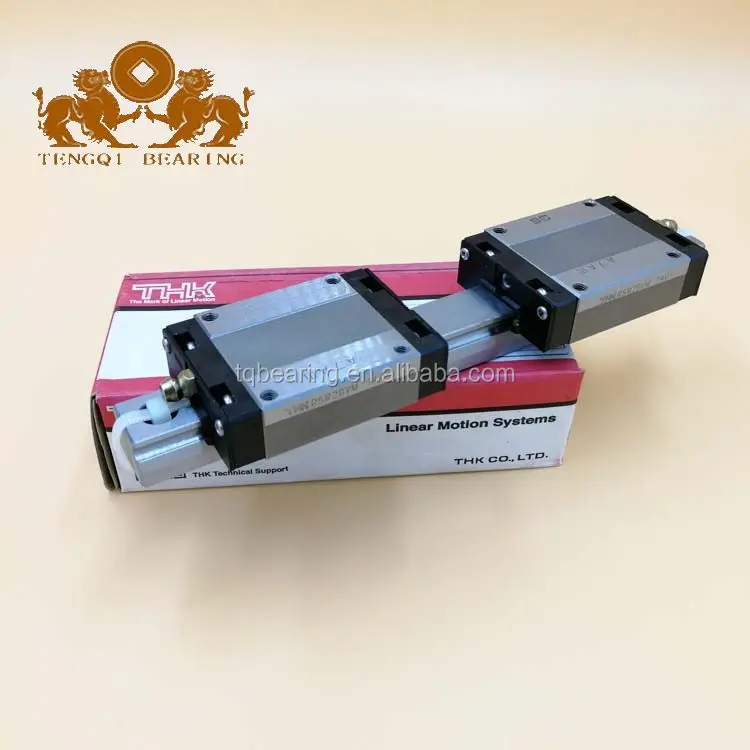

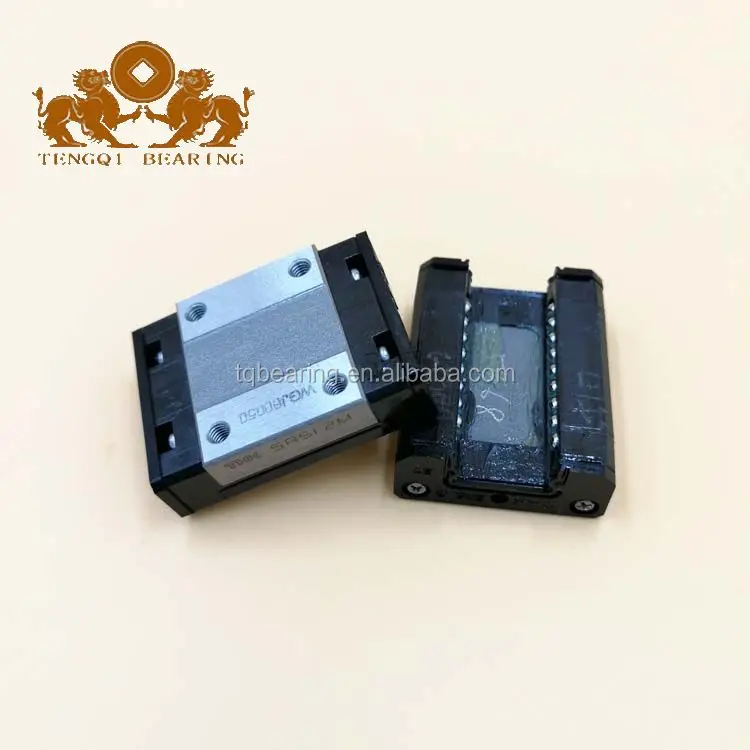

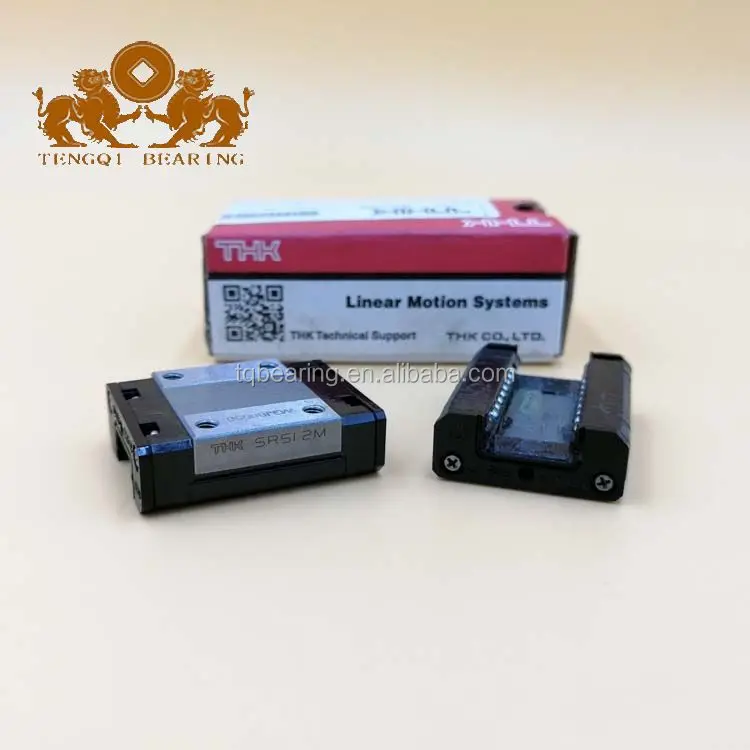

PMI ball bearing linear block pictures


Our payment terms
1.100% Western Union or Paypal in advance ,specially for small amount
2.100% T/T or western union in advance for small quantity order
3.30%-50% T/T in advance, balance before shipment for large order or long delivery time orders
4.100% irrevocable L/C at sight
Our package and warehouse
1.individual poly bag +box packing
2.poly bag + individual box +carton+ woven bag
3.poly bag + box +wooden case
4.plastic package +wooden case
5.as your requirement

Our shipping terms
1.small quantity, can delivery by global express: DHL TNT FedEx ARAMEX EMS UPS. this is door to door.
2.large quantity, can delivery by air, by sea, this is port to port.

Our bearing type
· Deep groove ball bearing:60,62,63,64,67,68,69,160 series
· Angular contact ball bearing:single row, double row,high precision
· Self-aligning ball bearing:12,13,14,22,23 series
· Thrust ball bearing:511,512,513,514 series
· Spherical roller bearing:213,223,222,223,230,240,231series
· Cylindrical roller bearing: N,NH,NF,NJ,NUH,EG,NN,NNU series
· Taper roller bearing:30,31,32,33,LM,HM series
· Needle roller bearing:K,K-TN,K-ZW series
· Linear guide rail block bearing:LR,SHS,SSR,SHW,SRS,HSR HRW series
· Linear bush bearing:LM,LME,LMF,LMK,LMH,SC,SL,SK series
· Eccentric bearing:15UZ,22UZ,25UZ,60UZ,65UZ,607,610 series
· Adapter sleeve:H,AH series
· Slewing bearing:01,02,11,13 series
