Product Overview

Description

1. Product Description

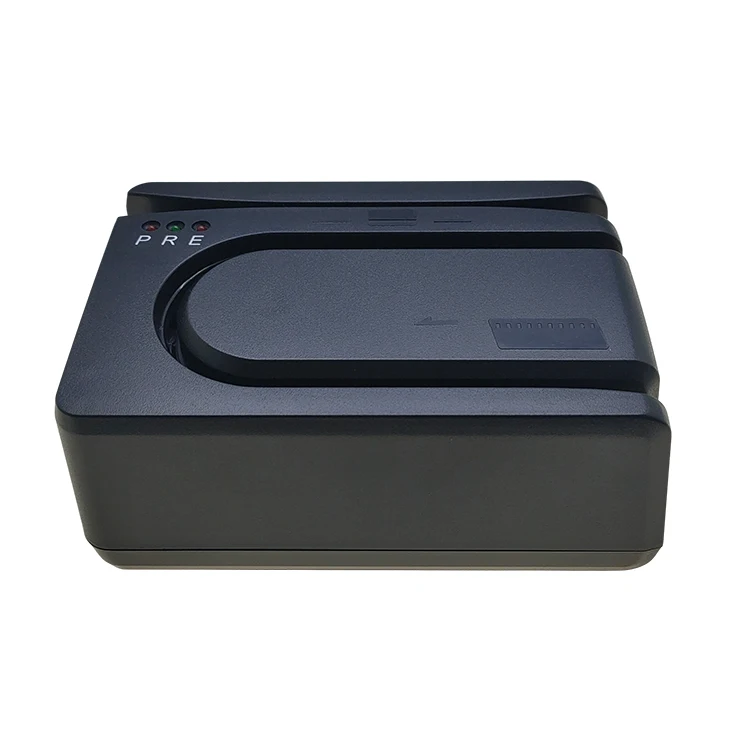

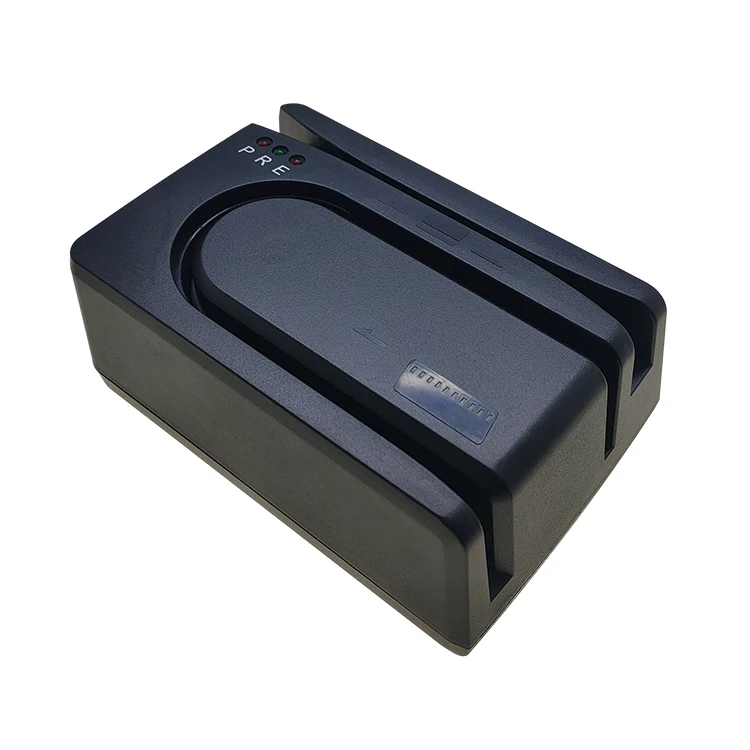

The MICR1250 multi-functional MICR (Magnetic Ink Character Recognition) reader integrates check reading and magnetic card reading, which is a new generation of financial industry application product developed by our company under the platform of ARM Cortex M1. It has the characteristics of fast recognition, high recognition efficiency and easy to use. This product can be used with computer or terminal equipment, mainly used for the front or back office business of Banks or other financial institutions, to provide the signal reading of magnetic notes and magnetic CARDS.

2. Functions and Features

• Compact size, horseshoe shape.
• Secure/reliable reading, good reading accurate rate, single sheet feeding in one time.

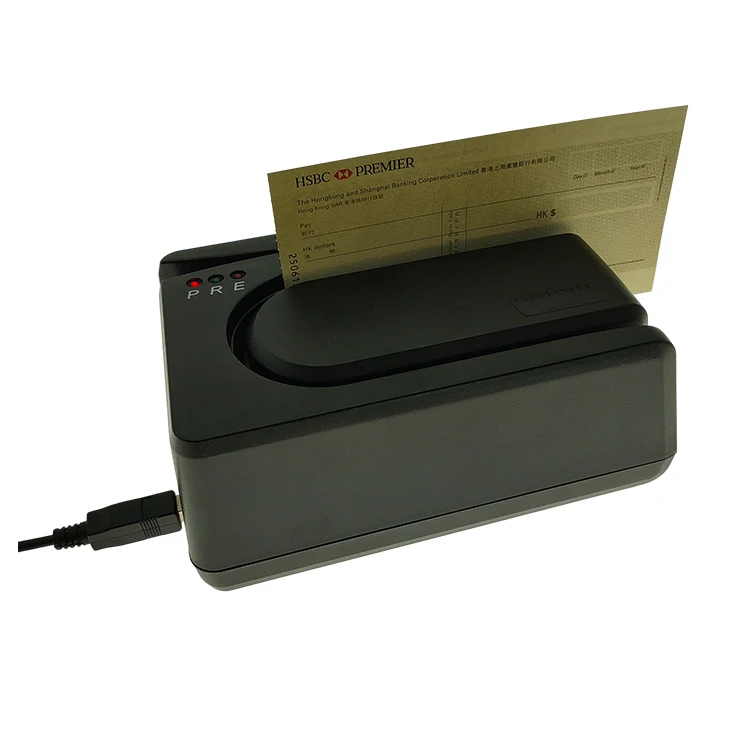

• Motorized paper transport for quick, easy check handling.

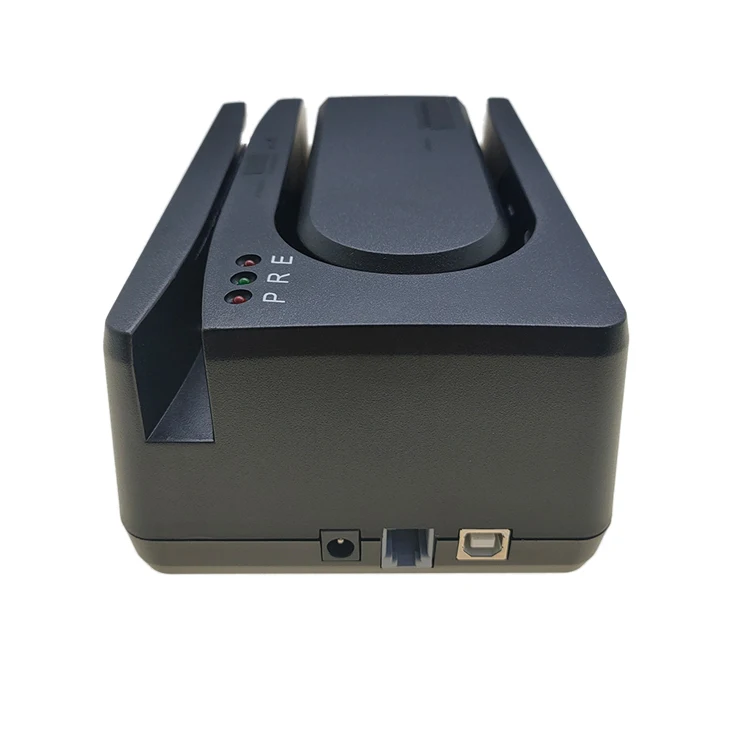

• Interface: RS232, PS/2, USB (HID, Keyboard or Virtual COM).

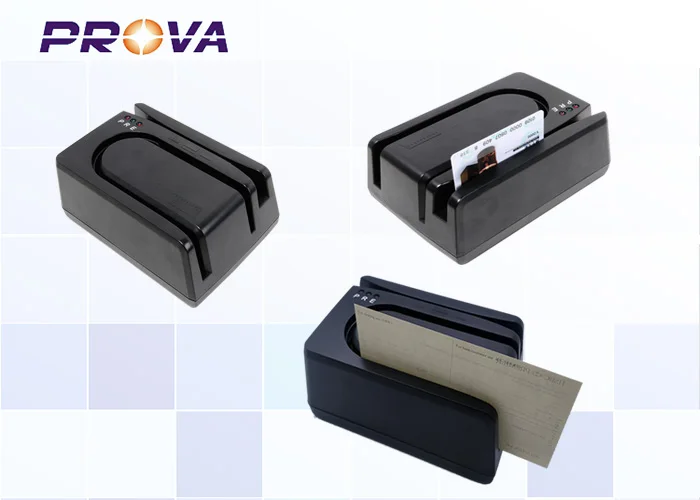

• Integrated Magstrip card reader, dual or triple tracks.
• Applicable to many operating systems: WINDOWS, Linux, Unix, Mac OS, etc.
• Easy Firmware update.
• Support firmware customization.

Items	Features
Communication:	Support USB/RS232/PS2 connection
	RS232: 8 Data bit / 1 Stop bit / No Parity
	USB: Support HID keyboard / HID compliant / USB Virtual Serial Port.
MICR standard	ISO1004 standard E13B, CMC7
MSR standard	ISO/IBM/ANSI/DIN format
MSR tracks	Read all 3 tracks of magnetic card and passbook
Interface setting	Set by DIP switch and software
Code setting	set ABA1 code, ISO code through the command
Status indicators	power (P), read (R) and error (E)
Check Feeding speed	46.5cm/s @12V external power supply
	23.56cm/s @ 5V USB power
Reading speed	1.2sec/sheet (with 157mm sheet length)
Power supply	USB BUS power 5V,400mA
	DC5V±10% ,1000mA;
Head life time	≥ 500,000 cycles
Electric Motor life	≥ 6000 hours
Recognition accurate rate	≥ 98% for E13B & CMC7 & MSR
Environment	Temperature: 0-40 °C Humidity :15%~85% RH   non-condensing

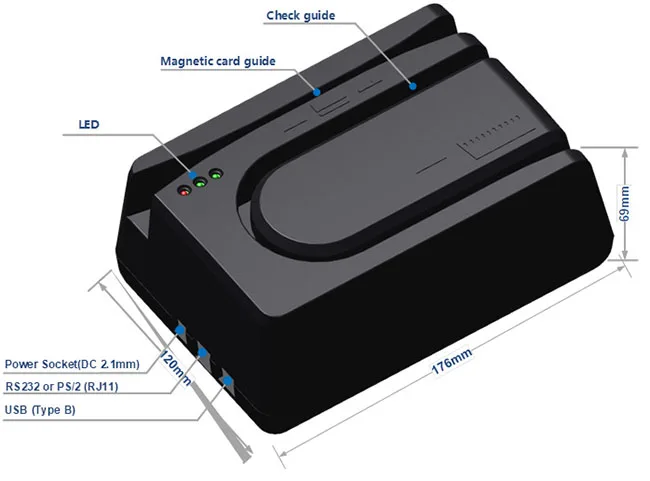

Dimension(L*W*H)	172mm*120*70mm









 3 MICR unit recognized font







4 DIP Dial Switch Settings
