Factory price used carport for sale
US $400.00-$700.00
По индивидуальному заказу стальной структуры навесы металлический автомобильный экран от солнца порт Гаражи и навесы для автомобилей навес тент
- Category: Garages, Canopies & Carports >>>
- Supplier: Guangzhou Royal Awning Co. Ltd.
Share on (1193521144):
Product Overview
Description
Description: Oasis carport
Model: S-07
Materials used: top-quality aluminum, polycarbonate board
Snow load: snow in 35cm (suggest to remove snow within 35cm)
Wind resist: wind speed at about 23m/s
SIZE CHOICE:
1. R-type: length 5.5m * projection 3.0m * height 3.0m, totally cover 16.5 square meter.
2. M-type: length 5.5m * projection 6.0m *heigh 3.0m, totally cover 33.0 square meter.
3. Y-type: length 5.5m * projection 6.0m *height 3.0m, totally cover 33.0 square meter.
carport designs as below:
PC Technical Features:
performance | unit | data |
Light transmittance | % | 83% |
Min bending radius | Mm | 1050mm |
K value | W/m2. °C | 3.9W/ m2 K |
Service Temperature | °C | -40 ~ 120 °C |
strength of extension | N/mm | ≥ 60N/mm |
coefficient of thermal expansion | mm/m. °C | 0.065mm/m °C |
bending strength | N/mm2 | 100N/mm2 |
tensile stress at break | Mpa | ≥ 65 |
distortion temperature | °C | 125 °C |
Elongation at Break | % | > 100 |
fireproofing grade | / | B1 |
elasticity modulus | Mpa | 2400N/mm2 |
specific heat | KJ/kg·K | 1.17KJ/kg·K |

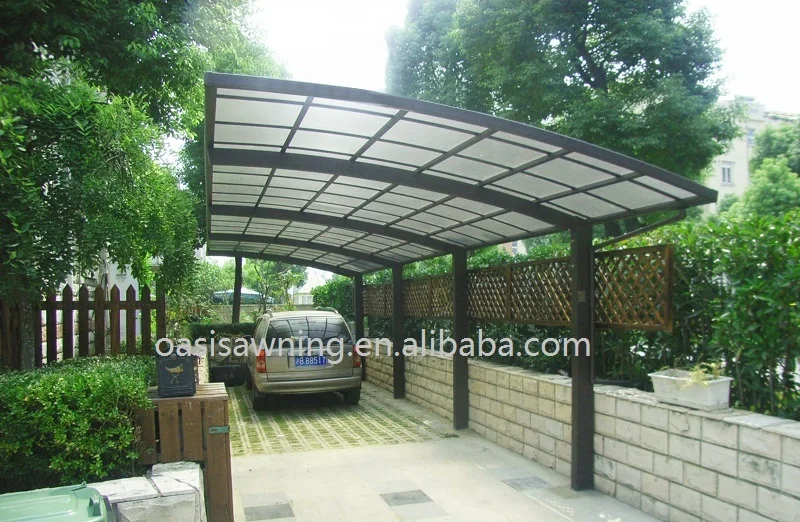

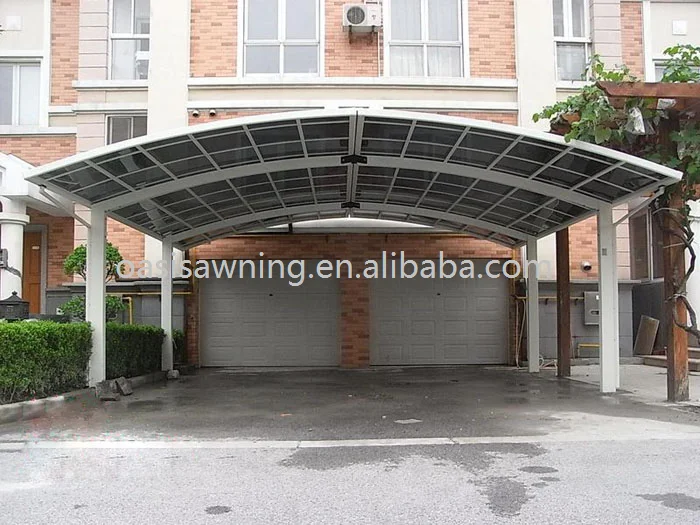

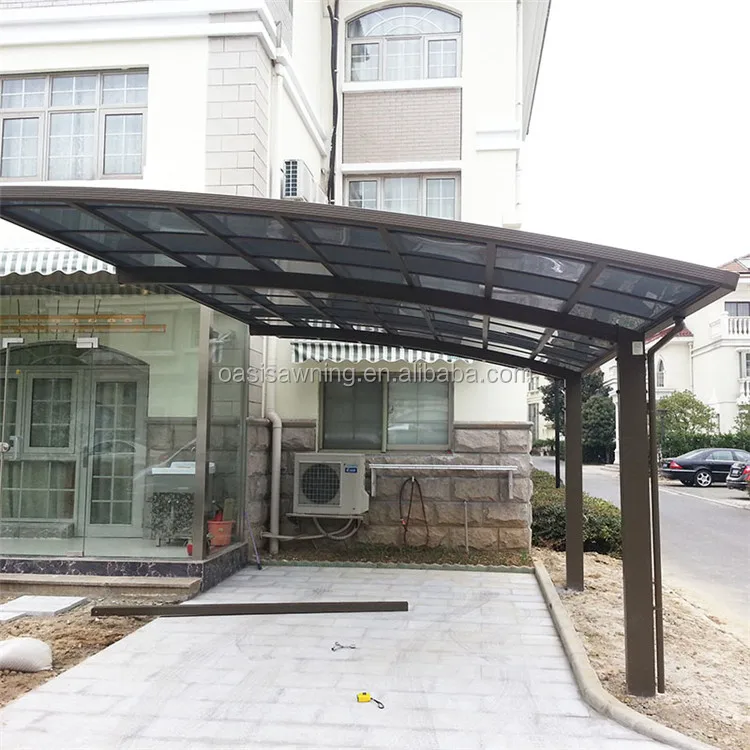

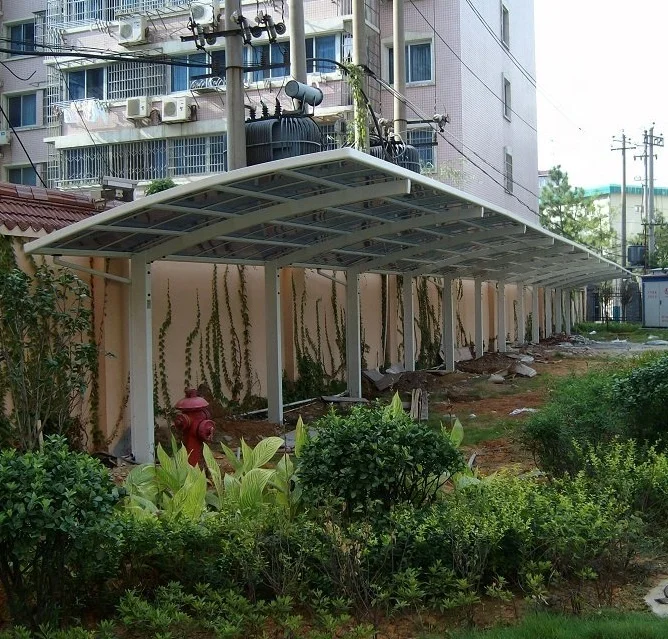

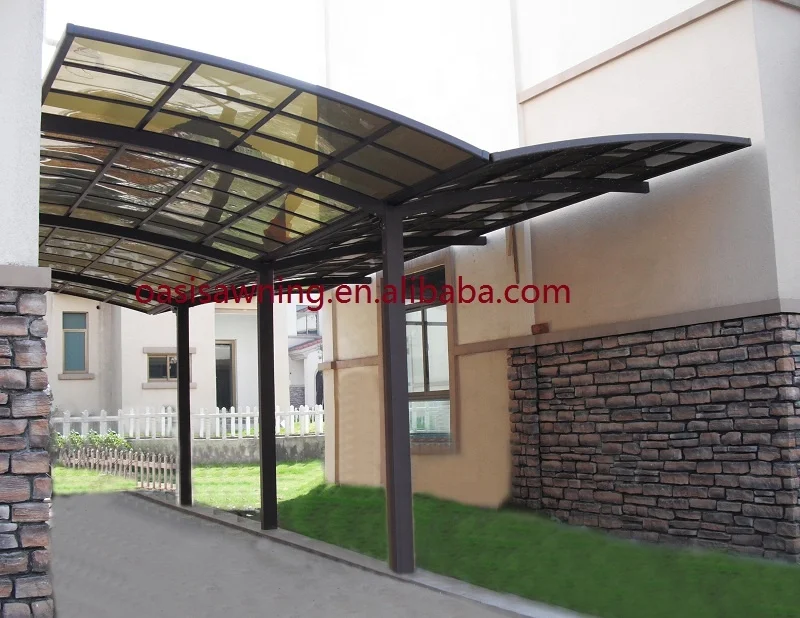

Images:
Solid polycarbonate board colors (thickness in 3.0mm):
Diagram:
Materials thickness:
