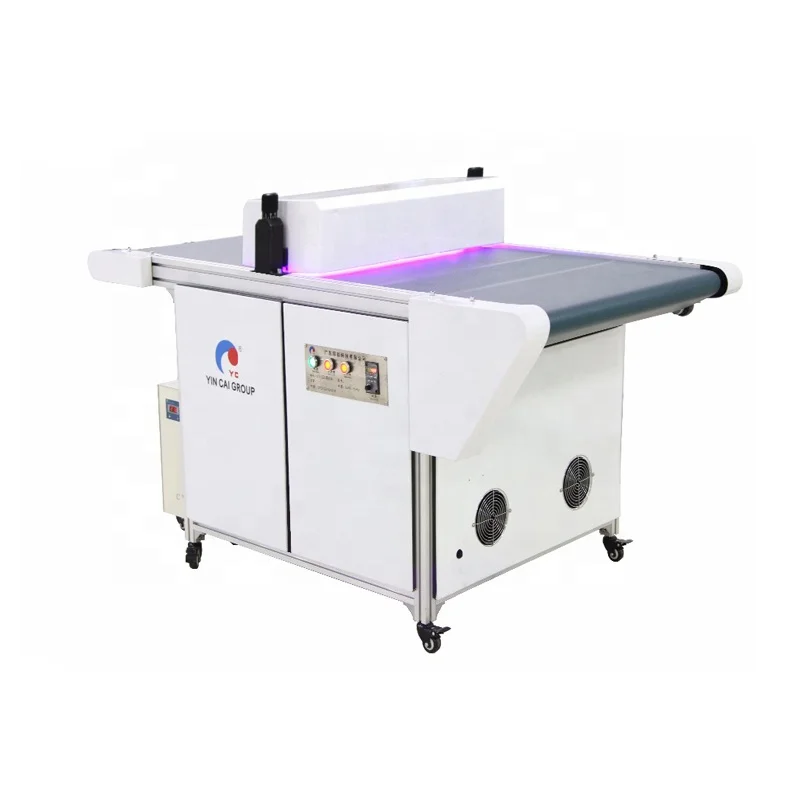

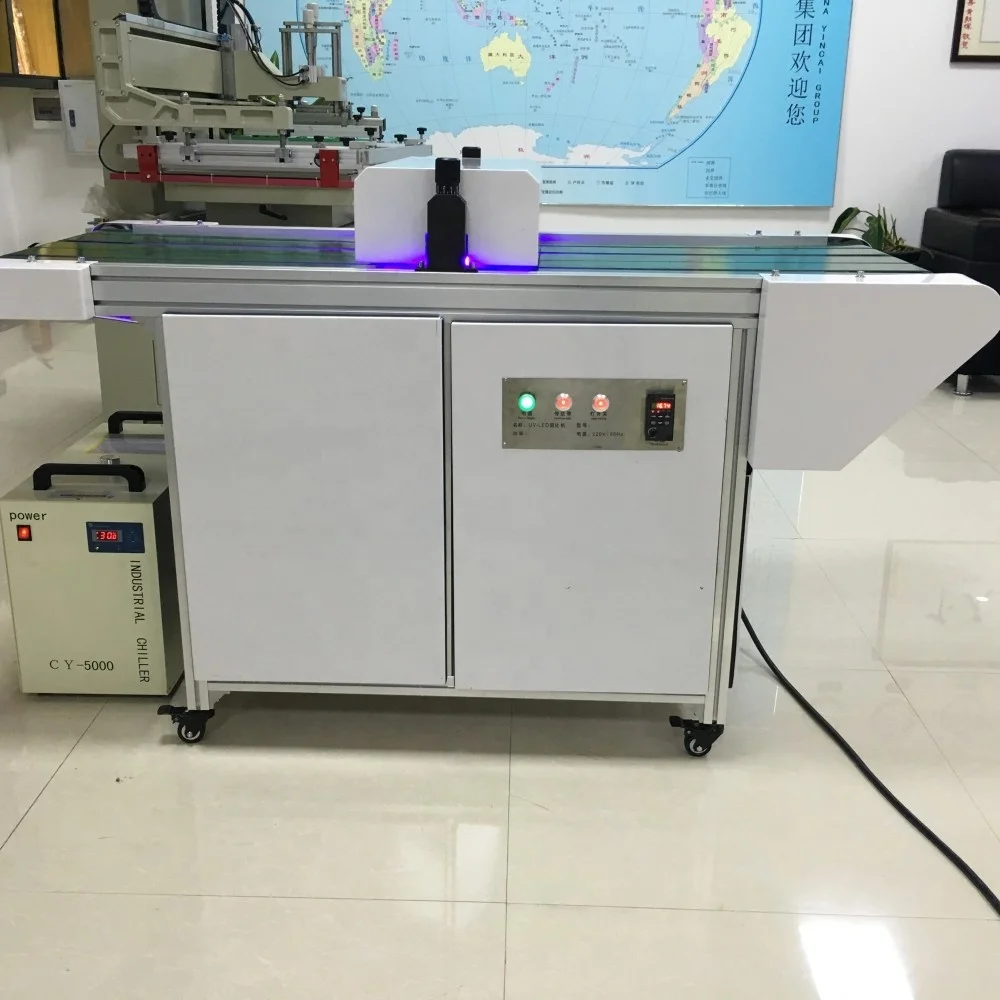

UV LED curing machine for water transfer decals screen printing water slide paper coating
- Category: >>>
- Supplier: Guangdong Yincai Science & Technology Co. Ltd.
Share on (1194707946):
Product Overview
Description
Product Description
Product name | UV LED curing machine | ||||
Power | 220V 50HZ | ||||
Light wavelength | 395nm(accept customized) | ||||
Conveyor High | 85 CM | ||||
Weight | 250 KG | ||||
Conveyor Length | 600mm | 720mm | 800mm | ||
Conveyor width | 600mm | 720mm | 800mm | ||
Lamp power | 3.6kw | 4kw | 4.3kw | ||

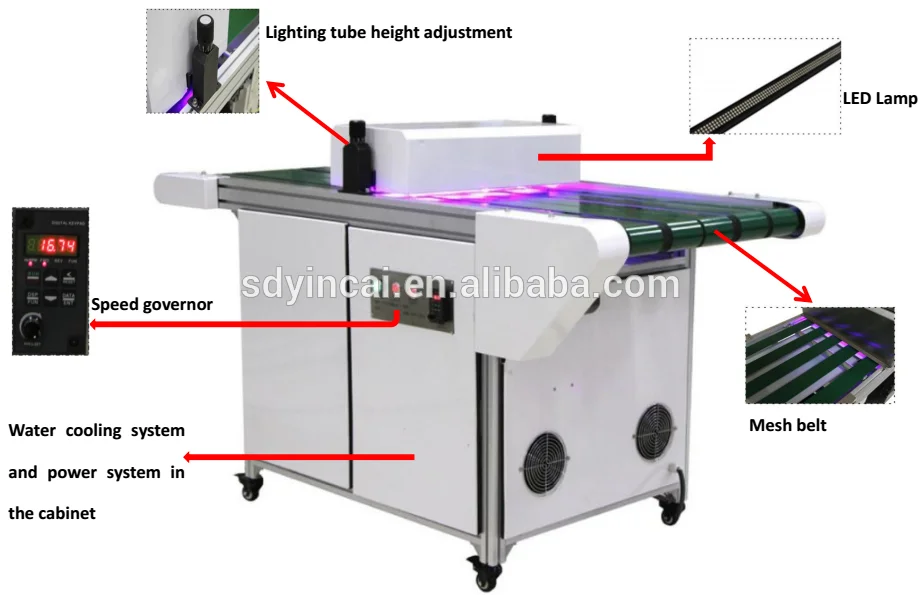

Shining way | Vertical light emitting chip | ||||
Cooling system | Water cooling with power in one | ||||
Working temperature | 40°C below | ||||

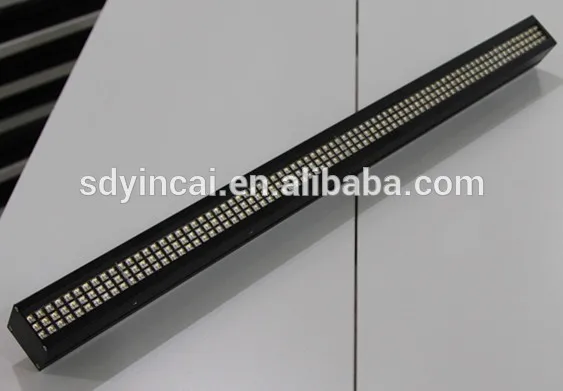

Light source | 7070 LG LED | ||||
Product size | 7070 LG LED | ||||

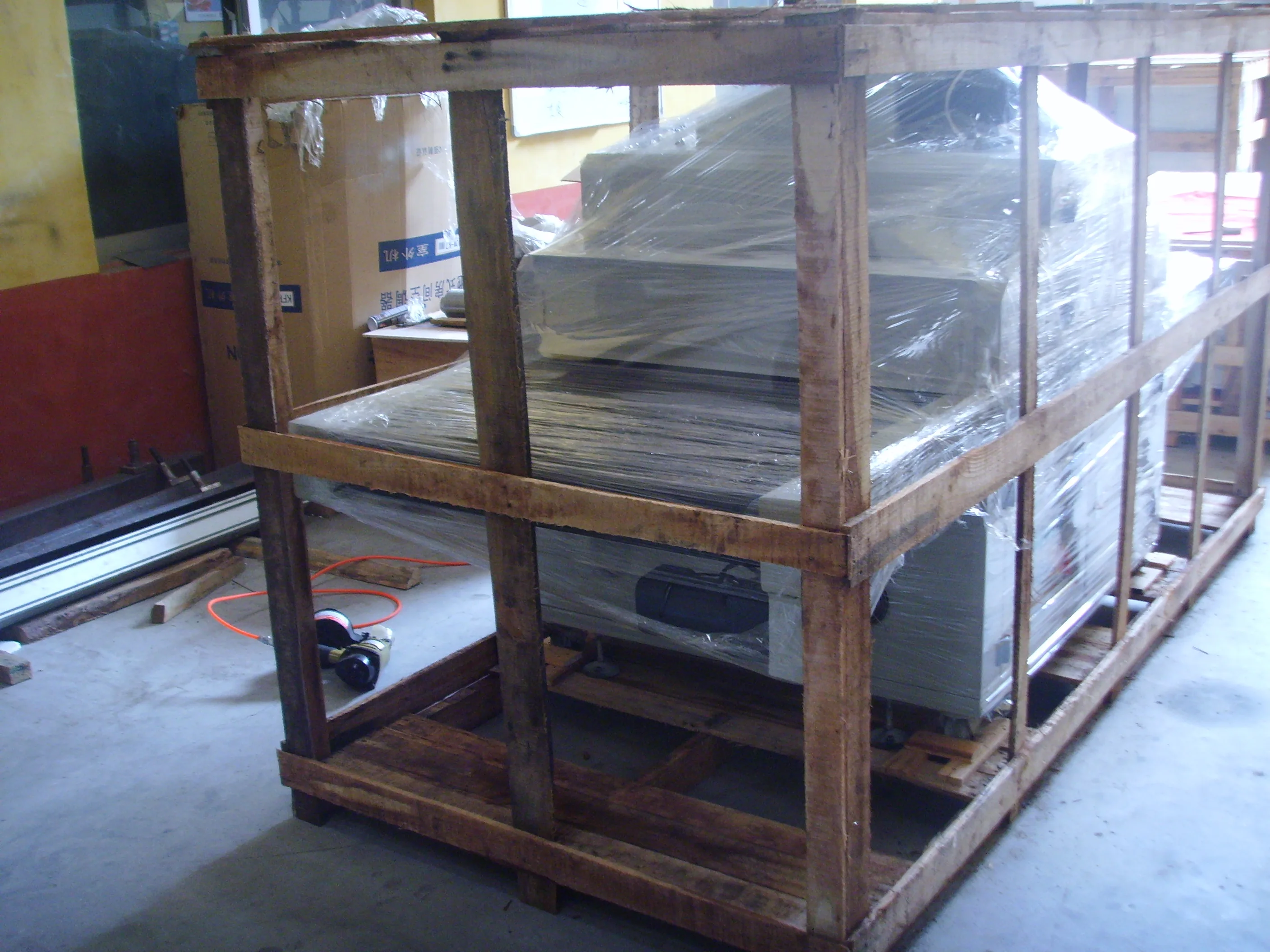

Packing size | 2.5*1*1.3m | ||||
Feature
1.Super long life: LED-UV lamp imported from Korea. Service life over 20000 hours, Our guaranty is 3 years or 10000 hour.
2.The light source module is cooled by water cooling system. Stable and reliable effect.
3.Whatever by a long time working, heat is stable no more than 45℃. The luminous chip with thermal protection and power-off if error. The working temperature over 45℃ will alarm.
4.We accept custom LED-UV cured machine according to various request like the light length, can be hand lift or conveyor belt.
5.No ozone and UVC rays, and no direct harm to operator.
6.Ultra low power consumption compared with the traditional UV curing machine, the power can save 5-20 times.
Applying with our company UV-LED screen printing ink is perfect match, our UV-LED ink including water transfer printing ink category, PET, PC and other plastic ink category, coated metal category, foil lamination category, etc. According to the different request of wave length of UV-LED, characteristics and requirements, We accept various specifications and different properties to be made to order. The UV-LED lamp with Three years and 10000 hours warranty.

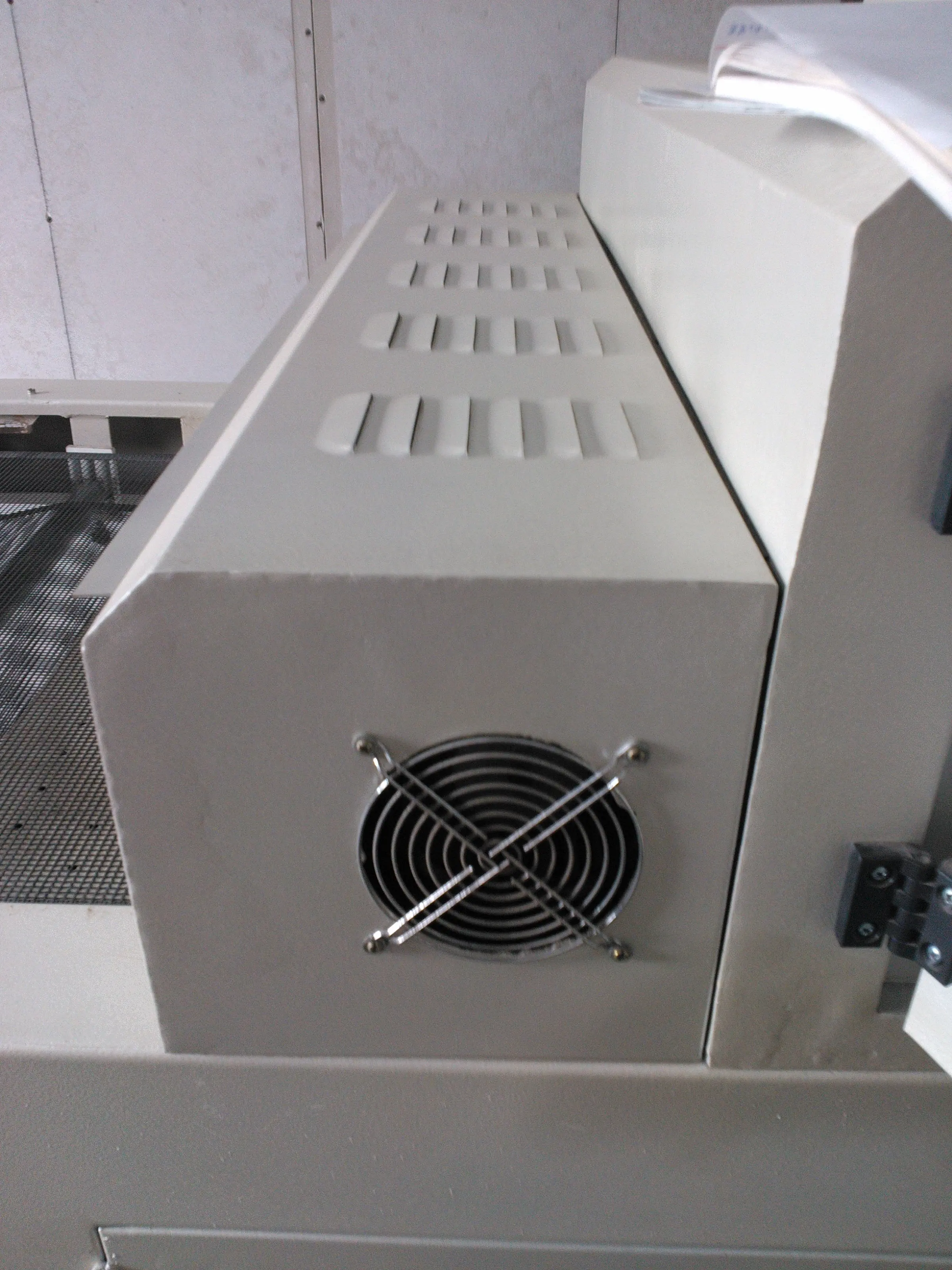

Detailed Images
Contact us
FAQ
Q : What is the printing material ?
A : water transfer ink for Water slide decal paper.water slide substrate:GLASS,CERAMIC,MEATL,PLASTIC,WOOD;
Q : Why choose us ?
A : Our factory(main items: decals,ink,machine) has over 16 years since 2006 in the line of water transfer screen printing!
We have our own product patent and professional rich experiences technicist to handle the whole printing process.The quality is higher than the industry level!It is almost no after-sales problem when you experience our items.
Q : How long is your delivery time?
A : Generally 7-10 working days for decals;15-25 working days for machinery;it depends on your quantity.
Q : What is your terms of payment ?
A : T/T;Sample order-100% payment before production and confirmed all the order details. Batch order-If the amount is over usd1000, 50% deposit in advance ,50% balance will be paid before loading.
Q : What is your MOQ(Minimum Order Quantity)?
A : MOQ:1PC.(decals will be extra charge for the module ;ink is 1kg or 1 liter;)
A : water transfer ink for Water slide decal paper.water slide substrate:GLASS,CERAMIC,MEATL,PLASTIC,WOOD;
Q : Why choose us ?
A : Our factory(main items: decals,ink,machine) has over 16 years since 2006 in the line of water transfer screen printing!
We have our own product patent and professional rich experiences technicist to handle the whole printing process.The quality is higher than the industry level!It is almost no after-sales problem when you experience our items.
Q : How long is your delivery time?
A : Generally 7-10 working days for decals;15-25 working days for machinery;it depends on your quantity.
Q : What is your terms of payment ?
A : T/T;Sample order-100% payment before production and confirmed all the order details. Batch order-If the amount is over usd1000, 50% deposit in advance ,50% balance will be paid before loading.
Q : What is your MOQ(Minimum Order Quantity)?
A : MOQ:1PC.(decals will be extra charge for the module ;ink is 1kg or 1 liter;)
Company Information
Guangdong YinCai Sci.&Tech. Co.,Ltd;(Factory for over 17years since 2005 !)
Business:Water Transfer printing + Cold Metallic Foil Lamination ;
Postcode 528303;
Address: No.802, 8th floor, 7#bd, 2nd stage, TianFuLai industry park, RongGui Town, ShunDe District, FoShan City, GuangDong Province, China.
Postcode 528303;
Address: No.802, 8th floor, 7#bd, 2nd stage, TianFuLai industry park, RongGui Town, ShunDe District, FoShan City, GuangDong Province, China.
