Textile machinery water jet loom with Yamada staubli dobby

Product Overview

Description

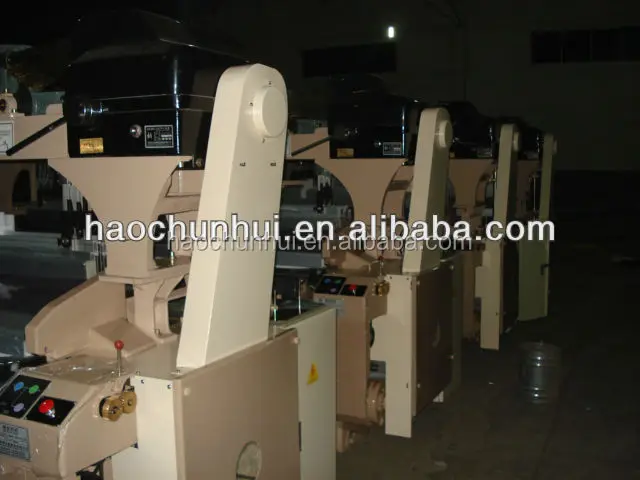

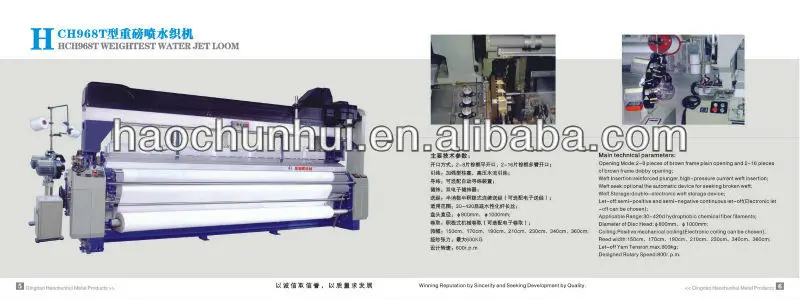

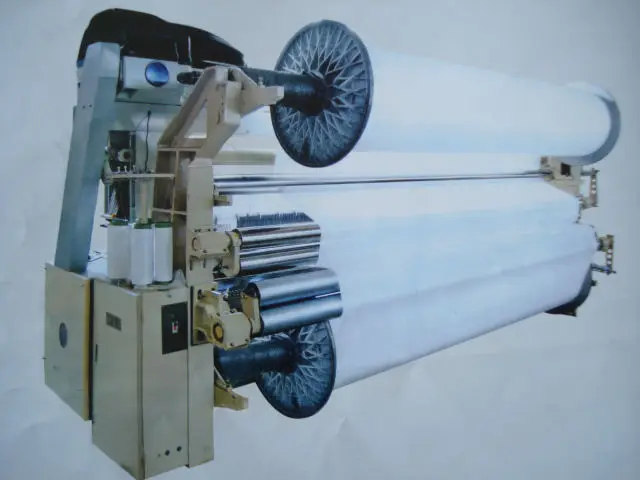

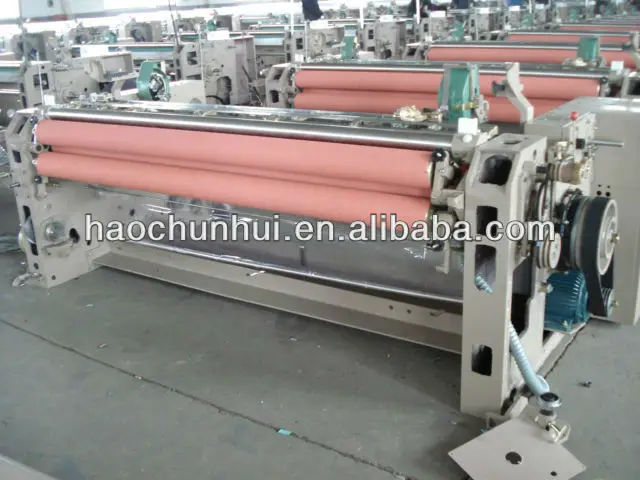

A.details about the textile machine



Working range	Polyester yarn
Reed width (cm)	Nominal:150,170,190 ,210,230 260,280 330 360 Useful reeding width:reduct 0-60cm
Filling selection	1 color 2 color at will
Weft density range	6-60pick/cm
Motor	2.2 kw,3.7kw selected according to the certain model
Shedding	Plain type 2-8pcs heald frame
	Positive cam machine,4-10pcs heald frame
	Dobby(mechanical),upper negative dobby or electronic dobby,2-16 heald frame (according your demands)
Let-off	Electronic let off-ELO
	Mechanical let-off
	Flange diameter:800mm
Take-up	Mechanical take-up
	Electronic take-up
	Upper and down temple(according to the varity of fabric)
Waste filling removel	Mechanical take-up 3 roller
Cutter	Mechanical cutter
Operation	– Driven by RUSH START Motor. Stop  by electromagnetic  brake at  prgrammed   position
	Arrange ,Run Forward inching ,Reverse Inching ,Programmed position stop after
	ONE CYCLE REVERSE ROTATION.
loom color	red      green    brown
Filling Insertion :	Single Pump (Plunger Type Spring pressure system)       Double Nozzle(Needle ceramic system ) Stablizer System Feeler – ir Feeler or OPF Feeler .Using Opitical Cable
Yarn package standard	Floor Mounted Horizontal Stand for -4 package (2 color)
Catch Cord	Spindle Twisting System.
Temple	Top Mounted ,2 Barrel Type with 2 ring
Water Suction	Slift Tube Suction (Blower type)







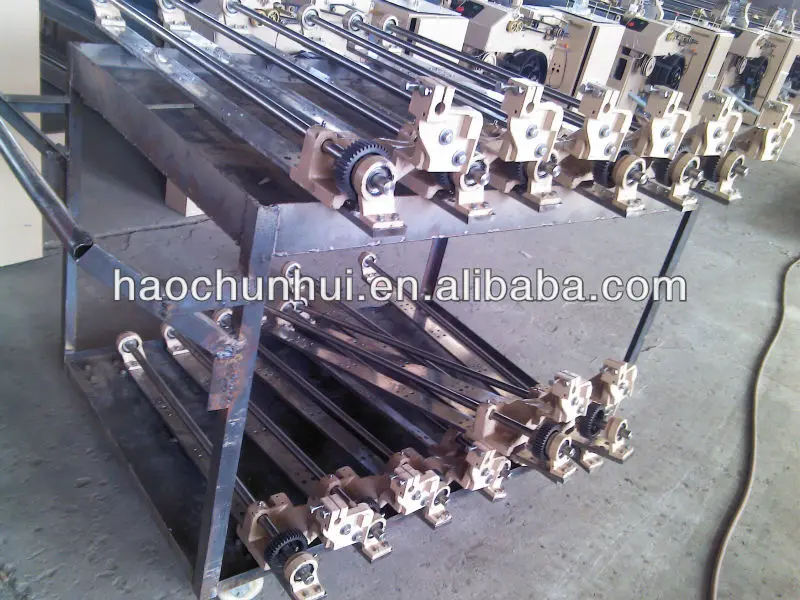

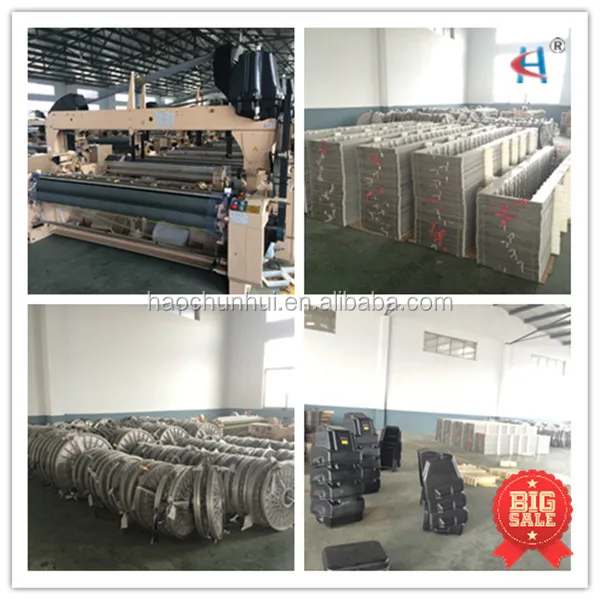

B.details about the spare parts of textile machine





1.Reed of the machine



2.Heald wire and heald frame:Grob



3.Nozzle :MDH   AWA



4,Pump:JL



5,Feeder:ROJ  Sanhe Zhengyu



6.Applicant :Xinliao Jinnuo



7.MTU+MLO system:Shimpo  TATA  Zero-max



8.ETU+ELO system:Yuneng  Jinnuo  Xinliao



9.Motor :Denken  Guofang  Hongqi









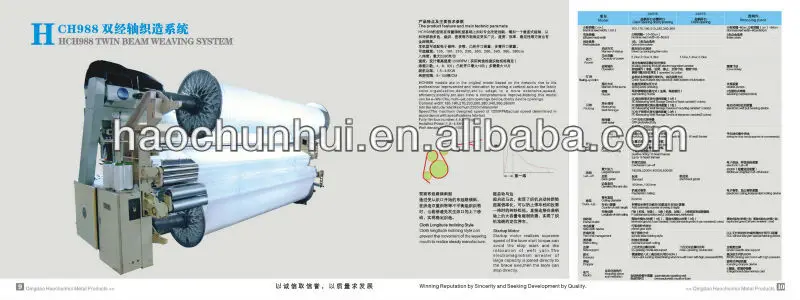

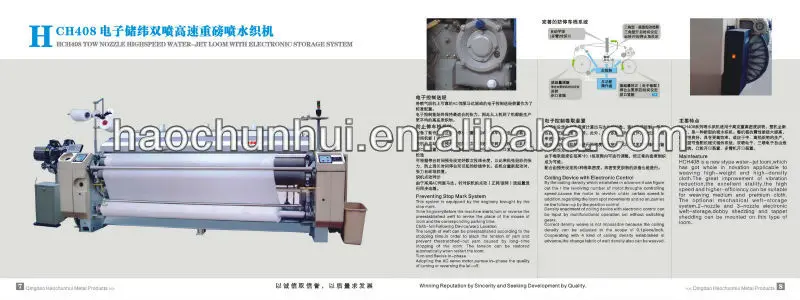

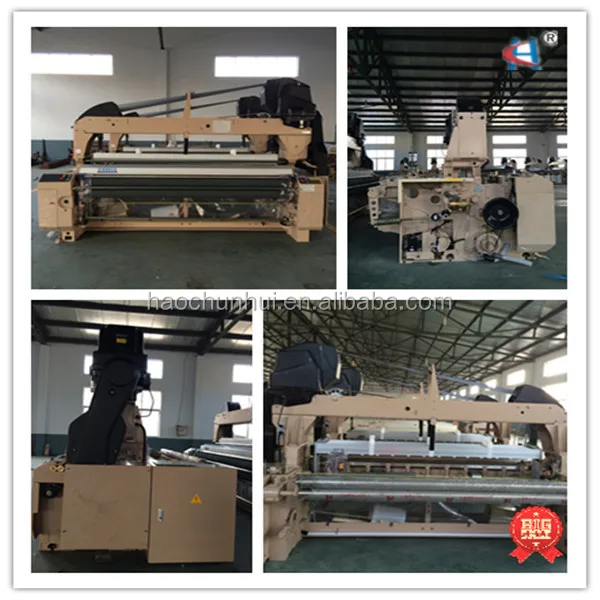

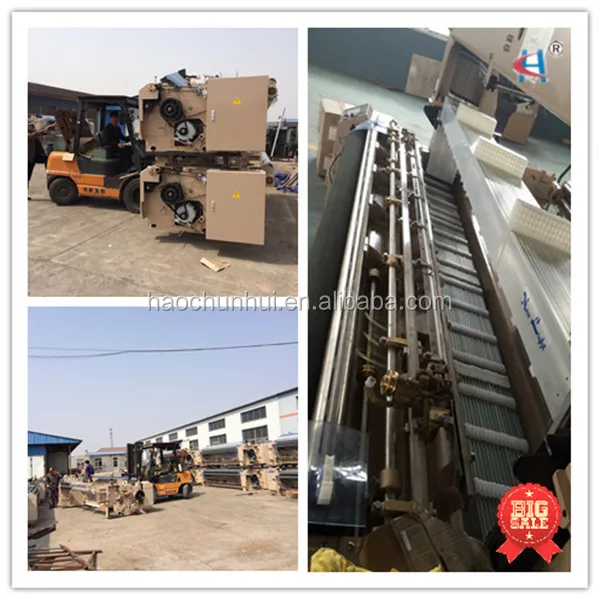

Configuration for the machine





1. FRAME.



Size: 920mm*920mm seamless steel pipe Kingpiece solid frame, vibration&noise reduction tempering treated gable never deforms.







2. SHEDDING SYSTEM.



Expanded shedding connecting rod expanded lifting shaft-diameter 60mm*6mm heald frame broadside& heavy stable reliable& clear shedding..







3. FILLING INSERTION SYSTEM.



Imported nozzle, water pump, spring one-way valve enhances the bundling of water spray, achieves picking flexibility, reduces bobbin marks, water usage and weft tension, prevent yarn, ensured high quality of fabric and increased profit.







4. BEATING SYSTEM.



Crank connecting rod inertial beating and crank is machined by high freq, quench-ing,treatment, etc.which improved hardness and strength; 114mm*7mm seamless steel pipe-expanded diameter of rocking shaft; Multiple beat-up arm are forged to provide high strength for a long life; Reed block& roller are made of stain-less steel, improved beating force for weaving high density,thickness, close texture and fullness in fabric.







5. LET-OFF SYSTEM



Semi-positive continuous let-off; enlarged sensor of interlocking warp; capable with current Chinese most advanced infinite variable speed mechanism to adjust let-off volume; Friction pad pressurize device to prevent reeling off; suitable for big tension of thick fabric and guarantee stability.







6. ONT TIME OIL FILLING



Easy operation, on time oil filling gives the machine full running protection.







7. SELVAGE FORMATION



Pope form of fabric edge tightened; aluminum planetary form-light, small vibration, suitable for high speed running.Nylon gear ring reduces noise, decrease wear and tear. Easy replace-ment.







8. FILLING FEELER SYSTEM



Sensitive photoelectric weft feeler; yarn to hard twist yarn; low mousse to high mousse, all can be detected; stop running in a timely matter when weft breaks.







9. STORING DEVICE



Mechanical weft storing device configured with highly efficient vortex blower and imported measuring device increases high speed weaving stability; electronic storing weft device controlled by computer decreases tension if weft storing and guarantees reliability of high speed running.







10. SELVAGE SUPPORTING DEVICE



5 row of needles; broadened overarm support and runner cloth; more stable runner cloth.







11. CUTTING SYSTEM



Ceramic or hard alloy blade sharp and wear-resistant configured, no matter rough or fine weft, all can be our precisely.







12. ALUMINUM ALLOY COMPONENT



Water pipe block,weaving edge gear,etc. Are treated by positive hard membrane-good looking and wear-resistant;Reed block and roller are stainless stell for the increased hardness and anti-corrosion.







13. ELECTRONIC TAKE UP TYPE



Easy to adjust; full automated rolling for all kinds of fabric to ensure synchronicity.







14. ELECTRONIC LET-OFF SYSTEM



Ensure the operation stability, suitable for large range of material, faster swift between different materials, enhance the operation









Yarn:

1) Nylon-6 filament
2) Nylon-6 non-sizing
3) Polyester filament
4) Polyester draw textured
5) Polyester spun yarn
6) Polyester high twisting yarn
7) Polyester POY
8) Polyester non-sizing filament
9) O.P. yarn
10) Taslon yarn
