10" LED Professional CCTV Monitor

Product Overview

Description

Application Field:

1. SOHO Offices

2. Shooping Mall

3. Government Users/Home User





Economy Solution Feature:



HDMI Input



Video Input/Output:



Display CVBS Signal by BNC Connector



Add S-Video Input (Option)



Built in 2D Comb Filter







10.1" LED Monitor with HDMI Input





Specification
Model No.		AKA-101MA
Display	Screen size	10.1 Inch
	Panel type	LED Backlight
	Max. Resolution	1024 x 600(16:9)
	Brightness	200 cd/square meter
	Contrast ratio	300:1 typical
	Viewing Angle(U/D/L/R)	40/40/10/30
	Display color	262K
	Response Time	8ms
	Power Consumption	Approx. 15 Watts
	Video system	NTSC / PAL
Interface	Solution No.	M2 (Economy style)
	Video 1 Input	CVBS Input(BNC type)x1
	Video 2 Input	CVBS Input(BNC type)x1
	Video 2 Output	CVBS Output(BNC type)x1
	PC-RGB Input	VGA (15Pin D-Sub)x 1
	Audio Input	Stereo 3.5mm input x1
	Audio Output	Stereo 3.5mm Output x1
	HDMI Input	1
	DC 12V Input	1
Features	Built in Comb Filters	2D
	Built in De-interlace	3D
	Source	PC / Video1 / Video2 / HDMI
	Multi-Language	English, Chinse,French ,German,
		Italian , Portuguese , Spanish
Audio	Built in Speakers(Option)	2
Cabinet	Color	Black
	Material	ABS Plastic
	Wall Mount	VESA
	Base Stand	Desktop Stand
Circumstance	Operating Temperature	0 ~ 50 centigrade / 32~122 fahrenheit
	Storage Temperature	­20~60 centigrade / ­4~140 fahrenheit
Packings	Unit N.W./G.W.	Approx. 1KG/1.8KG
	Gift Box Dimension	315x110x292 mm (LxWxH)
Regulations	RoHs , FCC , CE , C-tick , and so on.
Specification are subject to change without notice

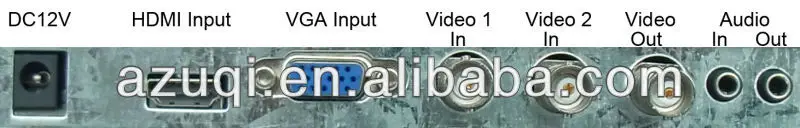

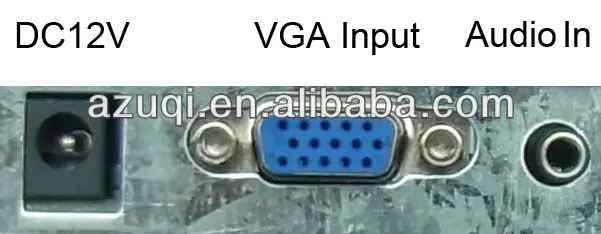

Interface for reference:

(1) Economy Solution for Security Use



(2) Economy Solution for Computer Monitor

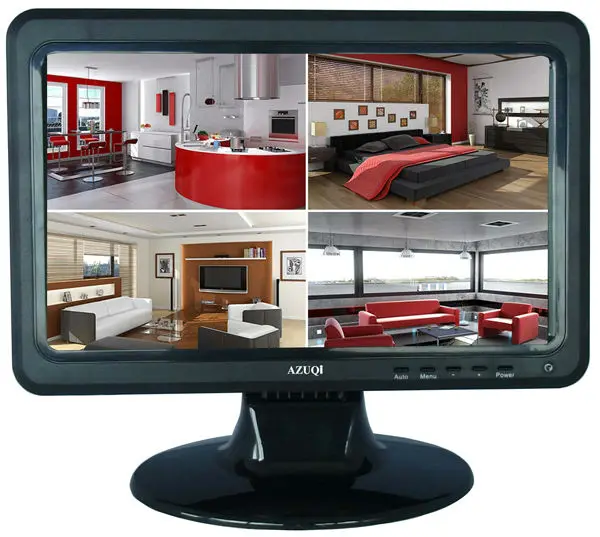

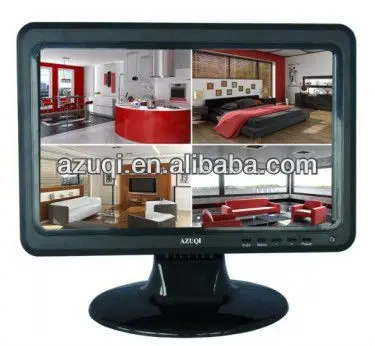

Front and Back View for Reference:
