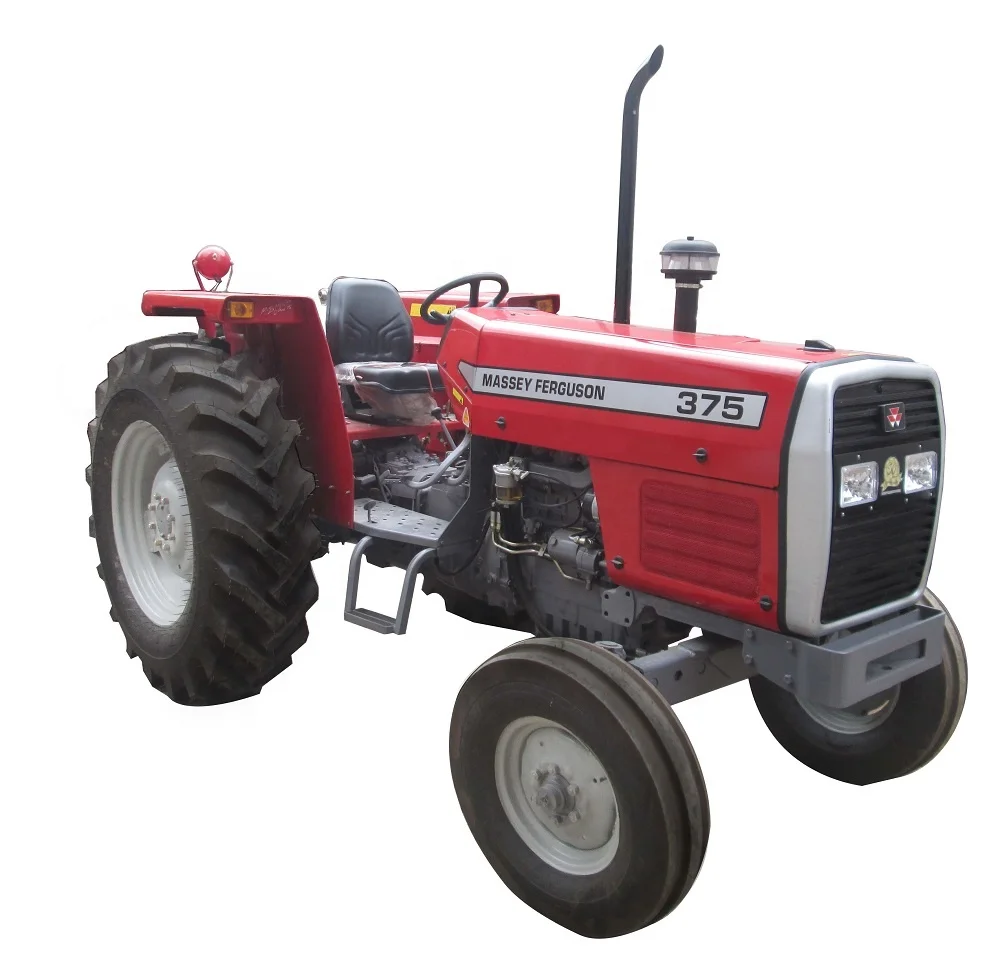

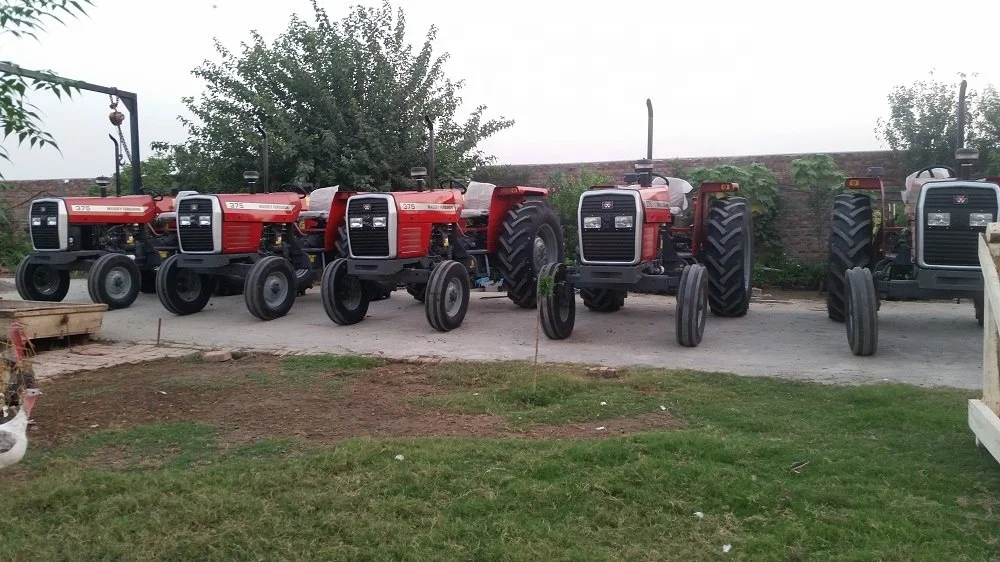

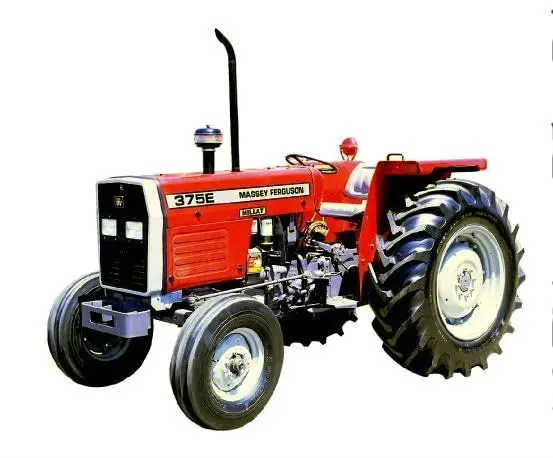

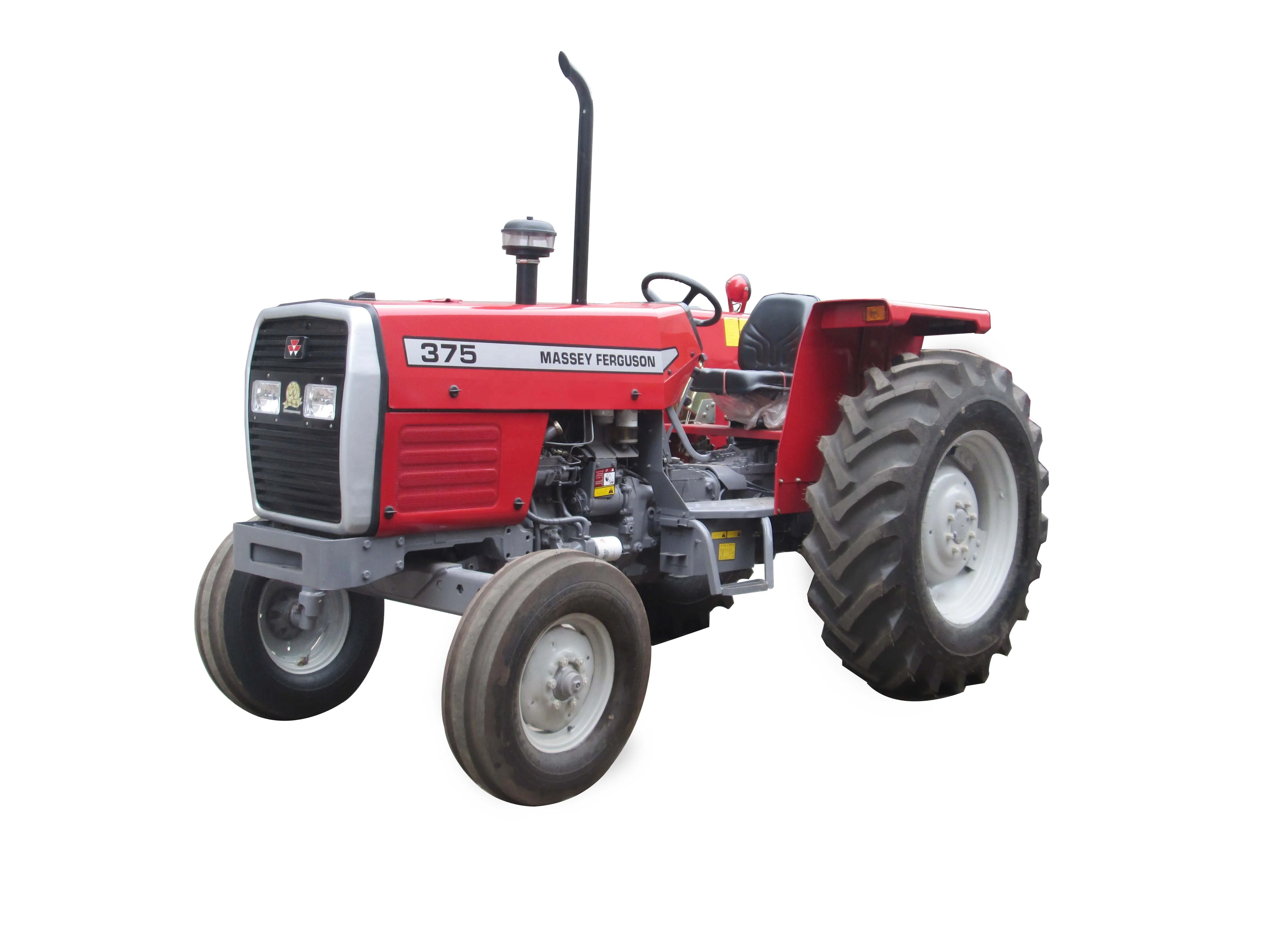

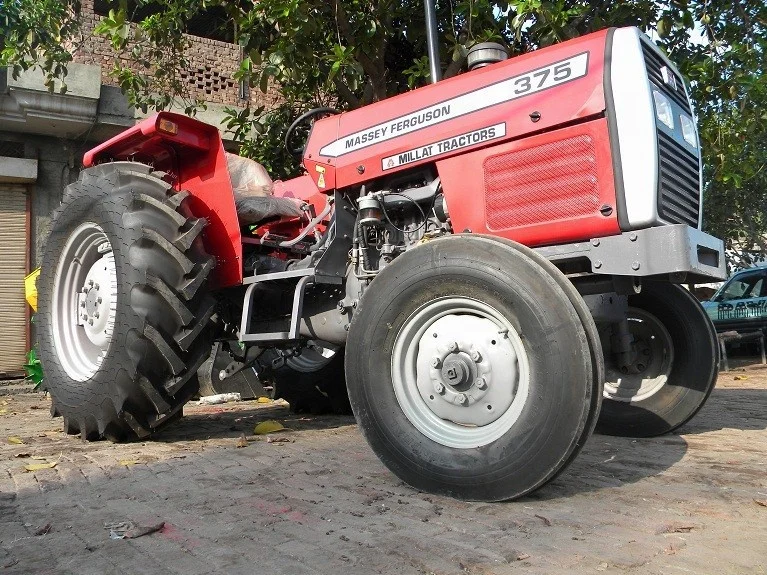

Ferguson Massey Millat Pakistan tractor

PERFORMANCE

Engine power at 2,200 rpm:                   75 (B.S.) hp*

Torque at 1,400 Engine rpm:                 290 Nm

PTO power at rated engine speed:    69.5 hp**

*Engine Certified to BS AU 141a:(1971)

ENGINE:

Oil Cooler:                          Water Cooled

Type :                                  Diesel /4.41

No. of cylinders:                 4

Injection :                           Direct

Bore:                                   101 mm

Stroke:                                127 mm

Capacity:                            4.1 l

Aspiration:                          Natural

Compression ratio:           15.3 : 1

Starting aid:                       Thermostat

Throttle control:                 Hand and foot

Cooling:                             Water

Air Cleaner:                        Oil bath

Air Pre Cleaner:                 Over bonnet, air swirl

Fuel filter:                           Dual, high capacity

Exhaust:   Vertical, muffler under bonnet water cooled

ELECTRICS

Voltage:                              12 V, Negative Earth

Battery:                              118 Ah

Starter:                               2.8 kW

Alternator:                         45 Amp.

CLUTCH

Type:                                 Dual Clutch

Diameter:                          305 x 254 mm

Lining material:                 cerametallic

TRANSMISSION

Type:                                Sliding Spur

Number of gears: 8 forward, 2 reverse  Road speed at 2,200 engine rpm with  16.9/14-30 rear tyres

Gear                                                          Speed (km/hr)

Forward 1:              (First low)                       2.65

Forward 2:                                                      3.89

Forward 3:                                                      5.32

Forward 4:                                                      7.14

Forward 5:            (First high)                       10.82

Forward 6:                                                     15.57

Forward 7:                                                     21.27

Forward 8:                                                     28.56

Reverse 1:                    (Low)                        3.61

Reverse 2:                    (High)                       14.45

POWER TAKE OFF

Type:                                                            Live

Engine speed at 540 PTO rpm:                 1,789 rpm

Shaft diameter:                                           35 mm

No. of splines:                                            6

HYDRAULICS

Functions:     Draft Control, Position Control, Response  Control, Constant Pumping

Pump Type:                   Reciprocating Ferguson

Maximum Oil Flow:      16.70 l / min

Maximum pressure:    21 MPa  at normal operating  temperature

Max. lift capacity at  lower links horizontal:   2,145 kg

Lower Links:              Cat. 1 & 2 with  interchangeable balls

FRONT AXLE

Type:                   Heavy Duty box section, Adjustable

STEERING

Type:                          Hydrostatic

REAR AXLE AND BRAKES

Brake Type:                Oil immersed, multi-disc

Brake Actuation:        Hydraulic

Brake Pedal:               Pendant

Axle Type:                   Straddle with Epicyclical

                                      Reduction Unit.

Parking brake:             Hand Lever Operated

Brake Area:                1,774 sq.cm

INSTRUMENTATION

Gauges:       Tachometer, Hour meter  Fuel level  Battery condition &  Water temperature

Warning lights:   Direction indicators,  Battery  charge,  Headlight main beam  Low engine oil pressure  Brake lights and Auxiliary socket.

TYRES

Front:                                   7.50 -16 (6 PR)

Rear:                                    16.9/14-30 (6 PR)

TRACK ADJUSTMENT

Front:                                    1,271-1,881 mm

Rear:                                     1,423-2,134 mm

WEIGHT AND DIMENSIONS

(With 7.50-16 front and 16.9/14-30 rear wheel and with  full fuel, oil and water)

Gross Weight (Approx.):               2,295 kg

Dimensions:

Wheel base:                                   2,170 mm

Overall length                                3,670 mm

Width: (min)                                   1,970 mm

Height:

Over Exhaust:                                2,485 mm

Over Steering Wheel:                    1,730 mm

Turning circle  With brakes:             7,260 mm

Without brakes:                                  8,095 mm

Ground clearance  under the gearbox:  501 mm

CAPACITIES

Fuel Tank:                          108.0 l

Engine sump:                     7.5   l

Cooling system:                15.2 l

Hydraulic system:             36.0 l

Steering box:                      2.0 l

Oil bath air cleaner:           0.7 l

Brake oil:                            0.25 l

STANDARD EQUIPMENT

Weight frame without weights, Standard tool box with set of tools, Top link,Top link end Cat - l & ll balls, Check Chains, Spring Suspension Seat, Flat top Fenders, Operator’s & Service Manual.

OPTIONAL EQUIPMENT

Front end weights, Swinging Draw bar, Sun Canopy, Pintle Hook & 9 hole draw bar.
