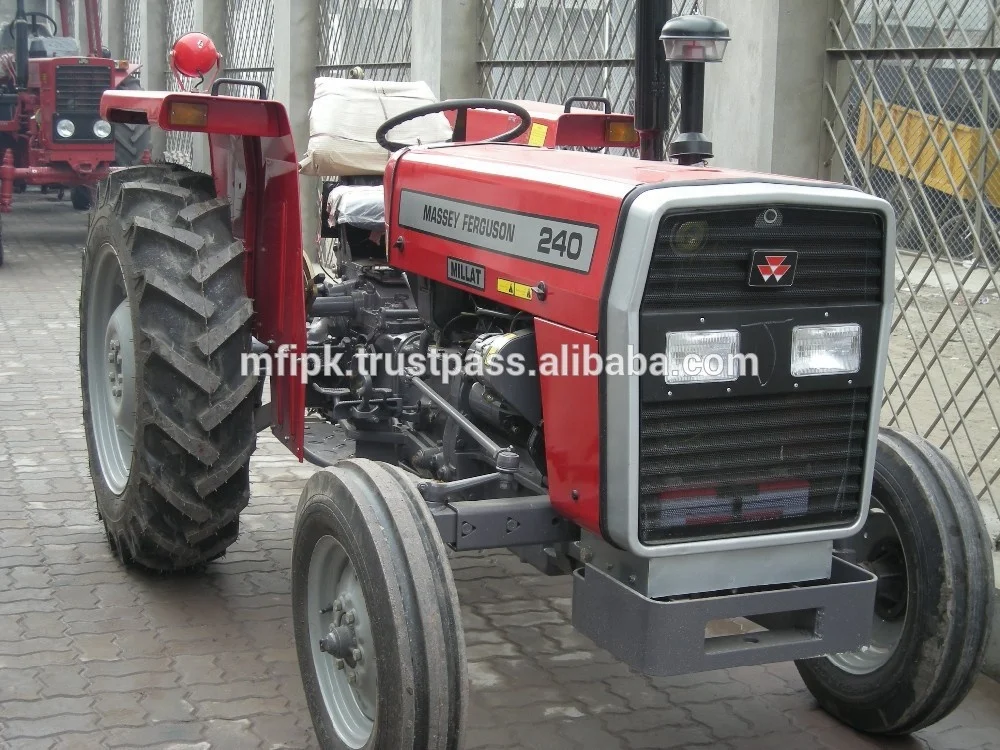

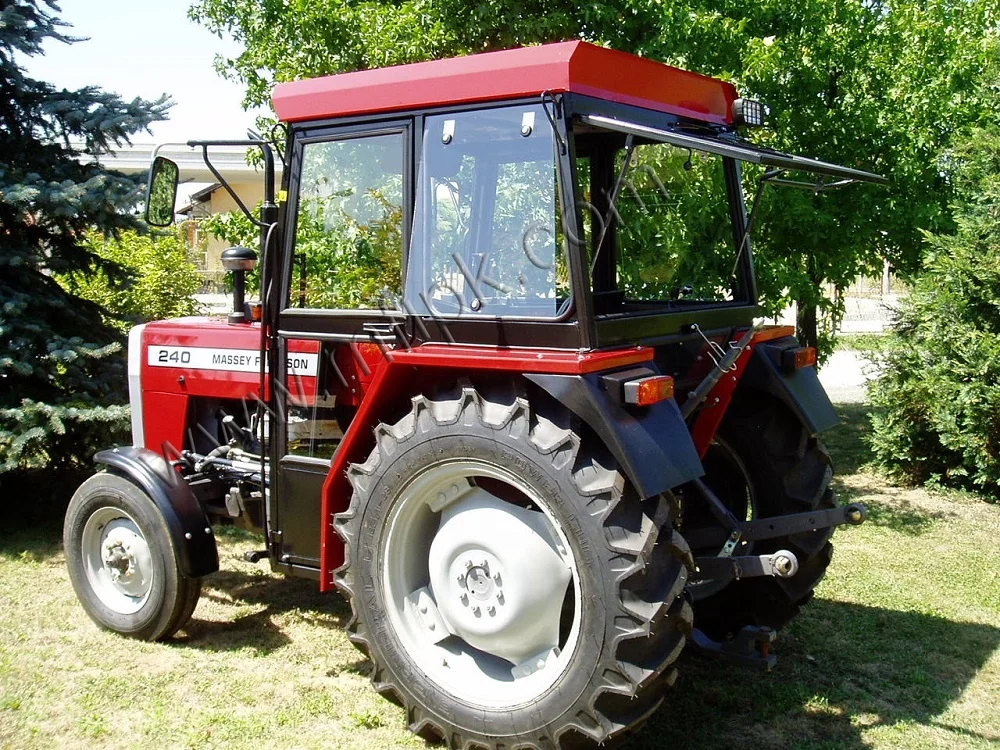

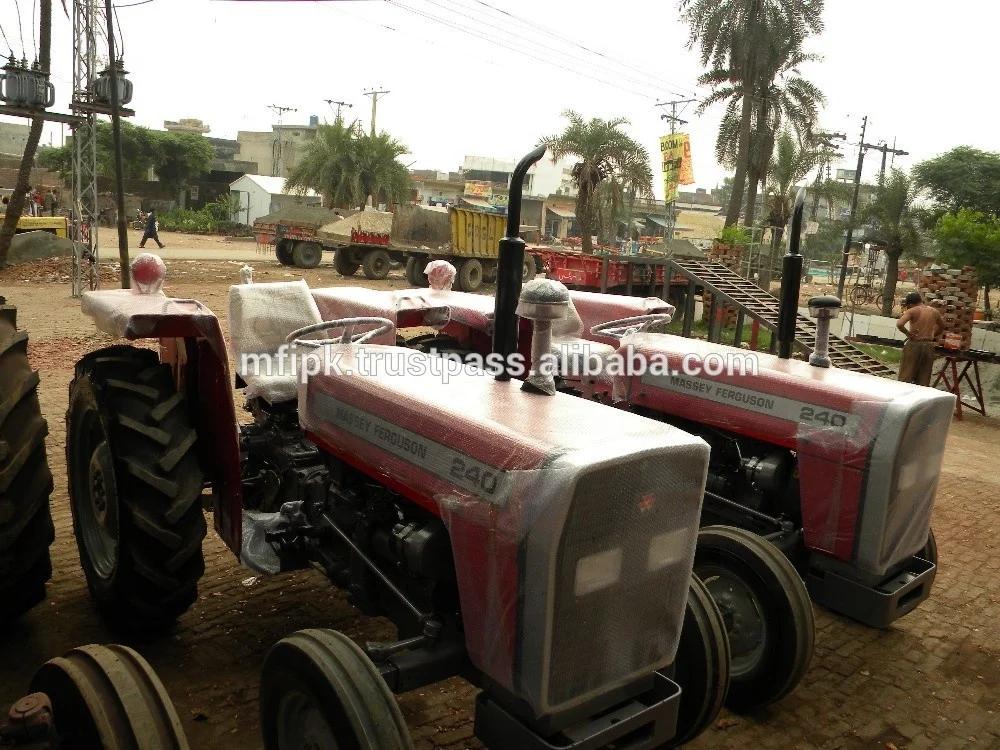

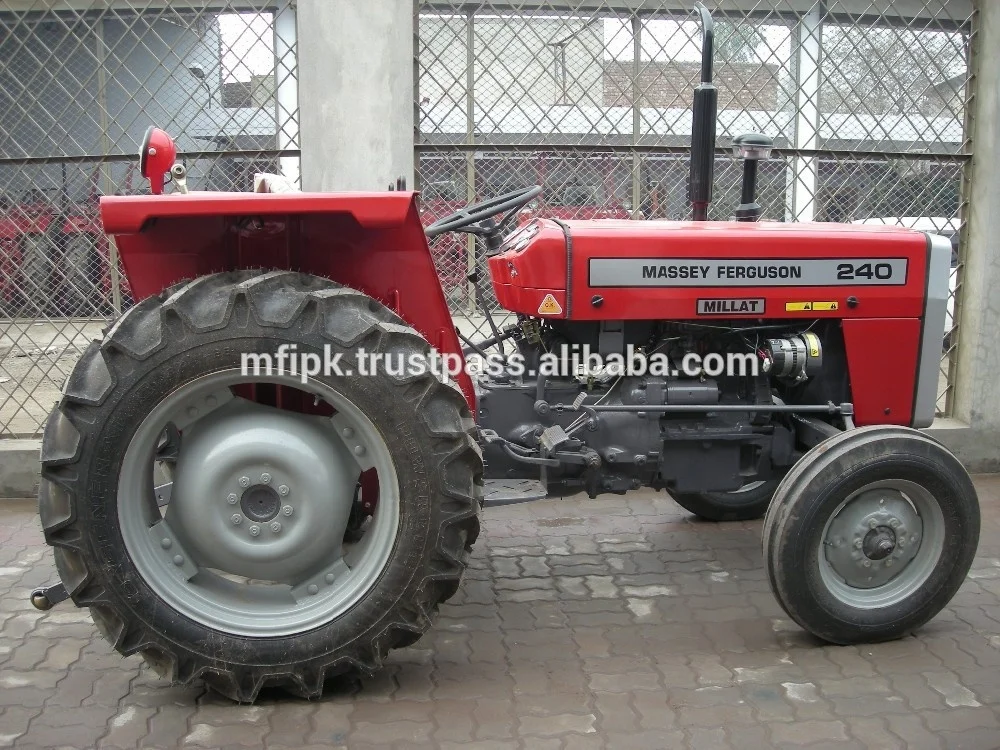

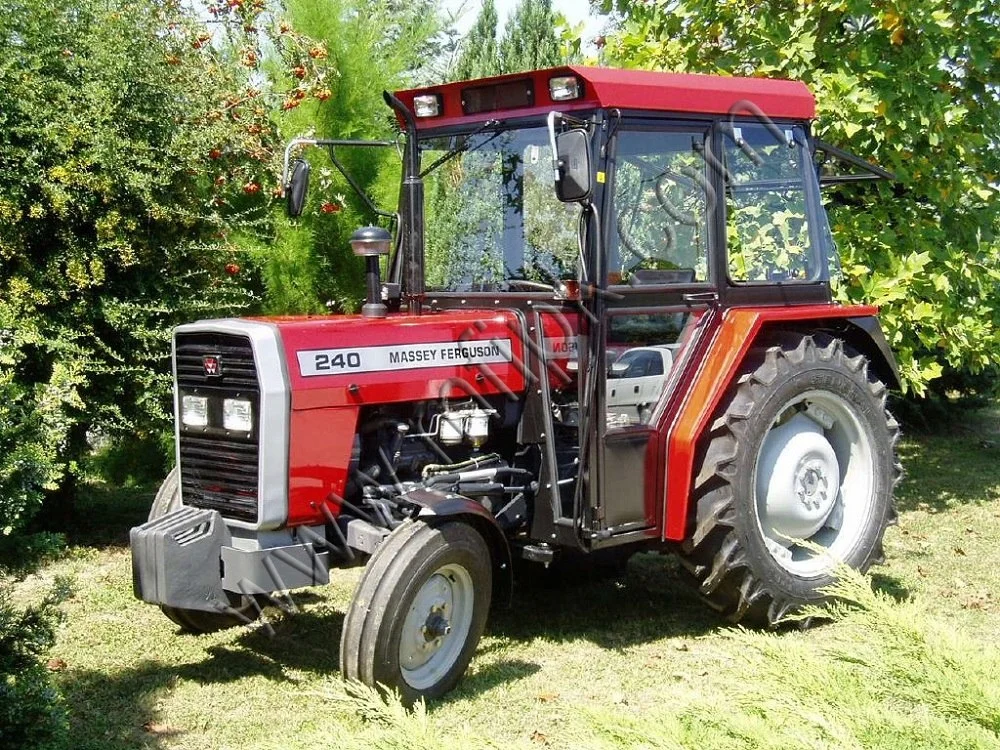

Pakistan Massey Ferguson MF 240 2WD 50HP Agricultural Tractor
- Category: >>>
- Supplier: MURSHID FARM INDUSTRIES
Share on (120012943):
Product Overview
Description
PERFORMANCE
Engine power at 2,250 rpm: 50 (B.S.) hp*
Torque at 1,400 rpm: 172 Nm
PTO power at rated engine speed: 44 hp** * Certified to BS AU 141a ** Manufacturer’s estimate ENGINE:
Make / Type : Diesel / AD 3.152
No. of cylinders: 3 Injection : Direct Bore: 91.5 mm Stroke: 127.0 mm Capacity: 2.5 Compression ratio: 16.5 : 1 Starting aid: Thermostat Throttle control: Hand and foot Cooling: Water Air Cleaner: Oil bath Air Pre Cleaner: Over bonnet, air swirl Fuel filter: Dual, high capacity Exhaust: Vertical ELECTRICS Voltage: 12 V, Negative Earth Battery: 118 Ah Starter: 2.2 kW Alternator: 32 Amp. CLUTCH Type: Dual Clutch Diameter: 305 x 254 mm TRANSMISSION Type: Sliding Spur Number of gears: 8 forward, 2 reverse Road speed at 2,250 engine rpm with 12.4/11-28 rear tyres Gear Speed (km/hr) Forward 1: (First low) 2.5 Forward 2: 3.7 Forward 3: 5.0 Forward 4: 6.7 Forward 5: (First high) 10.0 Forward 6: 14.7 Forward 7: 20.0 Forward 8: 27.0 Reverse 1: (Low) 3.4 Reverse 2: (High) 13.6 POWER TAKE OFF Type: Live Engine speed at 540 PTO rpm: 1,789 rpm Shaft diameter: 35 mm No. of splines: 6 HYDRAULICS Functions: Draft Control, Position Control, Response Control, Constant Pumping Pump Type: Reciprocating Ferguson Oil Flow: 16 l / min pressure: 19.2 MPa lift capacity with lower links horizontal: 2,145 kg Lower Links: Cat. 1 & 2 with interchangeable balls FRONT AXLE Type: Box Section, Adjustable
| STEERING
Type: Manual
REAR AXLE AND BRAKES
Brake Type: Outboard drum brakes
Brake Actuation: Mechanical
Parking brake: Hand Lever Operated
Differential lock: Mechanical
INSTRUMENTATION
Gauges: Tachometer, Hour meter Fuel level Battery condition & Water temperature
Warning lights: Direction indicators, Battery charge, Headlight main beam Low engine oil Pressure brake lights and Auxiliary socket. TYRES
Front: 6.00 -16 (6 PR) Rear: 12.4/11-28 (6 PR) TRACK ADJUSTMENT Front: 1,245-1,854 mm
Rear: 1,219-1,930 mm
WEIGHT AND DIMENSIONS (With 6.00-16 front and 12.4/11-28 rear wheel and with full fuel, oil and water) Gross Weight (Approx.): 1,650 kg
Dimensions: Wheel base: 1,892 mm Overall length 3,260 mm Overall width: 1,651 mm Height: Over Exhaust: 2,145 mm Over Steering Wheel: 1,410 mm Turning circle With brakes: 5,560 mm Without brakes: 6,200 mm Ground clearance under the gearbox: 338 mm CAPACITIES Fuel Tank: 47.5 l Engine sump: 6.8 l Cooling system: 10.2 l Hydraulic system: 33.0 l Steering box: 0.9 l Oil bath air cleaner: 0.65 l STANDARD EQUIPMENT Weight frame without weights, Standard tool box with set of tools, Top link, Top link end Cat - l & ll balls, Check Chains, Spring Suspension Seat, Flat top Fenders, Operator’s & Service Manual. OPTIONAL EQUIPMENT Front end weights, Swinging Draw bar, Sun Canopy, Pintle Hook & 9 hole draw bar.
|
. MF 240 Specifications
Product Description
Introducing the Massey Ferguson MF240 2WD 50 HP Tractor – a marvel of modern engineering designed with the contemporary farmer's needs at heart. This tractor stands as a testament to the harmonious blend of power, efficiency, and durability that Massey Ferguson is known for.
Crafted to excel in a variety of agricultural tasks, the MF240 boasts a powerful 50 HP engine, providing the strength and stamina essential for tackling the toughest tasks on the farm. From tilling and plowing to hauling, the MF240 is your steadfast partner, ensuring productivity with every use.
Maneuverability is a cornerstone of the MF240’s design. Its 2WD configuration offers improved agility and control, making it perfectly suited for navigating through diverse terrains and farming conditions. This agility, combined with an ergonomic design prioritizing user comfort, transforms long hours in the field into a less strenuous and more productive experience. Every element, from the seat to the control panel, is thoughtfully designed to enhance operator comfort and convenience.
The MF240's durable build is another highlight, engineered to withstand the challenges of daily farming activities. Its robust construction promises not only longevity but also consistent performance day in and day out. Moreover, this tractor takes a step forward in environmental responsibility. Equipped to deliver power efficiently, the MF240 also focuses on reducing emissions, making it an eco-friendly choice for the environmentally conscious farmer.
Choosing the Massey Ferguson MF240 means opting for a tractor that elevates your farming game through a perfect amalgamation of power, precision, and comfort. Whether your agricultural tasks are big or small, the MF240 is designed to deliver the best output with minimal effort, making every day on the farm more productive and less taxing. Embrace the future of farming with the MF240, where excellence in engineering meets the practical needs of the modern farmer.
FAQ
Q: What makes the Massey Ferguson MF240 suitable for tough agricultural tasks?A: The MF240 is equipped with a powerful 50 HP engine, providing the strength and stamina needed for demanding agricultural tasks, ensuring efficient and effective farming operations.
Q: How does the 2WD feature enhance the tractor's performance?A: The two-wheel-drive (2WD) design of the MF240 enhances maneuverability and control, making it perfect for navigating diverse terrains and farming conditions with ease.
Q: Can the MF240 ensure comfort for long hours of operation?A: Yes, the ergonomic design of the MF240, including a comfortable seat and a user-friendly control panel, ensures operator comfort and convenience, making long hours in the field less strenuous.
Q: What durability features does the MF240 offer?A: The MF240 boasts a durable build, constructed to withstand the challenges of everyday farming. Its sturdy construction promises longevity and consistent performance, ensuring reliability over the years.
Q: Is the MF240 an eco-friendly choice for farming?A: Absolutely. The MF240 ensures lower emissions, making it an environmentally conscious choice for farmers who are mindful of their ecological impact.
Q: For what tasks is the Massey Ferguson MF240 most suitable?A: The MF240 is a versatile tractor that can handle various tasks with ease, including tilling, plowing, hauling, and more. Its blend of power, precision, and comfort ensures optimal output with minimal effort.
Q: How does the Massey Ferguson MF240 stand out in terms of engineering?A: The MF240 is a testament to engineering excellence, designed with modern farmers in mind. It combines power, efficiency, and durability in a way that sets it apart as an epitome of agricultural machinery innovation.
Q: Is the Massey Ferguson MF240 a good investment for modern agriculture?A: Yes, the MF240 is an excellent investment for modern agriculture. Its combination of features designed for power, efficiency, and comfort makes it a reliable partner for farmers seeking to elevate their farming game.
Q: Can the Massey Ferguson MF240 handle different types of terrain?A: Yes, the 2WD design and the overall construction of the MF240 make it capable of handling a wide range of terrains and farming conditions, offering flexibility and adaptability in various agricultural settings.
Q: Where can I get service and parts for the Massey Ferguson MF240?A: Service and parts for the MF240 are widely available through authorized Massey Ferguson dealers and service centers, ensuring that your tractor maintains peak performance throughout its lifecycle.
