Aluminium Window Punching Machine with 6 Dies
- Category: >>>
- Supplier: Jinan Dega Machine Co. Ltd.
Share on (1201267775):
Product Overview
Description

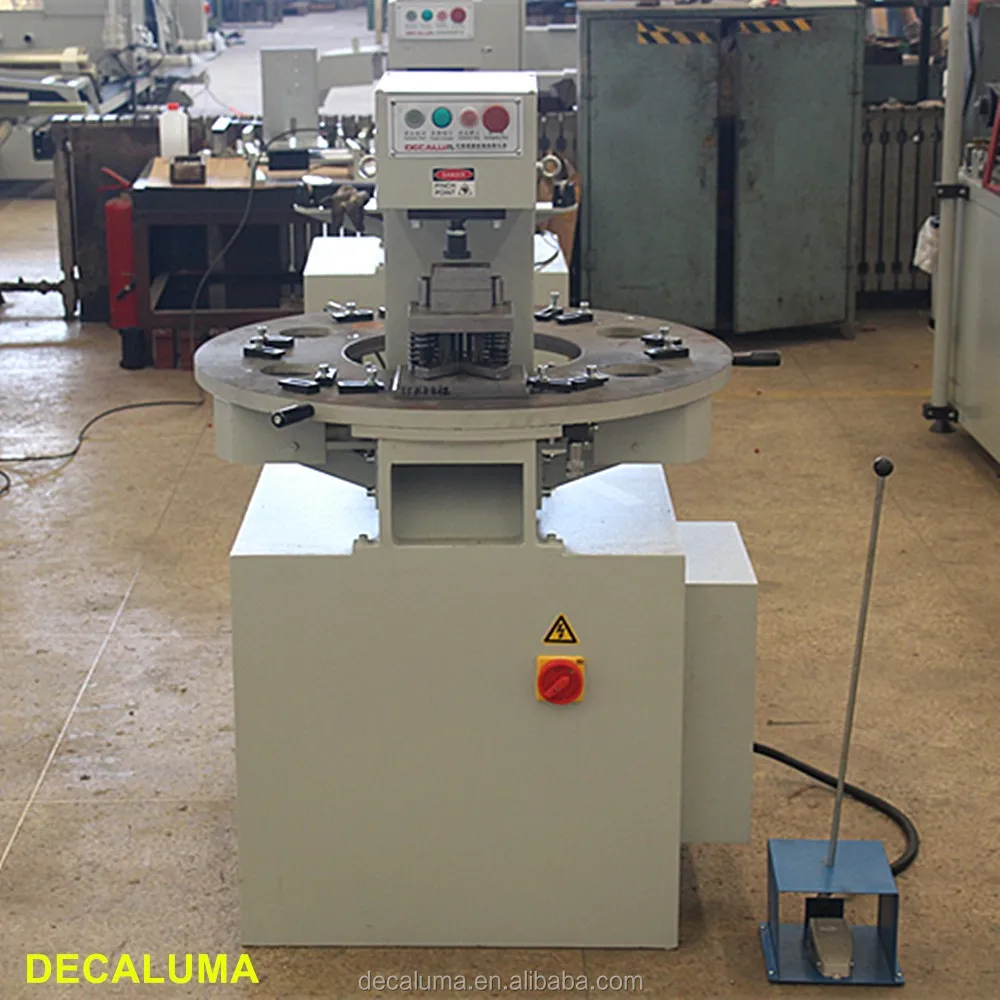

Aluminum Window Eyelet Pressing Machine with 6 Dies
Model: LY6-63
Product Description
1. Used for installation of aluminum windows and doors and the punching processing of aluminum profiles.
2. Punching process, by changing processing position, various types profiles can be processed.

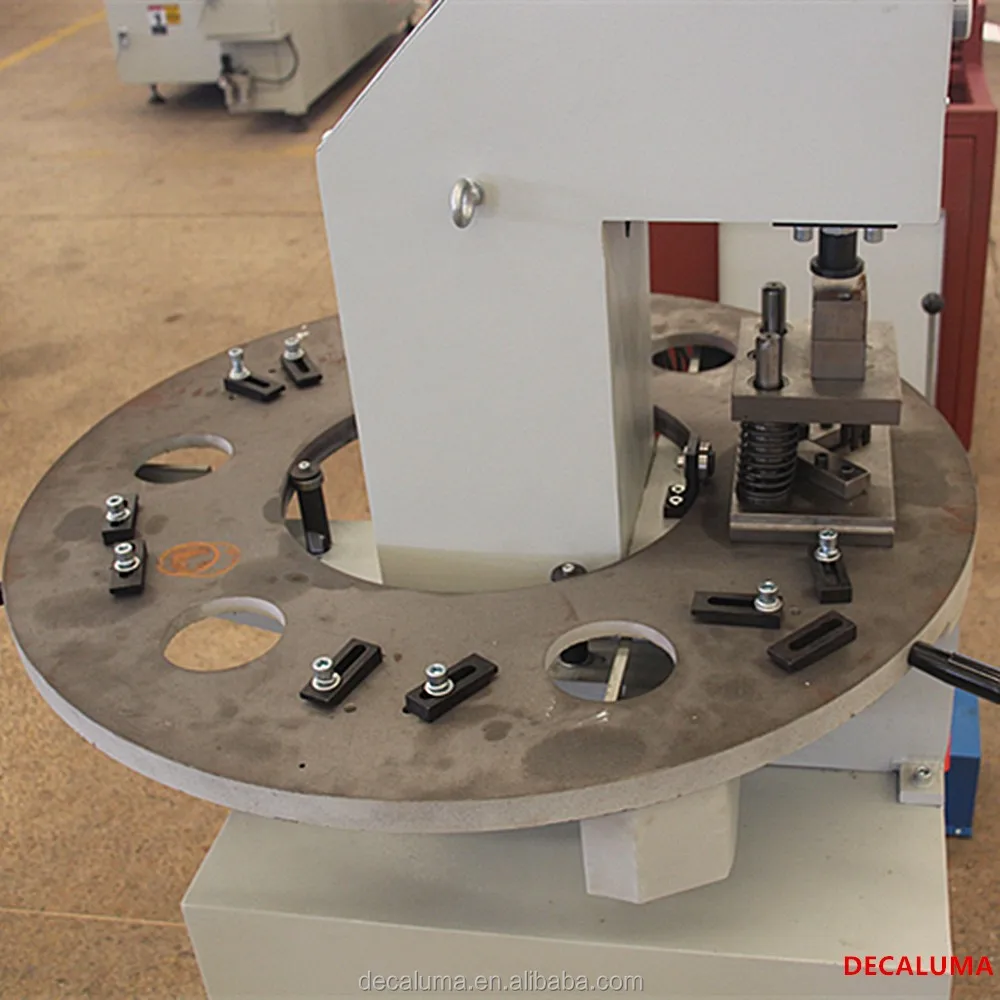

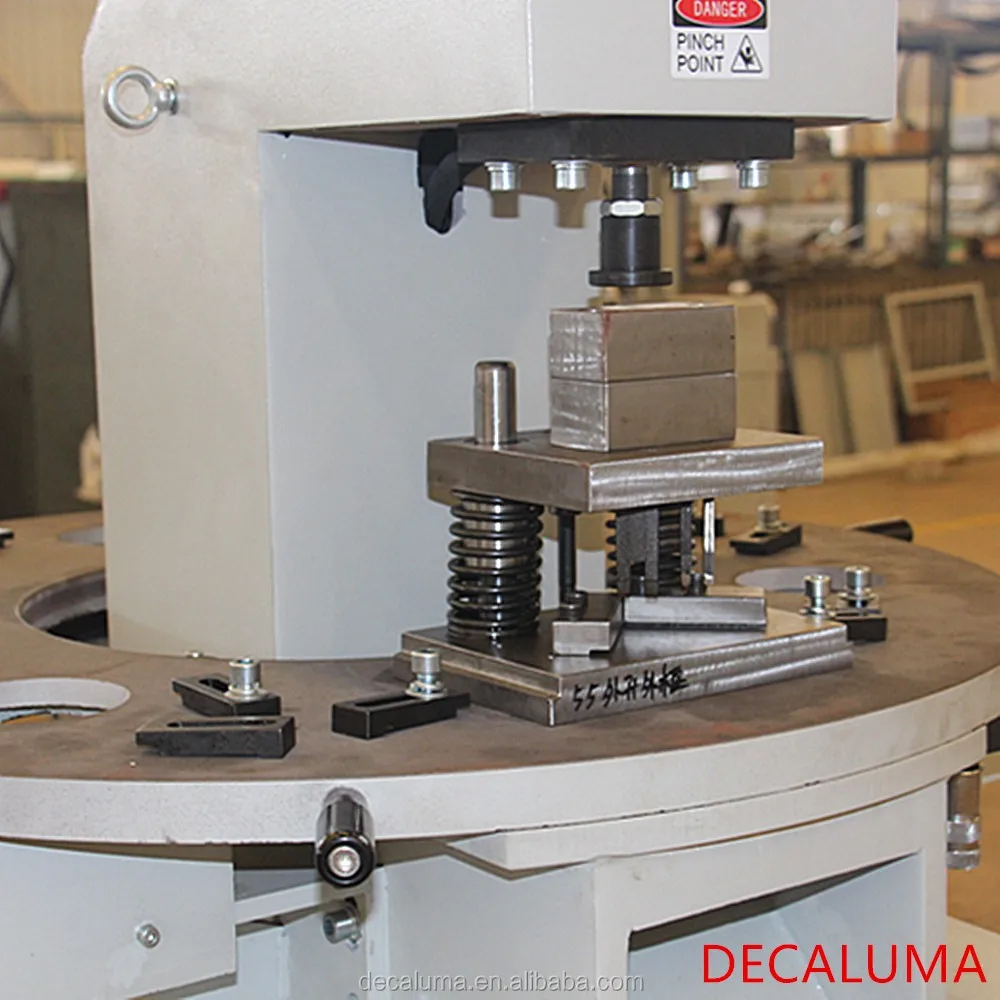

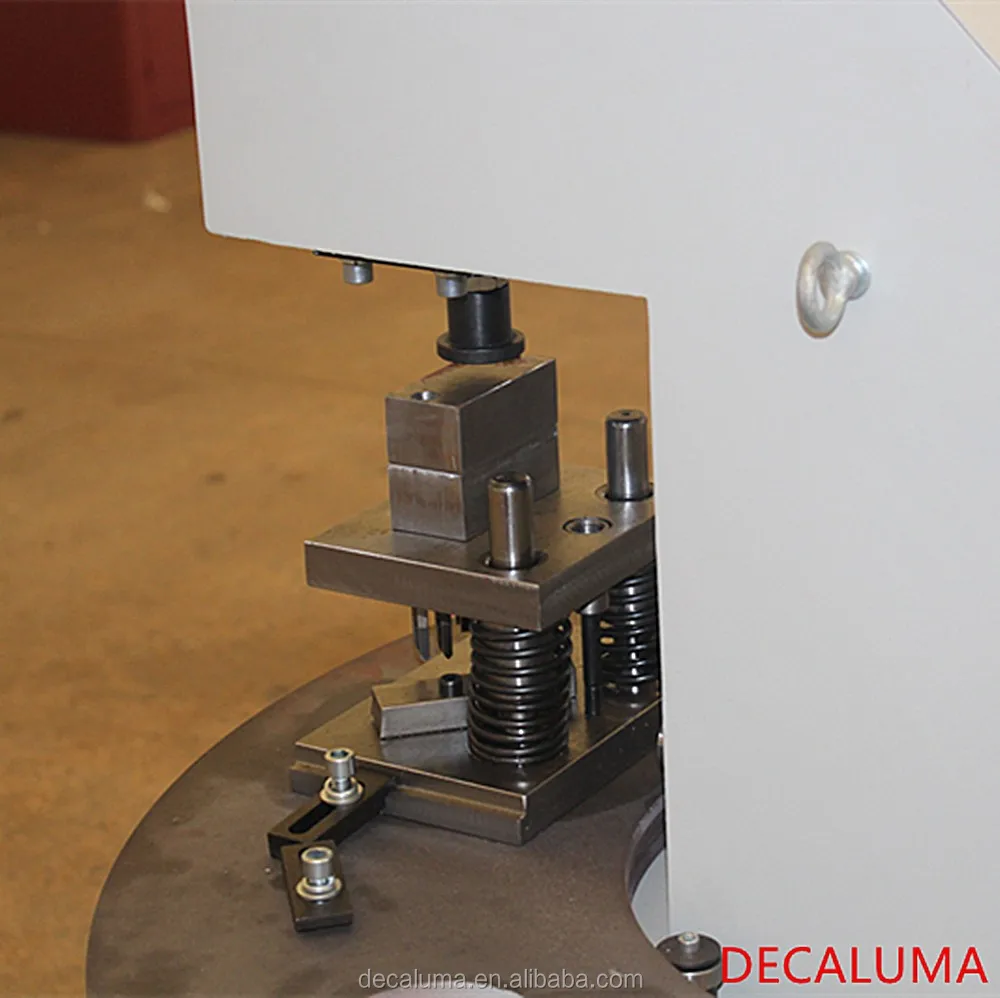

3. Adopt disk worktable is equipped with six set dies. Each die is used at any time by the worktable rotating, which greatly increased the production efficiency.
4. Per work position can be used to turn around.
5. High hydraulic power and good processing quality.
Power supply | Made to order |
Motor power | 2.2KW |
Motor rotary speed | 1420r/min |
Operation air pressure | 16Mpa |
Capability of oil box | 20L |
Press nominal pressure | 60KN |
Travel times | 30/min |
Closing height | 185mm |
Punching travel | 30mm |
Contour dimension | 900×900×1450(L*W*H) |
Processing deviation from straightness | ±.1mm |
Die size | 250*200(mm) |
Die thichness | 185mm |
Packaging & Shipping
Our standard package is steel chassis with plastic cover or full wooden package, but it depends on customer real requirements.
Our Services
1. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
2. After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
Company Information
FAQ
1. What you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines, just contact our company email.
2. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
3. Are you trading company or manufacturer?
Manufacturer(OEM)
4. Quick details about our company
Company Name | JINAN DEGA MACHINE CO.,LTD. |
Year established | 2006 |
Address | WEST END OF CENTURY AVENUE, HIGH-TECH ZONE,JINAN CITY,250101 CHINA |
Business type | Manufacturer |
Product range | CNC Machining Centre, aluminum cutting machine, corner key cutting, end milling machine,punching machine,copy router, crimping machine, drilling and bending machine |
Product advantage | Using advanced solidworks design platform |
Management certificate | ISO9001,national patent |
Fair we attend | Shanghai and Beijing international windows show |
E-catalog | available |
MOQ | 1 set |
Payment terms | TT or L/C |
Shipping port | Qingdao port |
