HL HB382SB Paper fold machine Cross fold
- Category: >>>
- Supplier: Lanxi Jinhua Printing Machinery Co. Ltd.
Share on (1202383013):
Product Overview
Description
- Product Description
Machine Name:HL-HB382SB HB462SB Paper fold machine Cross fold
Description:

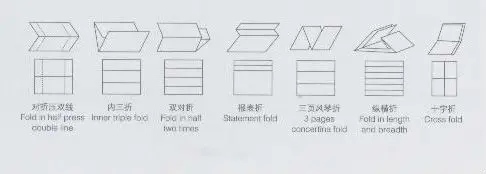

Suffix Alphabet Meaning: A-Standing B-Crossfold D-Deep Pile Feeder
1.Fold in half press double line
2. Inner triple fold Fold in half two times
3.Statement fold 3 pages concertina fold
4.Fold in length and breadth
5. Cross fold
Detailed Data:
Model | HB-382SB |
Working environment | Temperature 5-35°c |
Relative Humidity | 40%-80% |
Sheet breadth (mm) | 380*520(Max), 65*120(Min) |
Sheet collection breadth (mm) | 380*260(Max), 65*40(Min)(finished) |
Amount of folded plate | 4 |
Skew ness adjust equipment | standard equip |
Paper transport system | Suction |
Thickness of paper | 50-240g/m² |
Way of paper collection | Continuous collection/Vertical paper collection |
Folding & rolling speed | 0-28000sheet/hour(A4) |
Overall size | 1280*780*1200mm |
Power supply | 220V, 50HZ |
Power | 1500W |
Weight | 260kg |
Standard configuration | scoring or perforating |
Option | measure in batches, paper receiving implement, parting off |
Model | HB-462SB |
Working environment | Temperature 5-35°c |
Relative Humidity | 40%-80% |
Sheet breadth (mm) | 460*600(Max), 115*120(Min) |
Sheet collection breadth (mm) | 460*300(Max), 115*60(Min)(finished) |
Amount of folded plate | 4 |
Skew ness adjust equipment | standard equip |
Paper transport system | Suction |
Thickness of paper | 50-240g/m² |
Way of paper collection | Continuous collection/Vertical paper collection |
Folding & rolling speed | 0-28000sheet/hour(A4) |
Overall size | 1280*780*1200mm |
Power supply | 220V, 50HZ |
Power | 1500W |
Weight | 260kg |
Standard configuration | scoring or perforating |
Option | measure in batches, paper receiving implement, parting off |
Company Information
Packaging & Shipping
Packing Details:
For small size, it is wooden case, if need, the wooden case will be fumigated.
For large size or Unconventional size, it will be shipped directly in to Container, or use the steel stand and make shippment onto special ship.
Packing size:
Depends on the type of products.
Packing Weight:
Depends on the type of the products.
