General Introduction:

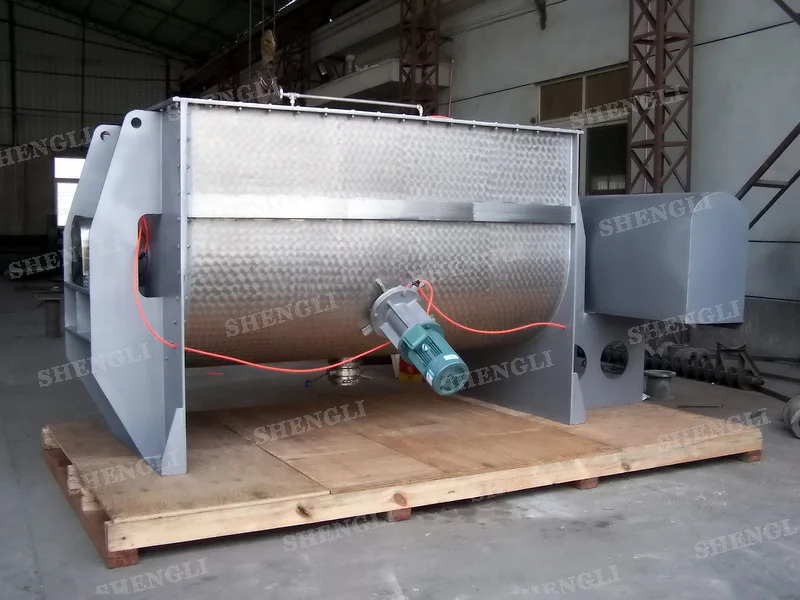

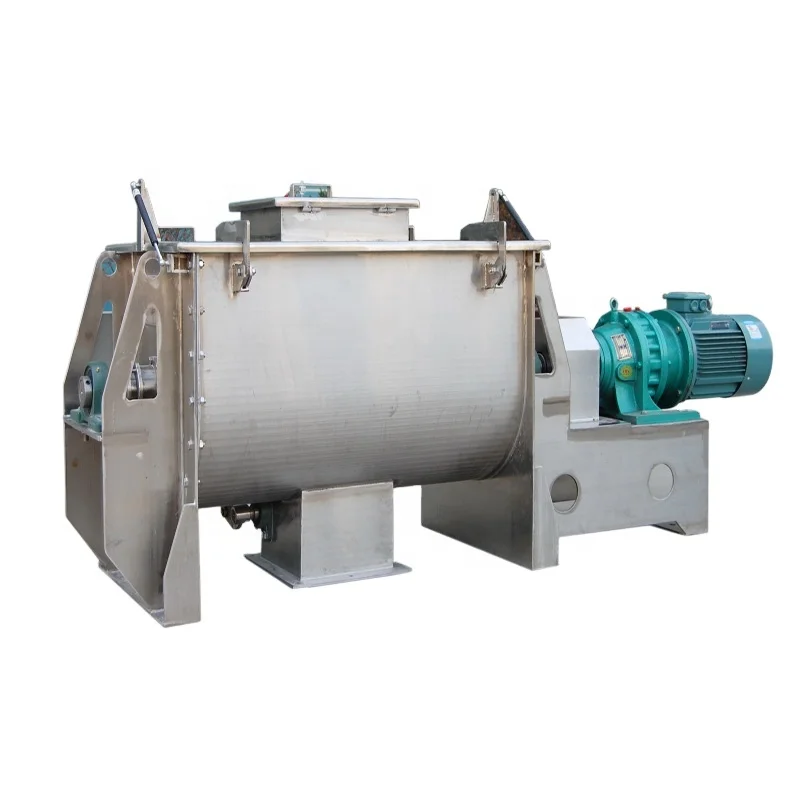

LHY horizontal ribbon mixer is widely used in chemical, pharmaceuticals, food, and construction line.

It can be used to mix powder with powder, powder with liquid, and powder with granule.
Under the driven of motor, the double ribbon agitator mix the material quickly.

Working principle:

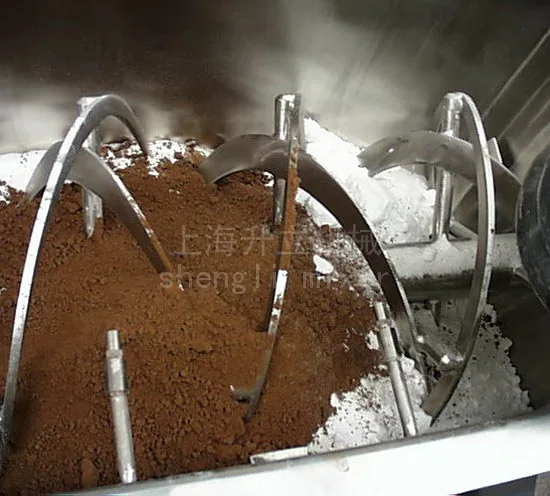

The outer ribbon push the material from the two ends to the centre, inner ribbon push the material from center to the two ends.Thus to achieve material convention
The discharging port is set in the bottom centre, with the help of the outer ribbon,the material can be discharged completely, and no dead zone.

Data sheet

1.Flexible material selection

Material can be carbon steel, manganese steel, ss304, 316L and 321; besides, different

material can also be used in combination. Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer

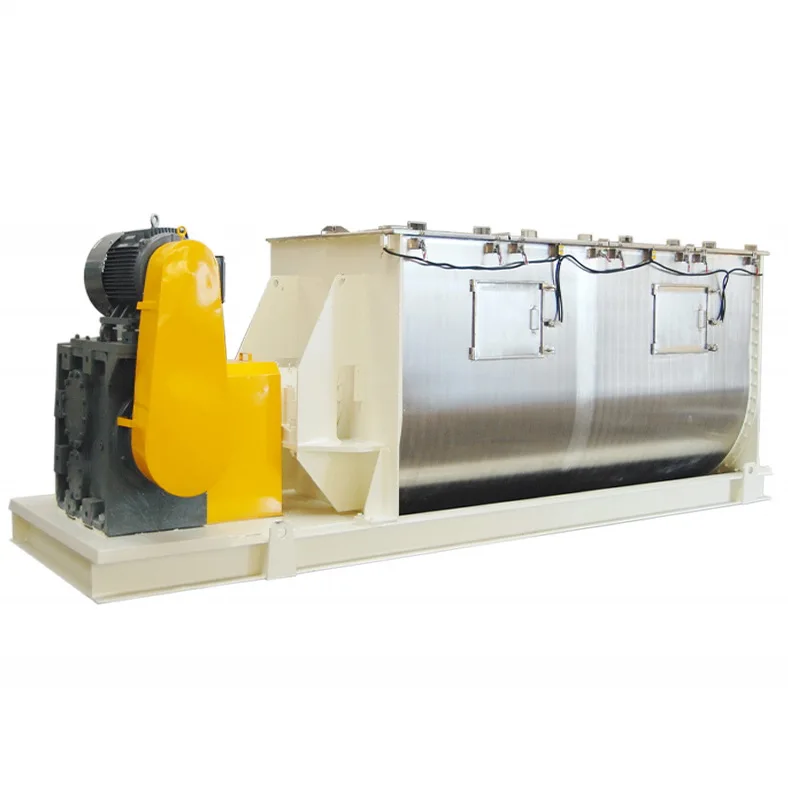

2.The driven unit

Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor. Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer.

Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.

 3.High efficiency mixing unit
Different main shaft agitators can be equipped according to the properties of raw materials.

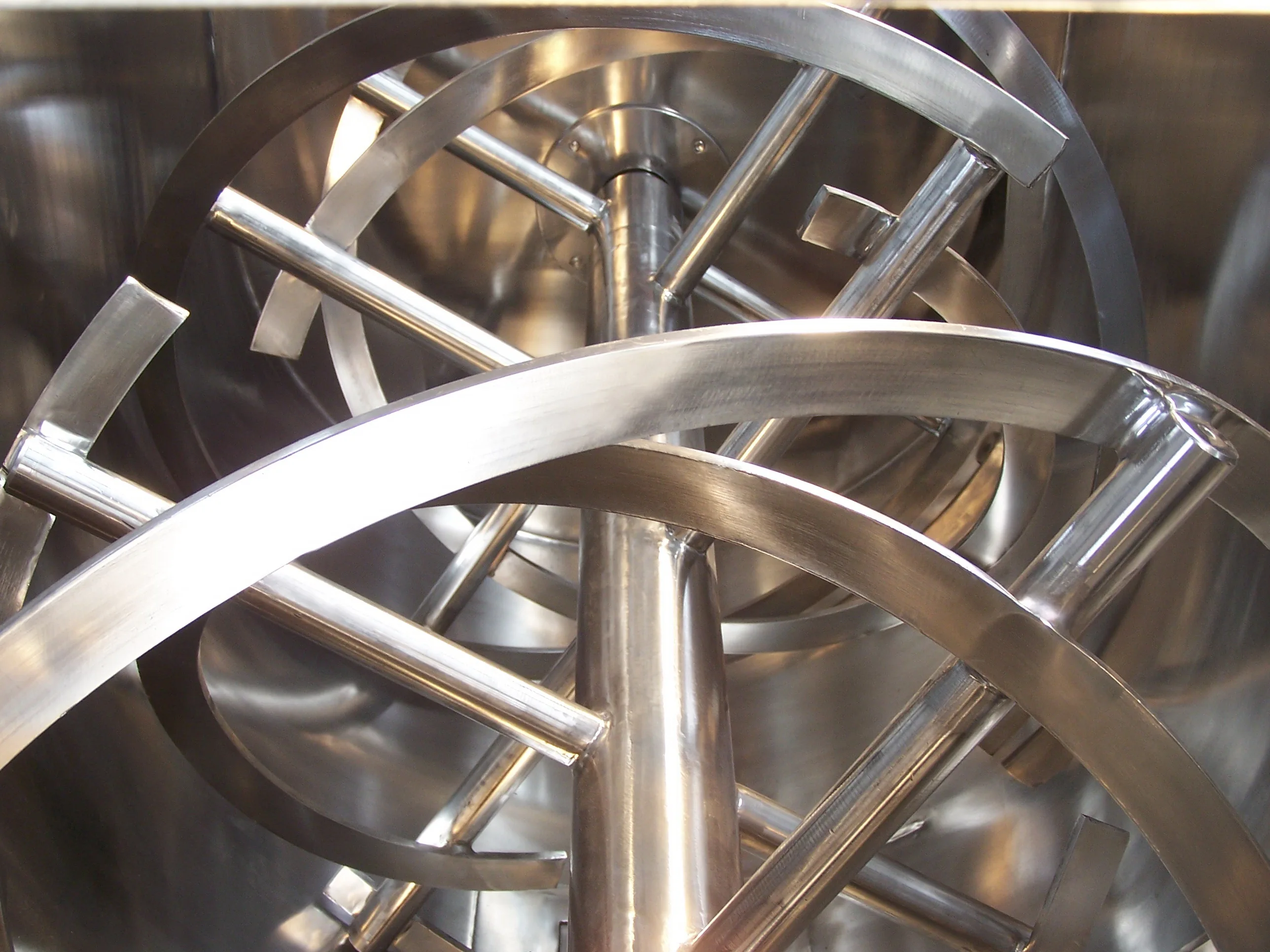

 The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.

4.Excellent discharging unit

The drive types of valve are Manual, pneumatic, and electric.
Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.

5.Various inlets
Various inlets on the top cover of the barrel can be designed according to different situations.
They can be used as man hole, cleaning door, feeding hole, vent, and dust colleting hole.

The top cover can be designed as fully-opened lid for easy cleaning.

6.Powerful auxiliary components
Mixer is frequently equipped with many auxiliary components, like steam coil jacket, honeycomb pressure jacket, medium circulation jacket

sampling valve, high speed chopper, temperature sensor, weighing system, dust removal system and so on.
Different heat medium requires different jacket, it can be used for heating and cooling, while, the temperature should be within 250 Celsius degree.

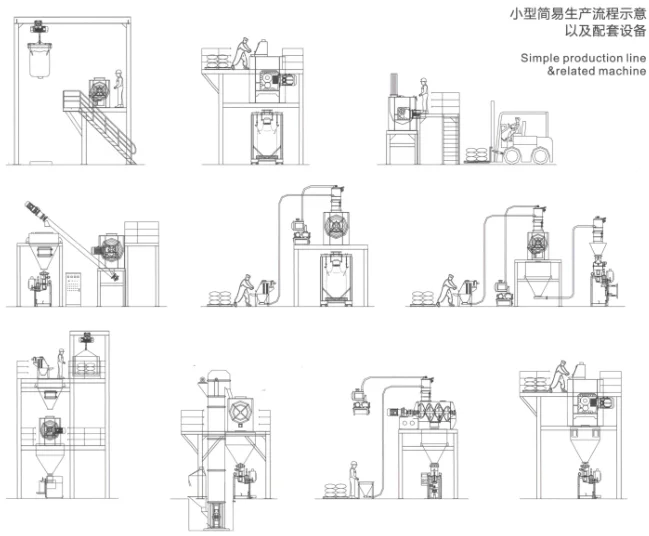

The production blending line like:

Feeding machine: manual feeding, crane big bag feeding, screw conveyor feeding, vacuum feeding, bucket elevator etc.

Mixing machine: doubel ribbon blender, single shaft mixer, mixing machine etc.

Filling machine: storage silo, screw conveyor, packing machine, big bag etc.

Simple system as dry ingredient bulk production mixing line like:

Double ribbon mixing equipment for food production blending, seasoning blender, spices blender

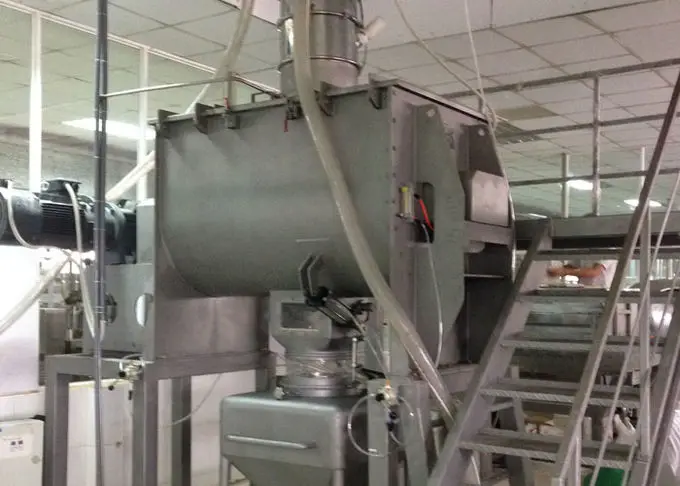

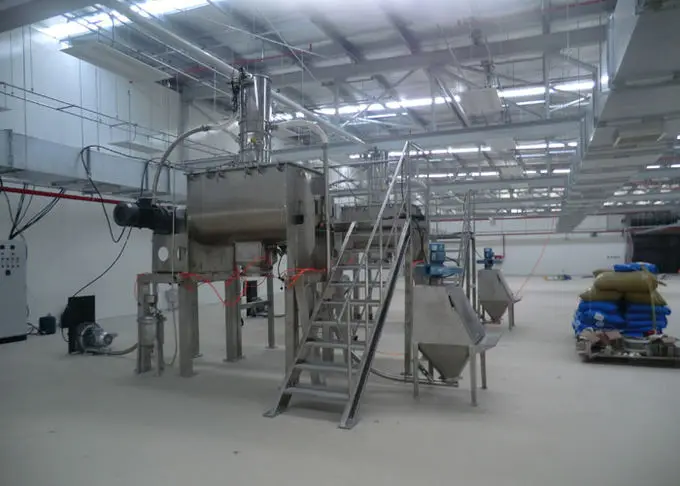

System is like this:

1. man cut the bag of the raw material or the material has been weighted for one batch usage, and pour into the dust proof dumping funnel which connected with the inlet of the vacuum feeder.

2. the vacuum feeding will suck the material up into the inlet of the mixer

3. the mixer will mix all material for nealy 10mins

4. the discharge valve of the mixer connect with a movable silo by BFM soft nozzle

5. the mixture will fill the bin, and ready for the next packing process

6. one mixer can have several vacuum feeders to increase the feeding speed

7. one mixer can have several movable bins for the different purpose of storage

8. platform is used for add small additives, or do maintenance and cleaning job

Shanghai Shengli specializes in mixing equipment research, design, manufacture, sales and service. In past 30 years

we go deeply mixing processing filed and related technology, devote to research different kinds of mixer,

modify and perfect existing mixing system, and develop new-type mixer equipment.

Under working experience, we developed mixer processing machinery independently.

With modern processing method, strict product management, high quality ,and professional service team

Shengli is becoming the preferred brand. We will keep researching new technology, solving mixing problems

providing more suitable mixer, promoting upgrades, and creating maximum value for customers

Shengli company is a professional and sophisticated international supplier, can handle all INCOTERMS 2010 terms, and we normally work on EXW, FOB, CIF

Normally, our delivery time is 45 days after we receive the deposit. If the order is big, we need to extend the delivery time.

We can ship construction machinery by various transportation tools.

Normally, we will go by sea, to main continents, for light spare parts in urgent demand, we can ship it by international courier service. Such as DHL, TNT, UPS or FedEx.

We ensure one year warranty, life-long service and provides technical support free of charge within or after warranty. Within the warranty period, we provide repair services for free. After the warranty period, we only charge cost of the required materials.
