High efficient poultry farming equipment

Product Overview

Description



High efficient poultry farming equipment

Specification of Poultry farming equipment



Model	9KLH250	9KLH304	9KLH320	9KLH350	9KLH400	9KLH420	9KLH508
Capacity(T/H )	0.5-1.5	1-2	2-4	3-7	7-10	5-14	6-20
Power (kw)	22	30	37	55	75/90	90/110	110/132/160
Screw feeder power (kw)	0.75	0.75	0.75	0.75	1.5	1.5	2.2
Conditioner power (kw)	2.2	2.2	2.2	2.2	5.5	5.5	11
Die Inner Dia(mm)	Φ250	Φ304	Φ320	Φ350	Φ400	Φ420	Φ508
Dimension (L*W*H)	1300*1000 *1500	1200*1000 *1100	1900*900 *1100	1900*900 *1100	3300*1200 *2500	3300*1200 *2505	3500*1470 *2800
Pellet size	2-18mm
Pellet type	Mash/powder and pellets



Features of High efficient poultry farming equipment

1)  Poultry farming equipment  is  suitable for making all kinds of animal feedstuff. Which

capacity 1-20t/h for feed factory .



2)  Poultry farming equipment can be match different size of ring die hole size , such as φ1.0, φ1.2, φ1.5,φ2.0, φ2.5, φ3.0, φ3.5, φ4.0, φ4.5, φ5.0, φ6.0, φ8.0, always for making shrimp, fish

feed to use for φ1.0--3.5 ring die ; chicken feed for φ3.0; Swine feed for φ3.0--4.5; Cattle,

horse for φ6.0--8.0).



3)  Poultry farming equipment adopt imported SKF or NSK bearings, the motor brand is Siemens or china famous Wannan brand .



4) Poultry farming equipment  is Driven by gear, more strong than by belt, and the capacity 10% higher than by belt .



5) Poultry farming equipment also matched the safety equipment, once overload, the safety pin

will crack, to protecting the machine lifetime.



6)  Poultry farming equipment has low noise during the production.



7) Poultry farming equipment feeder can be regulated a variable speed controlled to meet different outputs requirements.



8) Poultry farming equipment is with magnet and over load protection system, which can protect machine well during production



9) We have oversized conditioner and jacked conditioner for choosing to enhance the effect of

the pellet condition.



Poultry farming equipment  is integrated with magnetic separation, smashing,mixing,pelleting,lifting,cooling,screener,packing,dust collector and electronic control.It has stable property,steel frame structure and easy installment.It can produce 1000-50000 tons of mash feed and pellet feed per shift annually.

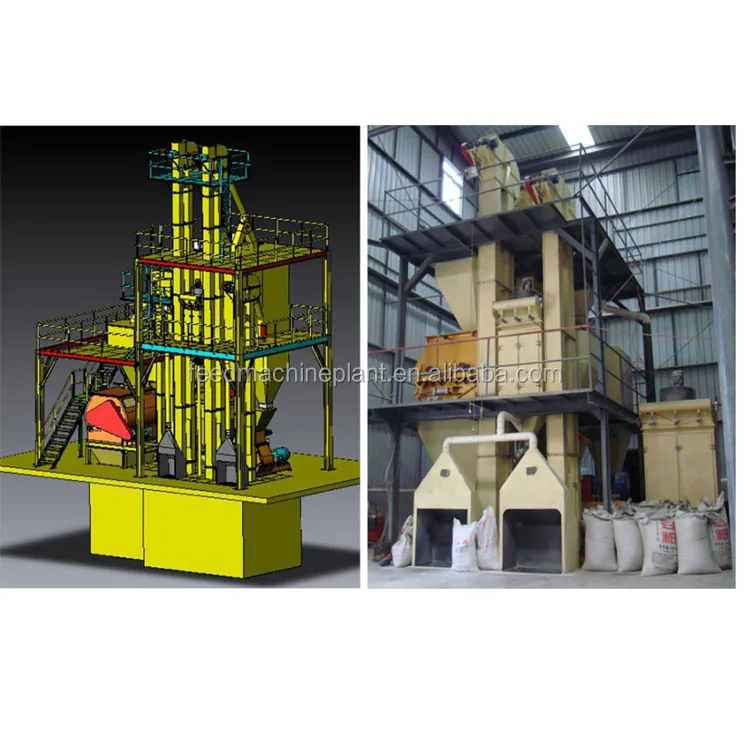

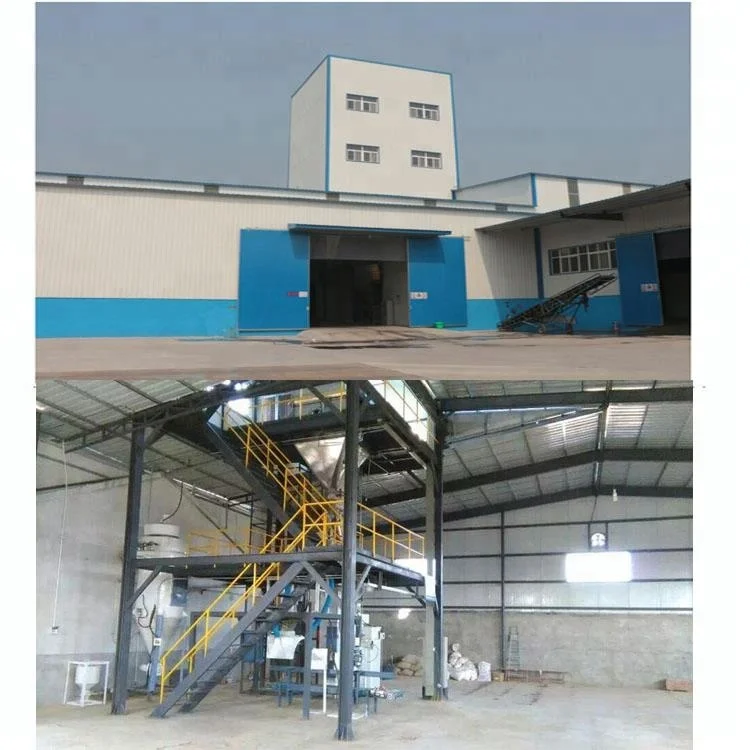

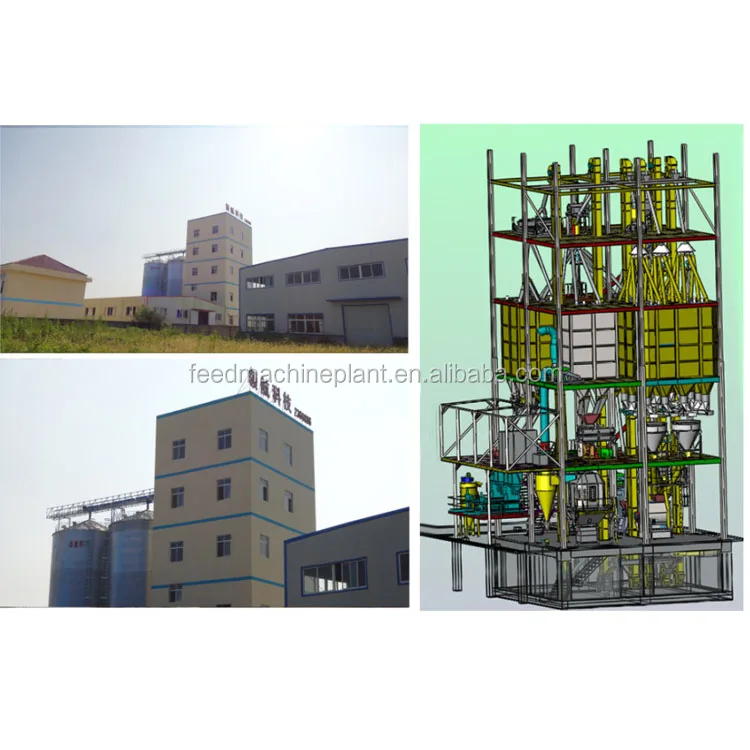

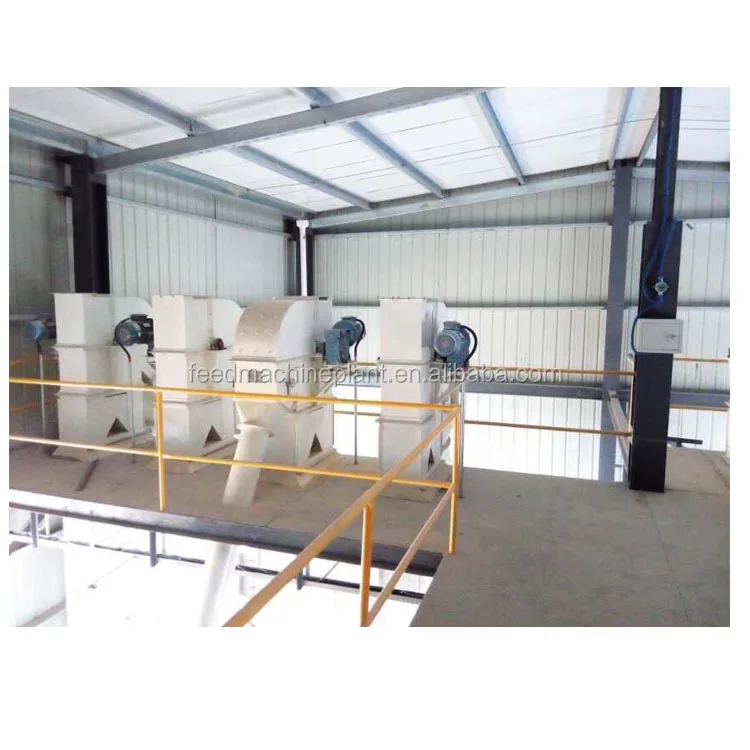

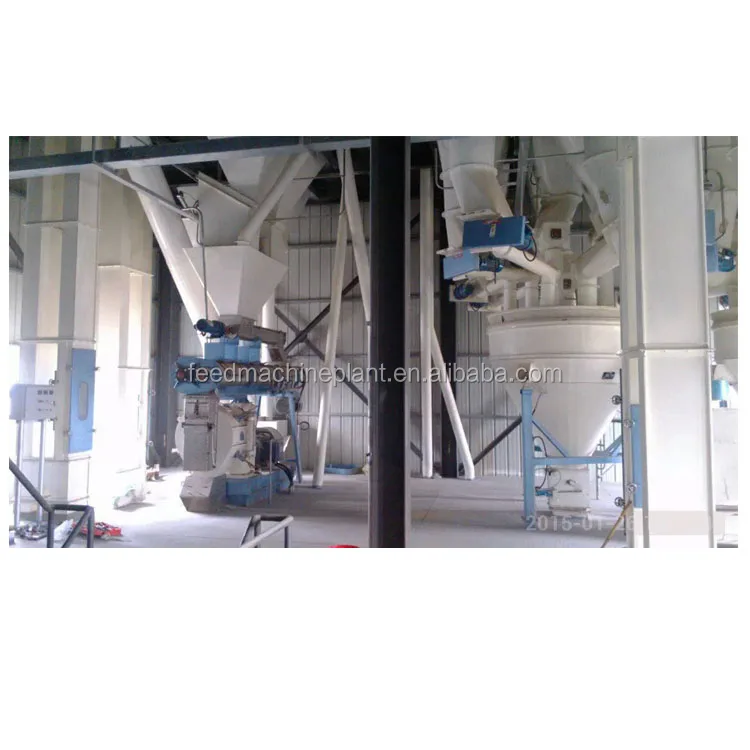

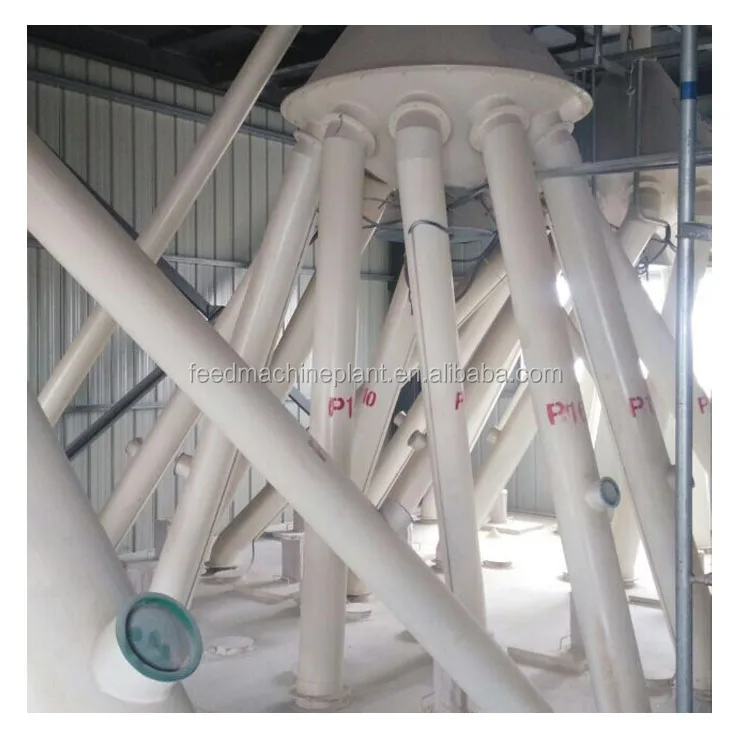

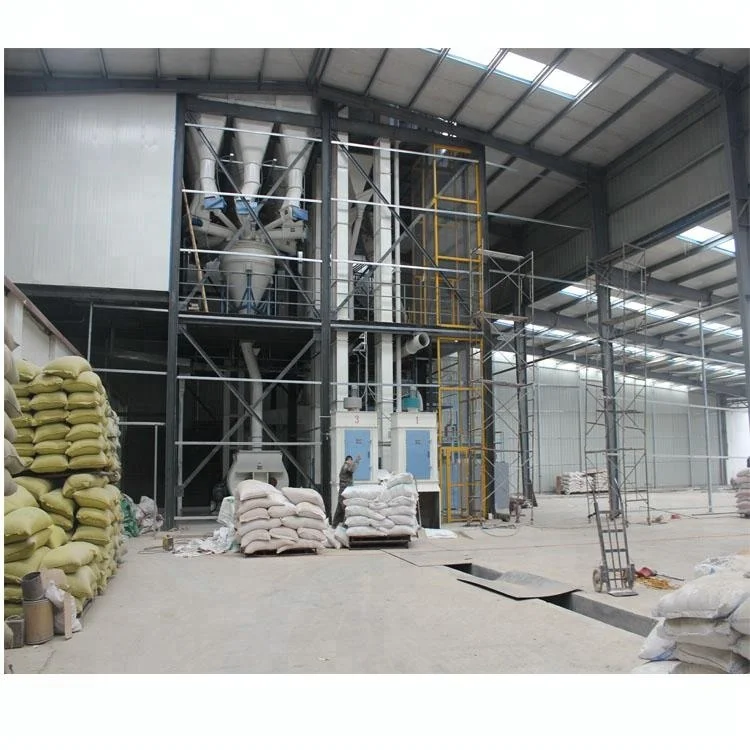

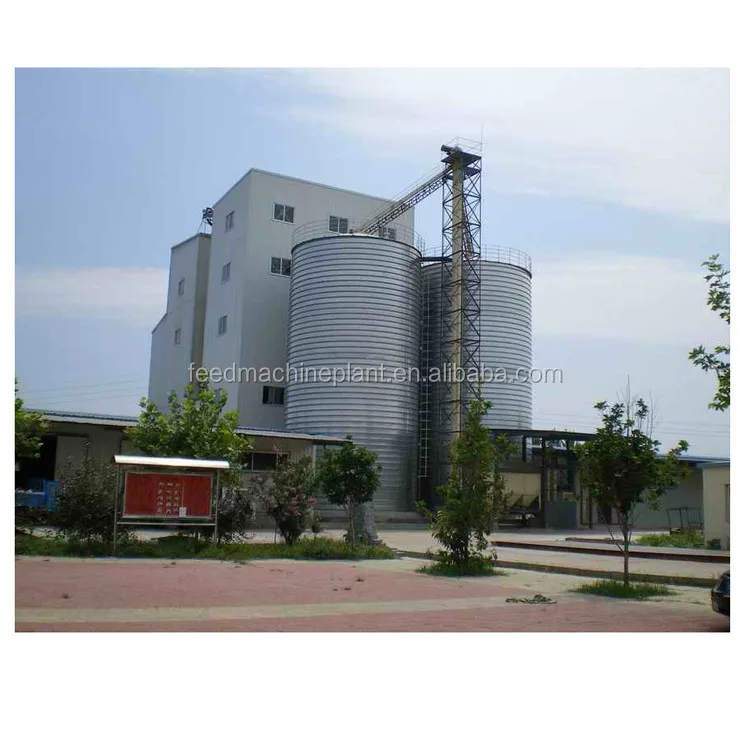

More pictures of Poultry farming equipment
