20x20,30x30,40x40,50x50cm square led panel module,Multiple application

Product Overview

Description

20x20,30x30,40x40,50x50cm square led panel module,Multiple application











 Advantages



Low cost LED solution

Saves 60%+ of the energy used by fluorescent tubes

Easy to install in new signs or retro-fit in existing signs

Even light distribution over the whole sign

No hot spots or shadows

Long life expectancy, over 50,000 hours

Low maintenance

3mm thickness, super slim

High efficiency 100Lm/w

With warranty 3years

I65 waterproof design

CE RoHs listed

Sizes and shape can be customized, Various led spacing for selection

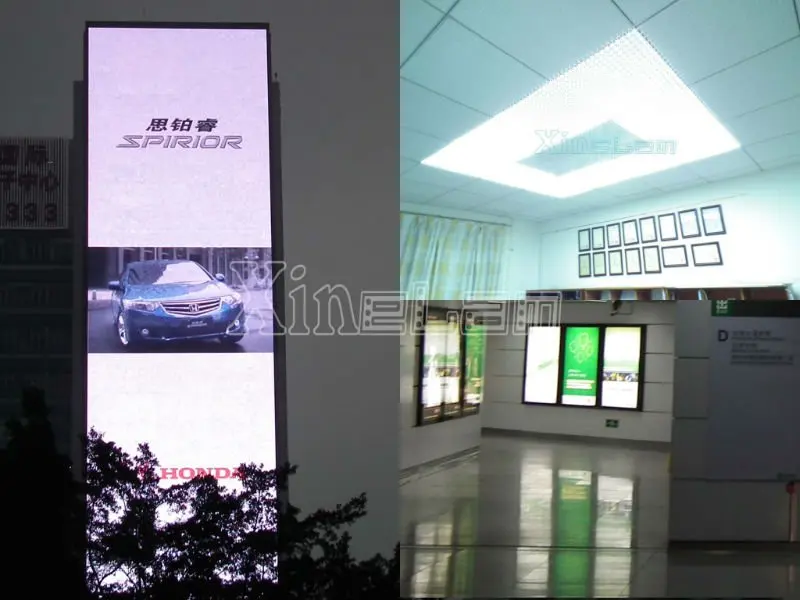

White/warm white/Neutral  LED light, Suitable for small and large advertising signs,lightbox backlight, single and double sided both all ok. also can be used for ceiling lamp directly.

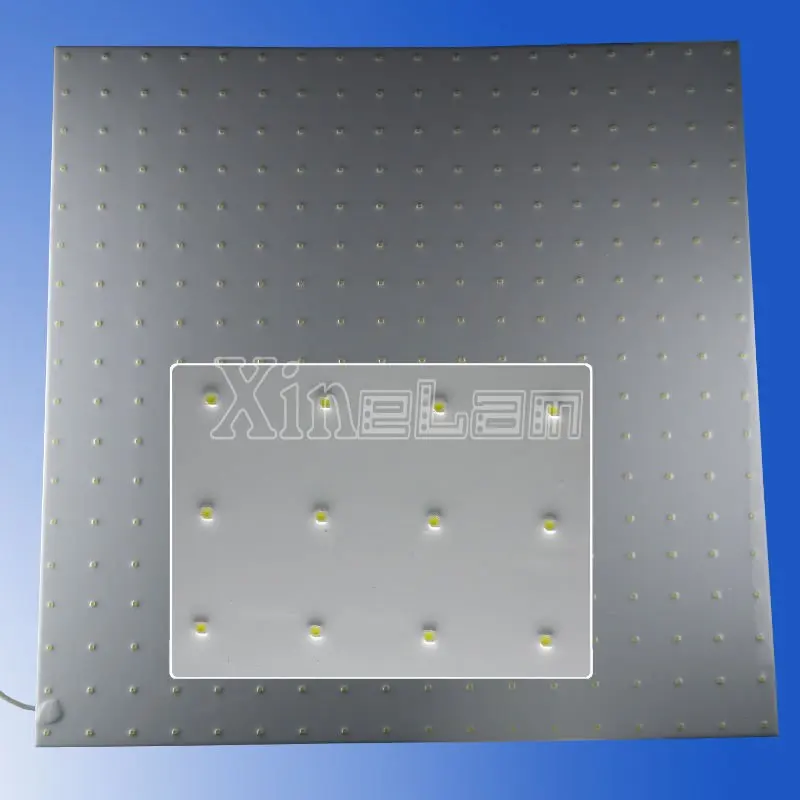

Smd3528/5050 led chips optional, Led spacing



50/47.1/33.33/30/25/16mm(smd3528),33.33/25/16mm(smd5050) can be choose frrom, base



on different power cost and brightness. Can meet various customers required,



30x30,30x60,60x60cm as standard sizes, Also accept others sepcification dimensions customized, max 100x100cm







MODEL	LED spacing	Brightness/ m2	Comment
RX-ALF3528-33	33.33mm	6000Lm / m2	Standard lumen
RX-ALF3528-50	50mm	3000Lm / m2	Low lumen
RX-ALF3528-45	45mm	3770Lm / m2	Low lumen
RX-ALF3528-30	30mm	7540Lm / m2	Standard lumen
RX-ALF3528-25	25mm	10830Lm / m2	high lumen
RX-ALF3528-16	16.66mm	22770Lm / m2	high lumen
RX-ALF3528-X66	47.1mm	3330Lm / m2	Low lumen









MODEL	LED spacing	Brightness/ m2	Comment
RX-ALF5050-33	33.33mm	6100Lm / m2	With RGB
RX-ALF5050-25	25mm	27700Lm / m2	superhigh lumen
RX-ALF5050-16	16.66mm	55550Lm / m2	TOP lumen

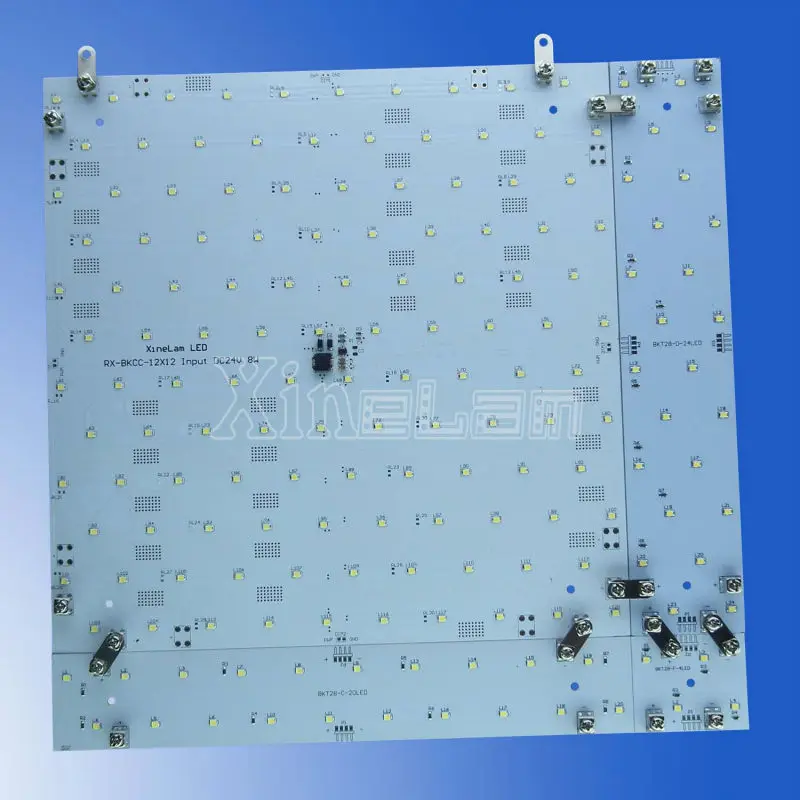

 LED mofule / 4 sizes of interlocking and connectable



Stitching Size 16m² / No additional connection wires





Ideal choose for   Ideal backlight-light source, Backlighting for large-scale projects; also be used for home decorative lighting, Do your own energy-saving lighting project.





MODEL	Brightness	Power	Comment
RX-BKT28	25000Lm/ m²	250W/m²	Non waterproof Limiting resistor Optional DC12V or 24V
RX-BKCC	10820Lm/ m²	90W/m²	Non waterproof  Built-in CC module Max stitching 16m²

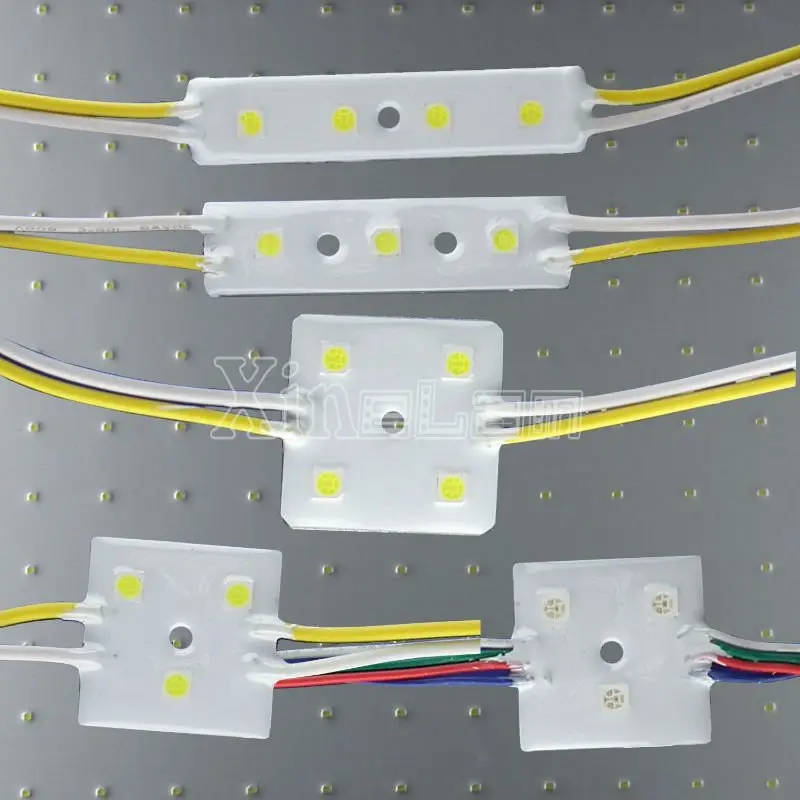

RX-CK	24Lm/ LED	0.24W/LED	Wires connected Limiting resistor Small size IP67
