Electronic Gas Stove Igniter

Product Overview

Description

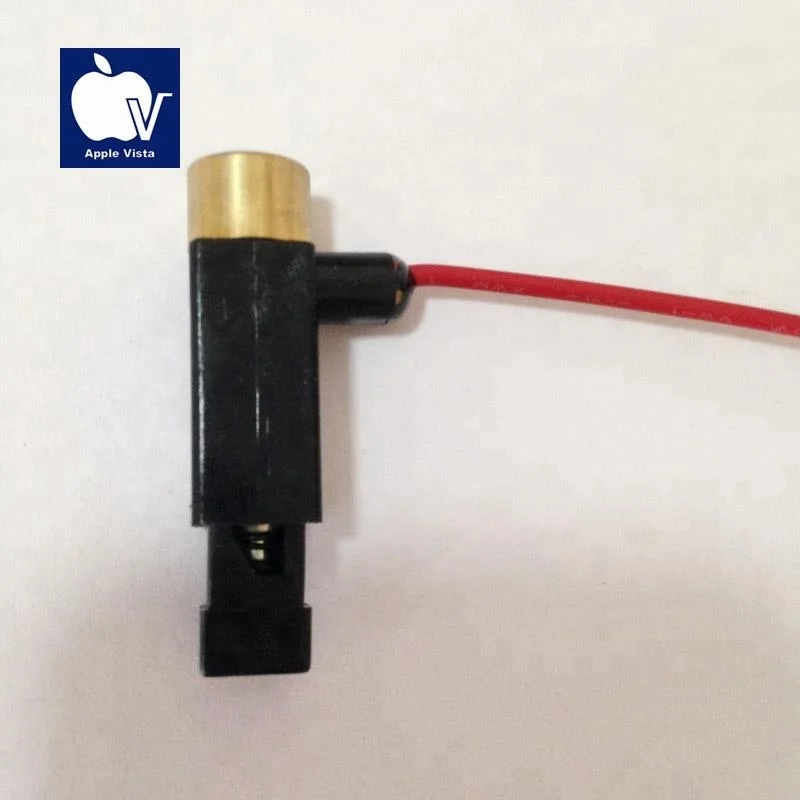

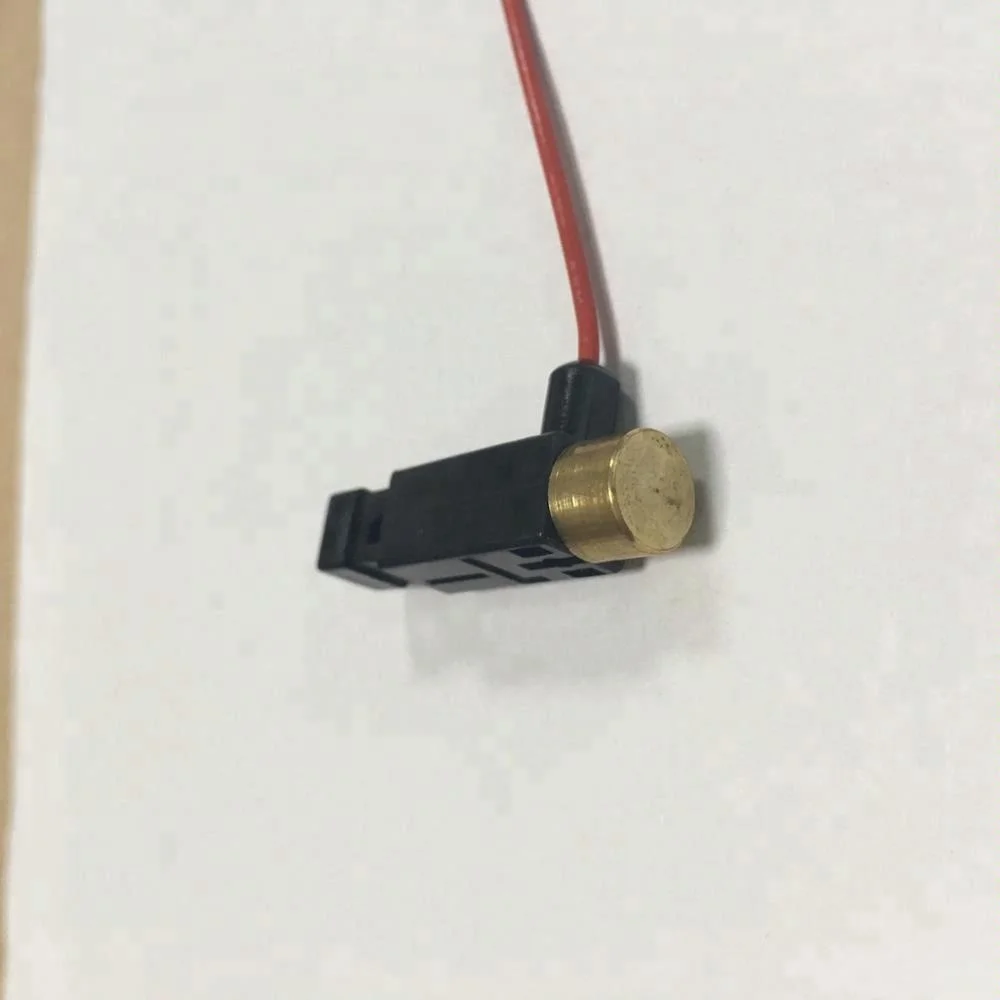

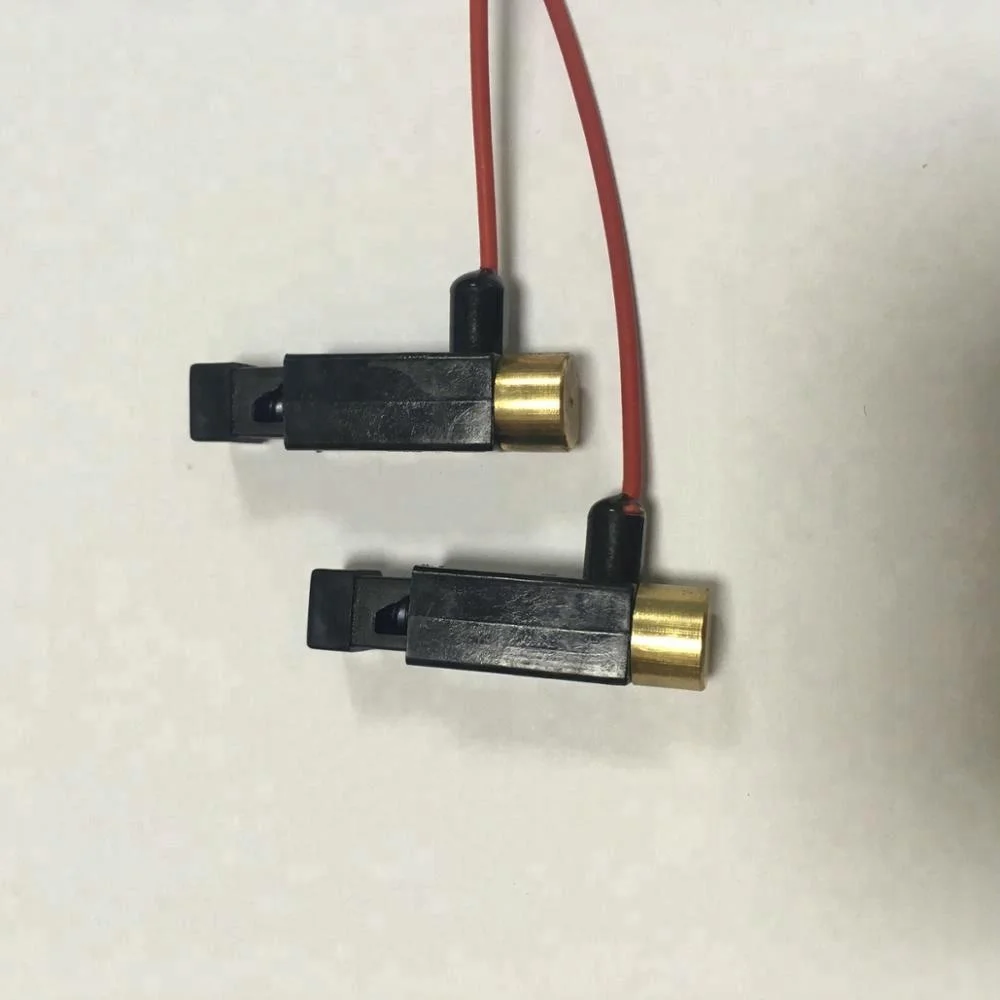

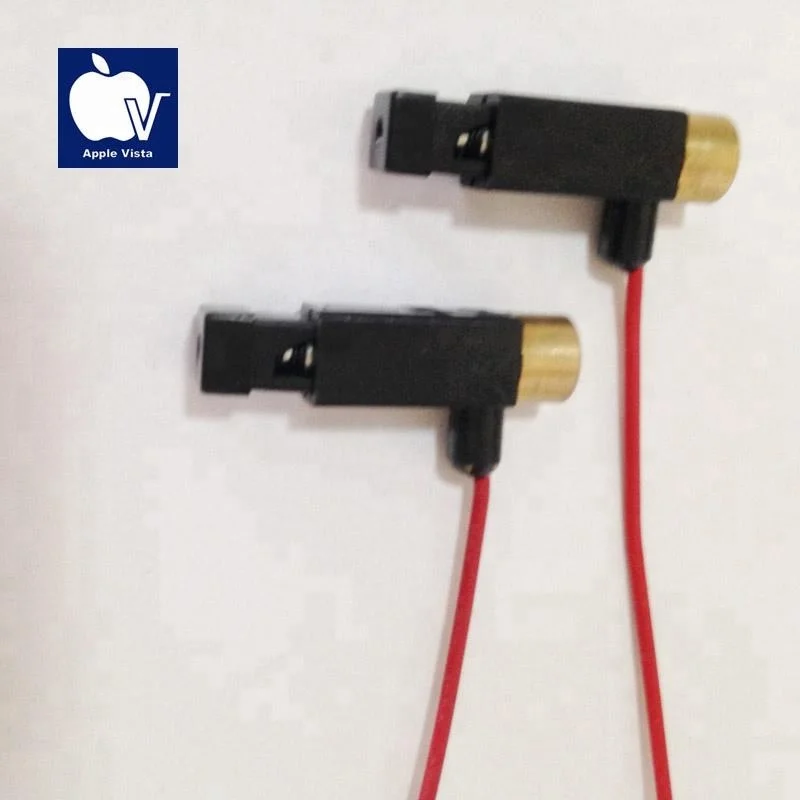

Electronic Gas Stove Igniter



Typical Applications



1.Household appliancesgas



2.Barbecue grills



3.Cigarette lighters,etc









Application Theory





When a household gas lighter is actuated, great mechanical pressure is applied to the end faces of a piezo pre-stressed ceramic cylinder fitted in this mechanism.



The pressure load generates values of several thousand volts at the cylinder electrodes.



This high voltage generates one or several sparks in the spark gap of the lighter which are able to ignite an air-gas mixture.



This principle can be used for igniting all technically important combustible gases.





Apple Vista Standard PZT Elements For Ingiter



AV P/N	AV031240	AV031250	AV031252	AV031254
Type	Impact	Impact	Impact	Impact
Material	PZT-4D	PZT-5B	PZT-5B	PZT-5B
Diameter(mm)	5.00+/-0.05	6.27+/-0.05	6.35+/-0.05	7.00+/-0.05
Length(mm)	10.00+/-0.1	16.00+/-0.1	15.00+/-0.1	15.00+/-0.1
Density(p)	7.5	7.7	7.7	7.7
Dielectric Constant(E)	1300	2300	2300	2300
Electric Capacity(c)	22+/-3(pf)	38+/-5(pf)	41+/-5(pf)	50+/-5(pf)
Output Voltage Constant(G33)	26+/-2 (10-3V.m/N)	28+/-2 (10-3V.m/N)	28+/-2(10-3V.m/N)	28+/-2(10-3V.m/N)
Electro-Mechanical coupling factor(K33)	>=0.65	>=0.75	>=0.75	>=0.75
Piezoelectric charge Constants(D33)	>=280 (PC/N)	>=460 (PC/N)	>=460 (PC/N)	>=460 (PC/N)
Curie point (Tc)	>=310oC	>=300oC	>=300oC	>=300oC
Temperature for operation	under 120oC	under 120oC	under 120oC	under 120oC
Insulation resistance	Over 50,000 M ohm	Over 50,000 M ohm	Over 50,000 M ohm	Over 50,000 M ohm
Static compressive strength	more than 4000Kg/cm²	more than 5000Kg/cm²	more than 5000Kg/cm²	more than 5000Kg/cm²















Cutstomer Design



Other type or size piezo electric ceramic element could be designed as your demand. Piezo ignitors and push button ignitor mechanisms are also available for your specific requirements , it’s also could assembly in our facotory.
