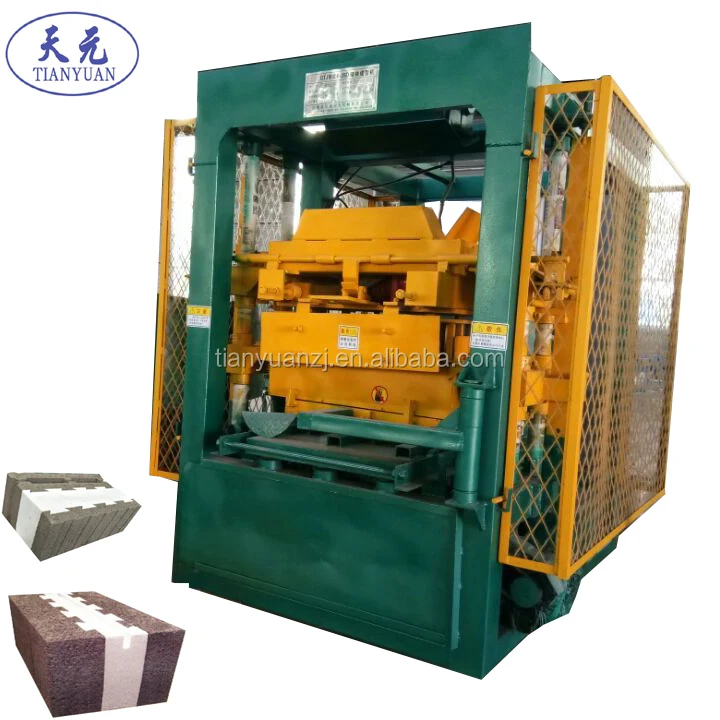

cement concrete blocks with foam eps panel insert making machine ( Huarun Tianyuan factory)
- Category: >>>
- Supplier: Yinan Huarun Tianyuan Machinery Co. Ltd.
Share on (1205994095):
Product Overview
Description
Product Description

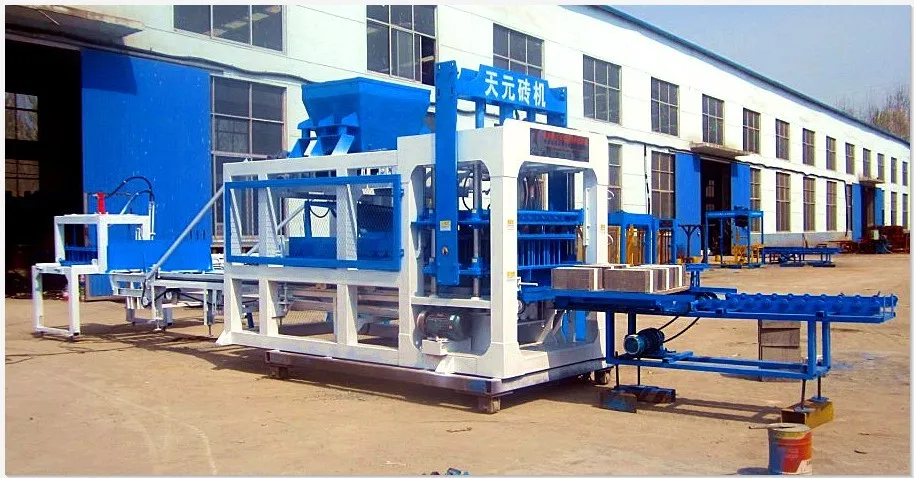

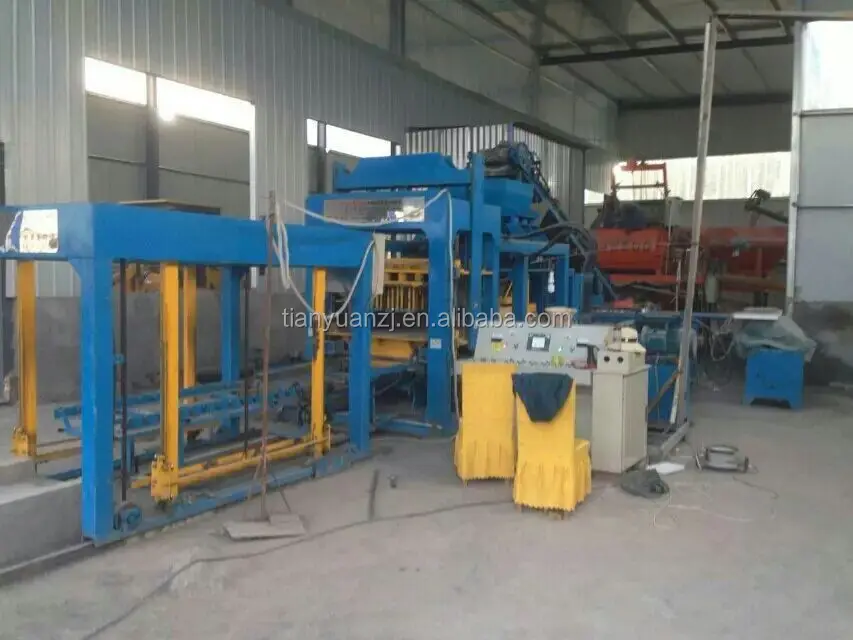

Simple Production Line Introduction
QT8-15 has pressure system with two hydro-cylinders.The lifting speed fast and the pressure function is well.It could be fully automatic or semi automatic production line as per clients needs. Full line including PLD800 Batching machine, JS500 Mixer, QT8-15 block machine, EPS feeder, EPS cutter, stack machine, and Molds and so on.
Specifications of QT8-15 main machine | ||||||
Dimension of host machine | 4800*2200 *2800mm | |||||
Pallet size | 950x900x20~30mm | |||||
Total power | 38.7kw | |||||
Weight of the host machine | 13.5ton | |||||
Vibration force | 100KN | |||||
Molding cycle | 30S | |||||
Rated pressure | 15~30Mpa | |||||
Material Consumption | 200~260ton/day | |||||
Electric Consumption | 86kw.h/day | |||||
Water Consumption | 10ton/day | |||||
Worker | 4-8workers | |||||
Main Parts for QT8-15 & Capacity .
Size(L*W*H) | QTY/Mould(pcs) | QTY/Hour(pcs) | QTY/8Hour(pcs) |
400×250×200mm | 6 | 720 | 5760 |
Main Features
The advantage of Molding Machine,
1- Automatic with Siemens PLC control system and Touch-operating Panel, Double Delta frequency converters, use less labor.
2-Hydraulic transmission,mechanical vibration, and hydraulic pressing and forming are adopted
3- Adopting the advanced forced material-feeding & distributing device, More durable.
4- It could make many kinds of color-faced pavement tiles, color-faced grass-planting bricks and curb bricks, as well hollow blocks and interlocking wall bricks by changing different molds.
5- Quality Insurance:
PLC and Motors from Siemens Brand, Hydraulic from Germany Brand Yk.Switches from Siemens or CHTN.
Molds are made of Manganese steel, long lifetime.
6- Certificate: ISO quality control, CE (MD+LVD).- European Quality.

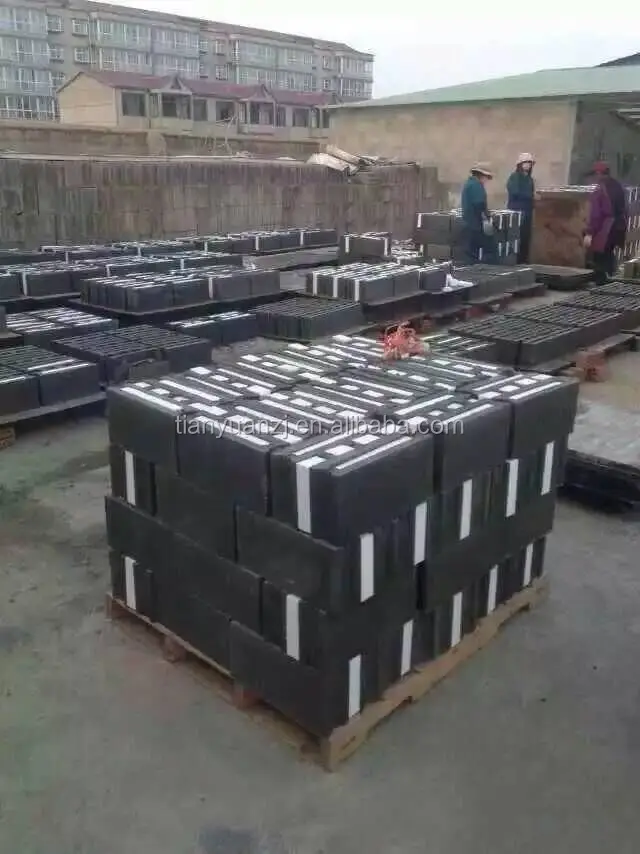

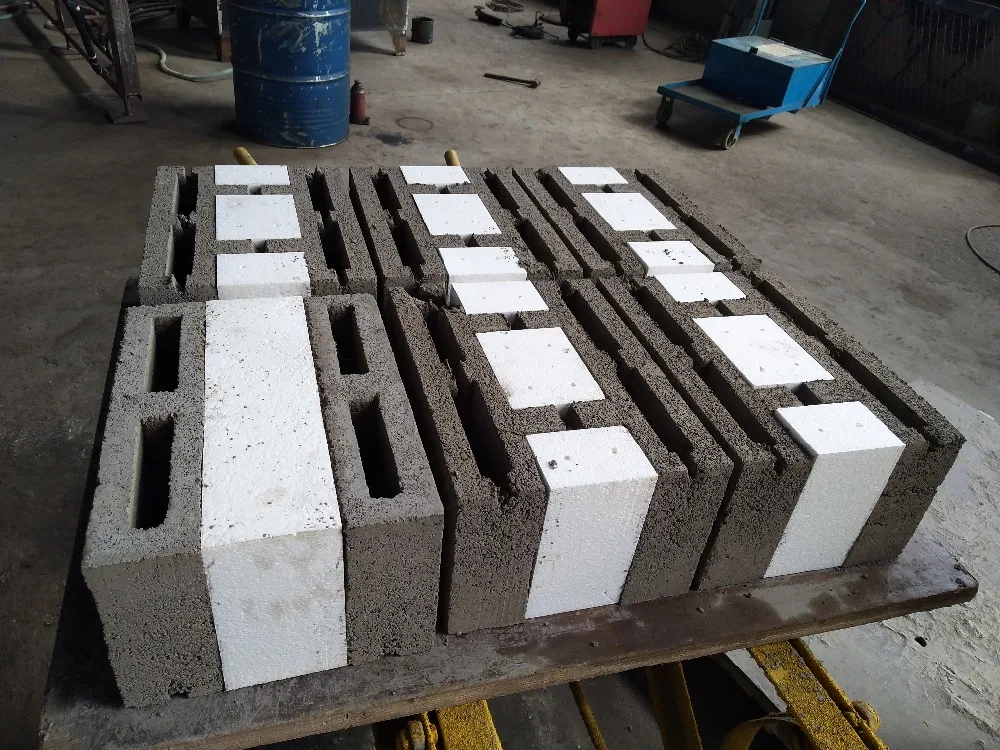

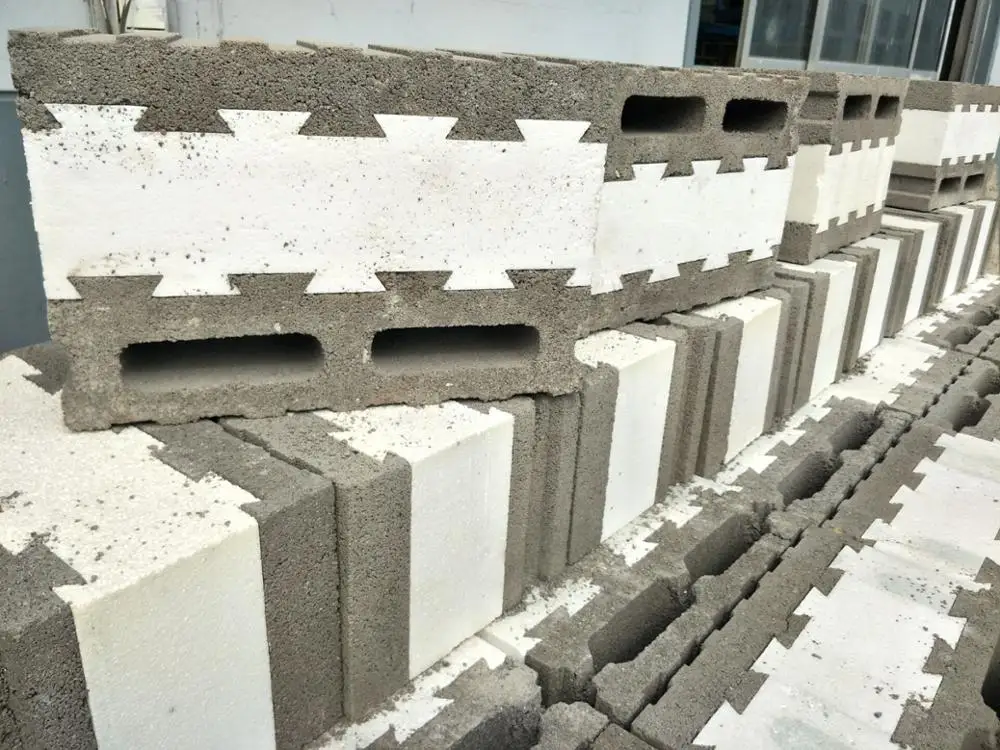

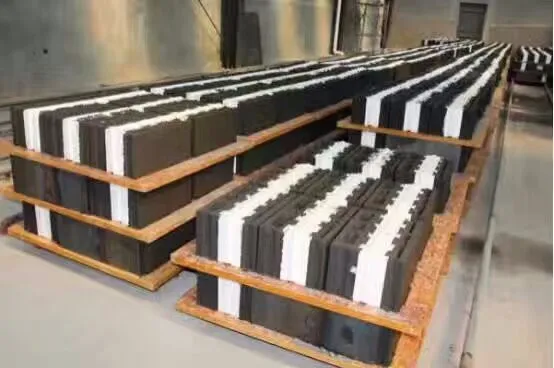

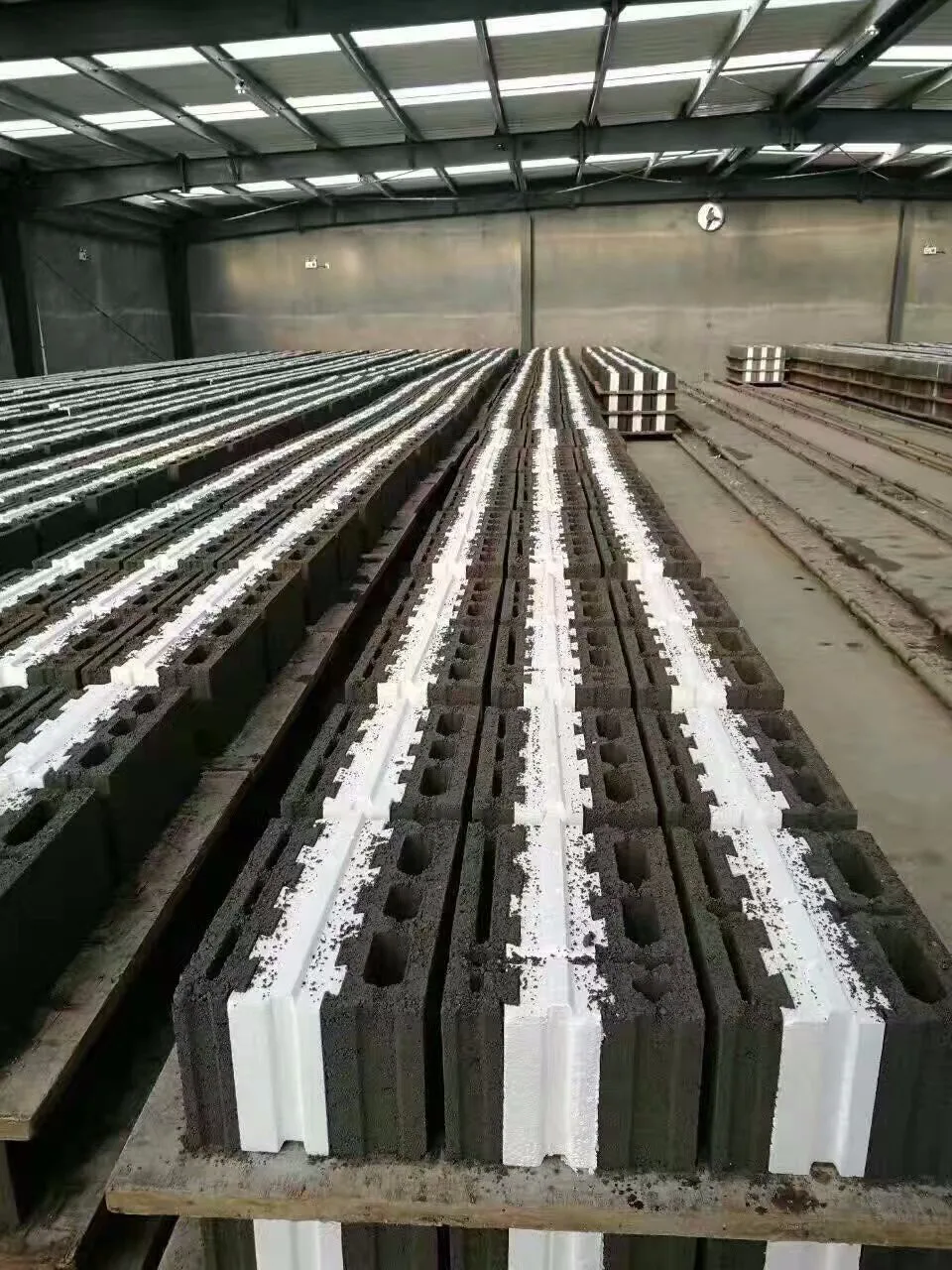

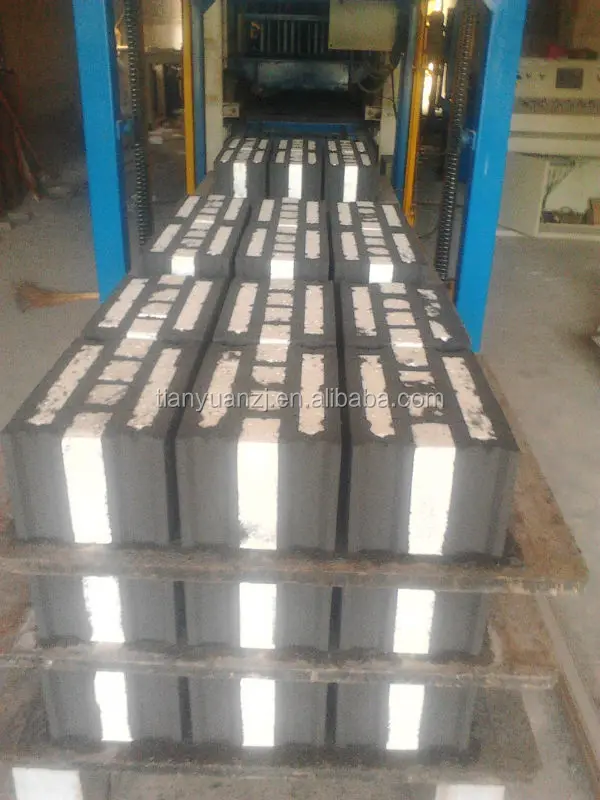

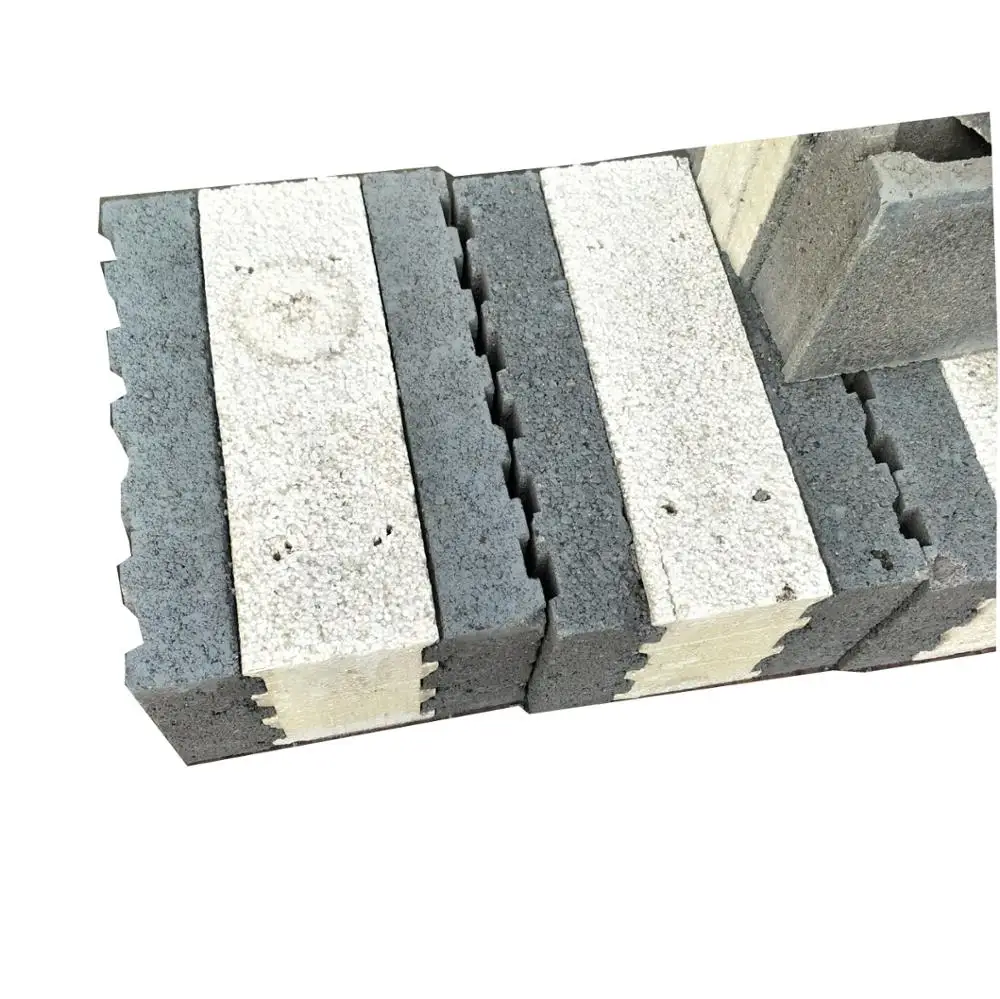

Finished Products
Detailed Images

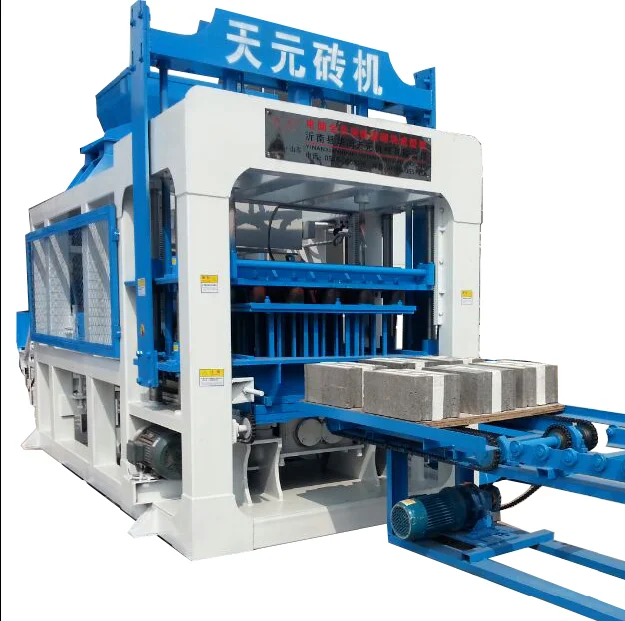

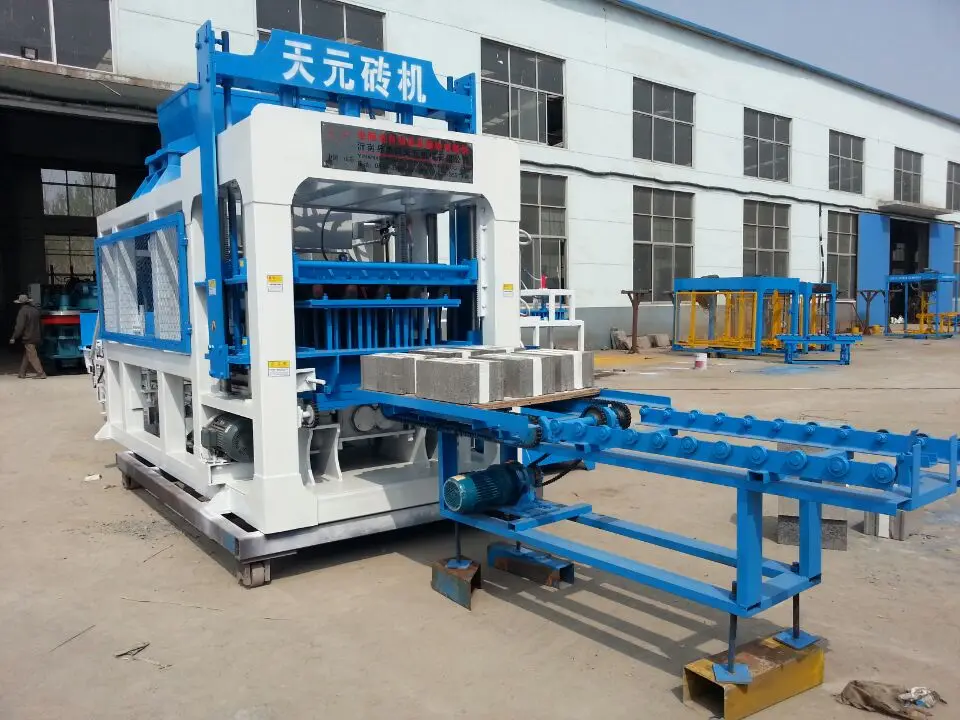

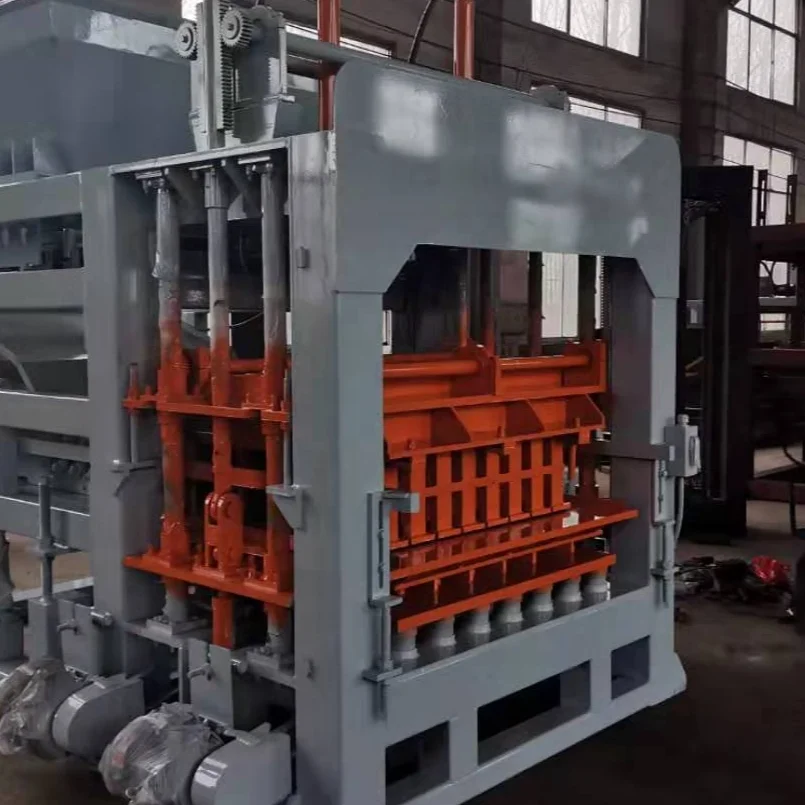

Main Press Machine
Name: QT8-15 brick machine
Brand: Tianyuan brand
Original: China
It is the newest design automatic block machine .Its pressure system with two hydro-cylinders.The lifting speed fast and the pressure function is well.
Machine parts
Name: PLC control
Brand: DELTA
Original: China
Ensure the machine runs extremely smoothly, long serving life. Faults-displaying and the troubles-shooting on the cabinet.
Machine Parts
Name: Brick Mold
Brand: Tianyuan Brand
Original: China
All the molds can make as your design, and one machine can make different kinds blocks/bricks only by changing moulds.
Machine parts

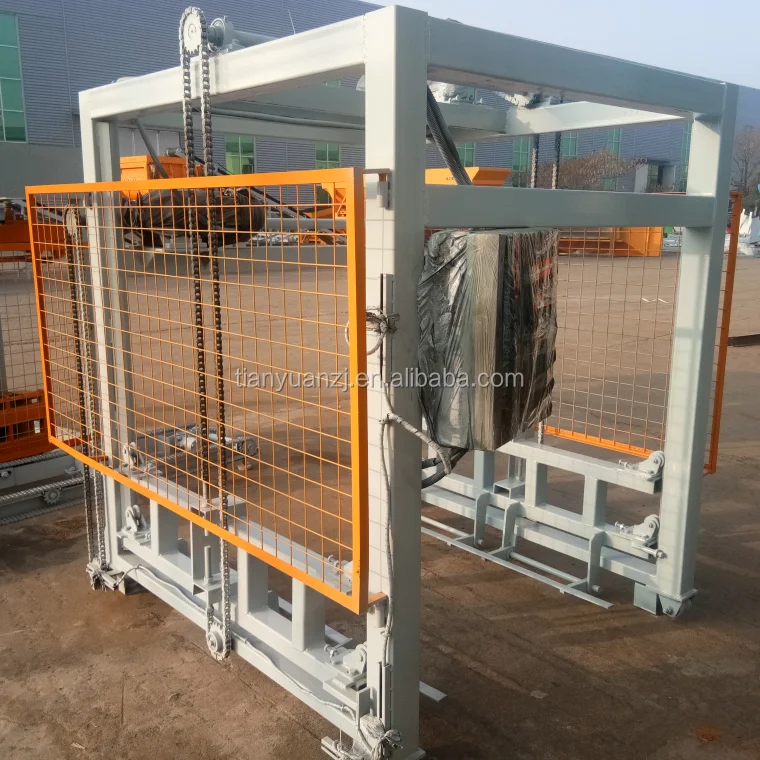

Name: Stack machine
Brand: Tianyuan brand
Original: China
1.Use frequency conversion technology enables the stacker to move up and down very smoothly , greatly protect the wet blocks.
2.Motor connected with speed reducer,to make power,and drive the gear moving, thereby lead the system to move.
Machine parts
Name: JS750 concrete mixer
Brand: Tianyuan brand
Original: China
1.Automatic feeding material /Automatic self clocking/Automatic adding water
2.Double mixture axes, the speed of mix ,will be approved to a large degree, and the Large particles can easily be stirred .
Machine parts.
Name: PLD800 Batching Machine
Brand: Tianyuan Brand
Original: China
1.Weighting accuracy is guaranteed by the high-precision weighing sensor, and the warp ratio is within ±1%.
2.The electronic weighing, microcomputer control, digital display, wired remote control operation
Certifications
Our Service
Factory Office Building
√ Famous trademark of China
√Passed CE Mark
√ National enterprise abiding by contract and keeping good faith
√ National key high-tech enterprise
Oversea User
√ Top ten influential brand of China brick and tile industry
√ First place in production and sales of block machine and tile making machine in China
√ ISO quality system certificate enterprise
Service.
@:Free designing ,technical support and project;
@Engineer available for overseas installation and adjustment;
@All necessary documents and drawings and videos for free;
@Warranty one year after delivery.
@ 24hours Online service for all life time.
Packing & Delivery
RFQ
1. Delivery period and payment terms?
15-25days after advanced payment, 30% advanced by T/T, balance paid before loading
2. Packing method ?
No packing, or in plastic clothes, or in plywood box.
3. What’s motor and electric brand we choose for our machines ?
Siemens or Schneider brand, or Chinese famous brand.
4. What kind of steel my machine and molds use ?
Q235B for machine, Mn steel for molds, more durable.
5. Will you send engineer to install for user ?
Yes, we have oversea service team, they supply service as per needs.
6. Are there any spare parts together with the machine ?
Yes, we will send spare parts together with machine, the user could use it for more than two years.
7. Do you supply free technical service during later production ?
Yes, we have online service 7x24hours.
Whatsapp: 0086 1500659 3716
15-25days after advanced payment, 30% advanced by T/T, balance paid before loading
2. Packing method ?
No packing, or in plastic clothes, or in plywood box.
3. What’s motor and electric brand we choose for our machines ?
Siemens or Schneider brand, or Chinese famous brand.
4. What kind of steel my machine and molds use ?
Q235B for machine, Mn steel for molds, more durable.
5. Will you send engineer to install for user ?
Yes, we have oversea service team, they supply service as per needs.
6. Are there any spare parts together with the machine ?
Yes, we will send spare parts together with machine, the user could use it for more than two years.
7. Do you supply free technical service during later production ?
Yes, we have online service 7x24hours.
Whatsapp: 0086 1500659 3716
