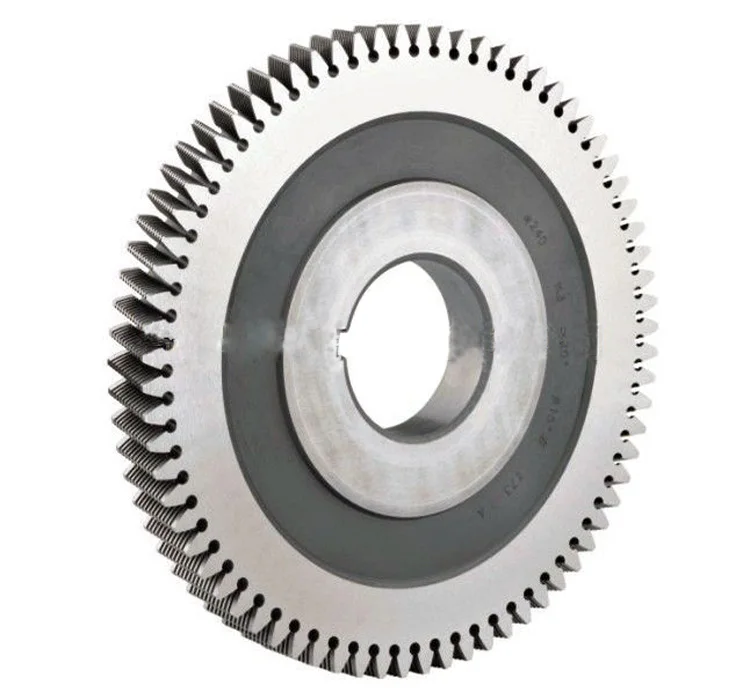

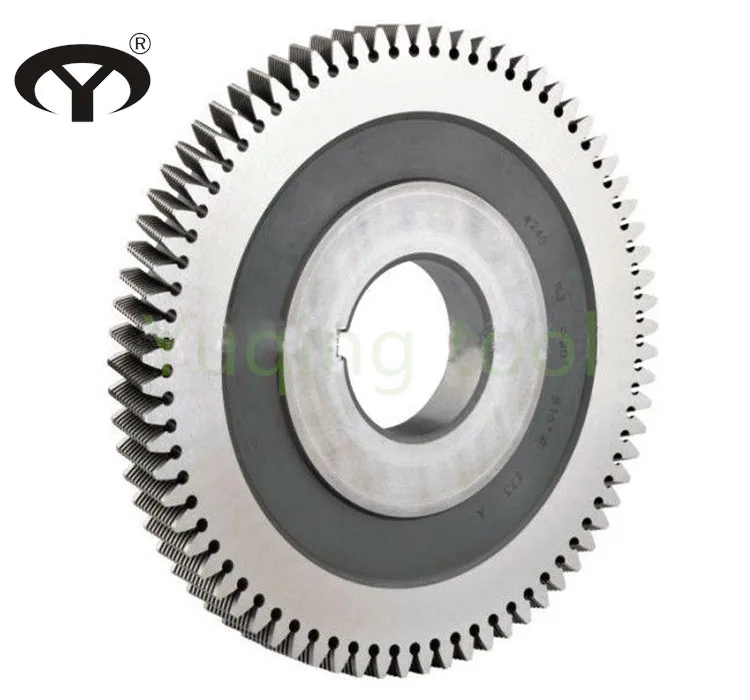

HSS df180mm M2/M35 Plunge Gear Shaving Cutter

Product Overview

Description

HSS df180mm M2/M35 Plunge Gear Shaving Cutter



Features :



1.It can shave pitch of a pair of gear or many pairs of gears on the same mandrel between intervals of 4mm - 5mm .





2.It can shave modified tooth and reduce any noise of gearing .The modified output can be controlled within 5 μm - 15 μm





3.The surface roughness Ra 0.4 μm - 0.8 μm can be obtained for tooth surface of gear .





4.The plunge shaving can work a times higher than the common shaving .















Gear shaving cutter is kind of finishing tool for cutting straight teeth and helical teeth involute cylindrical gears.



Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
