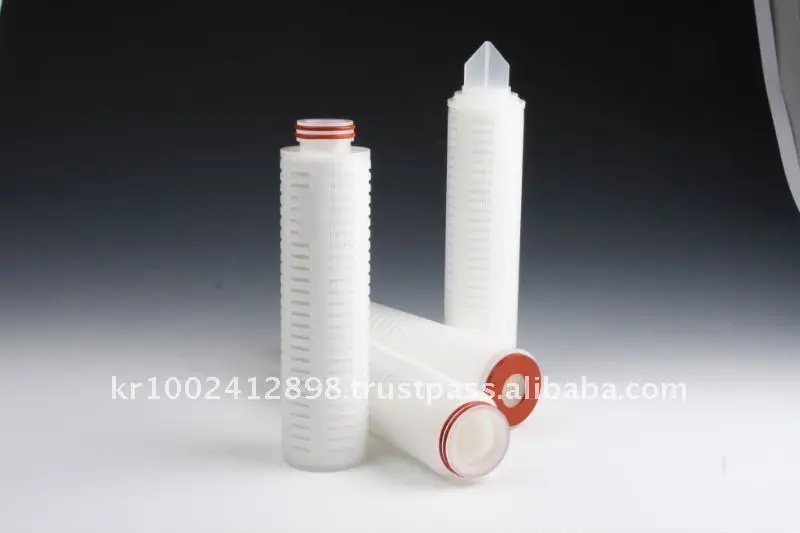

Fiber glass pleated filter

Chemical Industry

High viscose and purity fluid

Pharmaceutical &

Biological Industry

Bio-reactor, vaccines, reagent, buffer

General Process Industry

Air vent, solvent, paint, ink, oil, organic chemical

Dimension

&

Structure

Length

9.75”, 10”, 19.65”, 20”, 29.5”, 30” 39.5”, 40”

/ 250, 254, 500, 508, 750, 762, 1000, 1016 mm

ID

30 mm

OD

68 mm

Effective filtration area

0.34 ~ 0.53 m² per 10 inch

Materials

of Construction

Filtration media

Fiber glass

Support layers

Polypropylene

Core & case

Polypropylene, reinforced PP by Talc,

high density polyethylene

O-ring & gaskets

Silicone, EPDM , Viton & Teflon encapsulated type

Operating

Conditions

Maximum differential pressure

30 psid / 2.1 bar at 60 °C

60 psid / 4.2 bar at 30 °C

Maximum operating temperature

212 °F/ 100 °C
