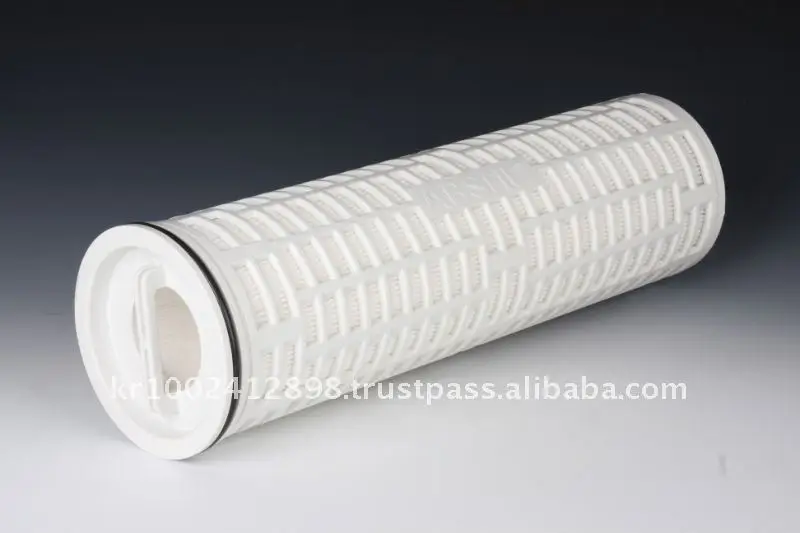

High flow pleated filter

Electronic Industry

LCD, PDP, AM-OLED, photo-resist, etchant, developer, stripper

Film & Fiber Industry

Monomer, slurry additive, floppy disc coating, computer tape coating, audio and videotape

General Process Industry

Adhesive, automotive paint, Ink and dye, acid, base, and oxidant

Chemical &

Petrochemical Industry

Monomer, polymer, glycol, mono-ethanol- amine and di-ehtanol-amine for gas scrubbing, acid, base and product polishing, rinse and solvent

Pharmaceutical &

Biological industry

Ointment, pure water for dialysis, diagnostic, LVPs, SVPs, tissue culture media, extraction chemicals, re-crystallization chemical, serum

Food &

Beverage Industry

Corn syrup, edible oil, bottle water, beer, soft drink and distilled spirits, wine, beer, fruit Juice

General Water Process

DI water , process water

Gases Industry

Tank vents, compressed gases, sterile venting of holding tanks, sterile CO₂

Dimension

&

Structure

Length

20”, 40”, 60” / 508, 1016, 1524 mm

ID

75 mm

OD

Cap : 160 mm, Body : 152 mm

Effective filtration area

PP : 2.5 ~ 4.2 m² , PES : 4.2 ~ 4.6 m² , PTFE : 4.8 ~ 5.2 m²

Materials

of Construction

Filtration media

Polypropylene, PES, PTFE, PP membrane, Fiber glass

Support layers

Polypropylene, polyester

Core & case

Reinforced polypropylene

O-rings

Silicone, EPDM , Viton & Teflon encapsulated type

Operating

Conditions

Maximum differential pressure

30 psid / 2.1 bar at 60 °C

60 psid / 4.2 bar at 30 °C

Maximum operating temperature

194 °F/ 90 °C
