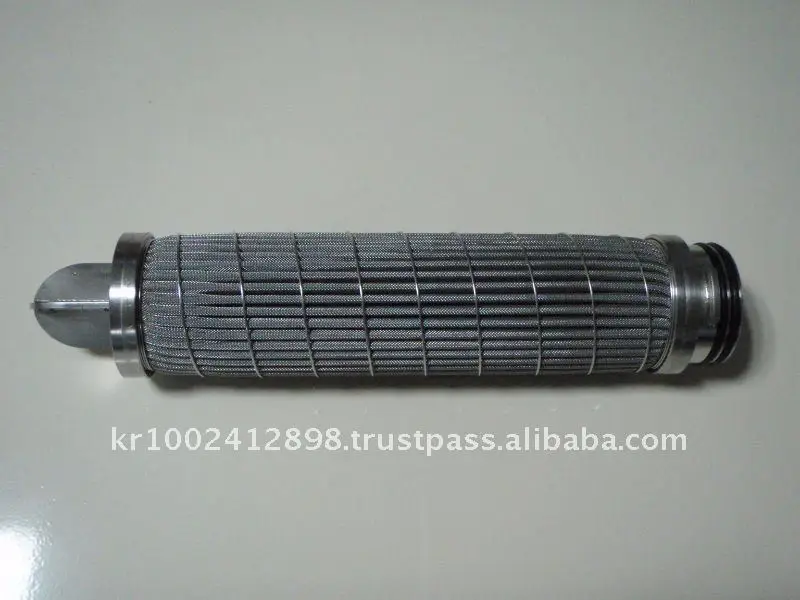

Metal filter

Product Overview

Description

Metal filter

Features



• Absolute rated filtration

• Three times greater dirty holding capacity than conventional metal cartridges

• Double the porosity and permeability than sintered metal powder cartridges

• Four times higher flow rate than conventional metal cartridges

• No media migration or fiber release

• Exceptional mechanical strength



Applications



• High temperature fluid

• High viscosity fluid, corrosive liquid and gas

• Toxic or hazardous fluid

• Process steam

• Natural or process gas paint & varnish



Specifications



Dimension & Structure	Length	10”, 20”, 30”, 40” / 250, 500, 750,1000 mm
	ID	30 mm
	OD	68 mm
Materials of Construction	Filtration media	304 SS , 316 SS
	O-rings & gaskets	Silicone, EPDM, Viton & Teflon encapsulated type
Operating Conditions	Maximum operating pressure	Standard welded arrangement : 87 psid / 6 bar at 25°C Heavy welded arrangement : 2263 psid / 156 bar at 25°C
	Maximum operating temperature	680 °F / 360 °C
