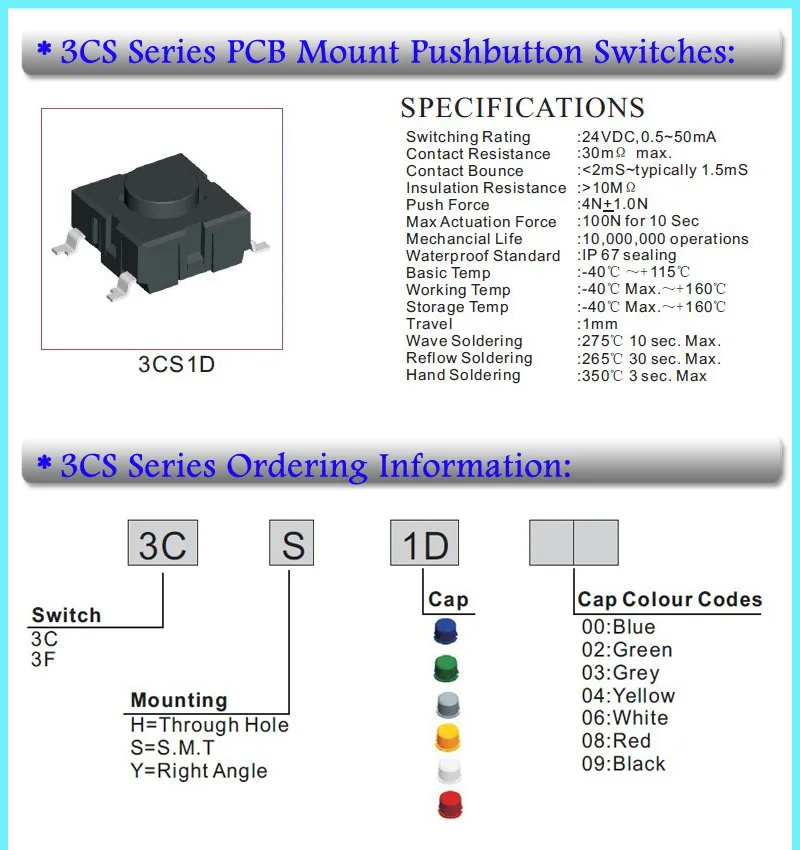

Specification

Value

Specification

Value

Switching Rating

24VDC,0.5-50mA

Environmental Endurance IEC68-2-3

Contact Resistance

30mΩ max.

Temperature

+40°C

Contact Bounce

<2mS-typically 1.5mS

Humidity

93%RH

Insulation Resistance

>100MΩ

Duration

21 Days

Push Force

4N±1.0N

Temperature Cycling IEC 68-2-14

Max Actuation Force

100N for 10 Sec.

Temperature limit

Min -55°C-Max.+85°C

Travel

1mm

Number of cycles

200

Wave Soldering

275°C 10 Sec.Max.

Exposure times at each temp

10 min

Reflowing Soldering

260°C 30Sec.Max.

Recovery time

16hrs

Hand Soldering

350°C 3Sec.Max.

Sealing IEC 529

Meet IP-67

      PACKAGE

Inner Package:50pcs/tube

Verbration Test

Meet IEC 68-2-6

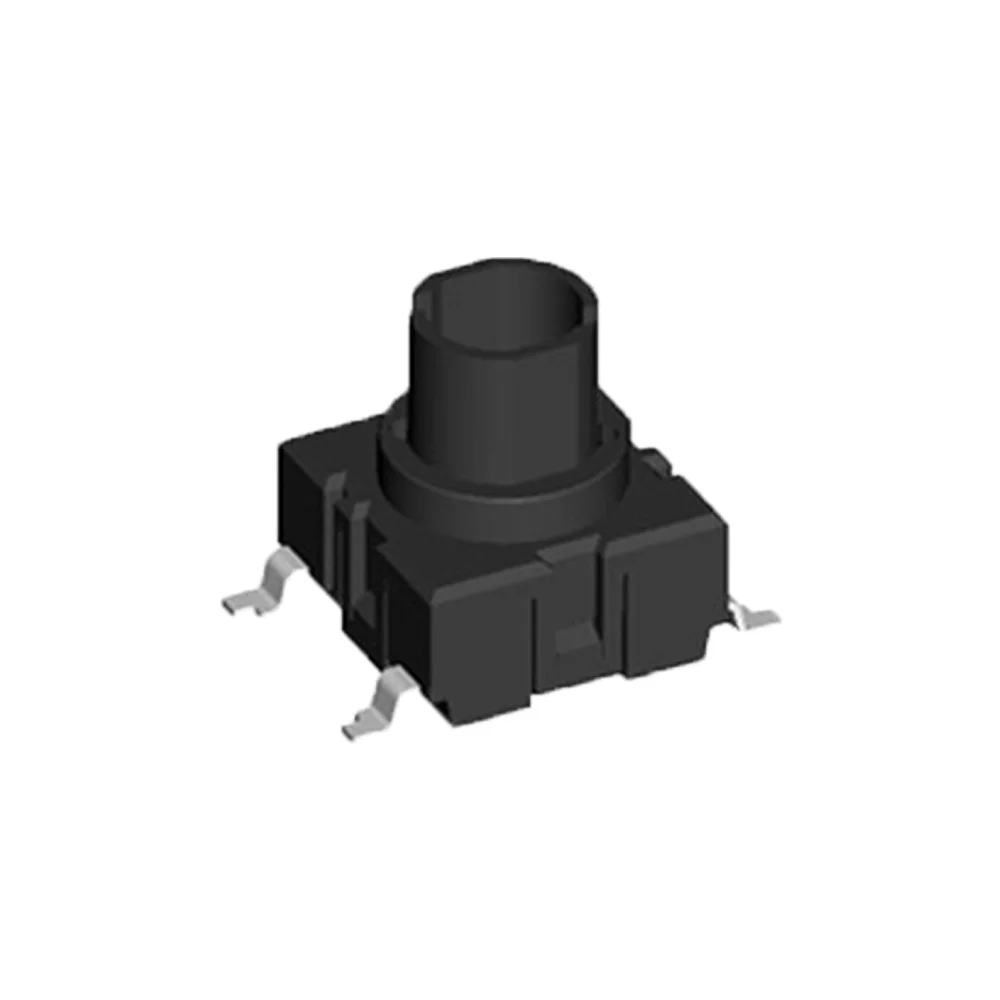

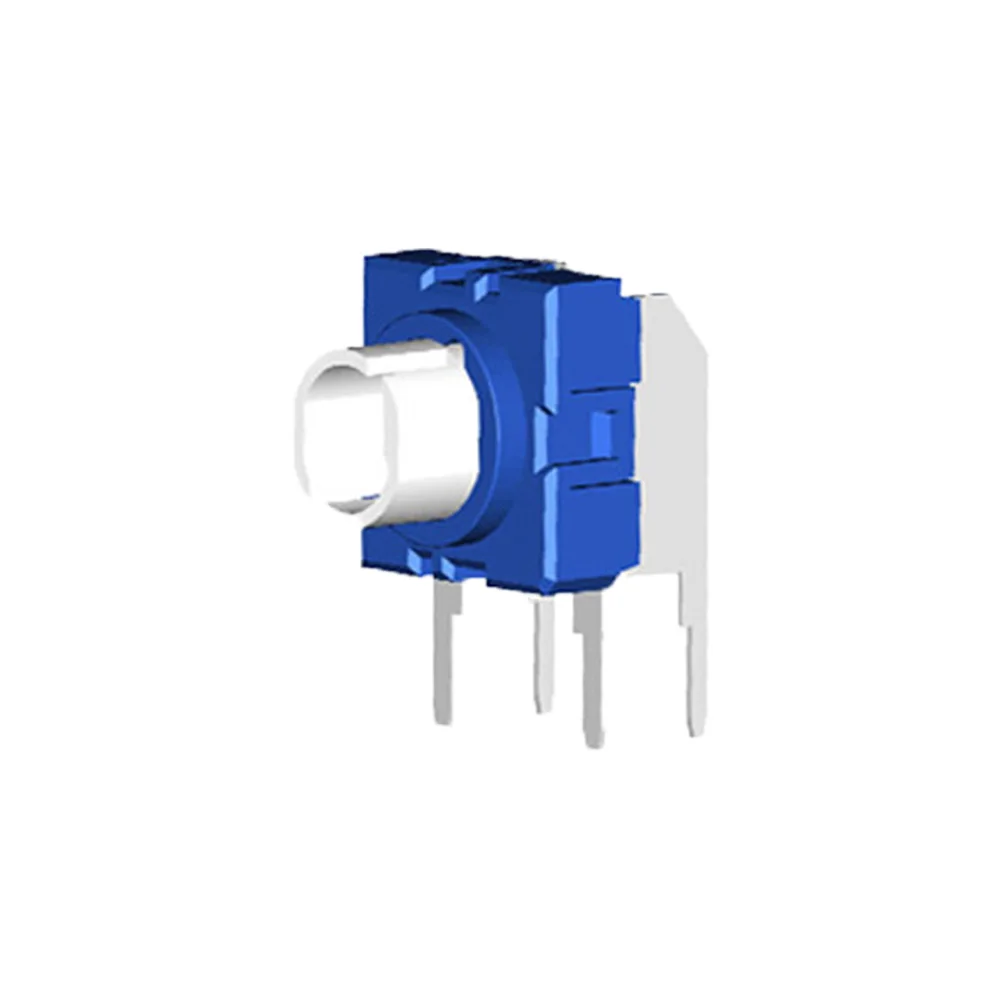

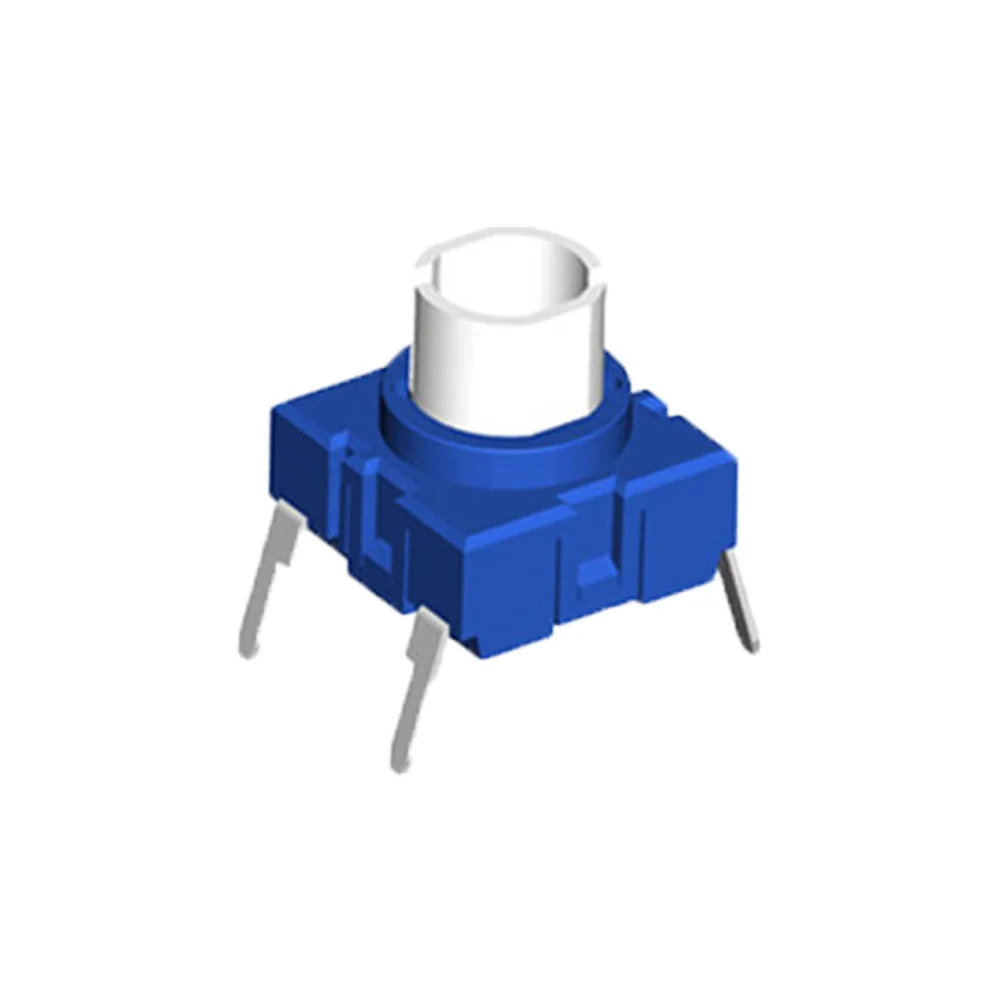

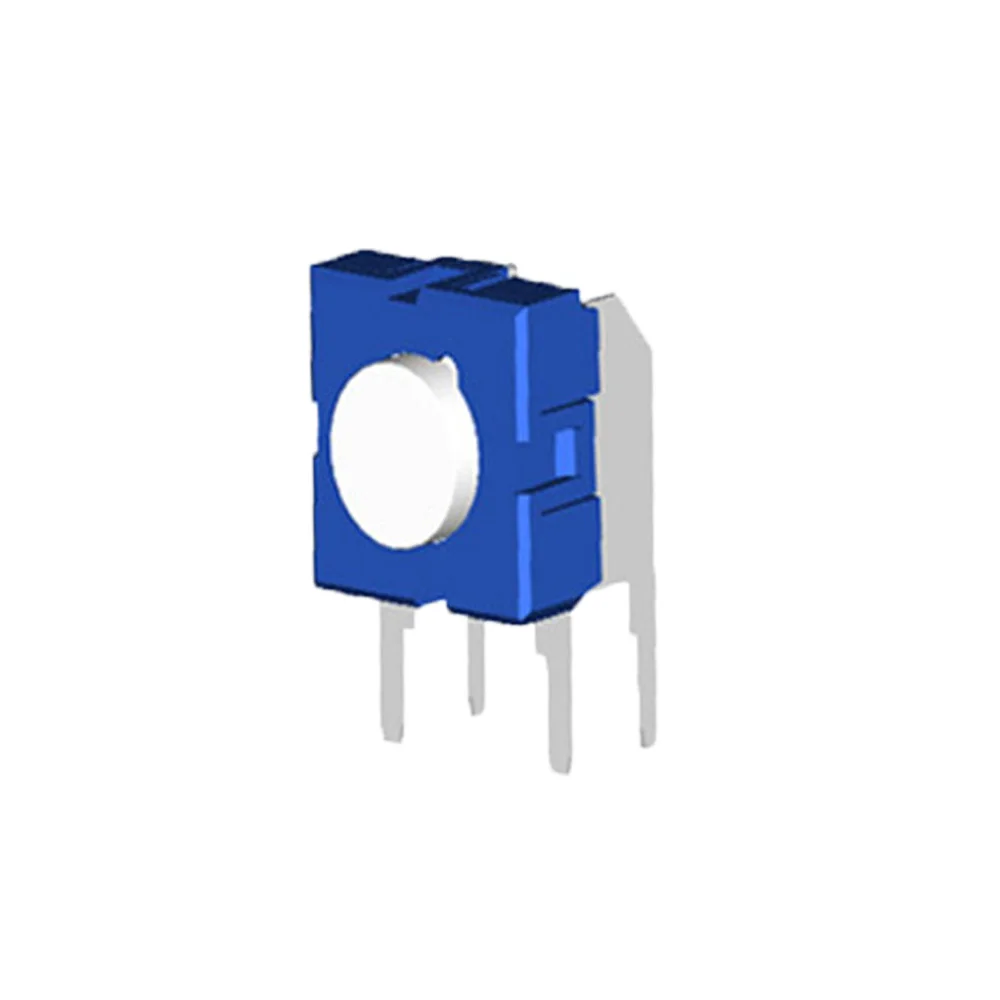

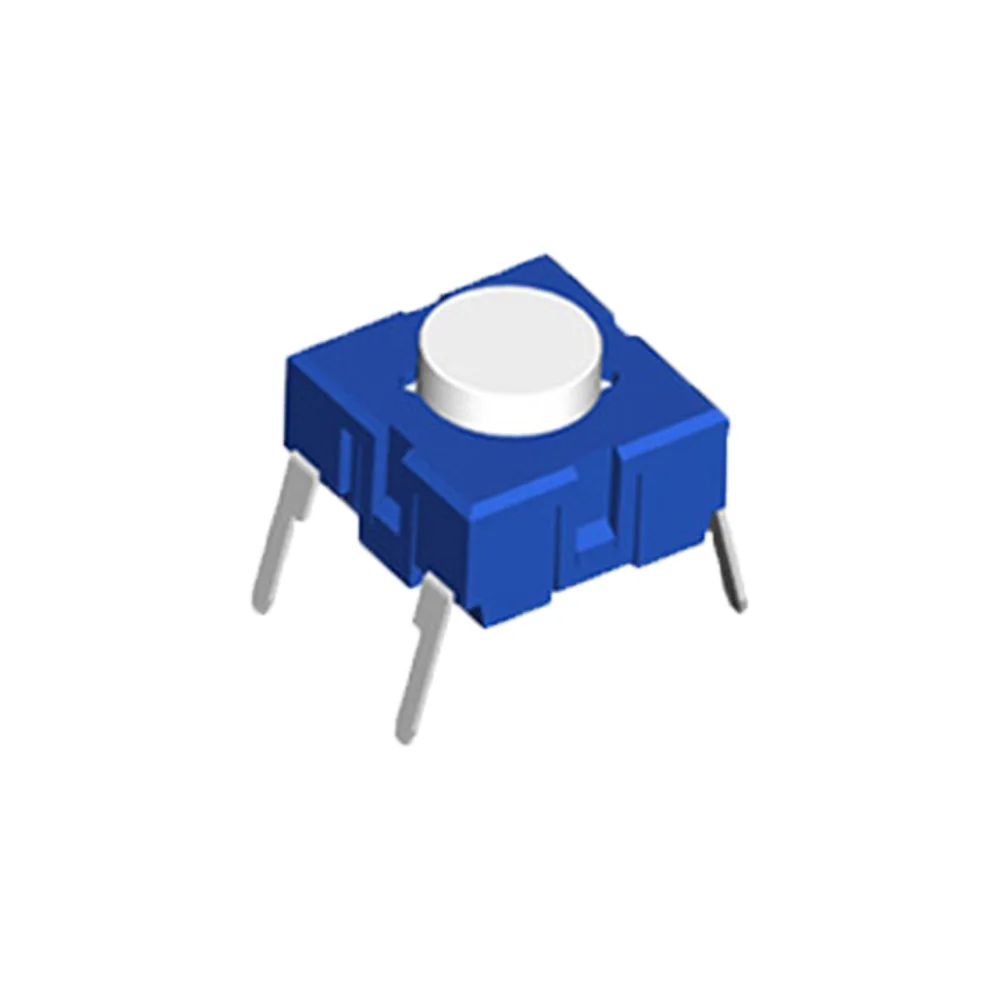

RoHS Compliant push button switches with high quality.
