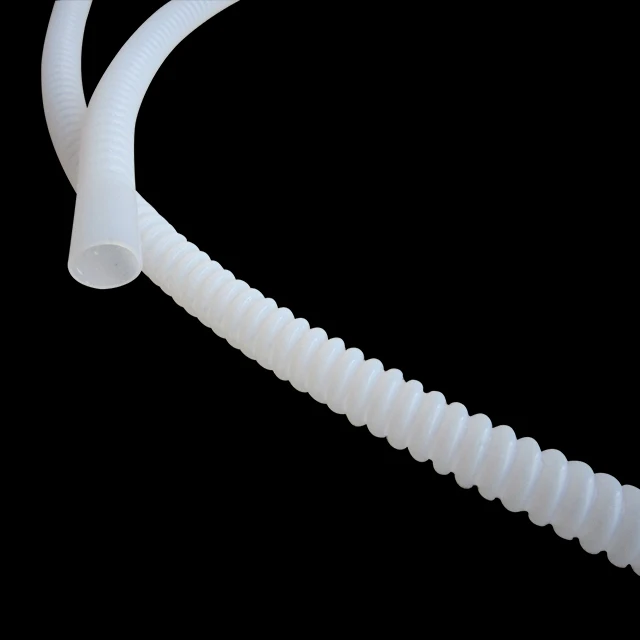

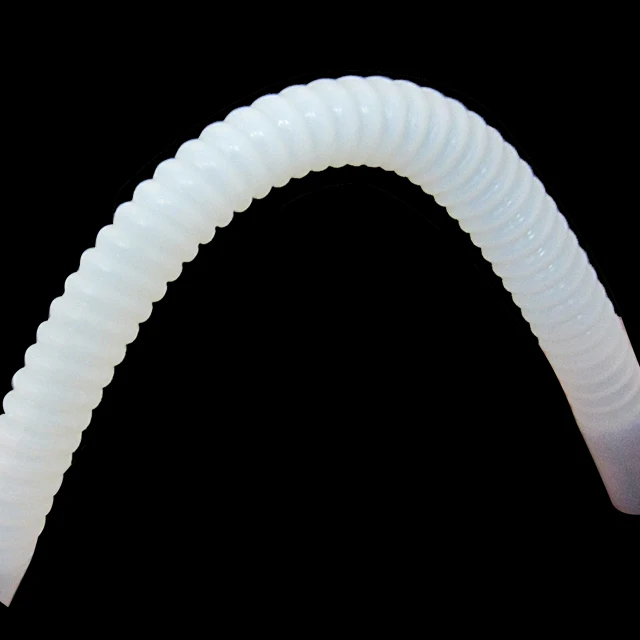

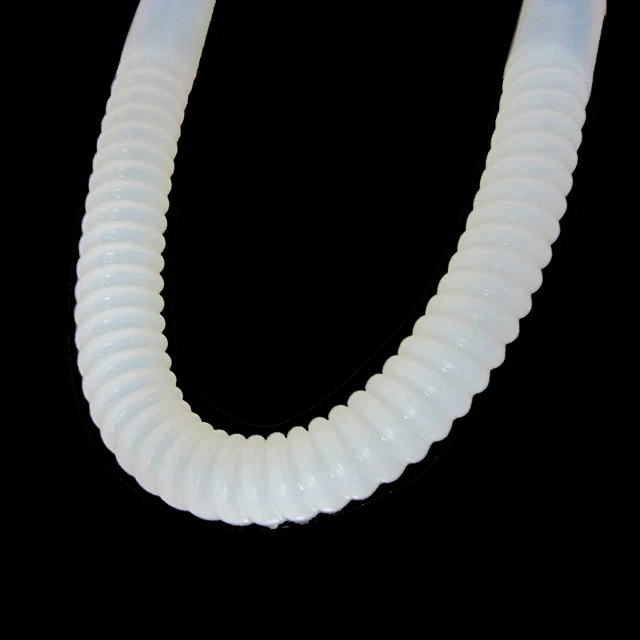

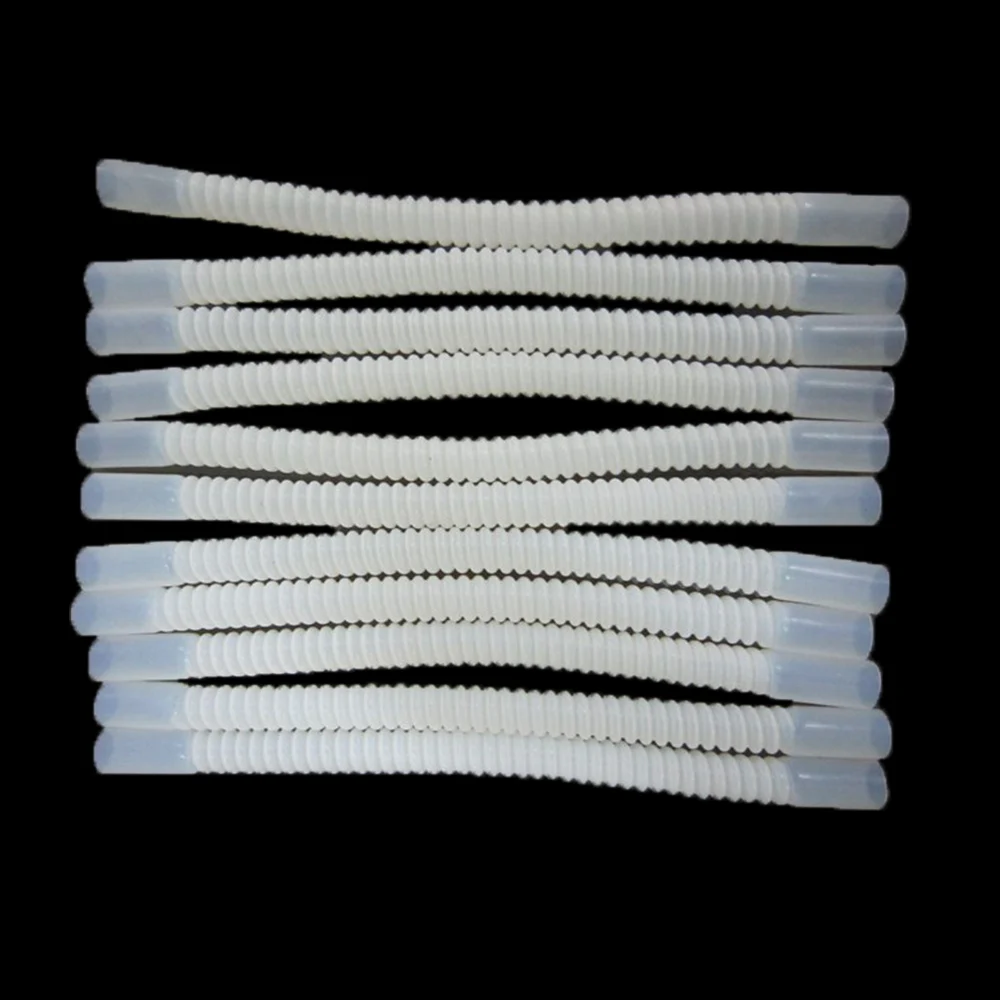

FEP /PTFE Corrugated Tube ptfe corrugated hose tubes diesel for fuel

Product Overview

Description

PTFE corrugated tubing Specifications

1.Excellent flexibility
2.Chemical resistance
3.High or low temperature resistance
4.UL ROSH

 PTFE corrugated tube:

  Applicatons:

1. Electrical insulation


2. Cryogenics


3. Aerospace


4. Cable marking


5. Thermocouple

Properties:

Operating Temperature: -70C~+260C

Thermal Class:C

Dielectric Strength:50~80Kv/mm

Tensile Strength:33Mpa

Elongation at break:350%

Characteristics:

Very low coefficient of friction

Anti-stick

Flexible

High chemical resistance

Extreme low temperature capabilities

Non flammable

Hydrophobic

Unaffected by oxygen,ozone and UV

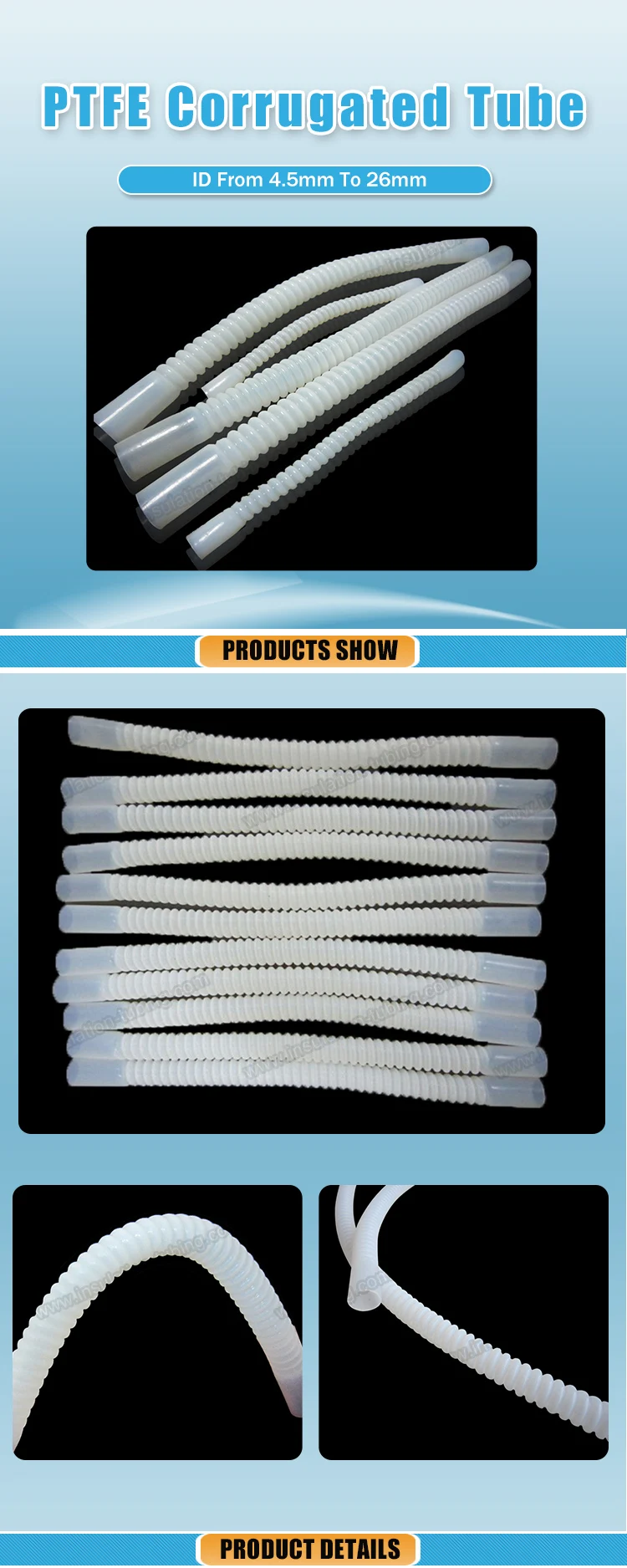

PTFE Corrugated Tube Specification

NO	spec.	ID	OD	ID for end	OD for end	wall
1	DN6	4.5	8	6	8	1
2	DN8	5.3	9.8	8	10	1
3	DN9	6.2	11.2	9.5	11.5	1
4	DN10	7.3	11.5	10	12	1
5	DN13	10.5	14.5	13	15	1
6	DN14	9.8	15.3	14	16	1
7	DN15	12.5	17.5	15	18	1.5
8	DN16	13	17.5	16	18	1
9	DN16	12	18.5	16	19	1.5
10	DN20	14	22.5	20	23	1.5
11	DN22	16	24.5	22	25	1.5
12	DN25	19.5	27.5	25	28	1.5
13	DN32	26	35	32	36	2
