55.02 time relay | time delay relay | electric timer
55.02 time relay | time delay relay | electric timer

55.02 time relay | time delay relay | electric timer

Share on (1214152779):


Price:

Quantity:


Product Overview

Description


Specifications




1.Rated up to AC:250V DC:30V
2.Suitable:50HZ and 60HZ
3.CE certification
4.IEC60947-4-1 stardand
5.acceptable for OEM

















Why choose us?










1. 20 years - Andeli Group Co.,Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150,000,000 - The total assets is USD150,000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA……











Specification
















































































































Specifications Model55.0255.0455.32
Terminal layout2Z4Z2Z
Contact capacityAC10A 250V5A 250V5A 250V
DC10A 30V5A 30V5A 30V
Contact resistance(mΩ)≤50mΩ≤50mΩ≤50mΩ
Insulation resistance(MΩ)≥100MΩ≥100MΩ≥100MΩ
Dielectric strengthBOC1000VAC1000VAC1000VAC
BCC1500VAC1500VAC1500VAC
Coil nominal voltageAC6 to 240V6 to 240V6 to 240V
DC6 to 110V6 to 110V6 to 110V
Coil nominal powerAC0.9VA to 1.2VA0.9VA to 1.2VA0.9VA to 1.2VA
DC≤0.9W≤0.9W≤0.9W
Electrical life(OPS)105105105
Mechanical life(OPS)107107107
Operating temperature(oC)-40~+60-4~+60-40~+60
Weight(g)≤35≤35≤35
Mounting methodsPrinted-circuit board, Flange, OutletPrinted-circuit board, Flange, OutletPrinted-circuit board, Flange, Outlet

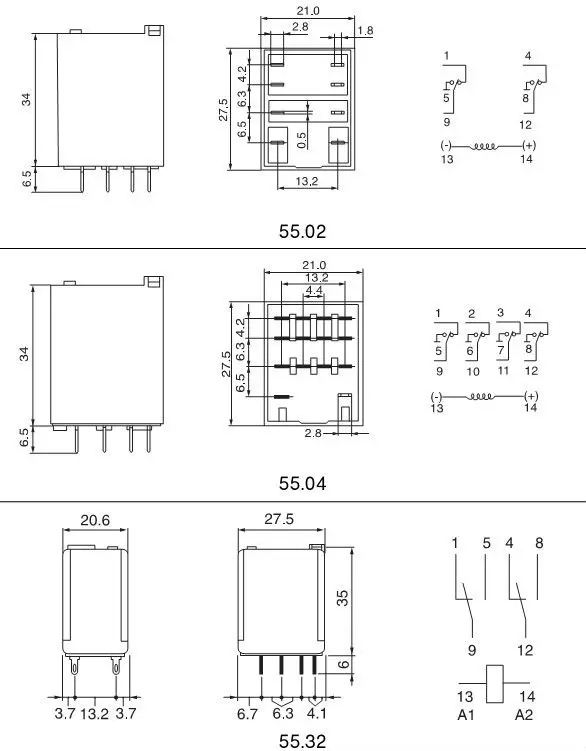

Dimension
