220V or 60V CATV Indoor Optical Receiver

Product Overview

Description

220V or 60V CATV Indoor Optical Receiver

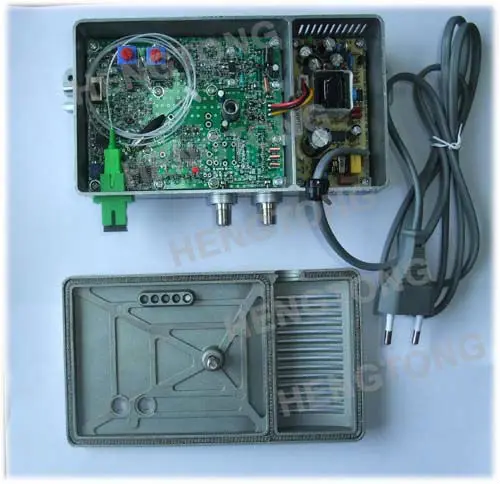

HT101D CATV indoor optical receiver is a forward optical receiver, HT101S Optical Node is a forward optical receiver and return optical transmitter used for delivering video (digital or analog) as well as high-speed data services over advanced hybrid fiber/coax (HFC) network terminal; this optical receiver working from 5 to 862MHz.



1. An electrical output with an impedance of 75Ω.

2. Employing GaAs for amplifier.
3. Optical adapted with SC/APC.
4. Four-LED State: Optical Input Power>-7dBm ,-4dBm ,-1dBm Display Green.
5. Optical Input Power>+2dBm Display Red.



PARAMETER		CONDITIONS	MIN.	TYP.	MAX.	UNIT
Optical Wavelength			1100		1600	nm
Optical Input Power		continuous	-7	-3	2	dBm
Frequency Range			47/87		862	MHz
Frequency Response		47~ 862MHz	-	±0.7	±1	dB
MAX RF output level			-	110	-	dBuV
(-3dBm Optical Input OMI=4%)
AGC Gain Range			-	±1	-	dB
(-6~0dBm Optical Input)
Slope adjustment , typical			-	18	-	dB
Output Return Loss		47~ 862MHz	-	16	-	dB
Optical Input Return Loss			-	55	-	dB
Optical Connector			SC/APC
CNR		note 1	-	48	-	dB
Output Level:		note 2	-	105	-	dBuV
CTB≥60dB(EN50083-3)
Output Level:		note 2	-	105	-	dBuV
CSO≥60dB(EN50083-3)
Optical Wavelength		RETURN		1310		nm
Optical output power		PATH		1		mW
Frequency Range			5		30/65	MHz
RF Input Level				80±5		dBuV
Frequency Response			-	±0.7	±1	dB
Operating Temperature			-25	-	65	°C
Dimension			190X96X52			mm
Weight   (packed)			0.7			kg
Power	AC60V	HT101-1	7VA/~24-65V/50Hz
Consumption	AC220V	HT101-2	7VA/~198-250V/50Hz



Note:

1. -3dBm Optical Input Power  OMI=4%.

2. CTB/CSO is measured with 6dB pre-equalizer(42 channels).
