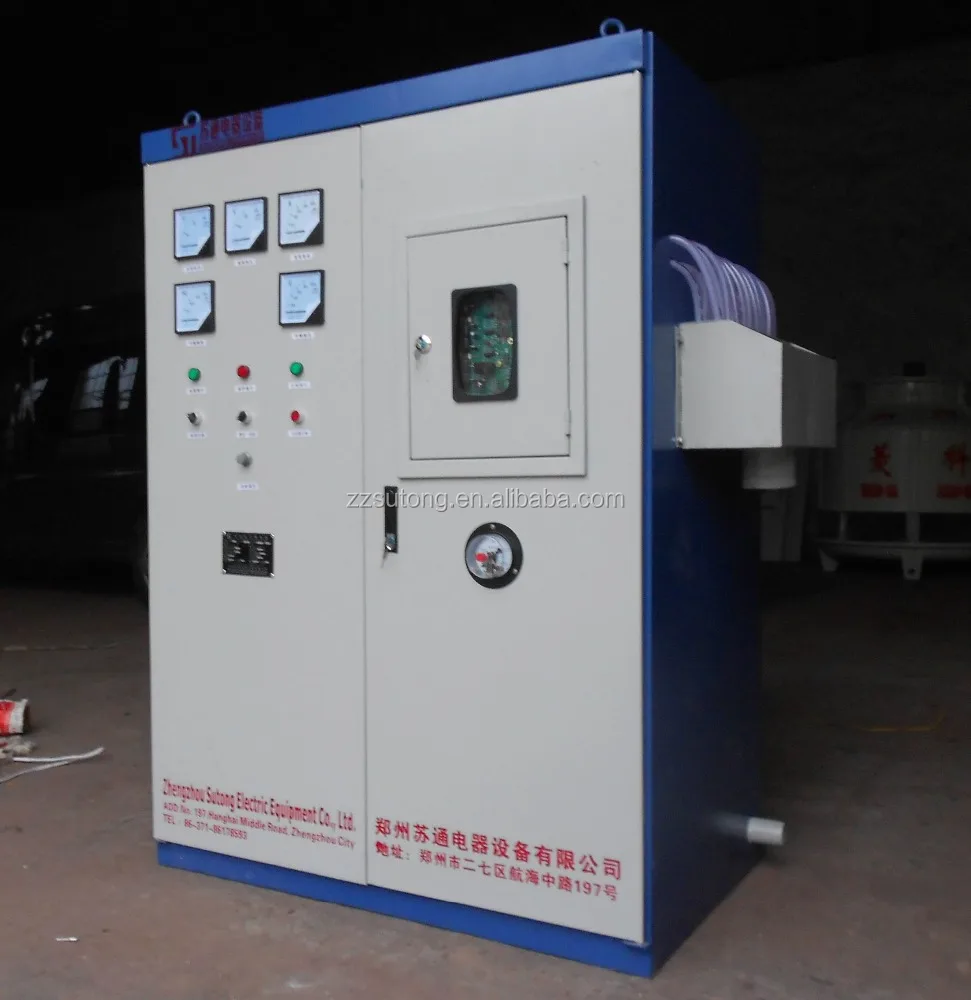

GWL 0.75 Quick Melting Aluminum Scrap Induction Furnace
- Category: >>>
- Supplier: Zhengzhou Sutong Electric Equipment Co. Ltd.
Share on (1217227413):
Product Overview
Description
A. GWL-0.75 Quick Melting Aluminum Induction Furnace of application:
GWL-0.75 Quick Melting Aluminum Induction Furnace mainly used in melting point is lower than 1600. C metal melting and purification, fusion metal alloy material.It is widely used in industry production for metallurgy, casting, alloy workpiece manufacturing etc.Also by the laboratory select and use for metallurgy process research, casting process research, alloy process research, etc.Because it does not produce by waste gas, waste water and noise etc.,does not polluting the environment, so it is replacing the traditional metal smelting melting equipment.
B. Samples of the main performance indexes:
Product name and model | GWL-0.75 Quick Melting Induction Furnace For Aluminum Scrap |
Highest temperature | 750.C |
Temperature accuracy | +/- 5.C |
Load capacity | 750Kg |
Melting rate | 950Kg/hour |
Medium Frequency power | 400KW |
Melting frequency | 500Hz |
Power consumption | 520KWh/ton |

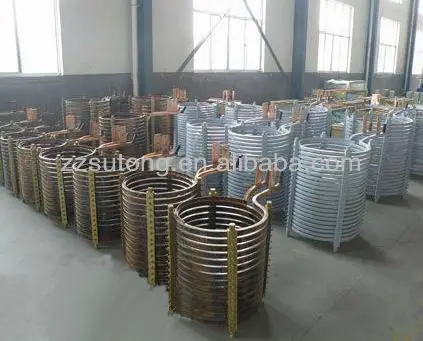

Induction coil voltage | 2000V |
Water consumption | 8 tons/hour |
Power supply | AC,3-phase,208/380/400/415/440/465V,50/60Hz |

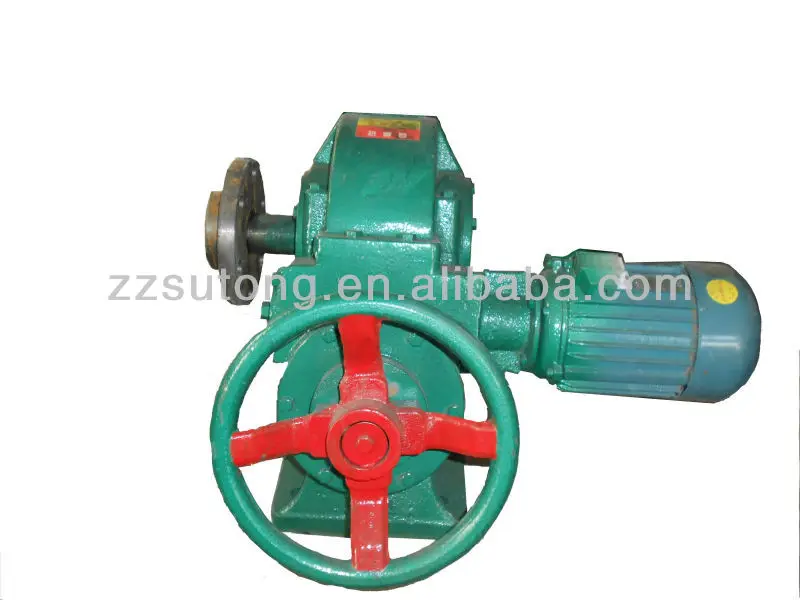

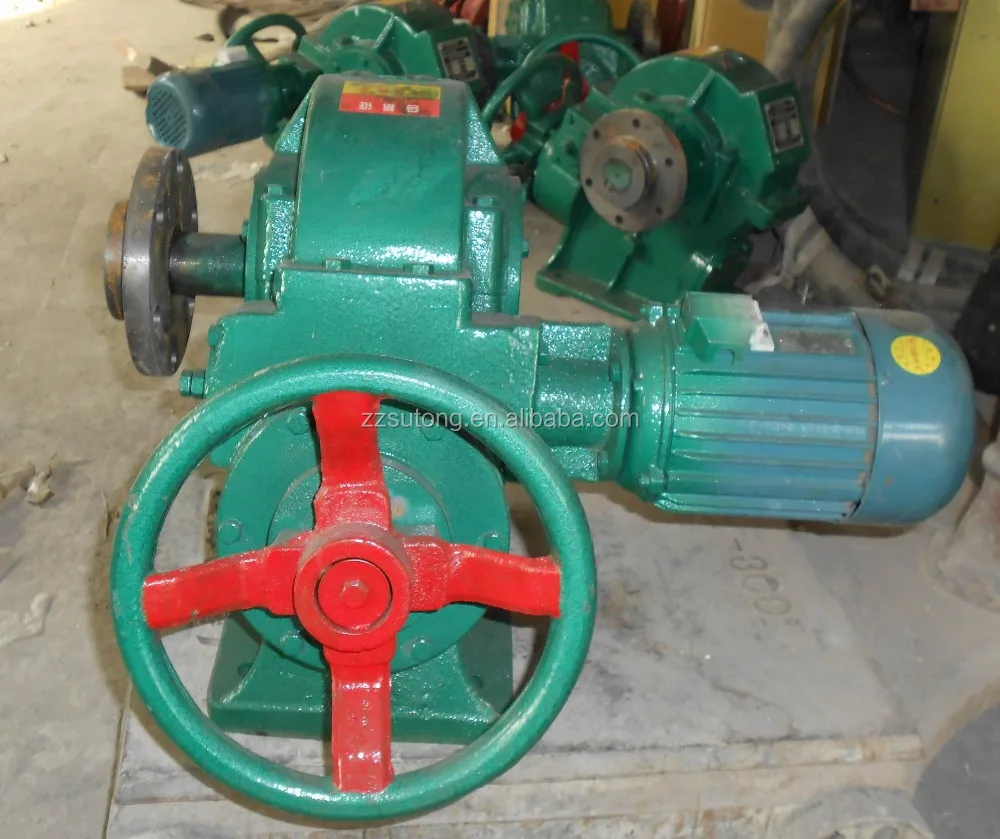

Tilting furnace device | Electric reducer |

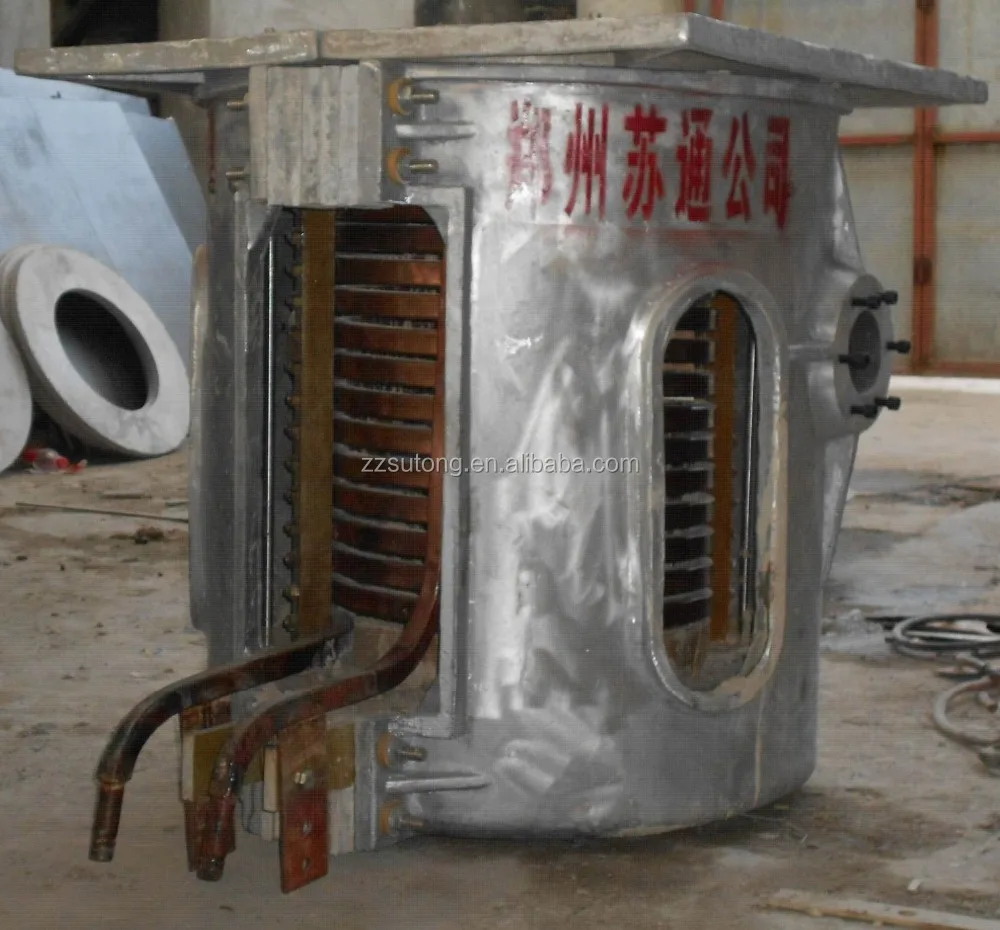

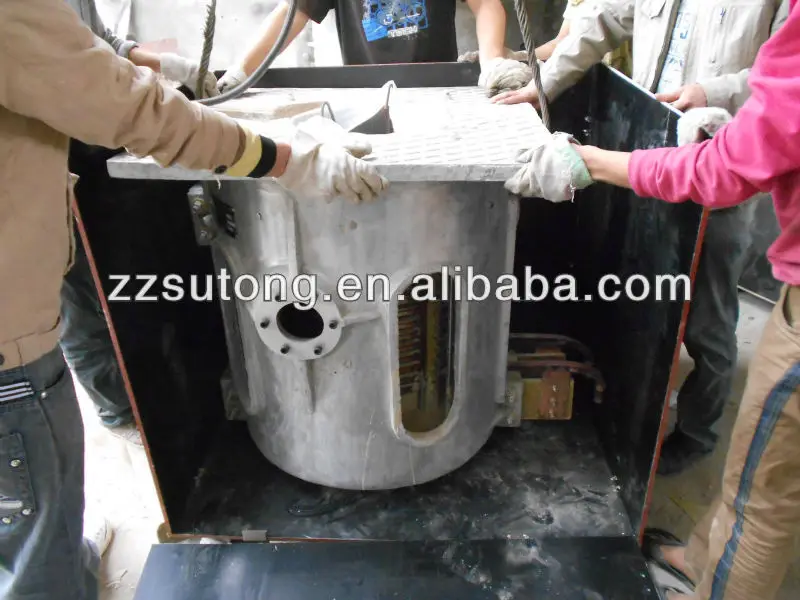

Furnace shell structure | Casting aluminum shell |
C. GWL Series Quick Melting Aluminum Furnace of Conventional model:
model | Lading capacity | Medium Frequency power | Melting frequency (Hz) | Melting rate (Kg/h) | Power consumption (KWh/Kg) | Water consumption (tons/h) | Induction coil voltage (V) |
GWL-0.05 | 50Kg | 50KW | 1000 | 65 | 0.7 | 1 | 750 |
GWL-0.1 | 100Kg | 100KW | 1000 | 130 | 0.6 | 2 | 750 |
GWL-0.15 | 150Kg | 120KW | 1000 | 180 | 0.6 | 3 | 1000 |
GWL-0.25 | 250Kg | 180KW | 1000 | 300 | 0.56 | 4 | 1000 |
GWL-0.35 | 350Kg | 250KW | 1000 | 450 | 0.56 | 5 | 2000 |
GWL-0.5 | 500Kg | 350KW | 500 | 650 | 0.54 | 6 | 2000 |
GWL-0.75 | 750Kg | 400KW | 500 | 950 | 0.52 | 8 | 2000 |
GWL-1 | 1000Kg | 500KW | 500 | 1350 | 0.5 | 10 | 2800 |
GWL-1.5 | 1500Kg | 700KW | 500 | 1800 | 0.48 | 12 | 2800 |
GWL-2 | 2000Kg | 850KW | 300 | 3000 | 0.44 | 14 | 2800 |
GWL-3 | 3000Kg | 1000KW | 300 | 4500 | 0.43 | 16 | 2800 |
GWL-5 | 5000Kg | 2000KW | 300 | 6500 | 0.42 | 20 | 2800 |

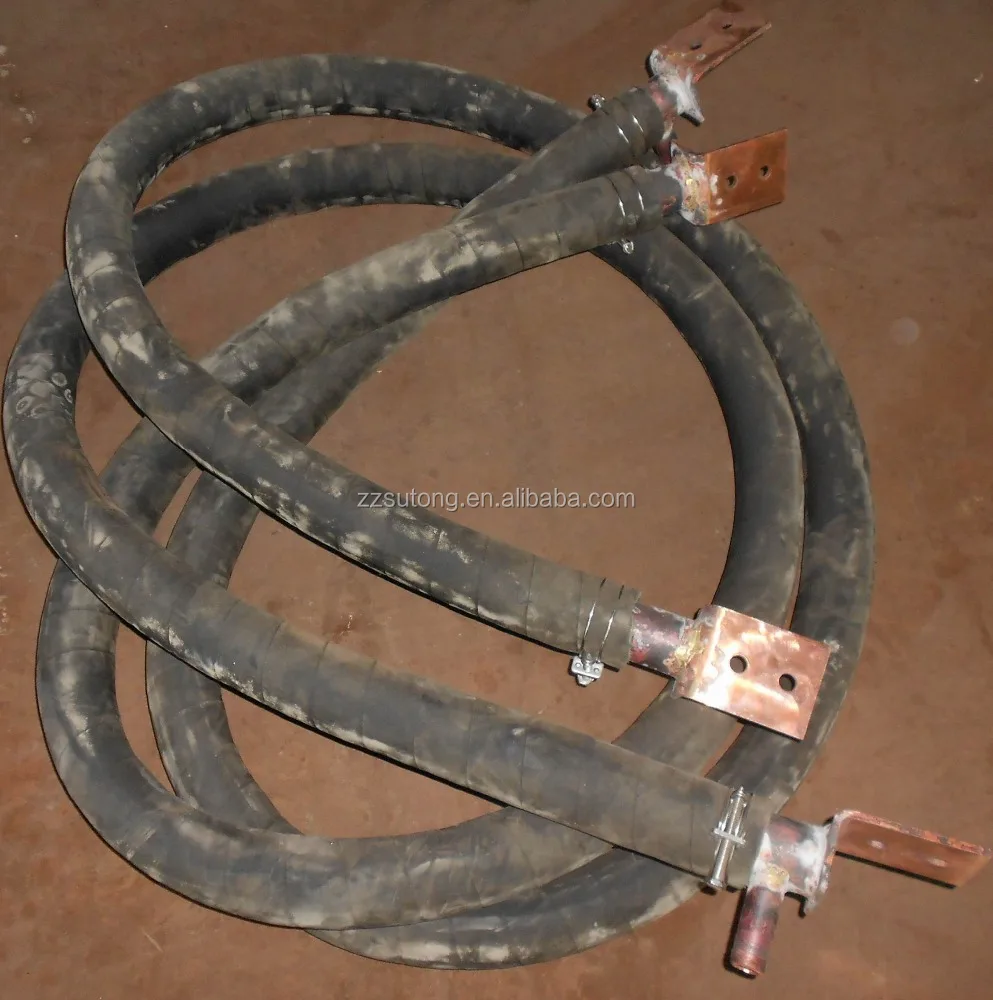

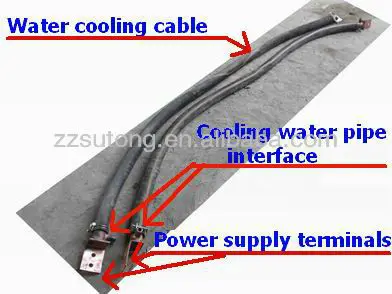

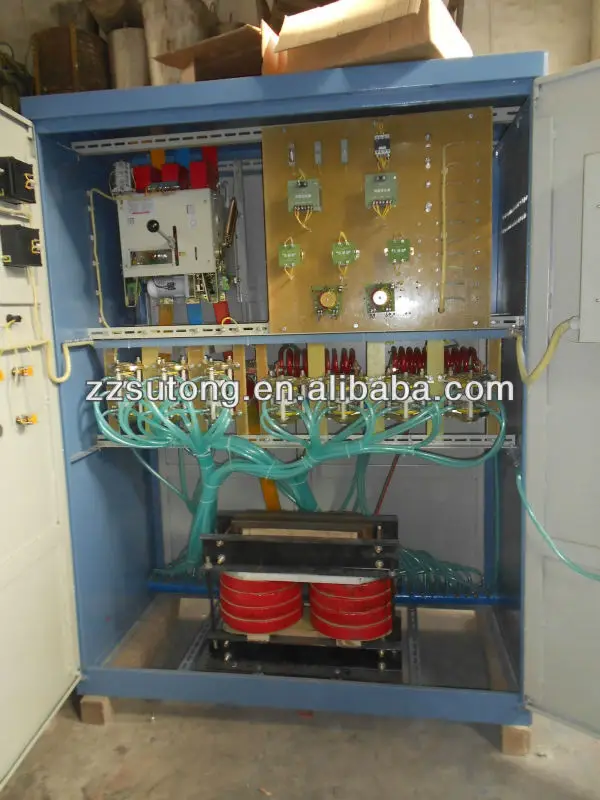

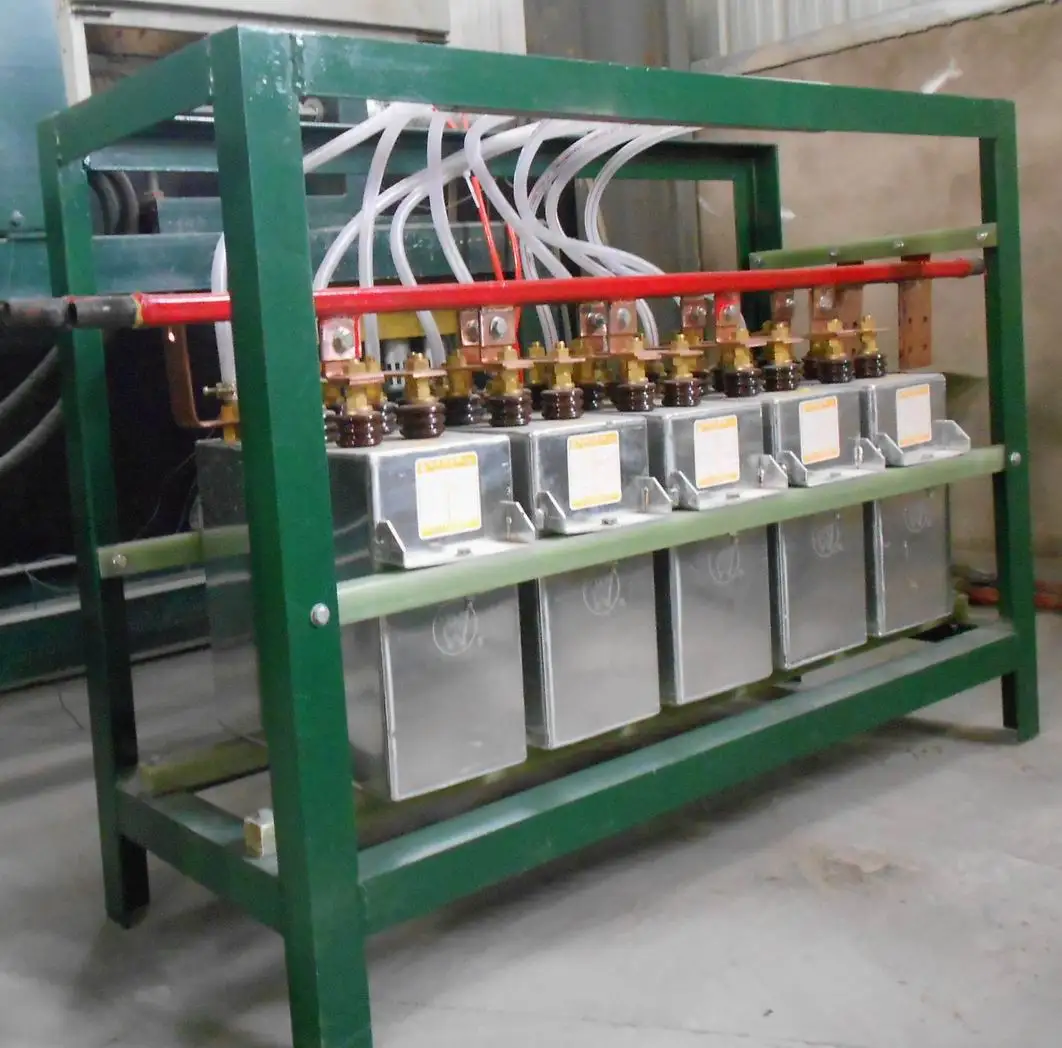

D. Furnace with accessories:
