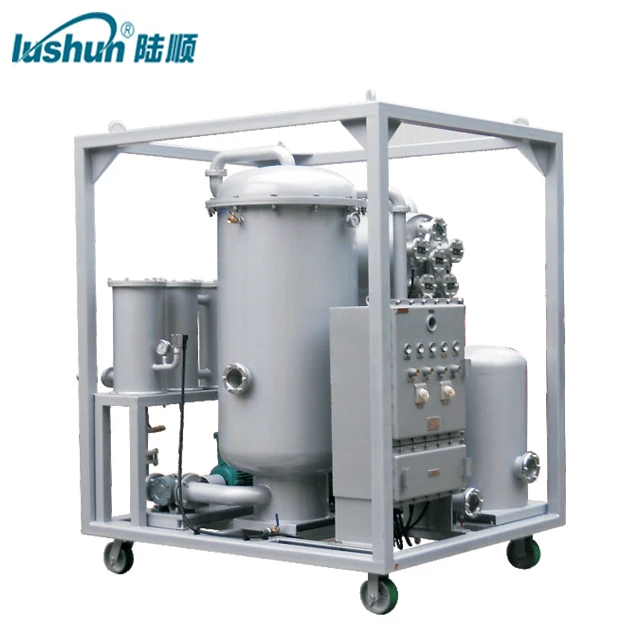

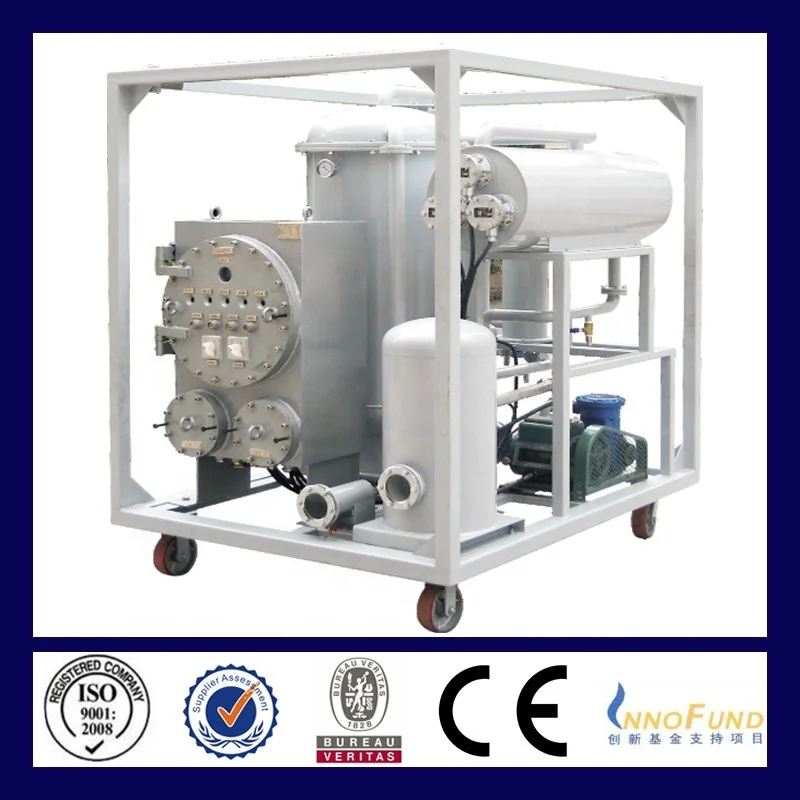

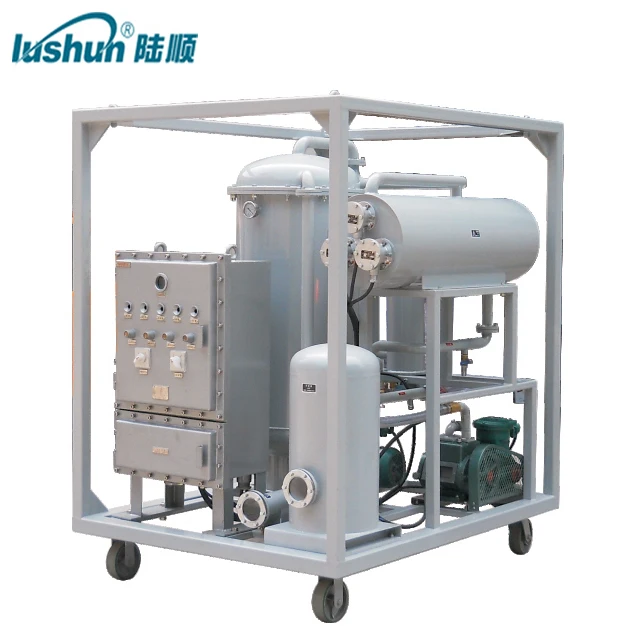

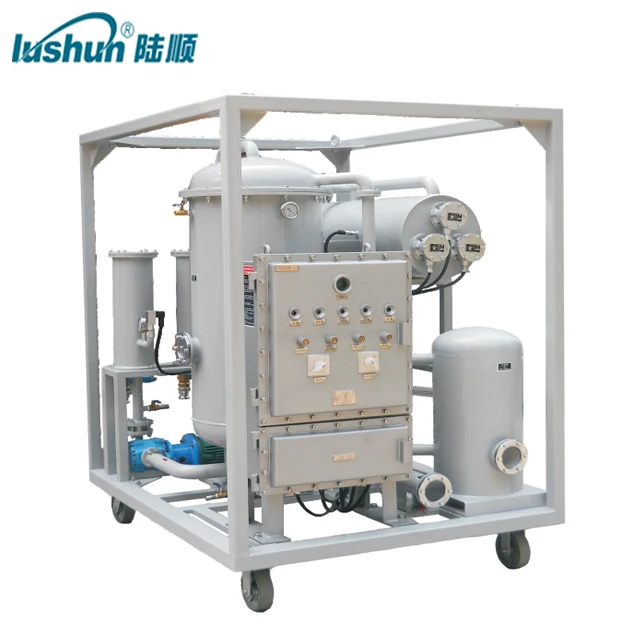

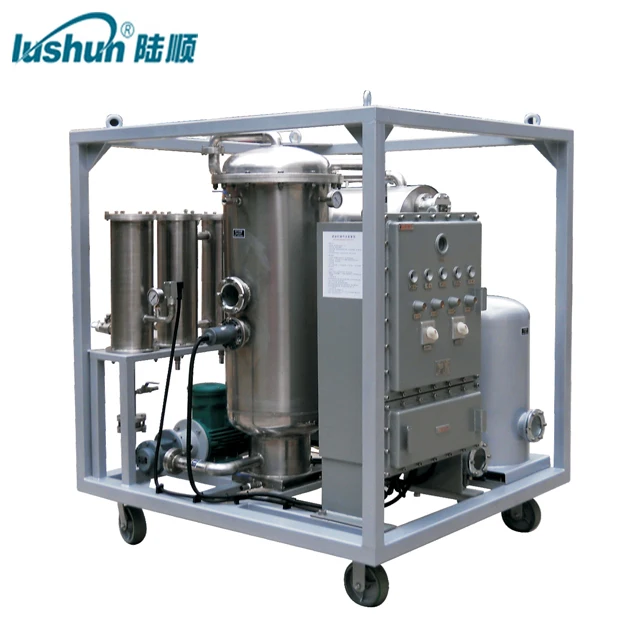

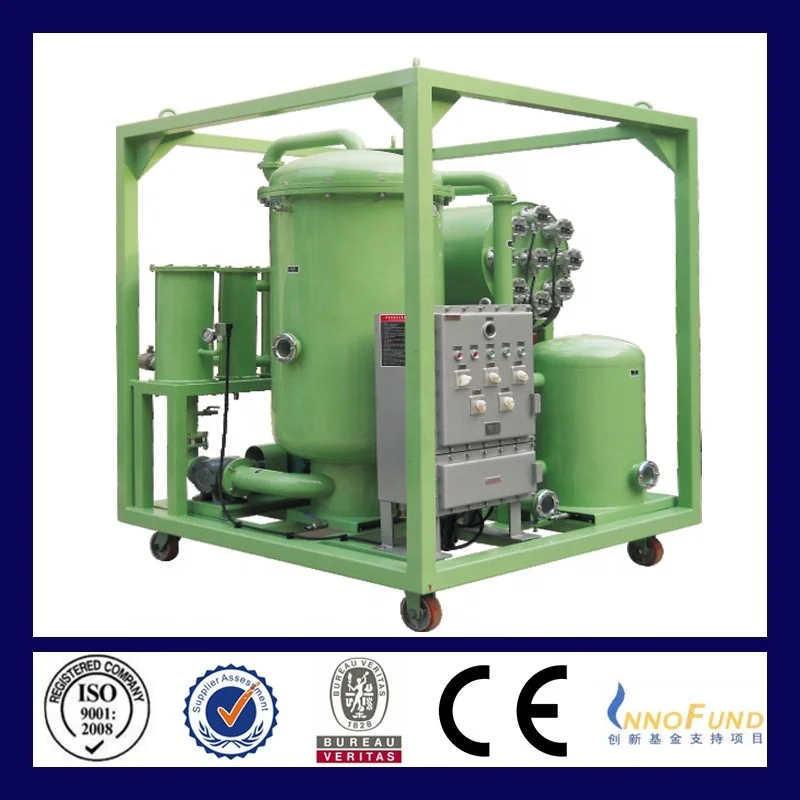

Lushun BZL Type Anti explosion Red Diesel Decolorization Machine Oil Purifier / Factory Direct Oil Filter Machine for Biodies
- Category: >>>
- Supplier: Chongqing Lushun Scientific & Technological Development Co. Ltd.
Share on (1217793397):
Product Overview
Description
Product details
Application:
BZL Series Explosion-Proof Vacuum Oil Purifiers are especially designed for the industries including petroleum, petrochemical, chemistry, coal mining, metallurgy, power plant etc with flammable and combustible working conditions. All their components such as heating system, electric control system, motor and solenoid valves etc are well-selected by adopting Explosion-proof type with grade ExdⅡ BT4 and ExdⅡCT4 to adapt to different danger level.
The BZL series oil purifiers can be widely applied to the purification of many types of oil such as turbine oil, hydraulic oil, refrigerator oil, diesel and other lubricant oil to remove water, impurities and gas from the oil
And volatile substances (such as ammonia, etc.) harmful components.so as to improve its quality and recover its performance.

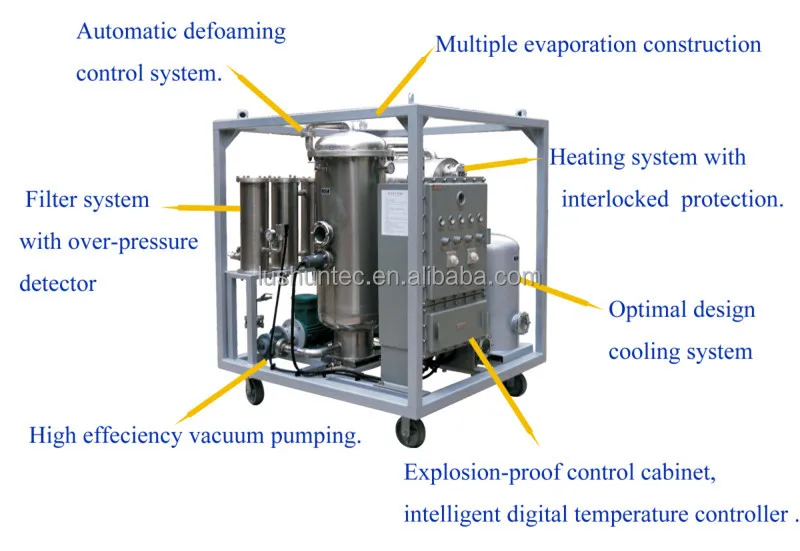

Feature:
1.Designed for preventing firing or exploding environment.
2. Unique water/gas removal system, which is enable to fast remove water, gas and light hydrocarbon in oil.
3.Precise fine multi-stage filtration helps to remove mechanical impurities in oil, Function of automatically detecting the pollution degree of filter element.
4. An advanced fully automatic temperature controlling system, liquid-level controlling system, defoaming controlling system, pressure protcting system and excellent configuration can ensure operation of the equipment with high performance.
5. Online work, allowing separated operation of manual operators from machine with lamps indicating the condition for operation.
6. It is humanization design with low noise, deep purification and long time free maintenance to save cost from the running process.
7.Chain safe protection system, pressure protection device, interaction of oil inlet ad heating, which avoids influence of incorrect manipulation.
8. Indication for changing filters, stop device for overloaded filters.
9. Stop device for electricity leakage and overloaded power to protect the motor.
10.Phase-sequence and open-phase protection,Safety control for sudden shut-down.
Optional mode:

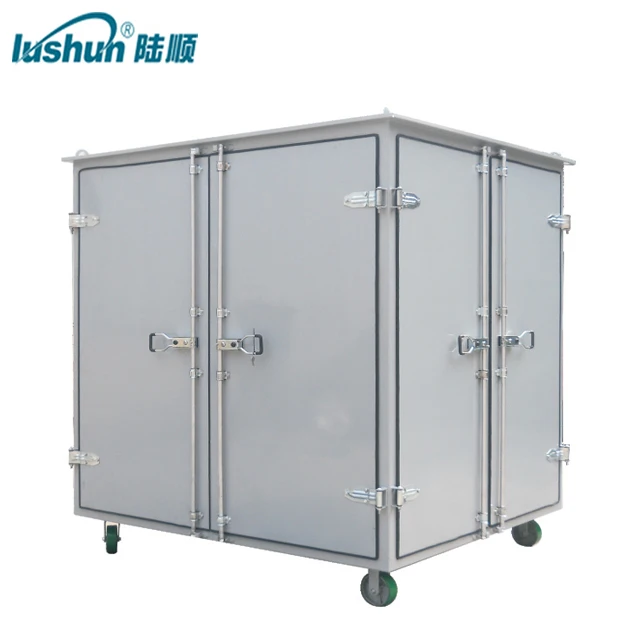

The whole structure of the machine: mobiles style with four wheels, fixed style, mobile style with trailer(double axles or single axle), fully enclosed style, conceal eaves type and open style of canvas etc.
. Online moisture tester and online particle counter are available as optional component
Technical Parameter List:
Item | Index | Unit | Ls-BZL-20 | LS-BZL-30 | LS-BZL-50 | LS-BZL-100 | LS-BZL-150 | LS-BZL-200 | LS-BZL-300 | LS-BZL-500 | |
Technical Parameter for Purifier | Flow Rate | L/H | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | 30000 | |
Operating Vacuum Degree | MPa | -0.08 — -0.098 | |||||||||
Working Pressure | MPa | ≤0.5 | |||||||||
Temperature Range | ℃ | 20 — 70 | |||||||||
Power Supply | V | 380V/50Hz (Can be customized.) | |||||||||
Working Noise | dB (A) | ≤75 | |||||||||
Total Power | KW | 24+3 | 24+3 | 30+5 | 48+5 | 72+5 | 72+6 | 96+10 | 108+16 | ||
Inlet/Outlet Diameter | mm | 25 | 25 | 32 | 40 | 50 | 50 | 65 | 80 | ||
Net Weight | Kg | 550 | 650 | 750 | 900 | 1000 | 1100 | 1300 | 1900 | ||
Overall Dimensions (L×W×H) | cm
| 120× 140×165 | 125× 145×175 | 130× 160×190 | 175× 155×220 | 175× 155×220 | 180× 170×225 | 220× 190×225 | |||
Oil Index After Treatment | Water Content | mg/L | ≤100 (GB/T7600) | ||||||||
Mechanical Impurity | % | None (GB/T511) | |||||||||
Filtration Precision | μm | ≤10 | |||||||||
***Dimension and weight will be changed with the changing of the technical specification.
