beet powder spice packing machine

Product Overview

Description

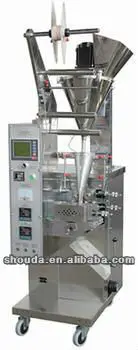

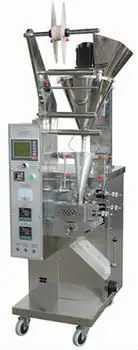

Automatic beet powder packing machine







This machine was designed for the automatic packing of powder.

Features:
1) All the work of bag making, measuring, material filling, sealing, counting and
code printing can be done automatically
2) Photoelectric and tracing system or PLC system can be provided without your
specific requirements
3) The PLC controller has the advantages such as setting the length of the bag, the
out put alarm and the speed and quantity with buttons
4) Adopts computer controller, step motor feeding which drives the screw pushing
the materials
5) Print automatically the 1-3 lines code and shelf life with ink wheel code printer
6) Suitable packing material: paper/PE, PT/PE, BOPP film and other compound
materials can be heat sealed


Parameter:

	SD-38F	SD-75F	SD-188F	SD-688F
Sealing mode	3 sides/4 sides/central side
Packing speed	40-65bags/min	40-65bags/min	20-60bags/min	10-30bags/min
Bag size	L: 55-110mm W: 30-80mm	L: 80-150mm W: 60-105mm	L:80-180mm W:50-140mm	L:100-310mm W:70-210mm
Filling quantity	2-40ml	30-100ml	10-300ml	100-1000ml
Power	220v 50Hz 1.5kw		220v 50Hz 1.5kw
Machine weight	350kg
Dimension	600*790*1800mm		1000*800*2000mm	1200*900*2000mm
