Product Overview
Description

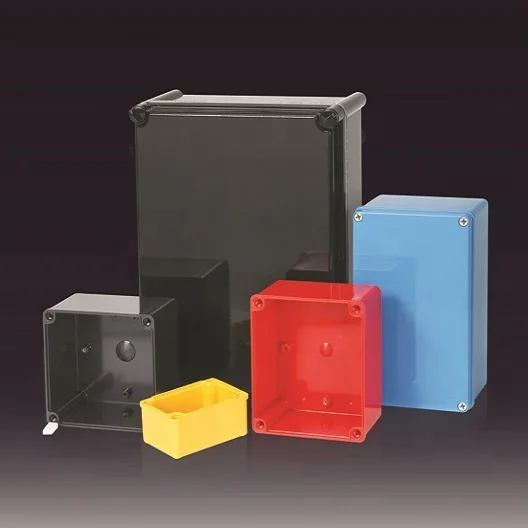

Waterproof Enclosure
<M series>-Placing Keypad or logo sticker on screw cover type
1. It can be placed keypad or logo sticker on the cover.
2. Type 4X&IP67 for indoor & outdoor application by neoprene gasket seal
3. Available 18 kinds sizes from 80x130x35 mm to 180x255x125 mm
4. selectable gray cover or clear cover
5. Available stainless steel wall mounting bracket.
| Level of dustproof and waterproof | IP 66/67 |
|---|---|
| Impact test | IK 07/08 |
| Temperature range | ABS : - 40 ~ + 70, Polycarbonate(PC) : - 40 ~ + 110 |
| Flammability Rating | ABS : 94-HB, Polycarbonate(PC) : 94-V-0, 5VA, HB |
Drawing view >
| Size(included cover) | Model | Mounting Plate | |||||
|---|---|---|---|---|---|---|---|
| W X L X H (mm) | W X L X H (inch) | ABS | PC | Steel 1.6mm | Plastic 3~4.5mm | ||
| Grey cover | Transparent cover | Grey cover | Transparent cover | ||||
| 80x130x35 | 3.15×5.12×1.38 | BC-AGM-081303 | BC-ATM-081303 | BC-CGM-081303 | BC-CTM-081303 | 0813 S | |
| 80×130×60 | 3.15×5.12×2.36 | BC-AGM-081306 | BC-ATM-081306 | BC-CGM-081306 | BC-CTM-081306 | 0813 S | |
| 80×130×75 | 3.15×5.12×2.95 | BC-AGM-081307 | BC-ATM-081307 | BC-CGM-081307 | BC-CTM-081307 | 0813 S | |
| 80×130×85 | 3.15×5.12×3.35 | BC-AGM-081308 | BC-ATM-081308 | BC-CGM-081308 | BC-CTM-081308 | 0813 S | |
| 80×130×100 | 3.15×5.12×3.94 | BC-AGM-081310 | BC-ATM-081310 | BC-CGM-081310 | BC-CTM-081310 | 0813 S | |
| 80×130×125 | 3.15×5.12×4.92 | BC-AGM-081312 | BC-ATM-081312 | BC-CGM-081312 | BC-CTM-081312 | 0813 S | |
| 130x130x35 | 5.12×5.12×1.38 | BC-AGM-131303 | BC-ATM-131303 | BC-CGM-131303 | BC-CTM-131303 | 1313 S | |
| 130×130×60 | 5.12×5.12×2.36 | BC-AGM-131306 | BC-ATM-131306 | BC-CGM-131306 | BC-CTM-131306 | 1313 S | |
| 130×180×35 | 5.12×7.09×1.38 | BC-AGM-131803 | BC-ATM-131803 | BC-CGM-131803 | BC-CTM-131803 | 1318 S | 1318 P |
| 130×180×60 | 5.12×7.09×2.36 | BC-AGM-131806 | BC-ATM-131806 | BC-CGM-131806 | BC-CTM-131806 | 1318 S | 1318 P |
| 150×180×60 | 5.91×7.09×2.36 | BC-AGM-151806 | BC-ATM-151806 | BC-CGM-151806 | BC-CTM-151806 | 1518 S | |
| 180×180×60 | 7.09×7.09×2.36 | BC-AGM-181806 | BC-ATM-181806 | BC-CGM-181806 | BC-CTM-181806 | 1818 S | |
| 180×180×75 | 7.09×7.09×2.95 | BC-AGM-181807 | BC-ATM-181807 | BC-CGM-181807 | BC-CTM-181807 | 1818 S | |
| 180×180×100 | 7.09×7.09×3.94 | BC-AGM-181810 | BC-ATM-181810 | BC-CGM-181810 | BC-CTM-181810 | 1818 S | |
| 180×180×125 | 7.09×7.09×4.92 | BC-AGM-181812 | BC-ATM-181812 | BC-CGM-181812 | BC-CTM-181812 | 1818 S | |
| 180×255×75 | 7.09×10.04×2.95 | BC-AGM-182507 | BC-ATM-182507 | BC-CGM-182507 | BC-CTM-182507 | 1825 S | |
| 180×255×100 | 7.09×10.04×3.94 | BC-AGM-182510 | BC-ATM-182510 | BC-CGM-182510 | BC-CTM-182510 | 1825 S | |
| 180×255×125 | 7.09×10.04×4.92 | BC-AGM-182512 | BC-ATM-182512 | BC-CGM-182512 | BC-CTM-182512 | 1825 S |
