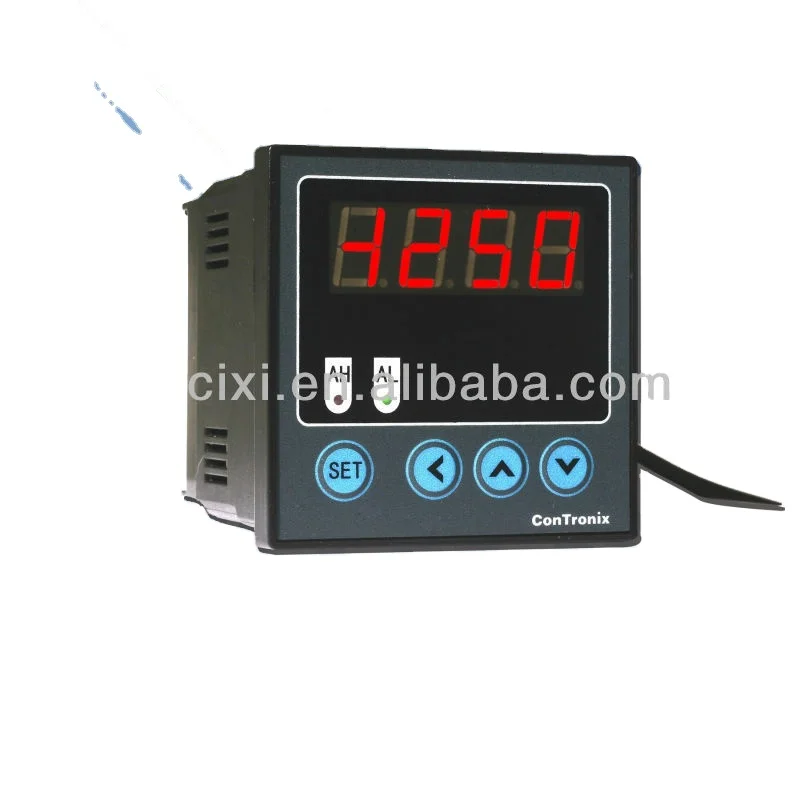

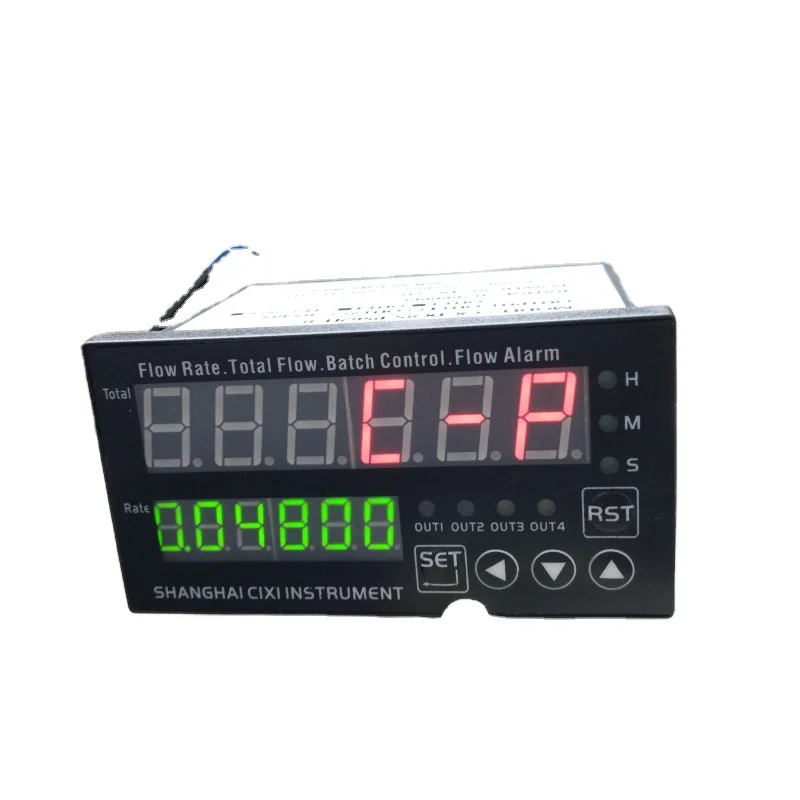

Totalizer for flow meter totalizer batch controller

Product Overview

Description

  Totalizer for flow meter totalizer batch controller





Accuracy	0.5 %FS±1 digit or 0.2%FS±1 digit
Small-signal removal	0 — 25.5%FS
Measuring range	-9999 — 99999 digit
Sampling Period	0.25 second
Interrecord Time	Between 1 second and 4 minutes take a                       second as a unit there are 240 ways for you to choose
Display mode	High resolution, brightness adjustable, wide view angle and bright TFT color LCD (320x234) with saving screen (5.6” for ASR100 series)
Parameters setting	By Key nods or upper linking computer setting. Security lock function is available.
Alarm	4 alarm points per channel are available. Upper/lower alarm, rate-of-change and differential limit; Alarm output delay, alarm delay high to low, external connection sound available, max 12 latest alarm messages are saved per channel.
Communication port	RS-232,RS-485: Buad rate 1200 – 115200 bps
Printer	TPμP-A40 micro printer is recommended.

Power Supply:Instruments for 220V AC:220V±10%,

power consumption less than  Instruments for 24V DC:24V±10%,

power consumption less than 5VA;

For other power supplies, please follow the instructions provided with the instrument.

Operating Conditions:0°C~50°C,Humidity less than 90%R.H.

Wider temperature-range requirement should be notified on order.

Display range:Instant Flow,temperature and pressure is 4-digit LED display,-1999~9999;
Cumulate Flow 8-digit LED display, 0~99999999

The type of temperature input signal:voltage,current,RTD,Thermocouple

voltage:1V~5V DC,0V~5V DC can be chosen by setting.

current:4mA~20mA,0mA~10mA,0mA~20mA can be chosen by setting.

RTD:Pt100(0.0°C~400.0°C)

Thermocouple:K,E,T,S can be chosen by setting.(0.0°C~999.9°C)

Other input signals or index number should note when order.

The type of pressure input signal:voltage,current

 The type of flow input signal:voltage,current,pulse

Intrinsic Error :Less than±0.2%F.S

resolving power:1/60000,16 bit A/D converter

Periods of measurement and control:0.6 seconds
