Product Overview
Description
Specifications
Introduction
GF900 meter IR reading device is the company independent research and development of a new simple far infrared data acquisition terminal, the embedded design, with low power consumption, and the Chinese or English operating system, meter speed of advantages, for the power system provides a simple and reliable meter reading solutions.
Main Features
Shock: circuit board components glue reinforcement; Liquid crystal soft rubber pad around Cun protection.
Prevent slippery: sideways tooth type to the rear of the silica gel handle and the noose form double prevent slippery protection.
Resistance to cast: the use of advanced nano lens, add the stem of the thick crust, slippery lock button battery cover, machine 1.5 m fall without damage.
Anti-interference: special circuit processing can effectively resist battery interference, to ensure that the data security.
Waterproof: high precision mould making, fully enclosed shell design, effectively prevent the rain water invasion, ensure the safety of the outdoor rain weather use.
Advanced power source design: machine use rechargeable batteries, also can use alkaline batteries, battery capacity than ordinary meter reading machine high three times.
Technology Data
CPU | ARM 32 bit CPU |
Data memory | Flash 64M, the system takes up 3M, user actually usable 60M. SRAM 0.5M |
Deals | Meet GB2312-80 level 2 deals |
Screen | 160 x 160dpi LCD,3.2-inch, a screen can show 10 x 10 Chinese characters or 200 characters. |
Communication interface | A standard RS232 interface (communication 1200 BPS rate-115200 BPS), A USB interface An infrared interface |
keyboard | 20 key, transparent resin coating. |
Add function | The clock, low voltage alarm. |
Infrared | High-speed infrared communication |
Working voltage | 4.5 V DC (3 section 5V the battery or Lithium battery). |
Working current | <16mA. |
Meter reading Angle | 60 degrees |
Infrared communication distance | 3-7m (and infrared transmission power meter relevant); Farthest 12 meters |
Communication agreement | DL/T645-1997 "multi-function watt-hour meter communication rules" and added statute, DL/T645-2007 "multi-function watt-hour meter communication rules" , IEC62056 protocol |
Dimensions (w x d x h) | 160mm x 60mm x 28mm |
Weight(g) | 118g(no battery); 220g(include battery) |
\\

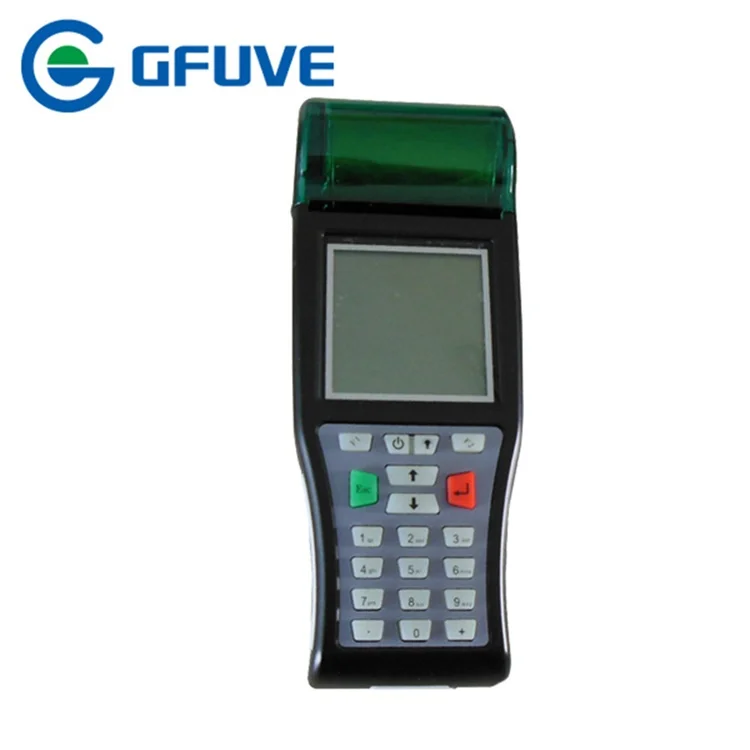

Photos
In order to offer the detail quotation to you timely, could you please kinldy tell us the following QUESTIONS?
1. Product application areas, Banks, supermarkets, shopping malls, delivery, catering and so on need to brush the bank card industry ?
2. The quantity you need? more quantity more cheaper.
3. The way to transportation and the receipt address?
kindly note:
Small order is accepted, for some items, 1 piece is possible.
As to normal models, we have the goods in stock.
Standard package.
With over 7 years experience in the pos terminal business, we understand your need for
urgent and efficient delivery of your require and committed to providing you with prompt and quality service.
Any questions, please feel free to contact us at any time. we will do our best job for you.
