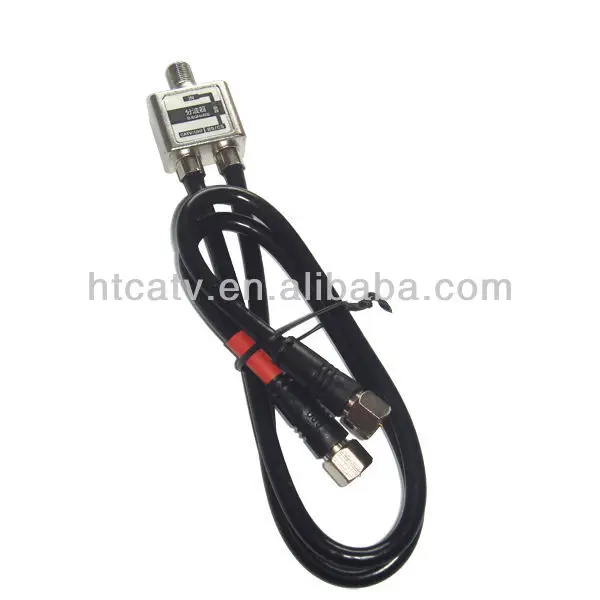

5 2610MHz BS/CS CATV UHF Diplexer Mixer
- Category: >>>
- Supplier: Yuyao Hengtong Network Equipment Co. Ltd. [Zhejiang China]Yuyao
Share on (1219953798):
Product Overview
Description
5-2610MHz BS/CS CATV UHF Diplexer Mixer
New product
Widely used in Japan
Used in pair
5-2610MHz
OEM is ok
MODEL | HT-DPF | |
DESCRIPTION | 5– 2610MHz, DIPLEXER / MIXER | |
ITEM | FREQUENCY RANGE(MHz) | SPECIFICATION |
VHF/UHF Insertion Loss(dB) | 5-10MHz | 1.0dB MAX |
10-300MHz | 0.5dB MAX | |
300-770MHz | 1.0dB MAX | |
1030-1335MHz | 20dB MIN | |
1335-2150MHz | 20dB MIN | |
2150-2610MHz | 20dB MIN | |
BS/CS Insertion Loss(dB) | 5-10MHz | 10dB MIN |
10-15MHz | 18dB MIN | |
15-770MHz | 20dB MIN | |
1030-1335MHz | 2.0dB MAX | |
1335-2150MHz | 1.5dB MAX | |
2150-2610MHz | 2.5dB MAX | |
Return Loss (dB) | 5-10MHz | 8dB MIN |
10-300MHz | 10dB MIN | |
300-770MHz | 10dB MIN | |
770-1335MHz | 10dB MIN | |
1335-2150MHz | 10dB MIN | |
2150-2610MHz | 10dB MIN | |

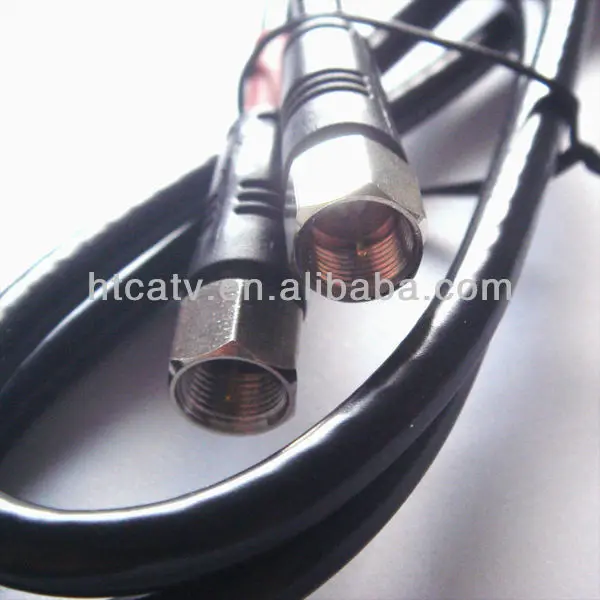

CONNECTOR | “F” FEMALE | |
IMPEDANCE | 75 Ω | |
DC PASS | 15V/0.8A BS/CS One Port Power Pass | |

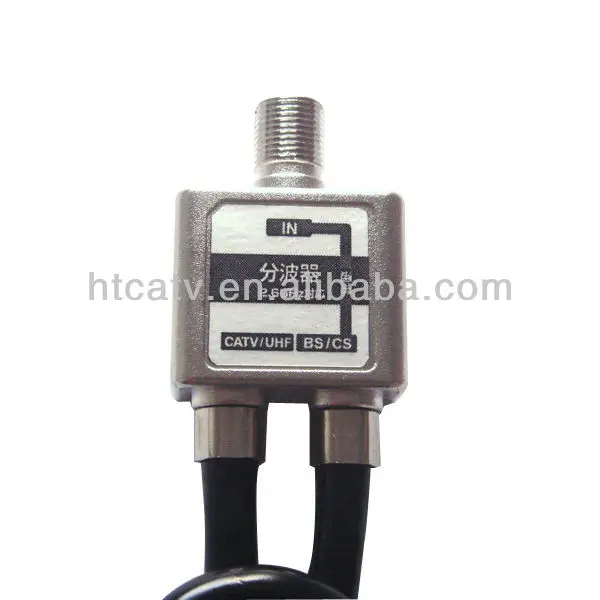

Ports Show
