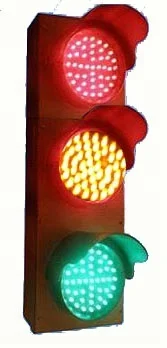

100mm railway led signal lamp

Product Overview

Description

100mm railway signal lamp  (JD100-3-35A)



1.Outstanding with good visual angle, equal light intensity, standard chromatogram and long service time.

2.Human-based design, the lamp is easy for dismounting, installation and debugging.

3.It uses high reliable LED ensured by strict aging test.

4.Every LED is exceptionally exchangeable.

BBM TECHNOLOGY COMPANY ONLY PRODUCE HIGH QUALITY,RELIABLE,AND ROBUST LED TRAFFIC LIGHTS!

1.wide work votage

2.water and dust proof

3.long life span:100,000 hours

4.energy saving, low power consumption

5.easy installation, can be mounted by horizontally as well as vertically

6.Reduced operational costs

7.Integrated LED luminous
8.Uniform optical output
9.Specifically designed to meeting world standards

Model No.:	JD100-3-35A
Power Consumption:	Full ball ≤ 4W
Working Voltage:	85-265VAC-50/60Hz , 12V/24VDC;
Wave length (nm):	Red:625±5;Yellow:590±5;Green:505±5
LED Q’ty:	Red-45 pcs;Yellow:-45 pcs;Green - 45pcs
Housing Material:	PC,UV Resistant
Life Span:	>100,000 Hours.
Delivery Time:	Samples within 5days, Lot of order within 15days.
Certificates:	CE, Chinese GB14887-2003 standards, IP65.



Technical Parameters:
Color	LED Q.ty	Light Intensity	Wave Length	Viewing Angle		Power	Working Voltage	Housing Material
				L/R	U/D
RED	45pcs	≥225cd	625±5nm	30°	30°	≤2W	85V-265VAC,50/60HZ; 12/24VDC	PC,UV Resistant
YELLOW	45pcs	≥225cd	590±5nm	30°	30°	≤2W
GREEN	45pcs	≥360cd	505±5nm	30°	30°	≤4W
