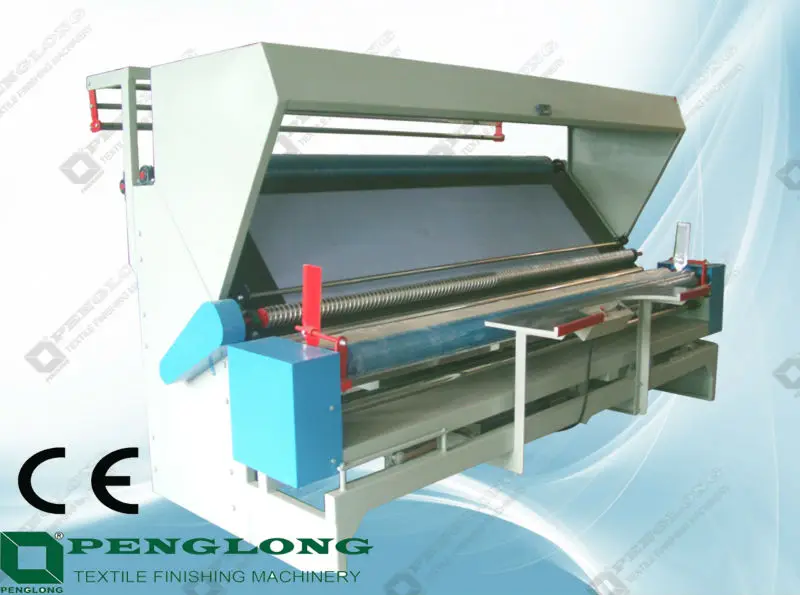

Automatic Edge Control Fabric Winding Checking Machine

Product Overview

Description

Automatic Edge Control Fabric Winding Checking Machine



-Usage:



Automatic Edge Control Fabric Winding Checking Machine is suitable for inspecting and rolling up all kinds of cotton,plain fabric,spunpolyester, knitted, woven, printed, spandex jersey,velvets,cotton denim fabric and tricot fabrics etc.



-Technical Parameters of Fabric Winding Checking Machine:



1	Fabric Working width	1800mm~3600mm(or as your requirement)
2	Long service time	About 10 years under common using
3	Diameter of Fabric Rolls	≤600mm(460mm)
4	Highest Speed	80m/min
5	Main Motor	1HP*2sets
6	Edge-aligning Motor	1/2 HP*1set
7	Edge-aligning Accuracy	±3mm
8	Expanding Motor	1/2 HP*1 set
9	Dimension	2200mm(L) ×2300mm(W)×1900mm(H)
10	Character	Two ways for fabric inputting,roll and loose folded
11	Power	220 volt or 3 phases in 360 volt 50 hertz



 -Characteristics:

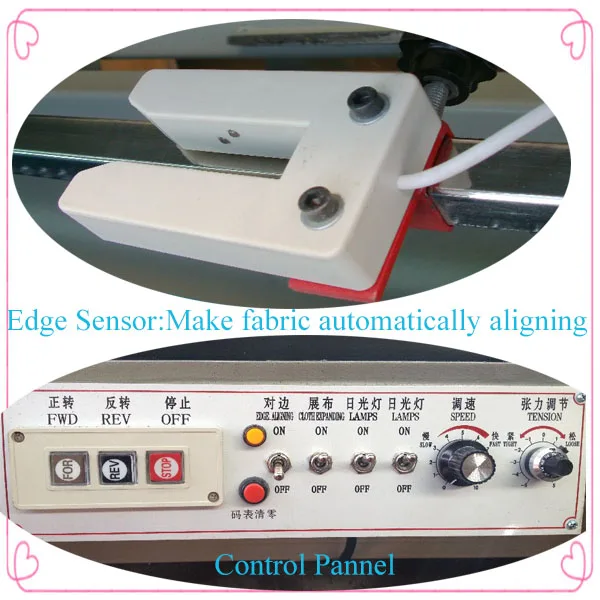

1.Photoelectric hydraulic edge-alignment system made in Taiwan is adopted.



2.Automatic Edge Control Fabric Winding Checking Machine is equipped with expanding rollers to eliminate curled edge and avoid crease on fabrics.



3.Length counter could make accurate measurement of length in yards or meters which can be interchanged.

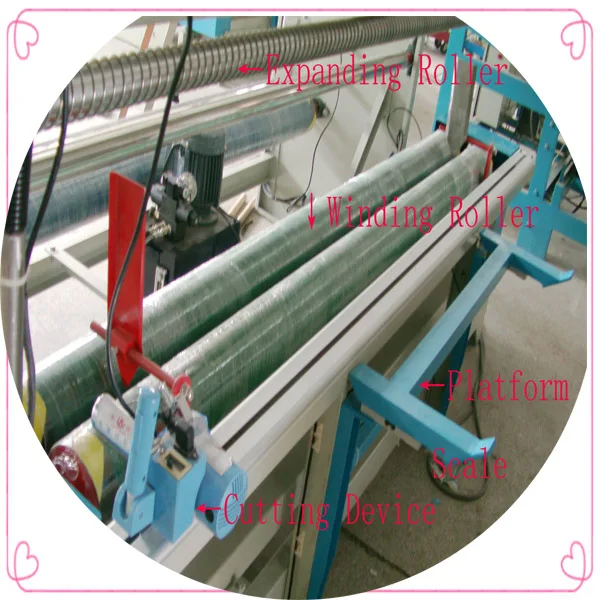

4.Winding roller and feeding roller are driven by gear motor made in Taiwan.



5.Fabric tension is adjusted by inverters.

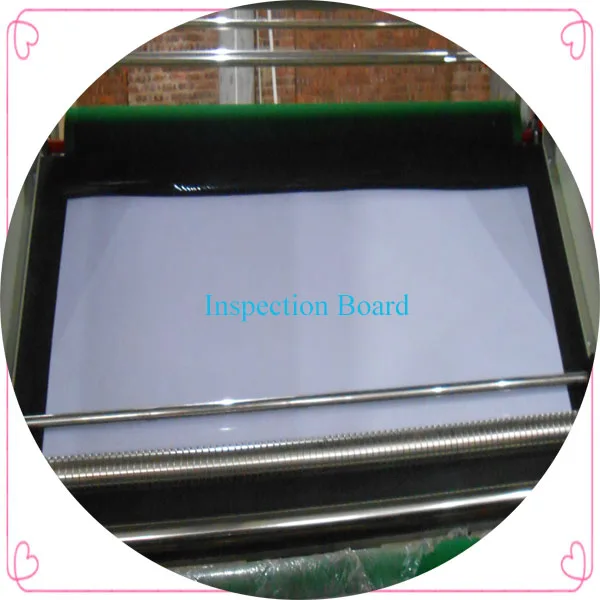

6.Inspection Board is made of milky color acrylic.



7.Imported special foamed roller could roll up weft knitted plush and short floss without sliding movement and untidy edge.



8.Fabric rollers are neither too tight nor too loose.



9.Stability in start, forward and reversible running and step less speed change.

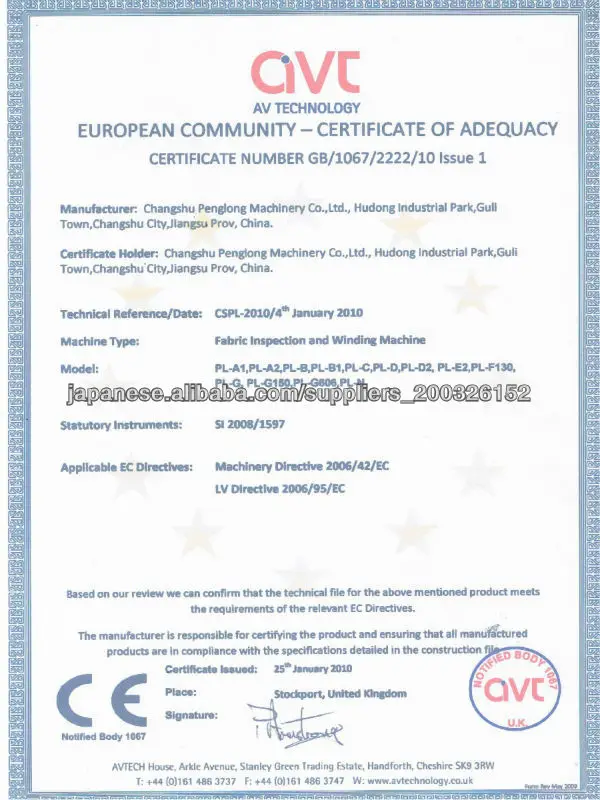

10.CE approved, excellent in quality and safety.

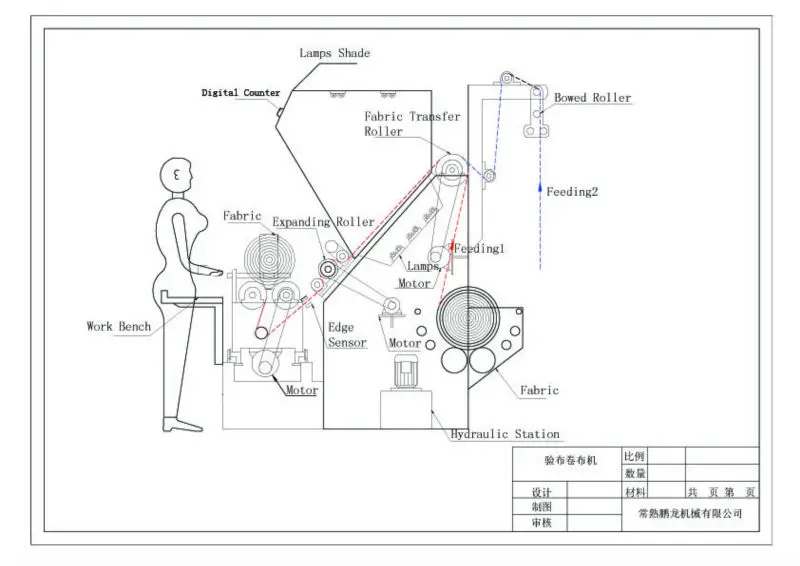

 -Schematic Drawing

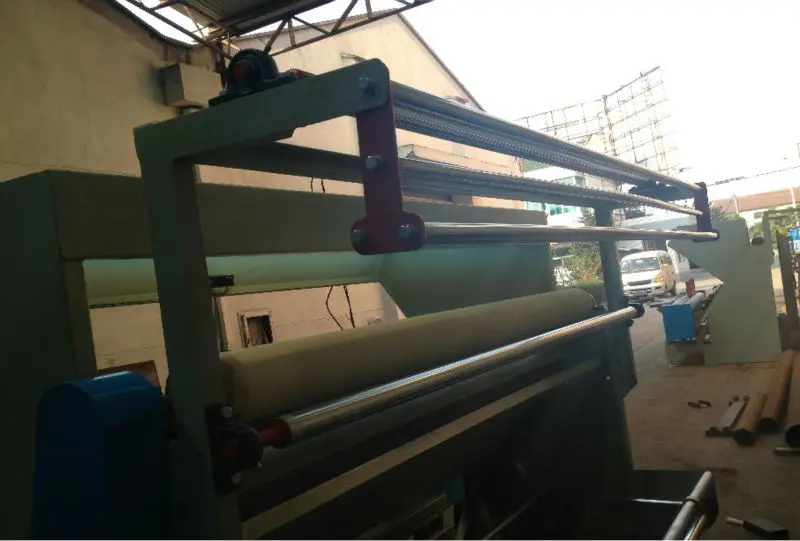

 -Feeding Frame

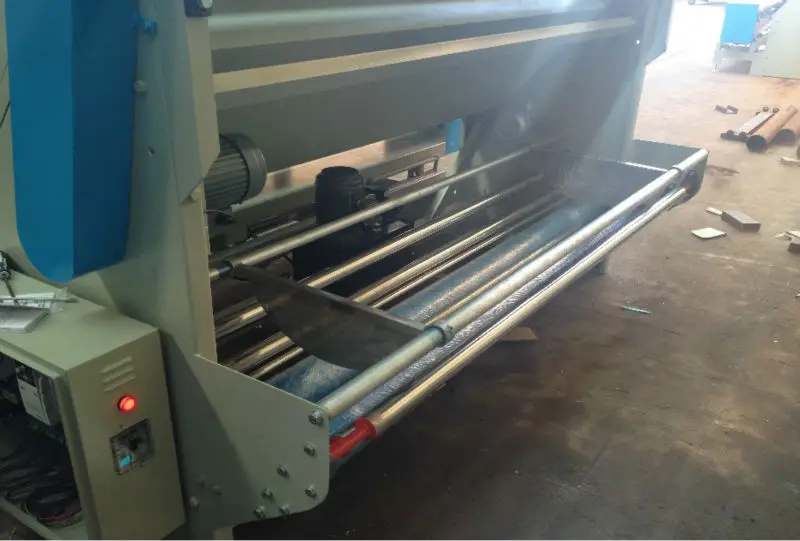

-Cloth Cradle









-Company Profile



Changshu Penglong Machinery Co.,LTD was founded in 2000 which has specialized in R&D, manufacturer for textile dyeing and finishing machinery for more than ten years.



-Leading Products



Fabric Inspection machine



Rope opener



Fabric relaxing machine



Automatic centering machine



Cloth slitting-inspecting-winding combination machines



Swatch cutter(Fabric sample cutting machine)



High speed tubular slitting machines



Automatic edge sewing machine



Tensionless fabric inspection machine



Fabric unwinding and plaiting machine



Fabric folding machine



Pneumatic batch winding machine



Vacuum cloth packing machines



Tubular slitting inspection machine



Infrared hydraulic tracker and other dyeing and finishing machines and spare parts.





-Exporting Countries



 1.Asian Countries:Bangladesh,Saudi Arabia,Thailand,Vienam,Sri Lanka,Irap,Iran,Singapore.



 2.Europe and America Countries:America,Portland,France,Ukraine,Britain,Russia.



 3.Africa Countries:Ethiopia,Uganda,South Africa.



 4.Oceanica:Australia



 5.South America: Argentina,Peru,Venezuela,Uruguay,Chile,Brazil.



Welcome to inquiry Automatic Edge Control Fabric Winding Checking Machine!
