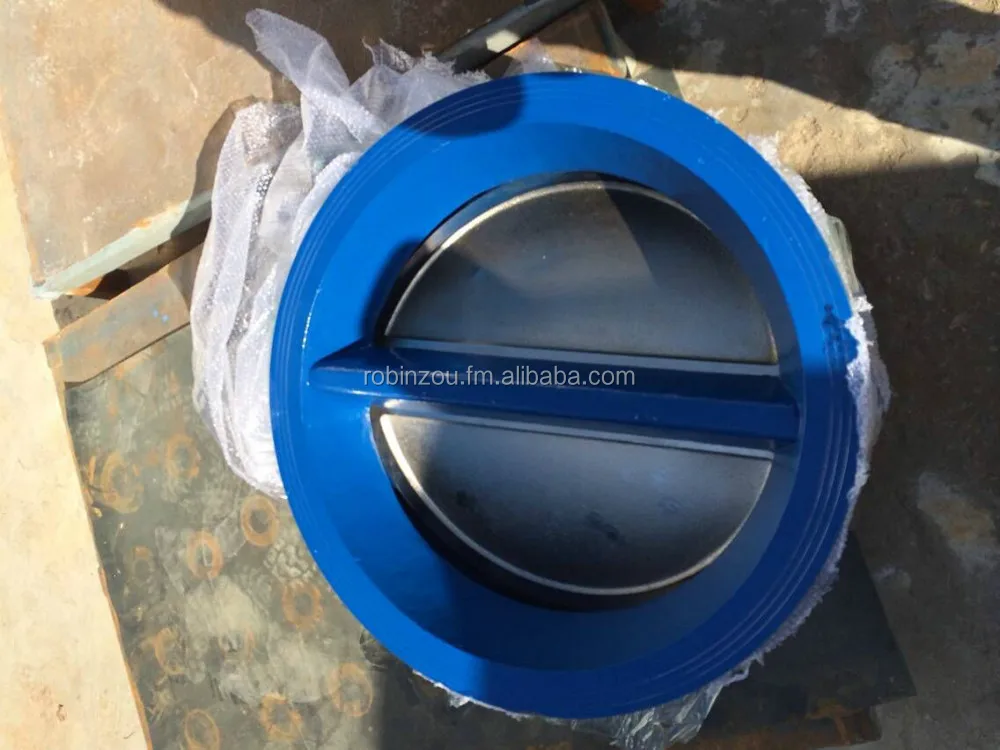

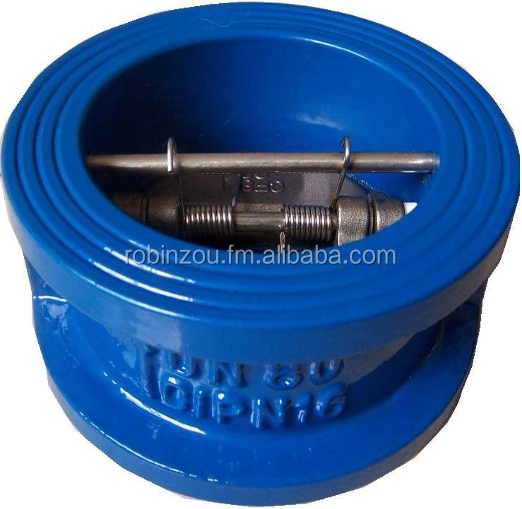

DIN PN10/PN16 Cast Iron wafer Double Door Check Valve DN40 DN900
- Category: >>>
- Supplier: Lianyungang Yashi Power Station Equipment Co. Ltd [Jiangsu China]Lianyungang
Share on (12208850):
Product Overview
Description

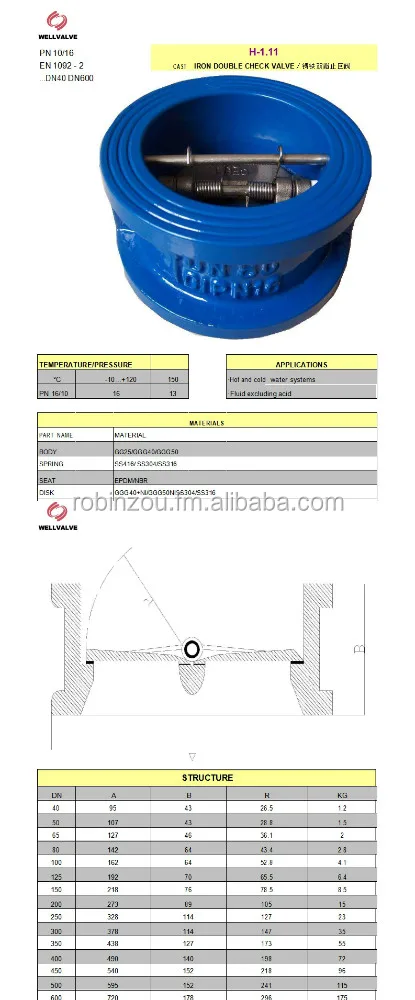

PN 10/16 |
| H-1.11 | |
EN 1092 - 2 | CAST | IRON DOUBLE CHECK VALVE | |
...DN40 | DN600 |
| |
TEMPERATURE/PRESSURE |
|
|
| APPLICATIONS | ||
°C | -10...+120 | 150 |
| ·Hot and cold | water systems | |
PN 16/10 | 16 | 13 |
| ·Fluid excluding acid | ||
|
|
|
|
|
|
|
|
|
|
| MATERIALS |
|
|
PART NAME |
| MATERIAL |
|
|
|
|
|
|
|
|
|
|
|
BODY |
| GG25/GGG40/GGG50 |
|
| ||
SPRING |
| SS416/ SS304/SS316 |
|
| ||
|
|
|
|
|
|
|
SEAT |
| EPDM/NBR |
|
|
|
|
DISK |
| GGG40+NI/GGG50NISS304/SS316 |
|
| ||
|
|
|
|
|
|
|
AXIS |
| SS416/ SS304/SS316 |
|
| ||
|
|
|
|
|
| |
| DN | A | B | R | KG |
| 40 | 95 | 43 | 26.5 | 1.2 |
|
|
|
|
|
|
| 50 | 107 | 43 | 28.8 | 1.5 |
| 65 | 127 | 46 | 36.1 | 2 |
|
|
|
|
|
|
| 80 | 142 | 64 | 43.4 | 2.8 |
| 100 | 162 | 64 | 52.8 | 4.1 |
|
|
|
|
|
|
| 125 | 192 | 70 | 65.5 | 6.4 |
| 150 | 218 | 76 | 78.5 | 8.5 |
|
|
|
|
|
|
| 200 | 273 | 89 | 105 | 15 |
| 250 | 328 | 114 | 127 | 23 |
|
|
|
|
|
|
| 300 | 378 | 114 | 147 | 35 |
| 350 | 438 | 127 | 173 | 55 |
|
|
|
|
|
|
| 400 | 490 | 140 | 198 | 72 |
| 450 | 540 | 152 | 218 | 96 |
|
|
|
|
|
|
| 500 | 595 | 152 | 241 | 115 |
| 600 | 720 | 178 | 296 | 175 |
|
|
|
|
|
