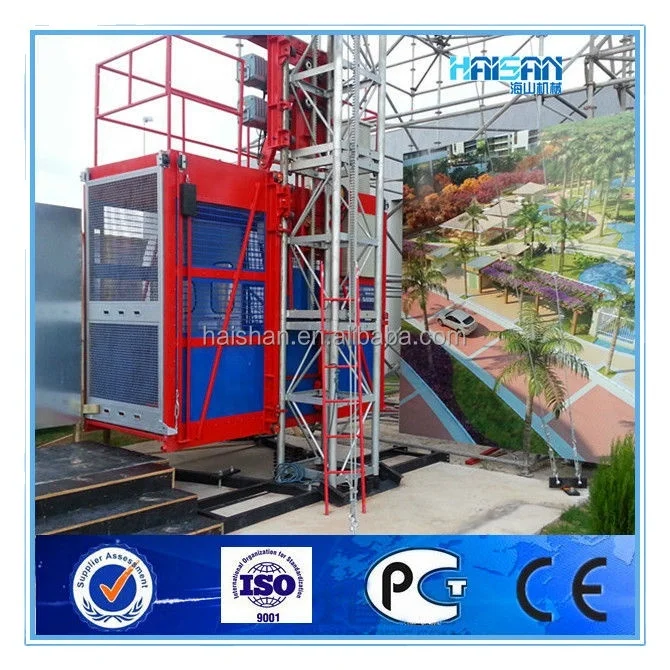

passenger hoist CE Gost Approved

Product Overview

Description

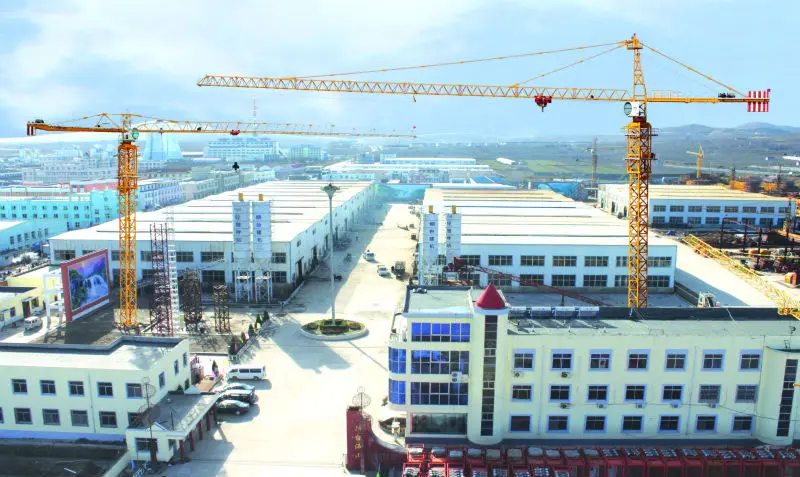

About us

A.Specification for construction elevator



Product Category	SC200/200
Model	SC200/200A	SC200/200B
Rated Loading Capacity(kg)	2x2000	2x2000
Hoisting Speed	34	34
Power of Electric Motor (KW)	2x3x11	2x2x15
Converter Power(KW)
Inside Dimension of Suspension Cage (L×W×H)	3x1.3x2.4
Standard Section Height(m)	1.508



B . Features of sc200/200 construction elevator:

1. It is equipped with fully safety devices to guarantee the safe working,


2. Stable running and comfortable adaptability.


3. The transmission system adopted three drive motors and three sets of reduction gears


4. It has simple electrical control system, convenient to be maintained and low failure rate

C . Advantages of our SC200/200 construction elevator:



       1.   CE, ISO, GOST Certifications;

       2.   Customized products are available;

       3.   One year guarantee for main mechanism;

       4.  A sound after-sales service system is given to clients.



The SC series construction elevator:



1. The SC series construction lifts has rack and pinion, by which the materials were lifted;


2. This product has no counter weight, dismantling easily and working safely;


3. Overload protection limiter and mechanical chain device are reliable and complete, optimal safety device select SAJ40-1.2, which restricts the excessive downward movement of the cage and prevents cage falling accidents.


4. The transmission system adopted three drive motors and three sets of reduction gears;


5. It has simple electrical control system, convenient to be maintained and low failure rate;


6. The mast sections of construction elevator are painted for four times. Also galvanized mast sections are available for customers.


7. Variable-frequency construction elevator are safe, stead and comfortable. So the speed of construction elevator can vary from 0 to 63 m/min;


8. The start electricity is smaller than the working electricity;


9. Floor calling system is available for customers with extra payment;


10. quick-wear parts are free to give to customers;


11. We provide one year guarantee service for main mechanisms.

D.Main Parts for constrution elevator

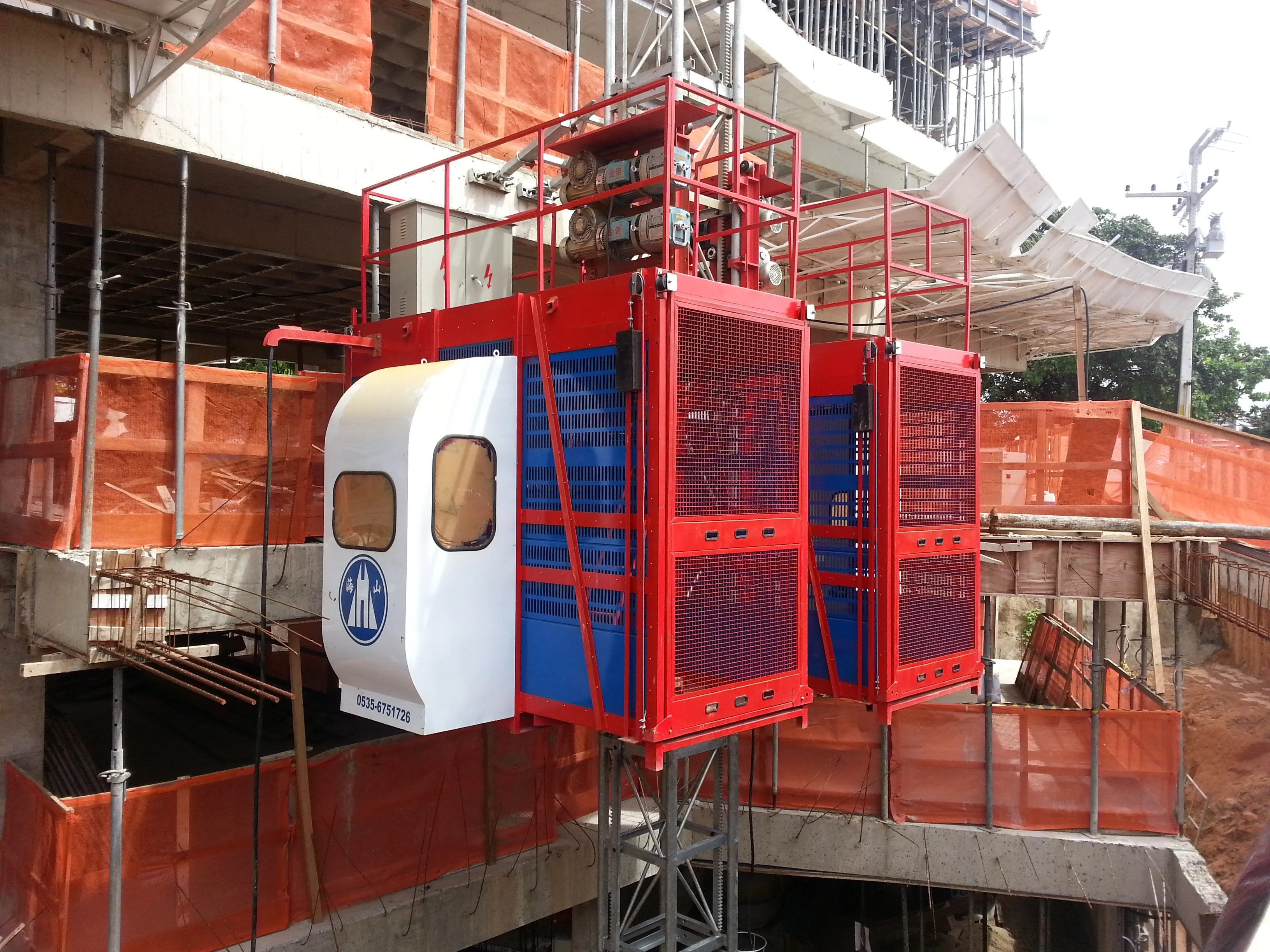

Engineers in Brazil

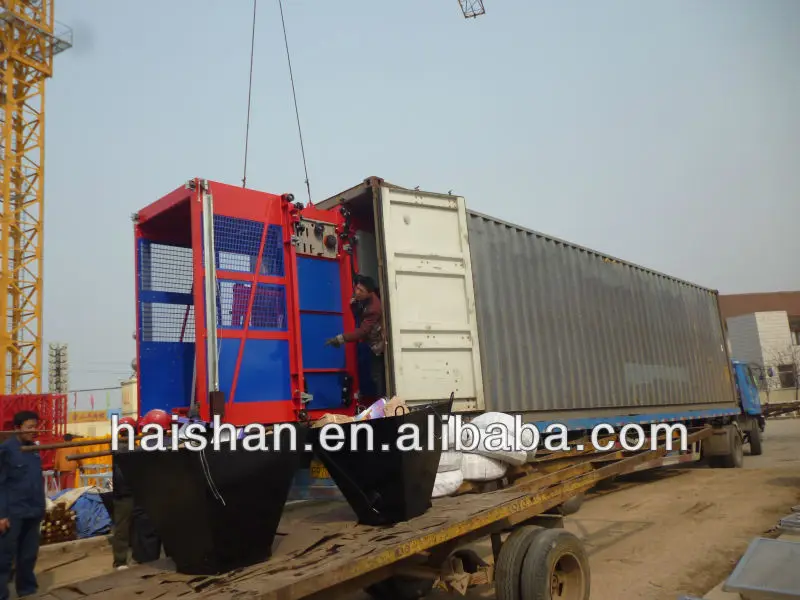

 Loading department

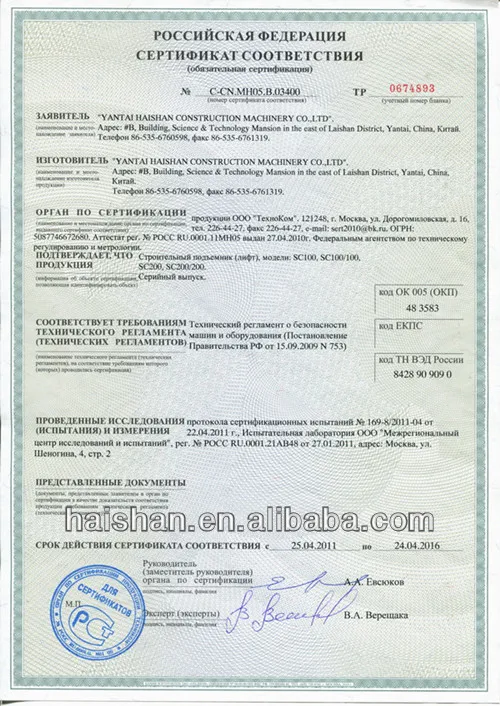

Certificate
