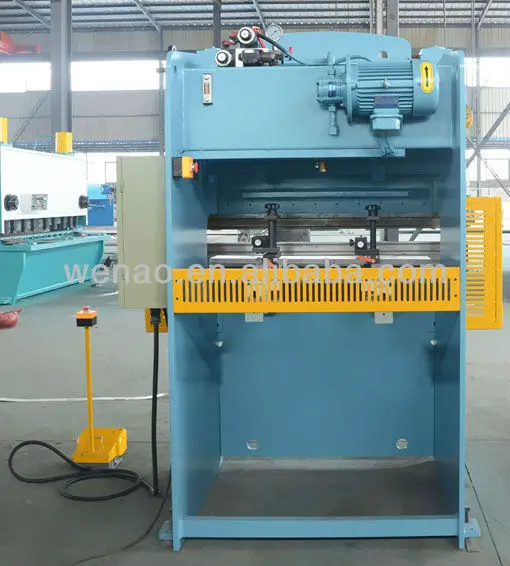

small press brake bending machine
- Category: >>>
- Supplier: Nantong Wenao Import And Export Co. Ltd. [Jiangsu China]Nantong
Share on (1222047099):
Product Overview
Description
small press brake bending machine
punch and die tools
1. Export quality license by government
2. SME factory control cost easy focus on quality
4. CE/ISO
3. English video manual
2. SME factory control cost easy focus on quality
4. CE/ISO
3. English video manual
FEATURE
1.It’s very popular in metalworking market for bending metal sheets
2.Various model of bending 4-40mm thickness and 1000-9000mm length.
3.Steel welded construction, vibrating aging function
4.Servo backgauge and RV working table comensation is optional

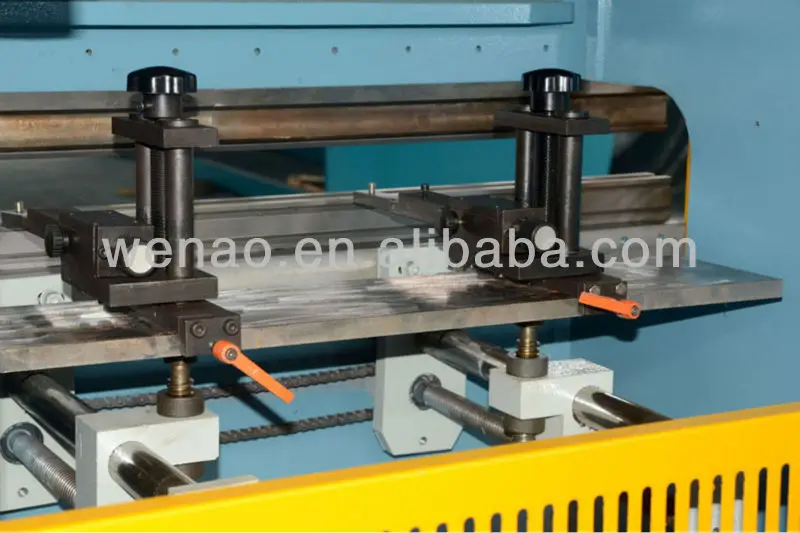

6.Motorized back gauge and cutting number can digital readout ,E10 or CNC100
7.Power break protection device to guarantee safety during maintenance
8. Debug and goodafter-sales service
MAIN COMPONENTS:

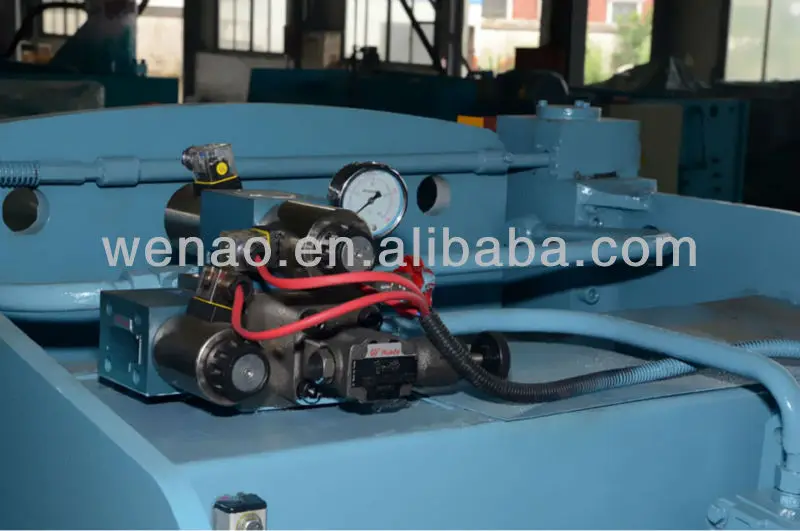

integrated hydraulic system,
hydraulic elements : OMEGA(U.S.A)
digital readout : south korea.

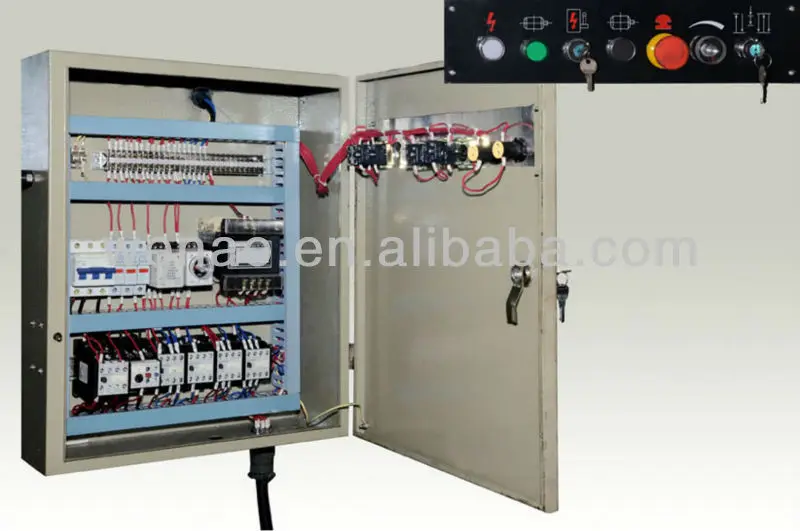

mail motor,main electric parts : Siemens (Germany)
seal:Nok (Japanese).
Guarantee : 14 months from the date of B/L
Autonics readout and rotary encoder
Parameter:
Name | Unit | Specifications | |
Nominal force | KN | 4000 | |
Working table length | mm | 4000 | |
Distance between frames | mm | 3550 | |
Throat depth | mm | 400 | |
Ram travel | mm | 300 | |
Max open height between table and ram | mm | 500 | |
Ram travel speed | Working speed | mm/s | 10 |
Return speed | mm/s | 50 | |
No-load cyclic index | mm/s | 55 | |
Main motor | Model |
| Y200M-4 B35 |
Horse power | kw | 30 | |
Speed | r/min | 1440 | |
Gear pump | Pressure | Mpa | 32 |
Flow | L/min | 25 | |
Model |
| NT3-G32F | |
Max working pressure of hydraulic system | MPa | 20 | |
Overall dimensions | Length | mm | 4800 |
Width | 2300 | ||
Height | 3500 | ||
Machine weight | Kg | 29600 | |
