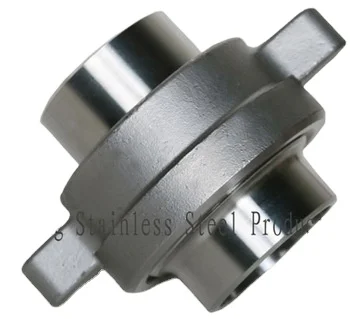

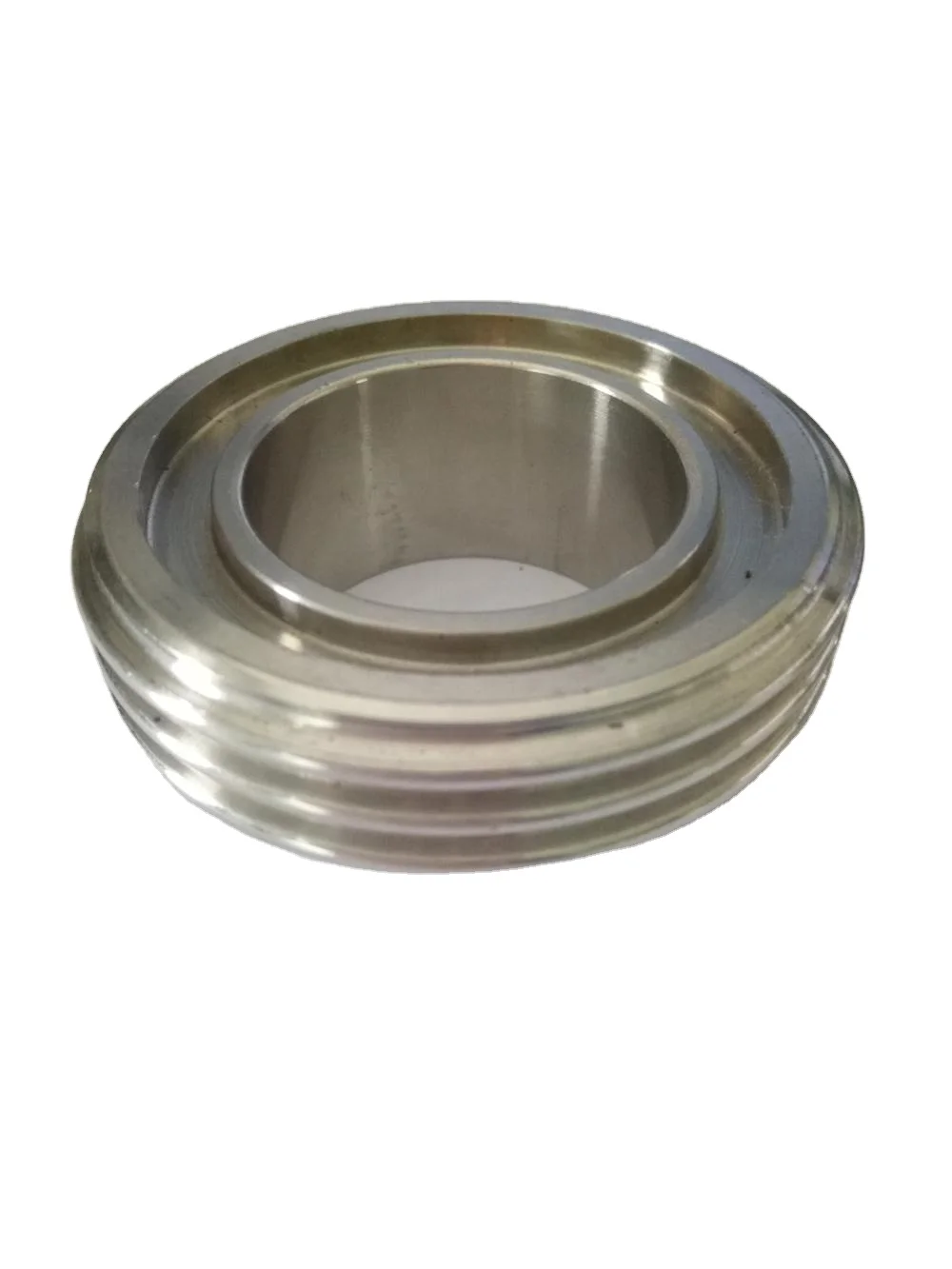

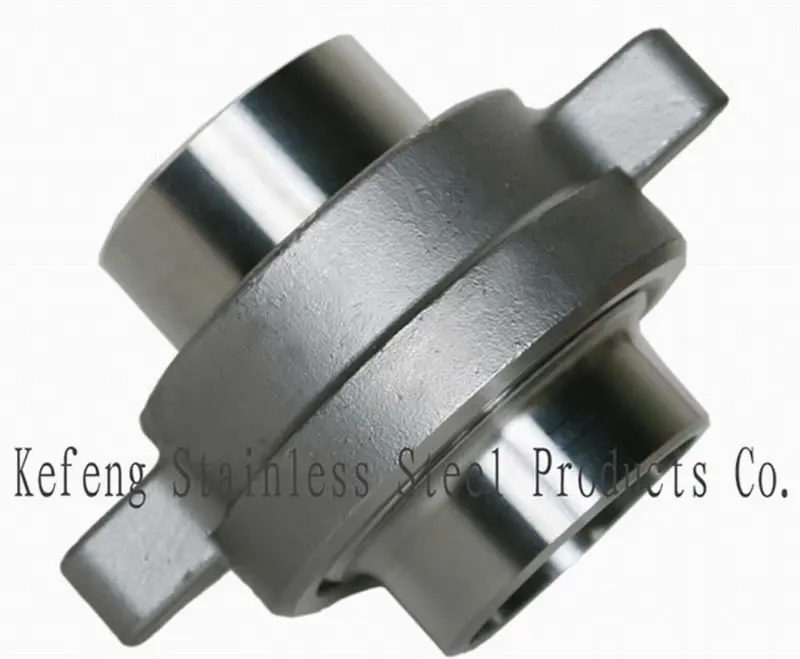

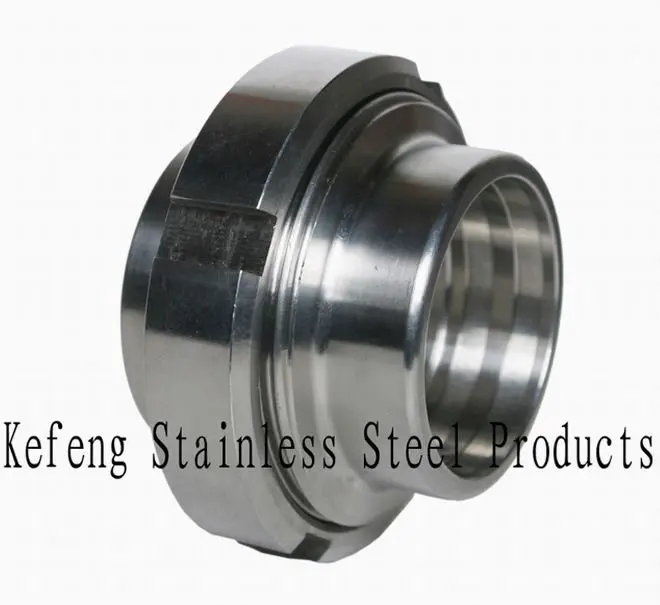

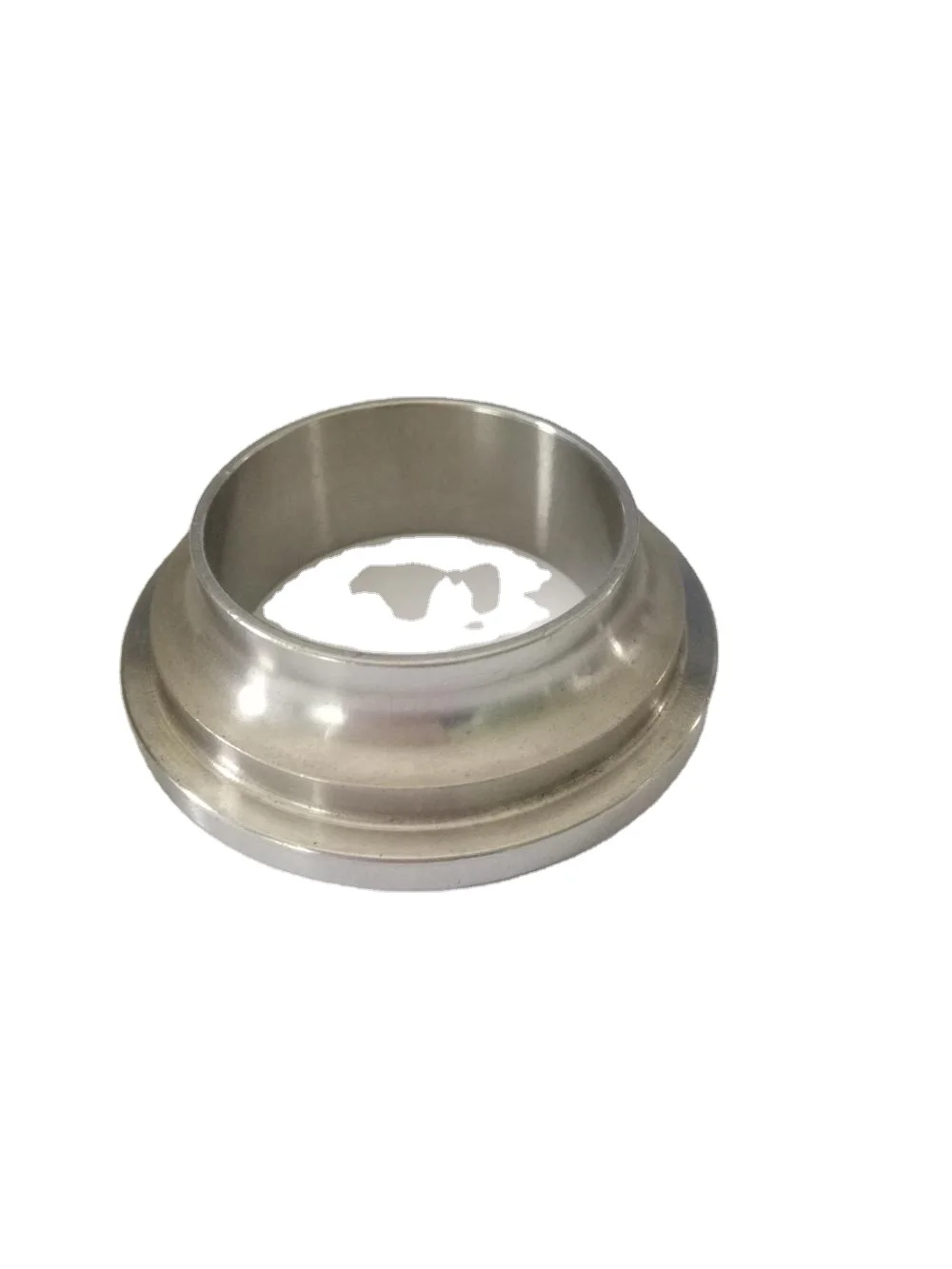

brass,aluminium,stainless steel pipe fittings union connector

Product Overview

Description

brass,aluminium,stainless steel pipe fittings union connector



Application



Quick couplers may be specifically designed and rated for a particular application or industry.

• Chemical fitting - Chemical quick couplers may be designed for specific chemicals such as fuel, oil, solvents, acids, bases, etc.


• Gas fitting - Gas quick couplers are specifically designed for explosive and noxious gases such as propane and phosgene.


• Hydraulic fitting - Hydraulic quick couplers are designed and rated specifically for hydraulic lines. Of particular importance for these quick couplers are high pressure ratings.


• Pneumatic fitting - Pneumatic quick couplers are specifically designed for use in compressed air lines and pneumatic systems.


• Sanitary / food-grade fitting - Sanitary and food-grade quick couplers are designed and constructed for use in sanitary applications such as the food, beverage, medical, and pharmaceutical industries.


• Water fitting - Water quick couplers are rated for use with potable water, typically pressurized, for industrial, municipal, and consumer use.



Products details :





Products	Quick Coupling; Camlock   coupling
Material	Stainless Steel   304/316;Brass;Aluminium
Thread	ANSI B1.20.1(NPT),   BS21,DIN259,DIN2999,ISO228
Size	1/2’’-6’’
Gasket	buna(NBR),viton and Teflon,silicon
Application	Oil,gas,water,chemical,petroleum
Specification	MIL-C27487
Test pressure	3/4’’-2’’ 250PS(17.6bar);3’’-4’’   200PS(14.8bar);2 1/2’’ 225PS(15.8bar);6’’ 150PS(10.5bar)
Connection	male,female,connecting   hose,welding,flange
Technology	Investment casting,forging,CNC   precisely machined
Assembly parts	Pins,rings,safety   handle,safe-pin,gasket
Place of origin	Shandong,China(mainland),Manufacturer
Packing	Standard export packing





Function:

1. Simple structure, convenient operation, quick  connection and remove


2. Compact size, light weight, good sealing and interchangeable


3. Save both time and labor: connect and disconnect the oil channel by quick coupling


4. Fuel efficient: the single valve of the quick coupling can disconnect oil channel so that the oil don’t run out, thus avoid lost of oil.


5. Environmental protection


6. Unique design and easy to transport

Use notes:

1. Only apply to fluid.


2. Do not exceed the maximum working pressure limit.


3. Do not exceed the temperature scope, or it will cause the wear of sealing material or leakage.


4. Do not exceed the maximum fastening torque when install the thread coupling, or it may cause damage.


5. No striking, bending, stretching, which will cause damage.


6. It may fail to work or leakage when interfused metal powder or sand dust.


7. Do not use crack hose, which may cause the leakage or fall off.


8. Used in the vibration and impact machine will cause lower durability


9. Do not disassemble the quick connector.
