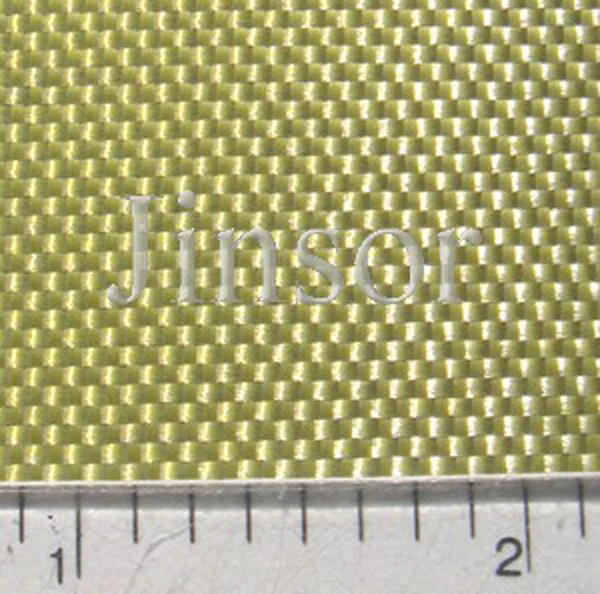

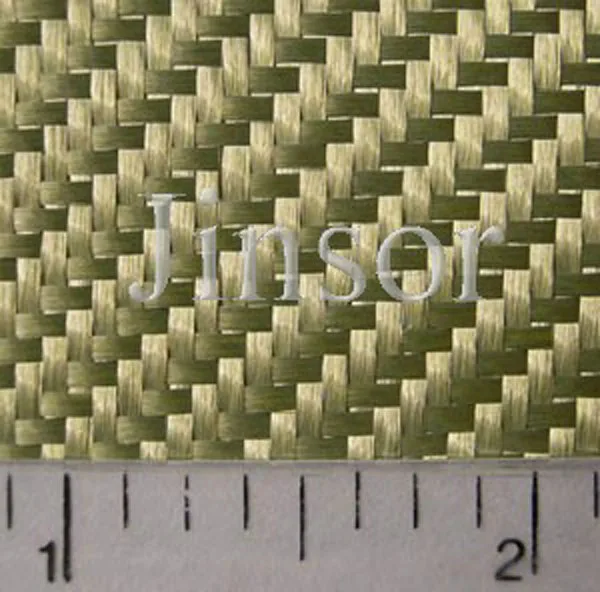

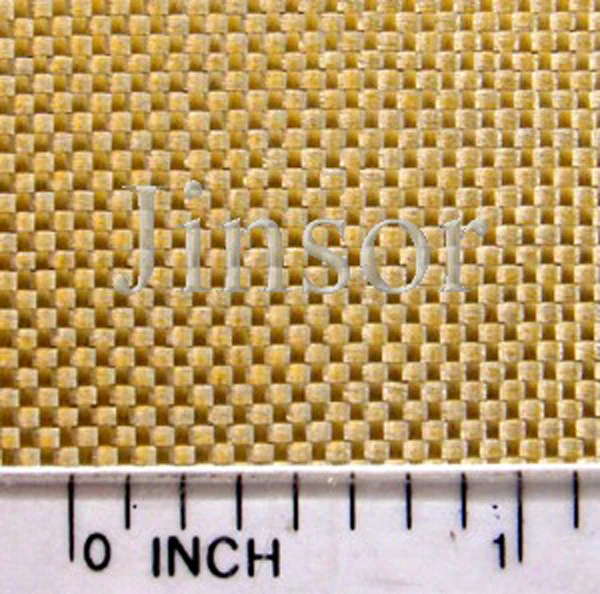

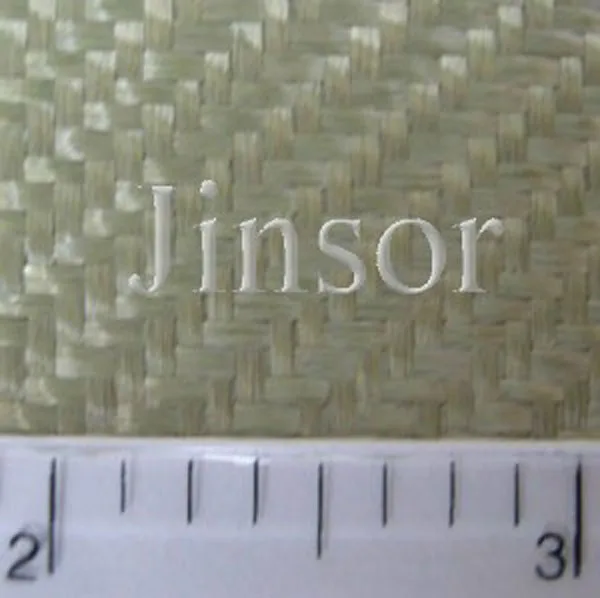

gold aluminized Fiberglass Fabric

Product Overview

Description



We can supply the gold aluminized Fiberglass Fabric and colored silver fiberglass fabric for composite application.

Such as

1. car

2. bicycle

3 .shoes parts

4.music instrument

5.Boat parts



the weave patter can be plain ,twill2x2

width is 100cm

weight is 290gsm~310 gsm

The applications are similair to carbon fiber fabric.

The color can be

1.silver grey

2.red

3.Blue

4.golden

5.yellow

6.violet





If you need it, please be sure to  leave your E-mail address  (Your E-mail address is very important for us), we will contact you very soon.



JINSOR colored metallic fiberglass fabric detail specifications

Applications:.Bicycle frame,Tube,Shoes parts,Car parts,Other sports goods.

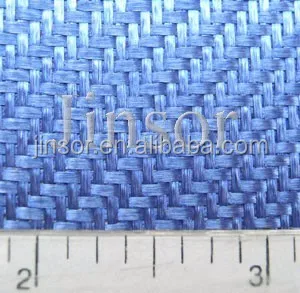

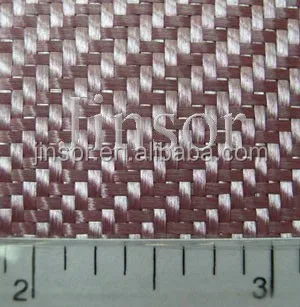

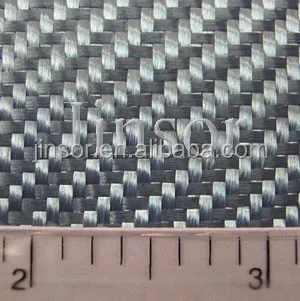

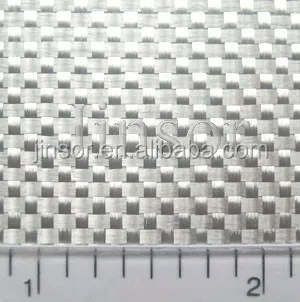

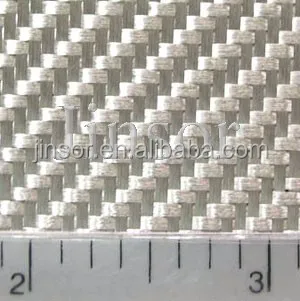

Code No (pictures) weave pattern Thick (mm) width(cm) F.A.W (g/m2) fiber counts/inch fiber type photos per inch warp weft warp weft JSAA 1815T Twill 2x2 0.17 100~152 170 35 27 silver fiberglass silver fiberglass JSAA 1805P plain 0.17 100~152 170 35 27 silver fiberglass silver fiberglass JSAA 2323P plain 0.24 100~152 276 23 23 silver fiberglass silver fiberglass JSAA 2323BL plain 0.24 100~152 276 23 23 silverblue fiberglass silverblue fiberglass JSAA 2323Y plain 0.24 100~152 276 23 23 silveryellow fiberglass silveryellow fiberglass JSAA 2323G plain 0.24 100~152 276 23 23 silvergold fiberglass silvergold fiberglass JSAA 2323R plain 0.24 100~152 276 23 23 silverred fiberglass silverred fiberglass JSAA 2323B plain 0.24 100~152 276 23 23 silverblack fiberglass silverblack fiberglass JSAA 1719P Plain 0.27 100~152 285 17 19 silver fiberglass silver fiberglass JSAA 1719T Twill 2x2 0.27 100~152 285 17 19 silver fiberglass silver fiberglass JSAA 1719TBU Twill 2x2 0.27 100~152 285 17 19 silverblue fiberglass silverblue fiberglass JSAA 1719TBA Twill 2x2 0.27 100~152 285 17 19 silverblack fiberglass silverblack fiberglass JSAA 1719TP Twill 2x2 0.27 100~152 285 17 19 silverpink fiberglass silverpink fiberglass JSAA 1719TY Twill 2x2 0.27 100~152 285 17 19 silveryellow fiberglass silveryellow fiberglass JSAA 1719TG Twill 2x2 0.27 100~152 285 17 19 silvergold fiberglass silvergold fiberglass JSAA 1719TV Twill 2x2 0.27 100~152 285 17 19 silverviolet fiberglass silverviolet fiberglass JSAA 0311T Twill 2x2 0.27 100~152 324 14 13 silver fiberglass silver fiberglass JSAA 1012T Twill 2x2 0.54 100~152 530 10 12 silver fiberglass silver fiberglass JSAA 1012TBA Twill 2x2 0.54 100~152 530 10 12 silverblack fiberglass silverblack fiberglass JSAA 1012TB Twill 2x2 0.54 100~152 530 10 12 silverblue fiberglass silverblue fiberglass







Oliver Chou

Jinsor-Tech Industrial corporation <br>.
