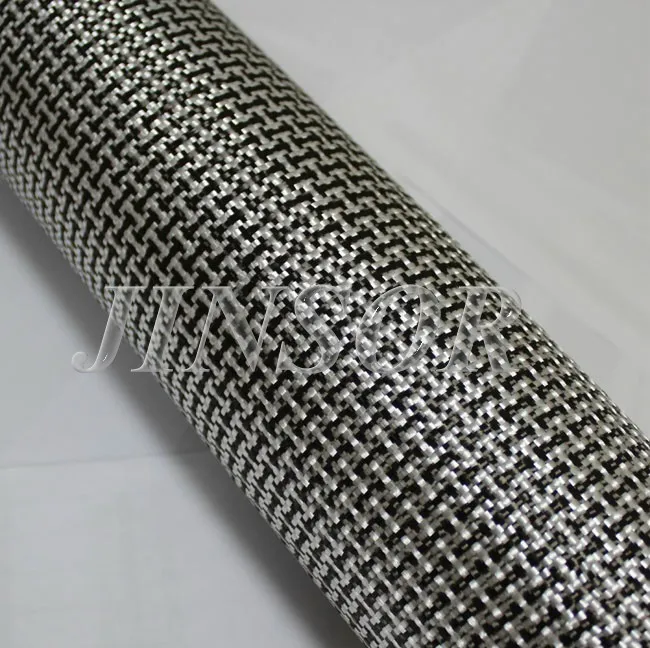

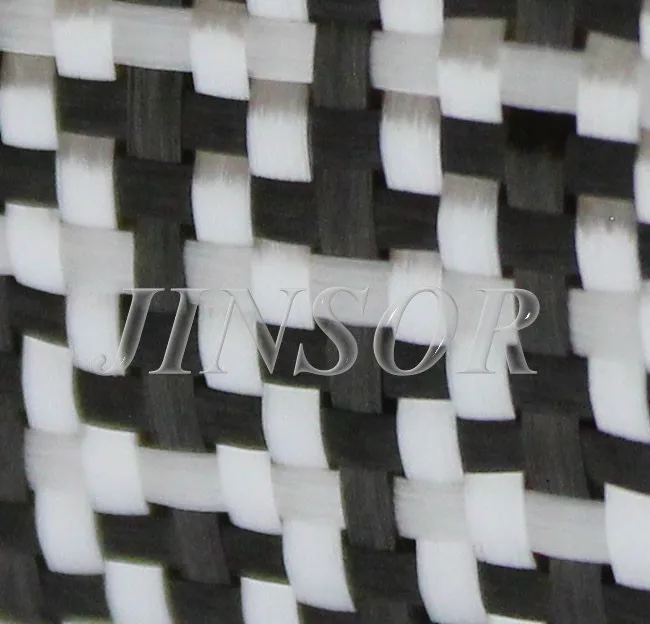

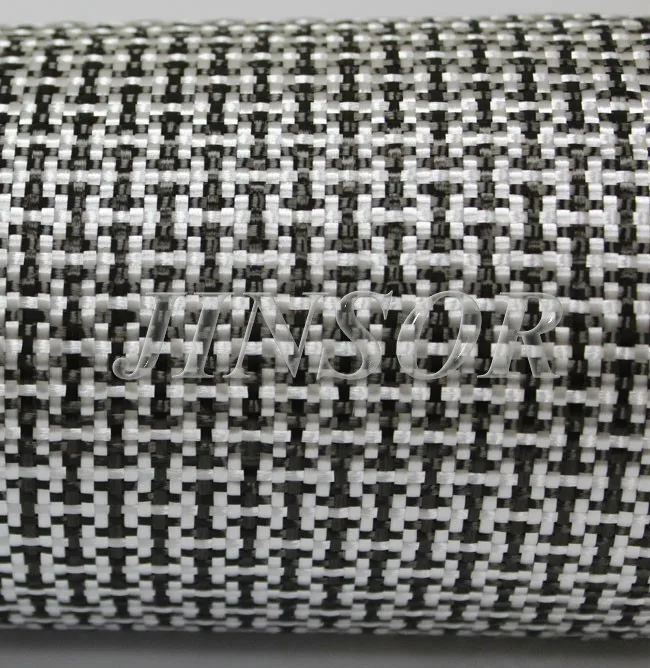

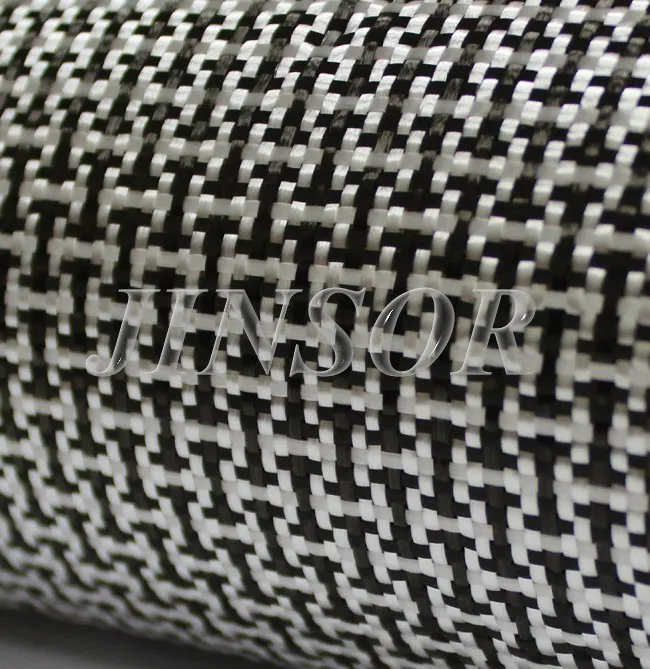

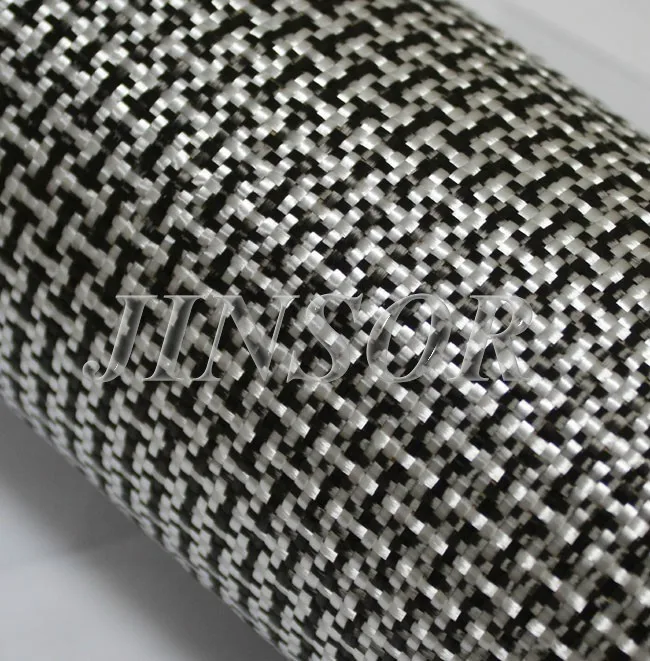

UHMWPE carbon fabric

Product Overview

Description

We can supply UHMWPE (Izanas)carbon  fabric for car sporting goods.

and It can compet the Dyneema or spectran fiber fabric in strength .

carbon fabric fabric for sporting goods
weave in plain,twill satin
width is from 20cm ~180cm
area weight is from 96~1000gsm



carbon fiber,carbon fiber cloth,colored Carbon fiber Fabric for sale



Carbon fiber is a new material, it has the obvious advantage of high tensile strength, abrasion resistance, corrosion resistance, good conductivity, and high temperature resistance. Carbon fiber fabric can be compatible with epoxy, vinyl, polyester and other resins. It shows incredible mechanical performance and reinforcing effect on structures. The product of carbon fiber fabric has below features:
1. Light weight, easy to construct, and little increasing the weight on constructed based materials.

2. Soft, free to cut, is suitable for a variety of shapes structures, and have close adhesion with reinforced concrete surface.

3. The thickness is small, so it is easy to overlap.

4. High tensile strength, high flexibility, and have the same effect as to use steel plate reinforcement.

5. Anti-acid and alkali, corrosion resistance, and can be used in any harsh environment.

6.The supporting epoxy resin impregnated adhesive (recommended our company matching epoxy adhesive)have good permeability, the construction is simple and time required is short.

7. Non-toxic, non-irritating odor, living still in construction.

8. Carbon fiber sheet has high tensile strength, which is equivalent 10 - 15 times to ordinary steel.



Advantages of Carbon Fiber Fabric



Carbon Fiber Fabric

1.high tensile strength and ray penetration

2.abrasion and corrosion resistance

3. high electric conductivity

4. light weight,easy to construct

5.high elastic modulus

6.wide temperature range

7.type:1K,3K,12K

8. good surface, factory price

9. Standard width we produce is 30cm, any other width can be on your request

10. Other tape area weight can be avaible

Application of Carbon Fiber Fabric

Carbon fiber fabric has found an increasingly wide utilization in many fields:
1. Increasing building use load;
2. Engineering functional use change;

3. Material aging;

4. Concrete strength grade is lower than the design value;

5. Structural cracks processing;

6. Harsh environment service component repair, protective.

7. Other purposes: sporting goods, industrial products and many other fields.



Packaging & Shipping

1.Package: Roll length of the carbon fiber fabric is 100m.
2.Packing: Air bubble film for inner packing and caton box for outer packing.
3.Shipping: By air, By sea, By train



4.Delivery Time: 15 days on receipt of payment



The appearance is more bright than
3K carbon fiber fabric. The application can be for car parts and sports goods and other industrial decorations.
Please give us your E-mail address if you need sample or prices or more detail information.
Thanks



Oliver Chou

Jinsor-Tech Industrial corporation



JINSOR UHMWPE (Izanas) fiber detail specifications
1. sporting goods: golf shaft,tennis racket,ski board,snow board,surfboard,fishing rod,bicycle fram...
2. car parts: hood,front fender,steering wheel,gear shift,mirror cover,trunk cover.
3. Bullet proof vest ,bullet proof panel,bullet proof car
4. boat parts: yacht,kayak,loom,loom blade,boat shell. 5. Electronic parts:speaker cone,mobile phone shell.

Code No (pictures) woven pattern thickness (mm) width(cm) weight  (g/m2) counts/inch fiber photos per inch warp weft warp weft I10055 Plain 0.12 100~210 55 65 58 SK60 110dtex SK60 110dtex U1223P plain 0.5 100~152 245 23 23 UHMWPE 1333dtex UHMWPE 1333dtex BU1223P Plain 0.5 100~152 245 23 23 black UHMWPE 1333dtex black UHMWPE 1333dtex CI0301P plain 0.27 100~152 170 12.5 12.5 3K x1 + UHMWPE(Izanas) 1333dtex x1 3K x 1 + UHMWPE(Izanas) 1333dtex x1 CI0302P plain 0.27 100~152 170 12.5 12.5 3K x2 + UHMWPE(Izanas) 1333dtex x1 3K x2 + UHMWPE(Izanas) 1333dtex x1 CI0303P plain 0.27 100~152 170 12.5 12.5 3K x2 + UHMWPE(Izanas) 1333dtex x1 3K x1 + UHMWPE(Izanas) 1333dtex x2 CI0304P plain 0.27 100~152 170 12.5 12.5 3K x1 + UHMWPE(Izanas) 1333dtex x2 3K x2 + UHMWPE(Izanas) 1333dtex x1 CI0305P plain 0.27 100~152 156 12.5 12.5 3K x1 + UHMWPE(Izanas) 1333dtex x2 3K x1 + UHMWPE(Izanas) 1333dtex x2 CI0312T plain 0.27 100~152 170 12.5 12.5 3K x1 + UHMWPE(Izanas) 1333dtex x1 3K x1 + UHMWPE(Izanas) 1333dtex x1
