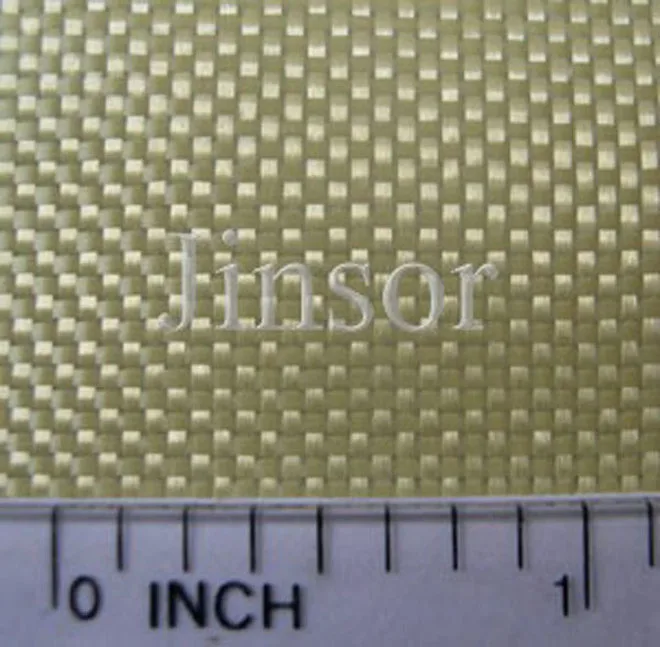

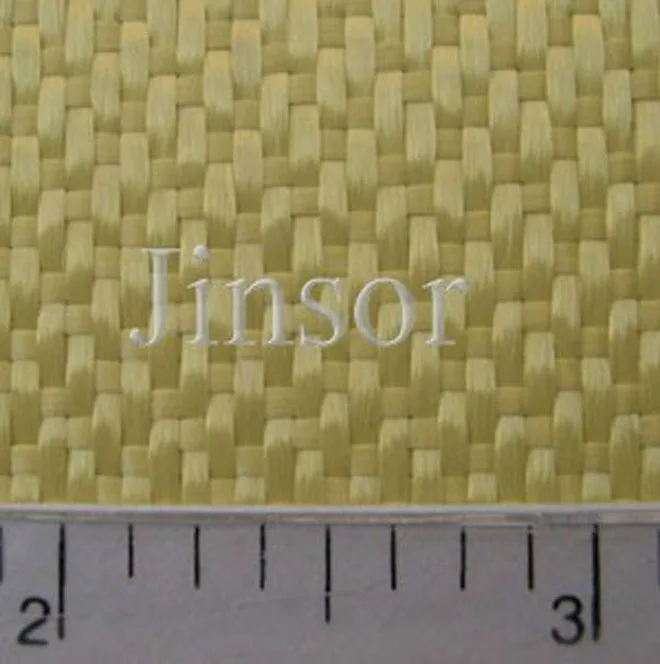

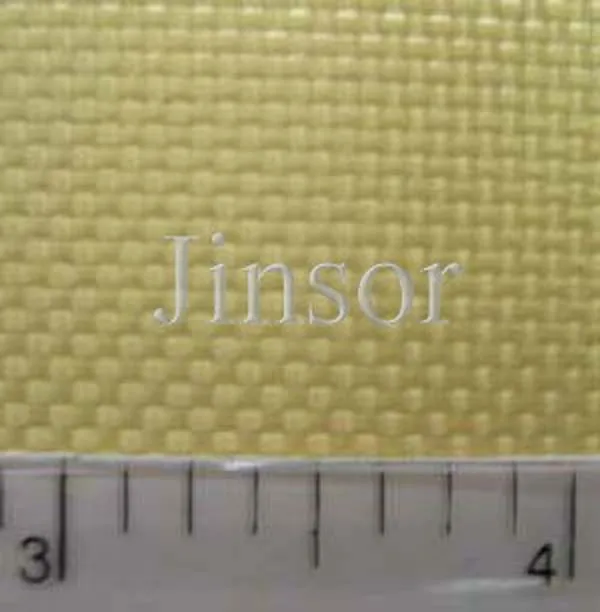

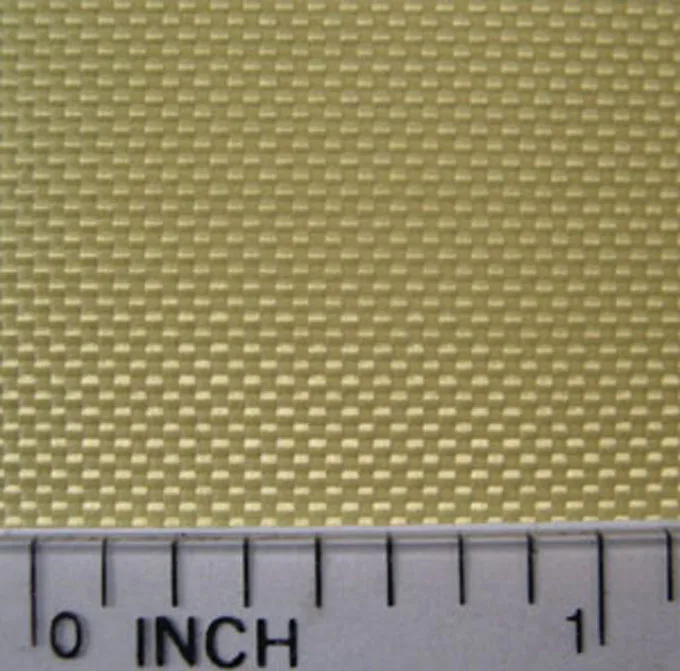

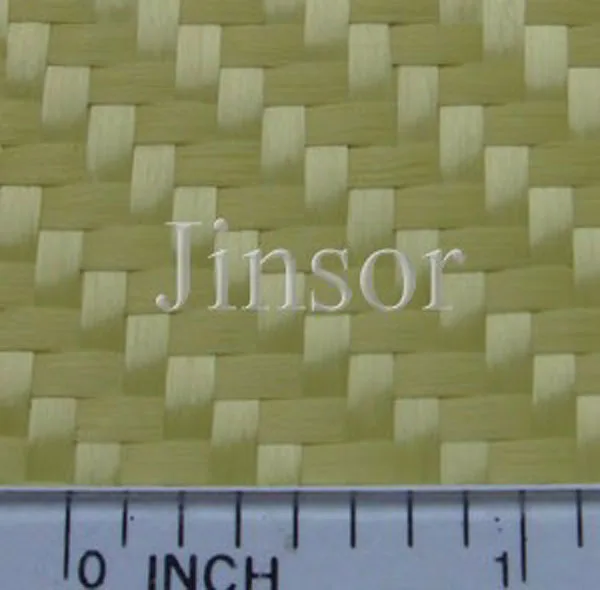

200Dr ultra lightweight para aramid fiber fabric

Product Overview

Description

We are from taiwan and we can supply the 200D ultra lightweight  kevlar aramid  fiber fabric

Also can be for composite application.

The FAW is 300 gsm in twill 2x2.



JINSOR Kevlar & ballistic fabrics detail specifications

Application:bullet proof vest,bullet proof jacket,bullet proof panel,bullet proof car

Code No (pictures) woven pattern thickness (mm) width(cm) weight (g/m2) counts/inch fiber photos per inch warp weft warp weft JSKK 0801P Plain 0.3 100~152 200 26 26 840Dr Kevlar 840Dr Kevlar JSKK 1001P Plain 0.28 100~152 190 21.5 21.5 1000Dr Kevlar 1000Dr Kevlar JSKK 1101P Plain 0.28 100~152 180 18.5 18.5 1100Dr Kevlar49 1100Dr Kevlar49 JSKK 1401P Plain 0.42 100~152 300 23 22.5 1420Dr Kevlar49 1420Dr Kevlar49 JSKK 1501P Plain 0.37 100~152 235 17 17 1500Dr Kevlar 1500Dr Kevlar JSKK 1502P Plain 0.3 100~152 180 13 13 1500Dr Kevlar 1500Dr Kevlar JSKK 2821S satin 5HS 0.46 100~152 300 11.5 11.5 2840Dr Kevlar49 2840Dr Kevlar49 JSKK 3001P Plain 0.58 100~152 460 16.5 16.5 3000Dr Kevlar 3000Dr Kevlar JSKK 3012T Twill 2x2 0.42 100~152 300 10 10 3000Dr Kevlar 3000Dr Kevlar
