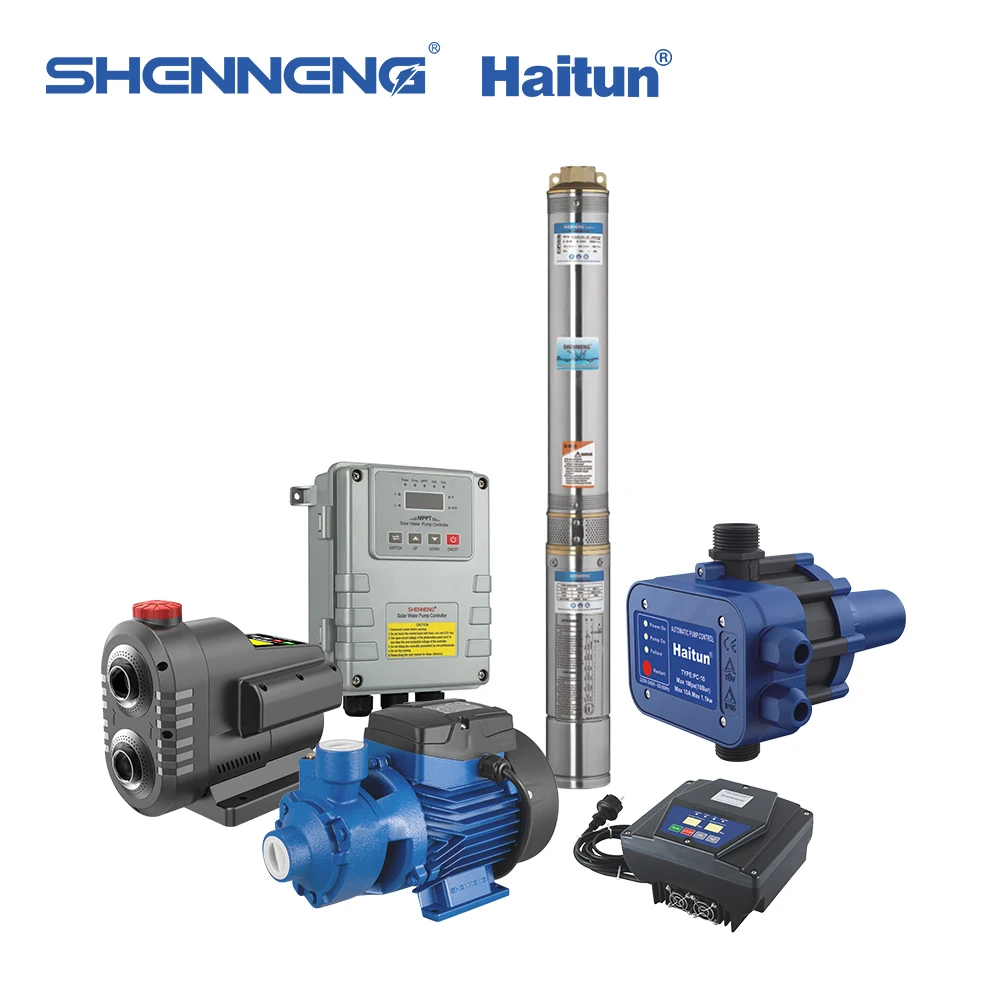

automatic pressure control switch for water pump (PC 13)

Product Overview

Description



electric water pump control



Additional Info.





Trademark:	Haitun
Packing:	international standard export packing
Standard:	CCC, CE and TUV
Origin:	China
HS Code:	9032810000
Production Capacity:	1000PCS/day









Specification

The automatic controller for water pump is an intelligent pump control device installed on the pipeline. It can start and stop the pump according to the varied data such as water resource condition and pipeline pressure it detected. It can completely replace the traditional system constructed by pressure tank, pressure switch, water shortage protection devices, check valve and four-way valves. The particular patented check valve device can prevent the possible surging in the system. Pressure gauge shows system pressure variation and its inlet and outlet are assembled in 90° Right angle.

The starting flow is 80-160L/h and can satisfy any need for home and garden sprinkling irrigation application.





Technical data:

• Rated Voltage :110V-120V or 220V-240V


• Protection Degree:IP65


• Max Ambient Temperature:60°C


• Frequency:50/60Hz



Rated Voltage:	110v -240v
Frequency:	50/60Hz
Rated Current:	10A
Starting pressure setting:	1.2bar, 1.5bar, 2.2bar
Max. Working pressure:	10bar
Connection thread:	R1"
Protection rating:	IP65
Max. Woking tempreature:	60°C

















Descriptions

• Electric switch used in water systems


• It starts the electric pump automatically after a pressure decrease(taps opening)and stops it when the fluid flow interrupts at the maximum pressure level of the electric pump(taps closed)


• Joint screw:inlet G1"male,outlet G1"female.


• Completely replaced traditional pump control system composed of pressure switch,pressure tank and check valve,etc.


• Stop the water pump in the case of water shortage.


• Customized setting

Optionals



• color:


•

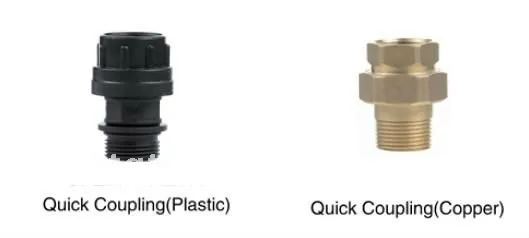

• G1"plastic pipe joint for a quick connection to water pump.







• power cable length can choose according to customers'needs

                   3*1 or 3*1.5 or 3*0.75    3m or 5m ....



Packing size:

•





















  PACKING SIZE(CM)	46.5*42.7*25
  PCS/CTN	12
  N.W.(KGS)	13.56
  G.W.(KGS)	16.42




Payment term:

•  T/T


• Irrevocable and confirmed L/C at sight

Certificates:

• TUV


• CE


• 3C

Main market:

• Europe


• South America


• Southeast America


• Middle East



Working process:
