Стальной профиль H beam, стальная пластина, машина для очистки

Product Overview

Description

Purpose:

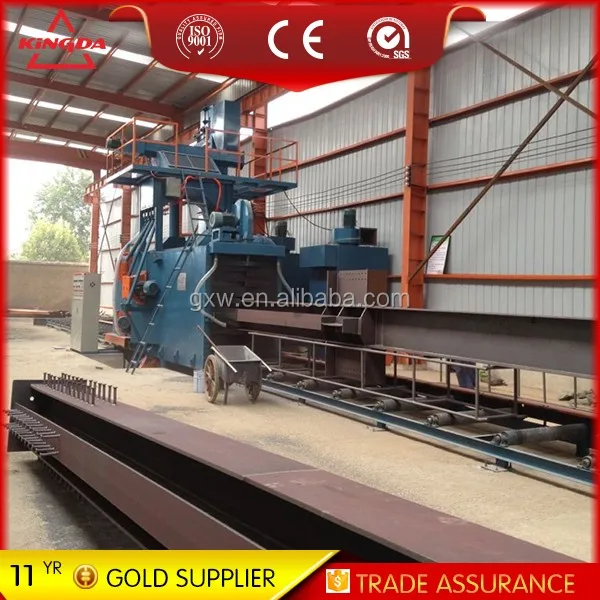

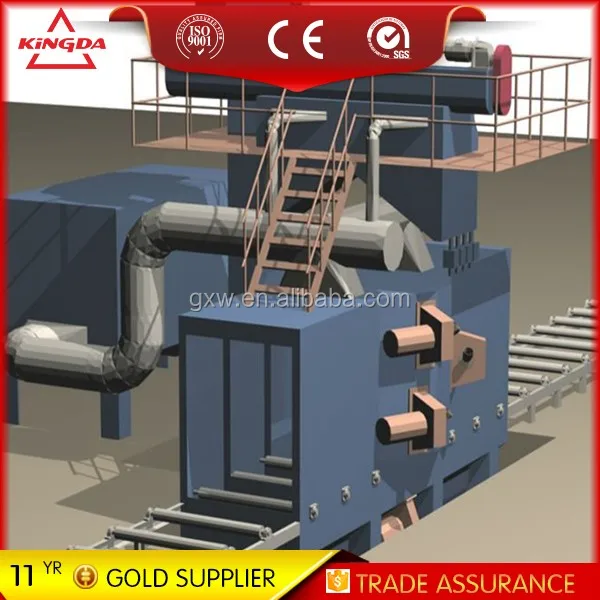

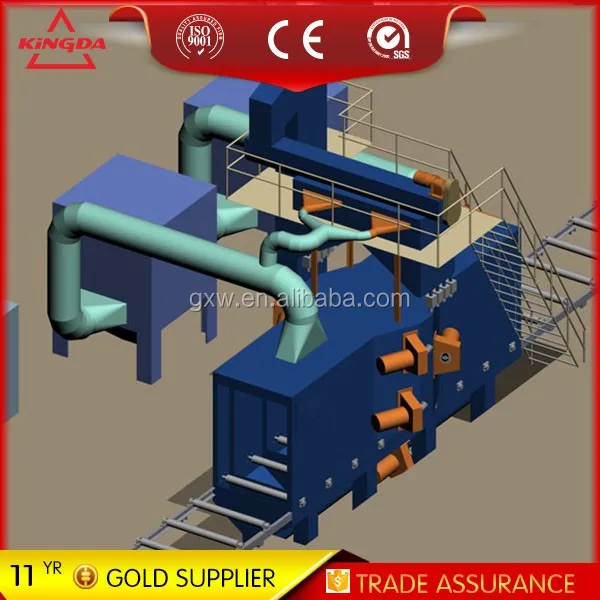

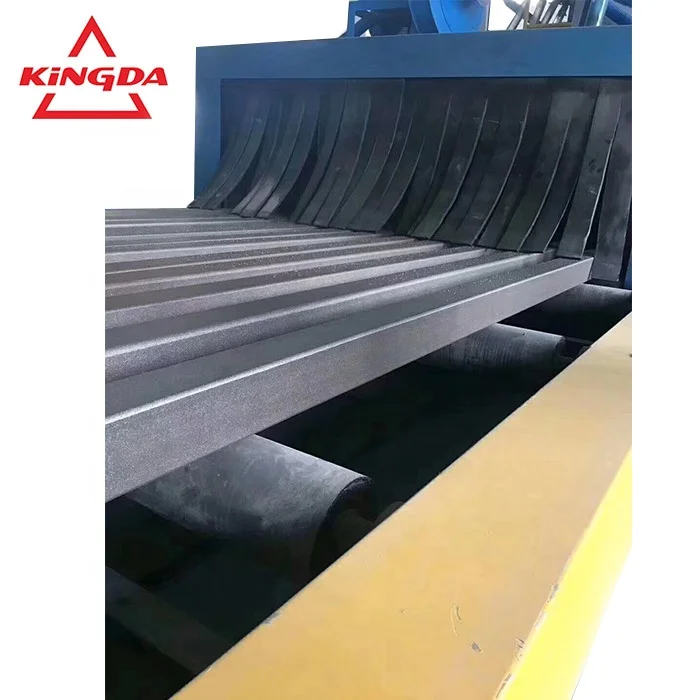

Steel section steel sheet h-beam shot blasting machine , it is mainly used in architecture, bridge industry etc, to relieve stress and clean the surface of large shaped steel,H-beam and other large steel structure.

Modles of machine:



modle		QH126	QH128	QH158	QH168	QH1810	QH2020
workpiece size	W*H mm	600×1200	800×1200	800×1500	800×1600	1000×1800	2000×2000
	L mm	≤15000
blasting turbine	capacity kg/min	6*250	6*250	8*250	8*250	10*250	12*280
	power  kw	6*11	6*11	8*11	8*11	10*11	12*15
elevator	capacity t/h	80		110		132	180
	power	5.5		7.5			11
work speedm/min		0.5~4



QH1520  Spec:

work piece size to be cleaned:

Length¦12000~18000mm(according to the workpiece length)

Width¦1500mm

Height¦2000mm

Cleaning speed¦0.5~5m/s

Blasting turbine:12*15kw
