Product Overview
Description
20mm power high rpm electric motors,dc replacement maxon motor
| CONSTAR MICROMOTOR | ||
 |  |  |
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
 |  |  |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR
|
Applications
Precision driving field in medical, health care, automobile, industrial automation, etc
Specifications
| /Characteristics | ||||
| -1P-7.4 | -6P-12.0 | |||
| 1 | Voltage | V | 6.0 | 12.0 |
| 2 | Terminal resistance | Ω | 1.8 | 11.7 |
| 3 | No-load speed | rpm | 9350 | 10000 |
| 4 | No-load current | mA | 30 | 15 |
| 5 | Stall torque | mNm | 20.7 | 11.3 |
| 6 | Stall current | mA | 3400 | 1000 |
| 7 | Nominal torque | mNm | 4.5 | 4.0 |
| 8 | Nominal speed | rpm | 7290 | 6550 |
| 9 | Nominal current | mA | 760 | 360 |
| 10 | Max. output power | W | 5.1 | 3.0 |
Options
Lead wires length, shaft length, special coils, gearheads, encoder
Customized Motor
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!

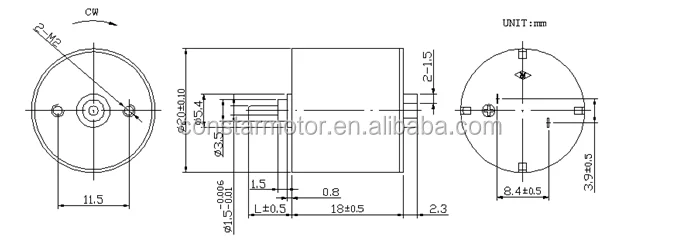

Outline Drawing

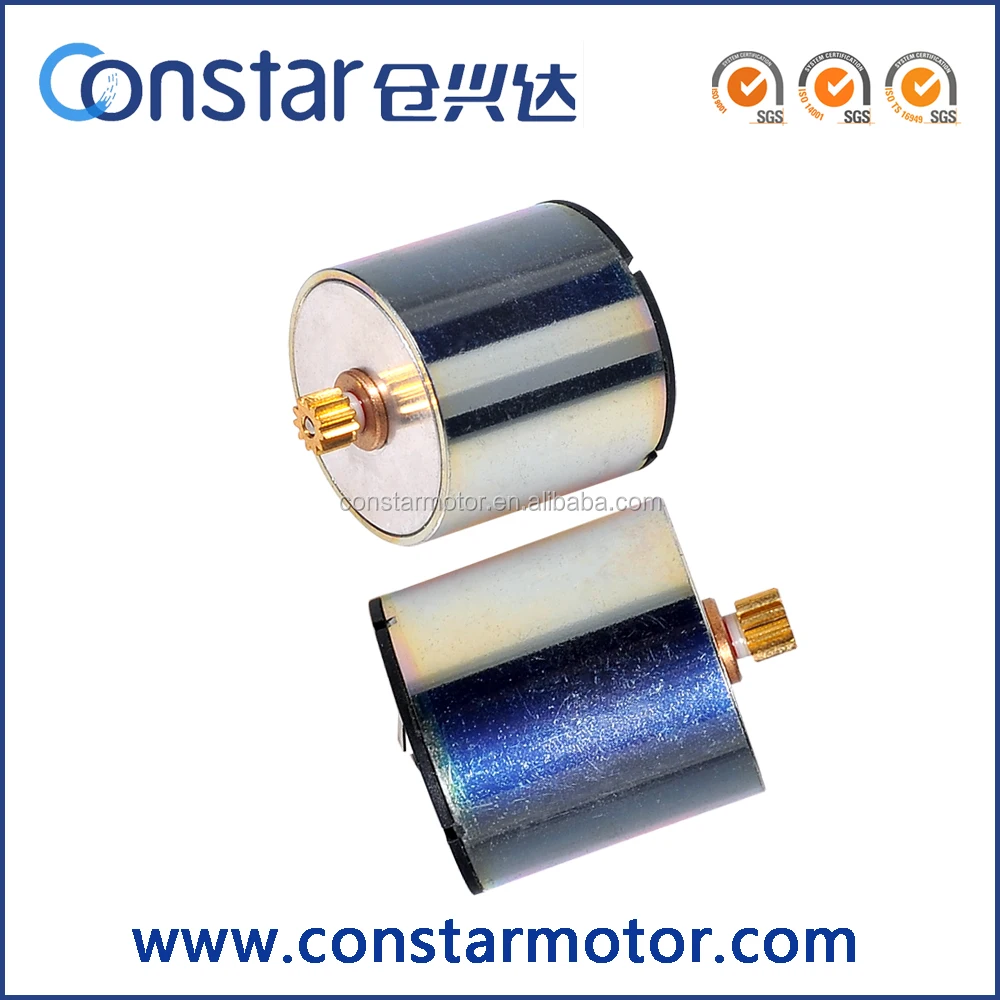

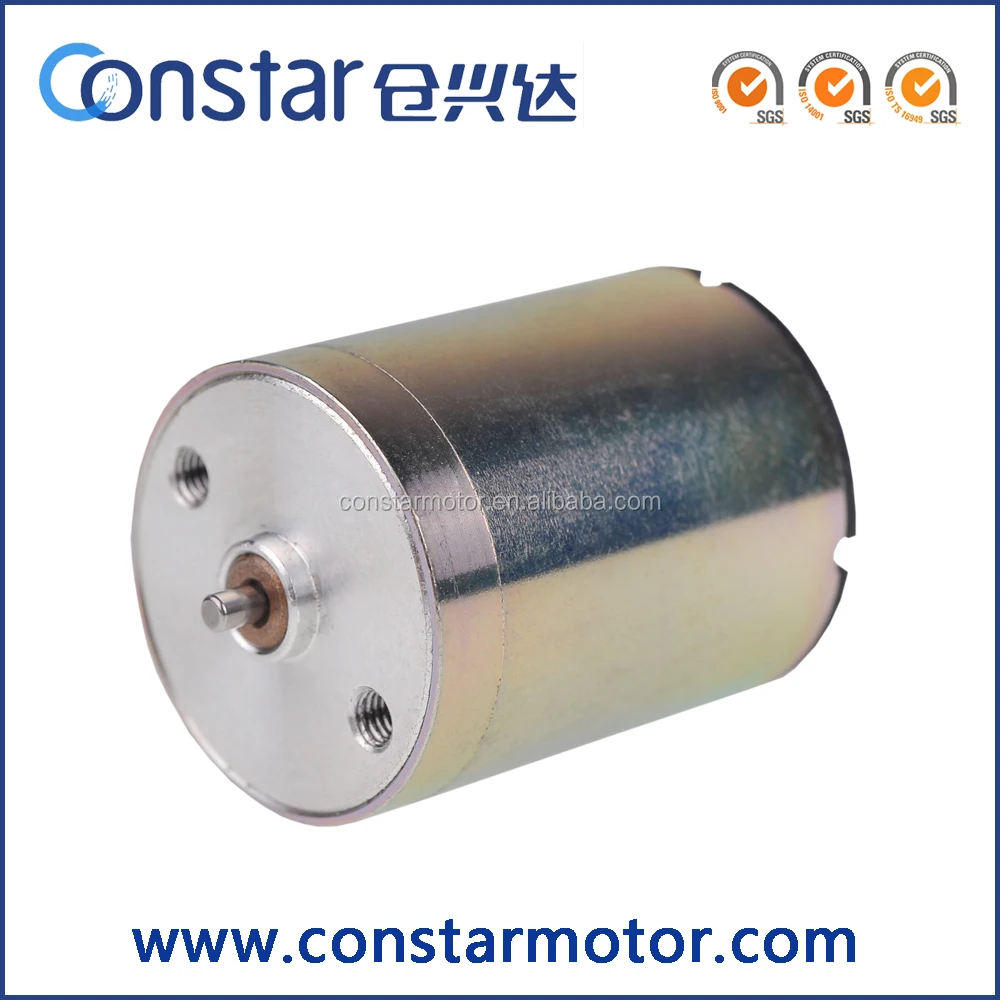

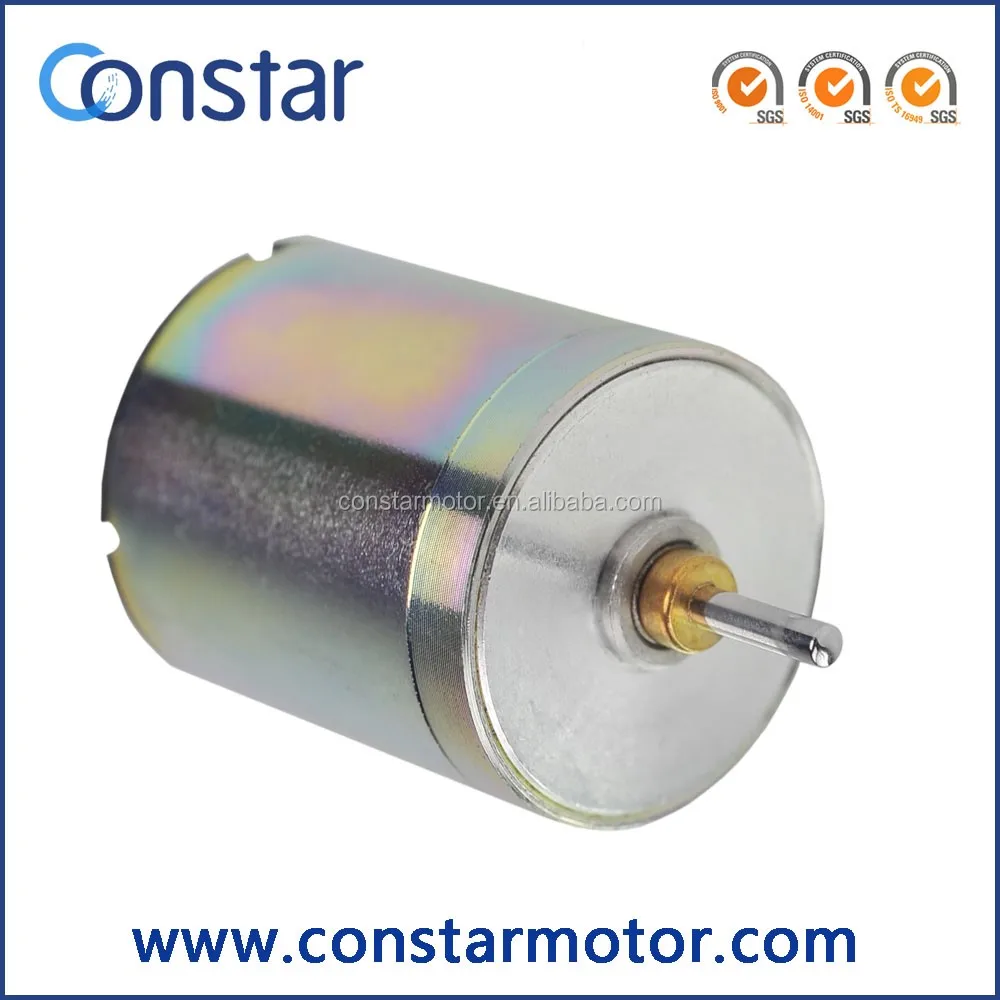

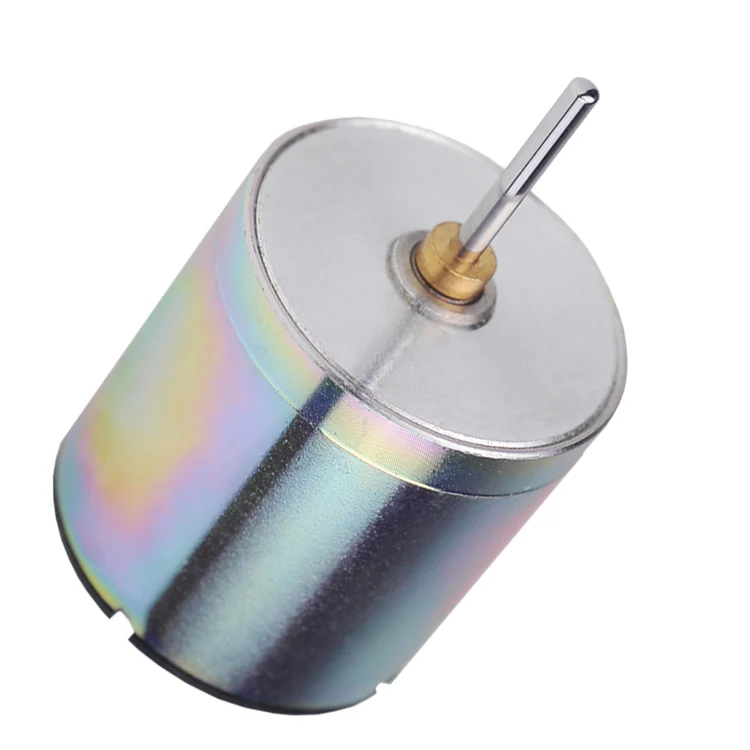

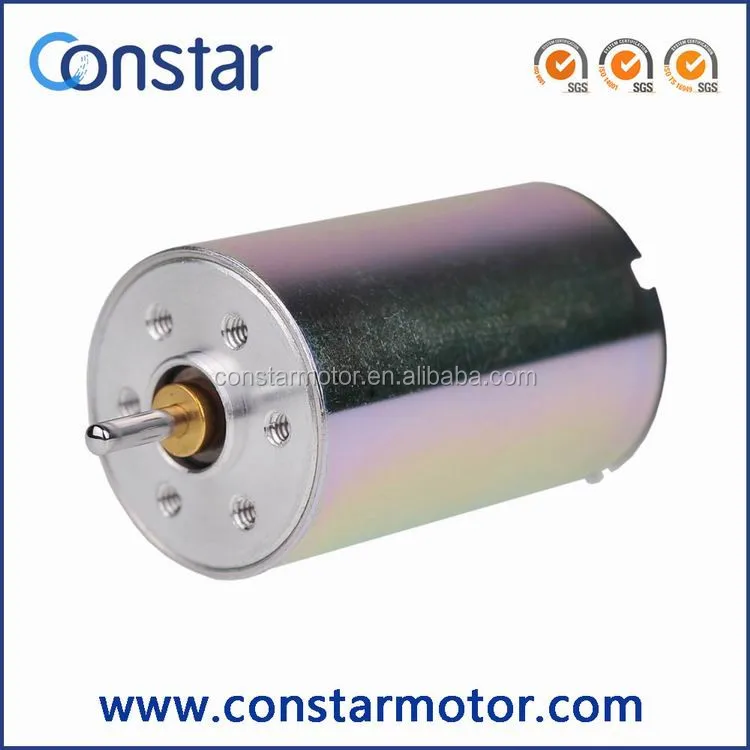

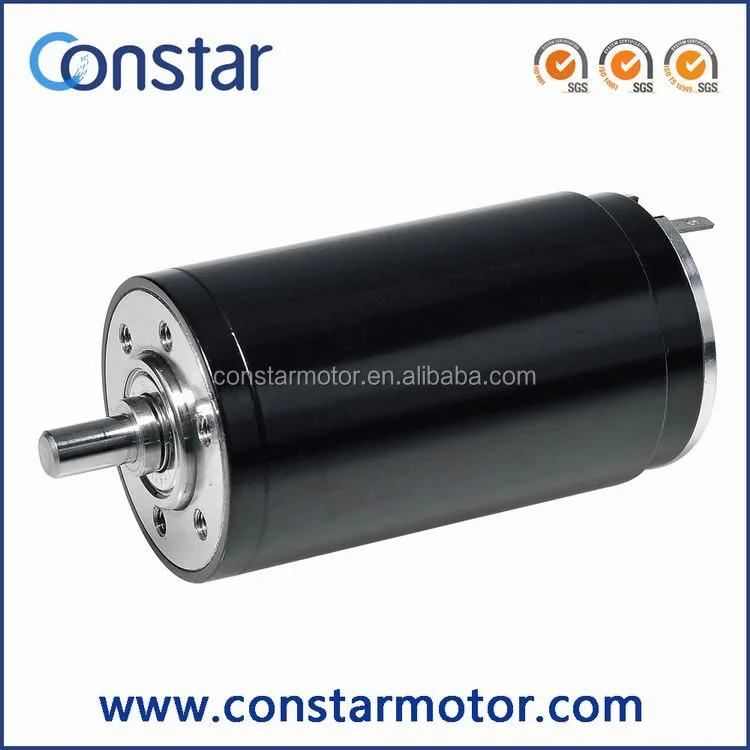

Product Show
Other Item
| Series | Dimension | Voltage | Terminal resistance | Speed | Current | Load Current |
| (mm) | (V) | (Ω) | (rpm) | (mA) | (mA) | |
| 0615RCN | Φ6*15 | 3 | 19 | 12200 | 10 | 1.1 |
| 0816RCN | Φ8*16 | 8 | 60 | 15500 | 6 | 4.7 |
| Φ8*16 | 4.2 | 12.4 | 13700 | 15 | 2.8 | |
| 1025RCN | Φ10*25 | 12 | 28 | 11500 | 10 | 9.7 |
| 1220RCN | Φ12*20 | 3.3 | 6.9 | 7900 | 12 | 3.9 |
| Φ12*20 | 6 | 5.2 | 12000 | 30 | 4.7 | |
| 1230RCN | Φ12*30 | 24 | 59 | 10800 | 5 | 21 |
| Φ12*30 | 5.3 | 12.9 | 4450 | 10 | 11.1 | |
| 1331RCN | Φ13*31 | 9 | 17.7 | 6730 | 7 | 12.59 |
| 1416RCN | Φ14*16 | 3 | 2.6 | 11600 | 20 | 2.4 |
| 1515RCN | Φ15*15 | 3 | 6.1 | 6200 | 10 | 4.5 |
| 1620RCN | Φ16*20 | 5 | 4.7 | 10300 | 25 | 4.5 |
| 1625RCN | Φ16*25 | 12 | 16.5 | 8100 | 10 | 14 |
| Φ16*25 | 3.7 | 7.6 | 6000 | 15 | 5.7 | |
| Φ16*25 | 6 | 3.1 | 9800 | 20 | 5.8 | |
| 1627RCN | Φ16*27 | 4.5 | 1.5 | 10100 | 45 | 4.2 |
| Φ16*27 | 6 | 2 | 10000 | 35 | 5.7 | |
| Φ16*27 | 12 | 8.5 | 10000 | 35 | 11.2 | |
| 1630RCN | Φ16*30 | 6 | 3.2 | 8700 | 20 | 6.5 |
| Φ16*30 | 12 | 15.4 | 10900 | 20 | 10.2 | |
| 2018RCN | Φ20*18.2 | 6 | 1.8 | 9350 | 30 | 6.1 |
| Φ20*18.2 | 12 | 11.7 | 10000 | 15 | 11.3 | |
| 2224RCN | Φ22*24.2 | 6 | 2.2 | 7650 | 35 | 7.4 |
| 2225RCN | Φ22*25 | 7.2 | 1.9 | 16100 | 130 | 4.1 |
| 2232RCN | Φ22*32 | 6 | 2 | 8100 | 20 | 7 |
| Φ22*32 | 9 | 2.9 | 9400 | 17 | 9.1 | |
| Φ22*32 | 12 | 4.4 | 10100 | 20 | 11.3 | |
| Φ22*32 | 24 | 18 | 10200 | 15 | 22.2 | |
| 2233RCN | Φ22*33 | 3 | 0.5 | 9000 | 35 | 3.2 |
