Car ISDB T full seg one segment digital tv receiver B cas For Japan Brazil automobile isdbt bcas two tuner 2 antenna FCI

Product Overview

Description

Car ISDB-T full seg one segment digital tv receiver B-cas For Japan Brazil automobile isdbt bcas two tuner 2 antenna FCI chip high speed





ISDB-T9820 Japan car ISDB-T full seg digital tv receiver B-cas



ISDB-T9820 car ISDB-T full segment digital tv receiver with B-cas for Japan or Brazil Good TV receiption for auto mobile ISDB-T digital TV receiver, best quality, cheapest solution, worldwide technolgoy, VCAN made-in-China.



1. Janpan B-CAS supported; BCAS

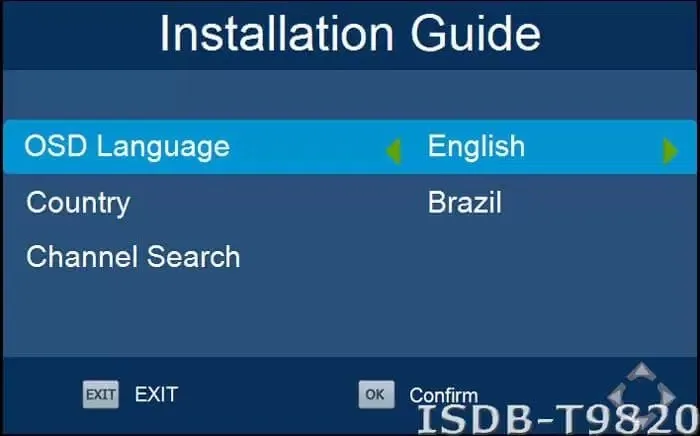

2. Multi-language menu supported;



3. ISDB-T full/One segment; autoswitch and all programs in TV List.



4. Humanistic user interface;



5. VBI & OSD Teletext;



6. Weekly EPG



7. Sub-title/Caption;



8. Channels searched manually, automatically;



9. Software upgrade via TF card



10.32 digit true color OSD



11.Power off memory;



12.Frequency Range: Japan 470Mhz~770Mhz ; Brazil 174Mhz~216Mhz & 470Mhz~806Mhz





1. Input frequency: 174-806MHz



2. Input level:0~-76dBm



3. Bandwidth:6MHz



4.Guard Interval:auto (1/4,1/8,1/16,1/32)



5.FEC:Auto(1/2,2/3,3/4,5/6,7/8 )



6.Input resistance:50Ω

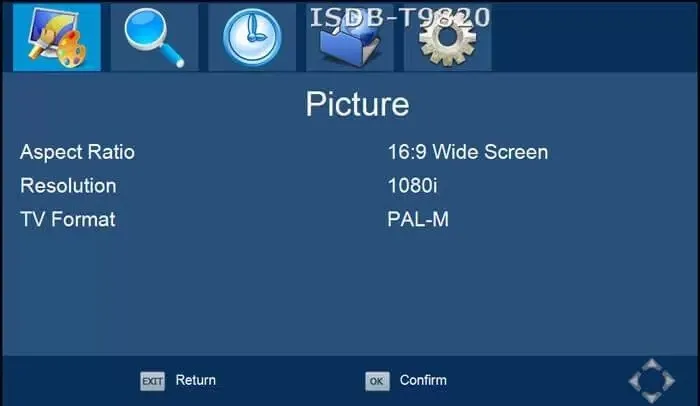

7.Demodulating mode:Auto(QPSK, 16QAM, 64QAM ) 8.Resolution:480i,576i,480p,576p,1080i,720p,1080p



9.Video format: 4:3 / 16:9



10.Decoding mode:MPEG-2 MP(at)HL/ML;H.264 /AVC:MP9(at)L4.0,3.2,HP(at)L4.0;VC-1:AP(at)L3,L2



11.Audio Modulation:100 Levels Volume Modulating



12.Audio output:Single Mono, Dual Mono, Stereo



13.Decoding mode:MPEG-1/2 L1/2,MPEG4 AAC,MPEG4 HE-AAC,DD,DD+,MP3,WMA 14. Power Supply: 12~26V



15. power Consumption: 12W;



16.Stand By: Follow the Janpan Standard

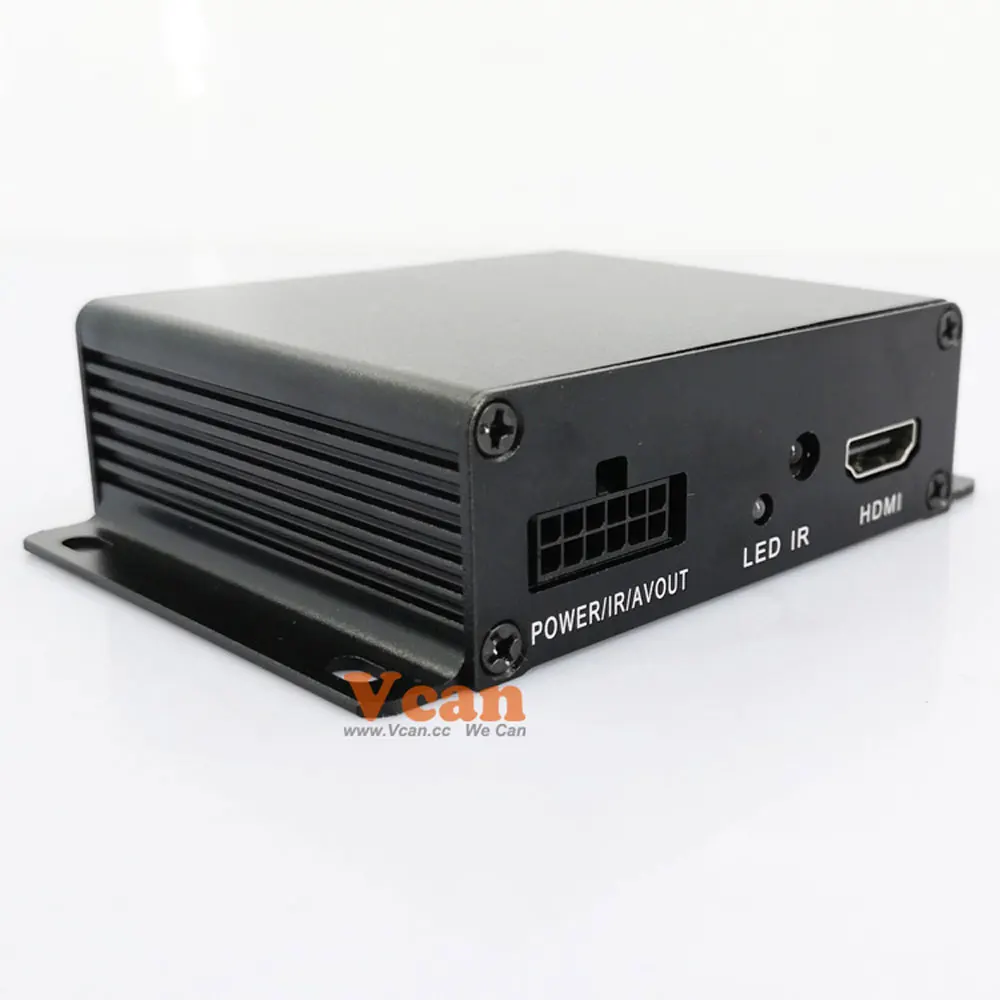

1. One Indicator light

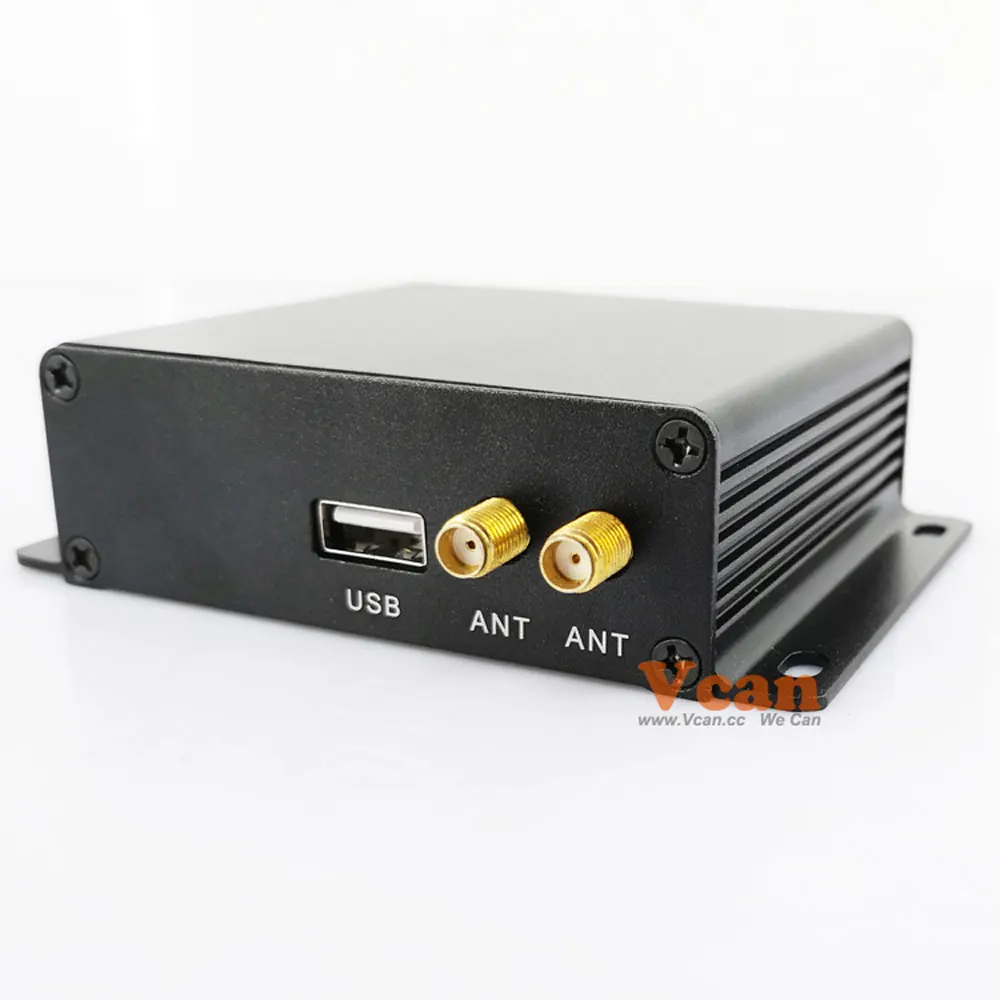

2. 1 x ISDB-T TUNER



3. 3 x RCA(CVBS) video output



4. 2 x RCA(Audio L/R) output



5. 1 x Earphone Port (IR extended cable)



6. 1 x Power Jack



7. 1 x TF card slot



8. Mini B-CAS Slot
