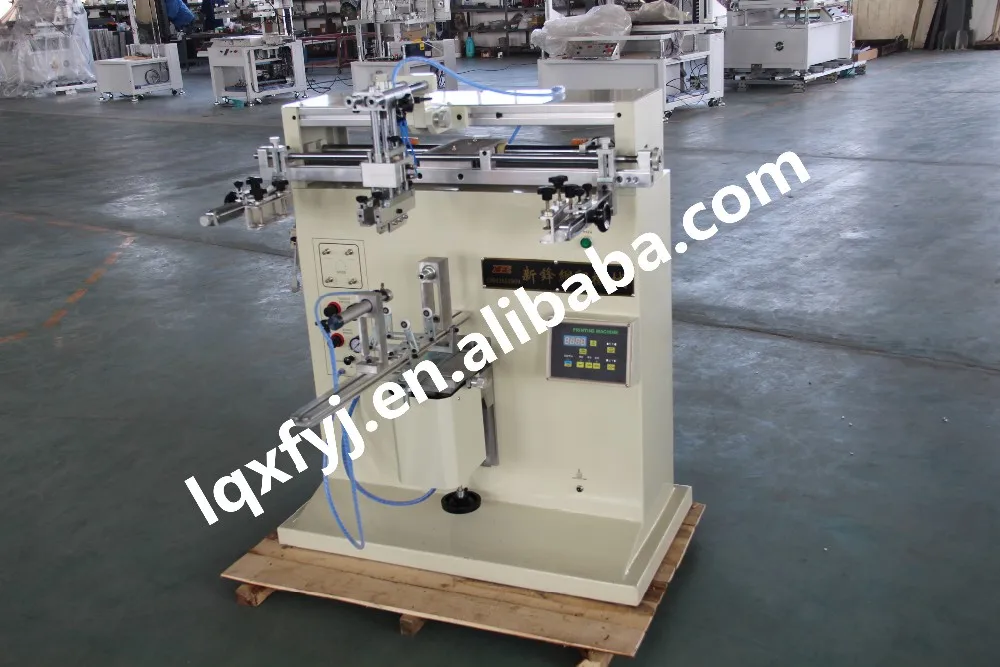

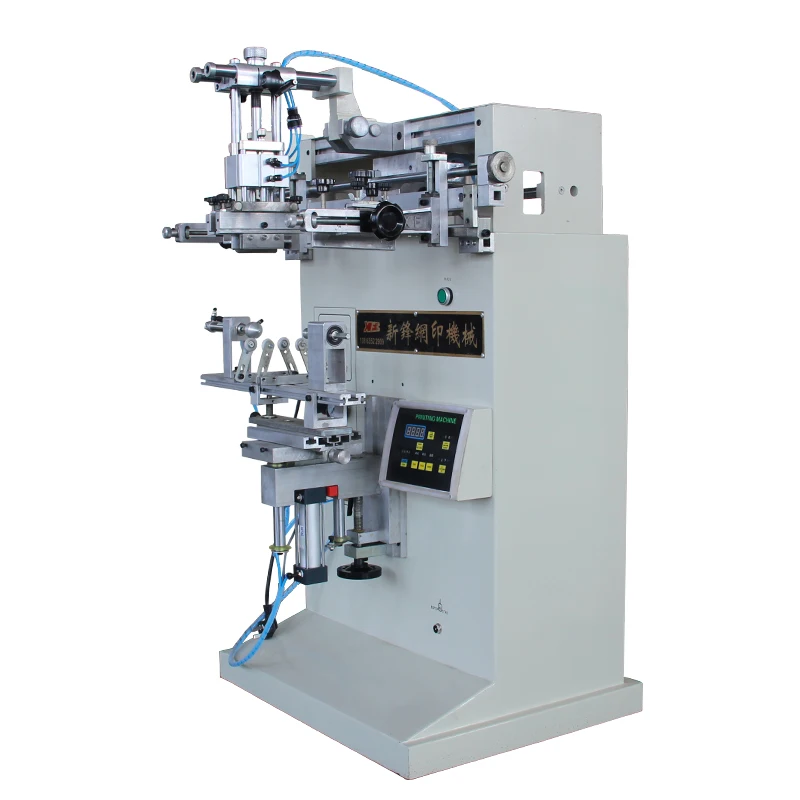

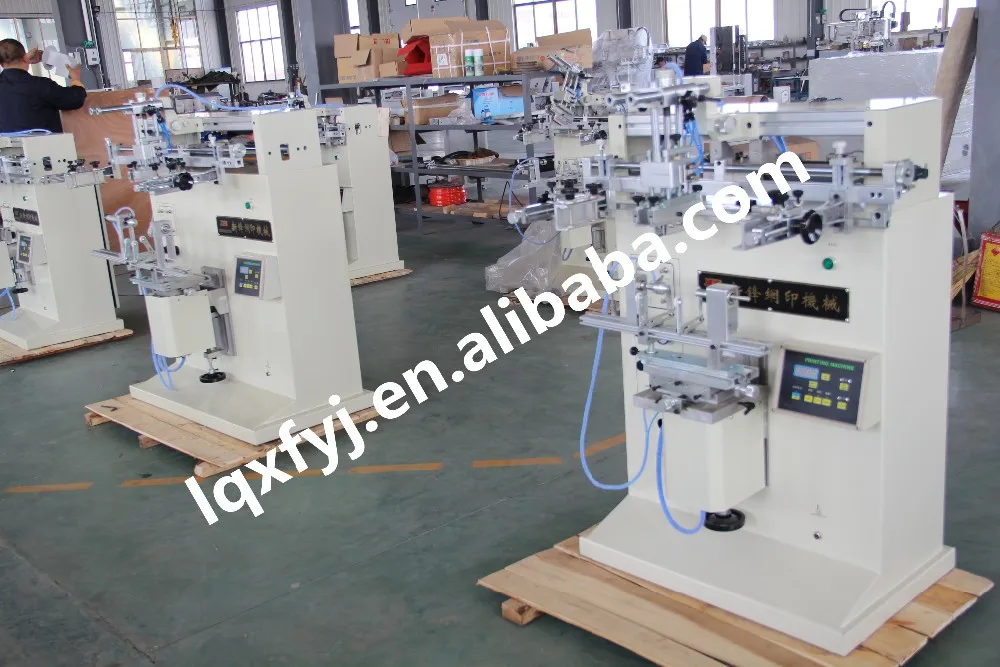

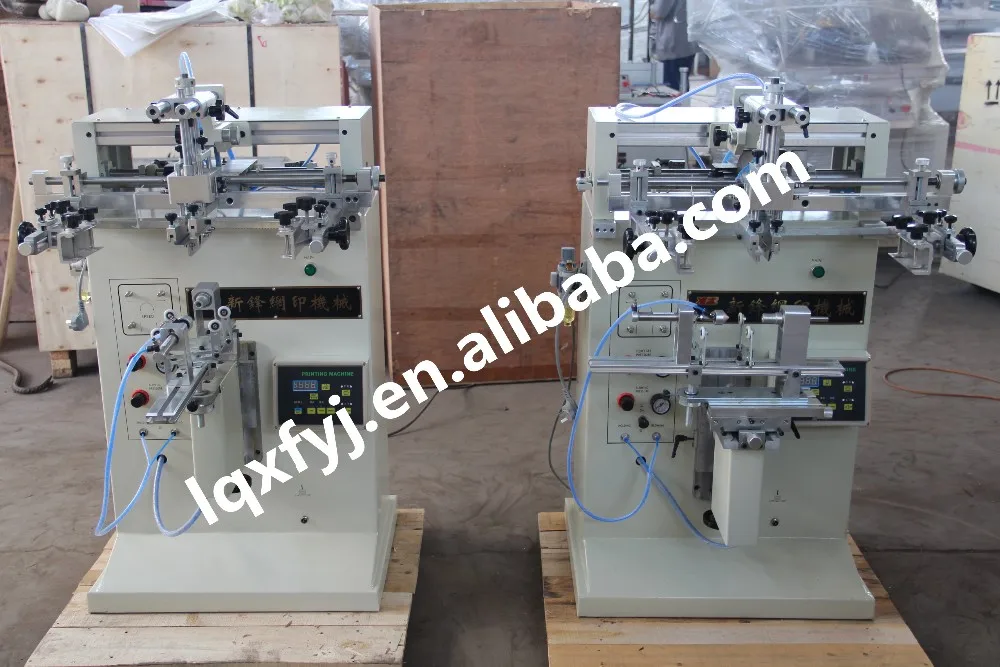

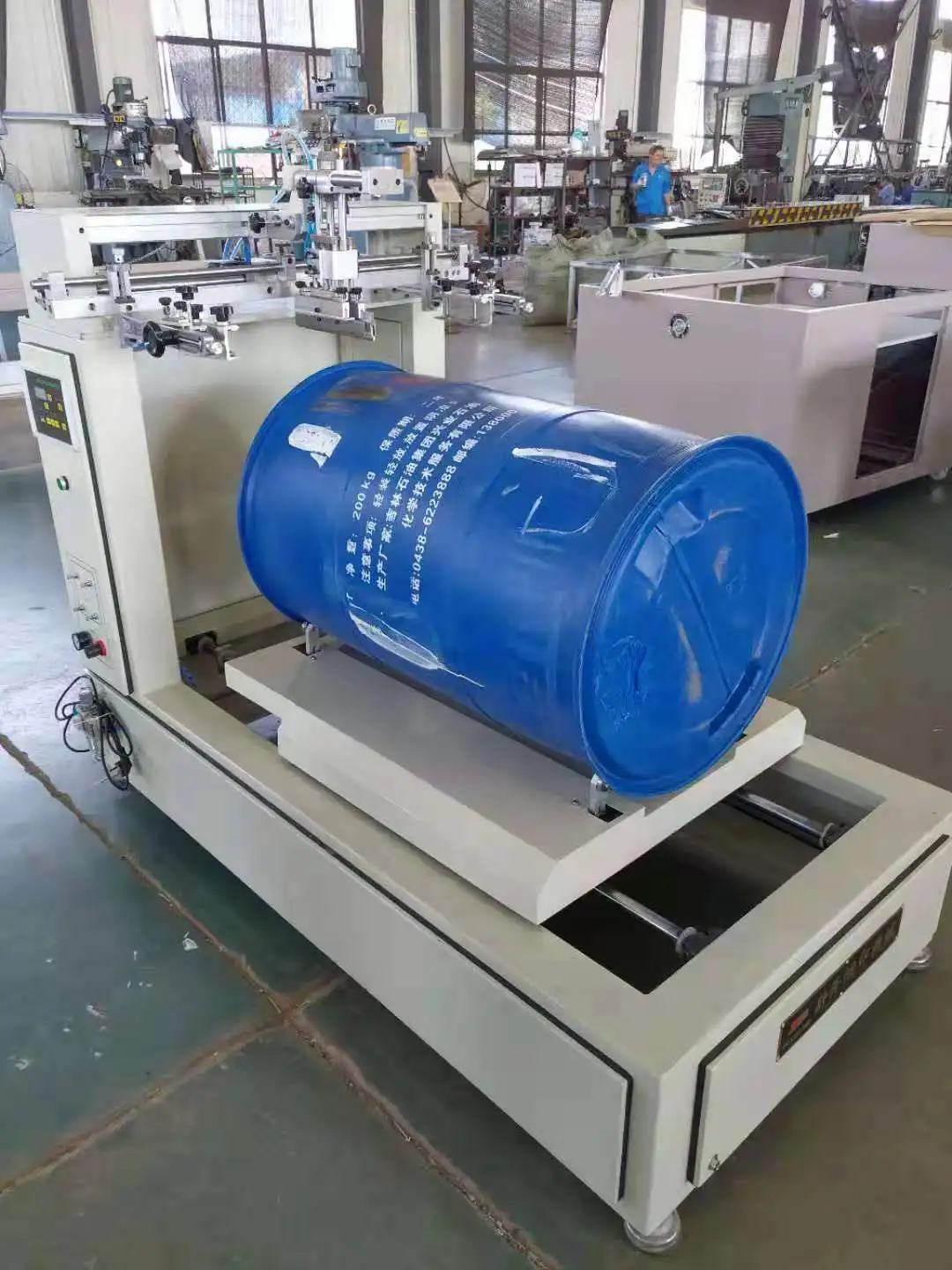

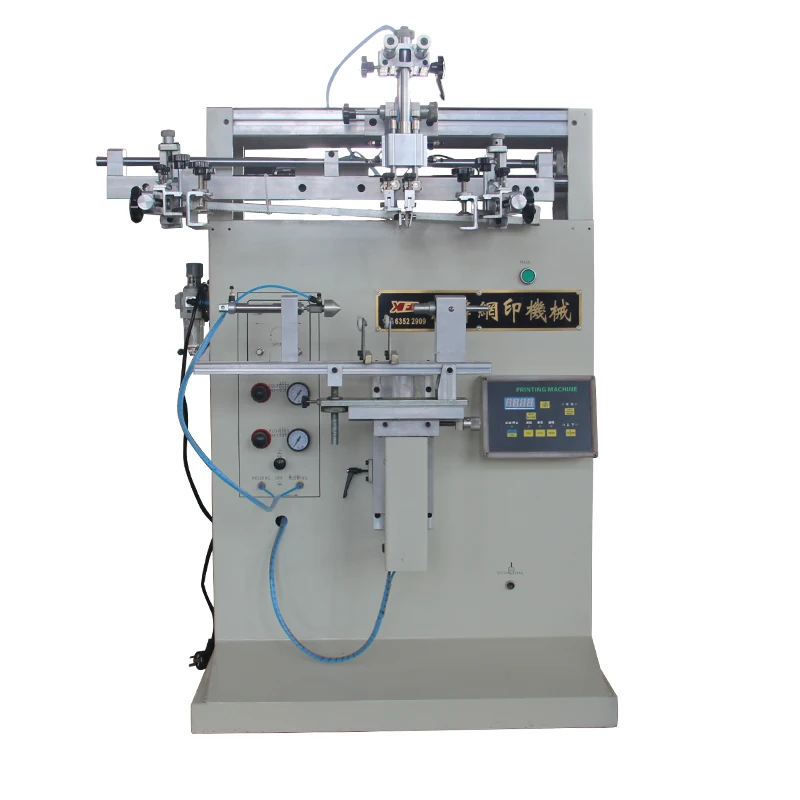

Curved surface silk screen printing machine for bottle

Product Overview

Description





Scope of application:

This screen printing machine are specially designed to print on the cylindrical, cone and oval objects, such as plastic bottle, glass, caps and so on.

Feature:

1. Advanced computerized system control
2. Built-in LED digital counter
3. Suitable for printing on round, cylindrical, oval or flat project
4. Pneumatically driven system which can adjust the movement speed of each part
5. Can be operated in manual and semi-auto mode to suit different worker's skill level.
6. Horizontal movement of screen frame can be adjusted to fit your various printing needs.
7. Squeegee/flood bar depth, pressure, speed, leveling, and stroke etc., are all adjustable to fit your various printing needs.

Parameter:

Model	XF-Q250	YT-Q300	YT-Q400
Max.print size	φ73X250mm	Φ85X300mm	Φ120X385mm
Dimension	75X58X128cm	96X99X128cm	96X99X128cm
Voltage	220V/50Hz 60W	220V/50Hz 60W	220V/50Hz 60W
Weight	100kg	138kg	180kg
Speed	25times/minute	20times/minute	15times/minute
Air pressure	5bar	5bar	5bar
