Sillicon tube/tubing cutting machine/cutter

Product Overview

Description

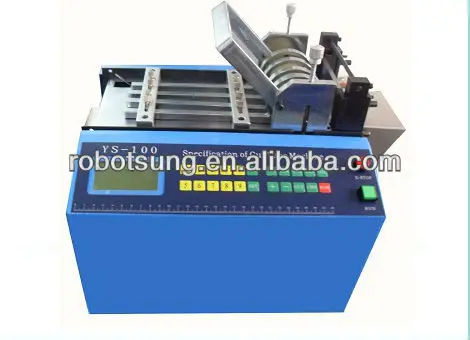

Sillicon tube/tubing cutting machine/cutter



Usage



The machine is suitable for cutting tubes, belt/ribbon/webbing,  wire/cable, film, sheet, etc

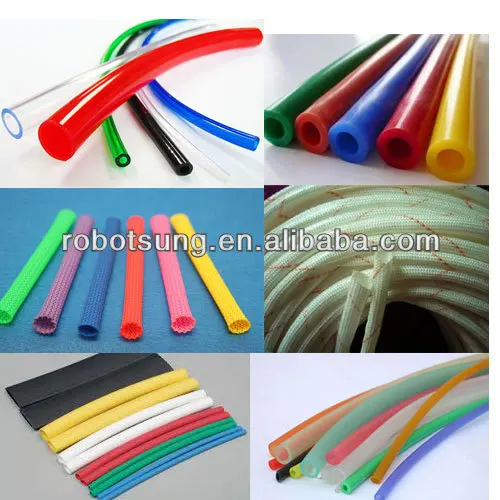

Suitable tube: Plastic tube, rubber tube, PVC tube, silicon tube, heat shrink tube, braided tube, shrink sleeve, Teflon tube, corrugated tube, etc.



Parameters



Electrical Source	220V 50/60HZ
Power	250W
Cut Length	from 0.1 MM to 9999.9MM
Cut Width	from 0.1 MM to 95MM
Cut Speed	It depen on the cut length,from 50 PCS to 120PCS per minute
Net Weight	28KG
Outer size	L360*W300*H350 mm
Packaging detail	Carton or wooden case with foam plastics.L550MM*W410MM*H470MM.



Features and Functions:



1.The transmit material is controlled by the computer program,with high speed and the precision can reach at 0.1MM.



2.It can equip hot fusing knife,can be used for cut the corses,nylon belt,elastic and so on.



3.The cut speed and length can be setted at will as your need.



4.The totality you need to cut can be divided into several groups or cut it once in all.



5.It can set up a suspend time when finished a cut quantity, and it can stop by itself when completed,no need the woker to watch it.



6.This machine applies to cut the canular and banding material. It provide a skid bed can be used for place the material.



7.Our machine adopt the high-speed stepping motor which could exact control the length you want to cut.The cut length and speed can be adjusted as your need.



8.This machine adopt the LCD screen , it is simple and convenient to operate.It use the appropriative mechanical structrue and high speed steel tool bit,at the same time with the appropriative software control system,reach the standard of smooth cutting margin and precise cutting length.



9. This machine can be used to cut the shrinkable tube,cable ties,silicone tube,pvc tube,wiring,plastic hosepipe,teflon tube,chequered tube,hook and loop,insulated sleeve,insulation paper,copper foil and so on.It is fit for fixed-scale cutting the banding,strip,tubulous material.



Suitable for cutting kinds of soft tubes
